manArgard11060001type4 ARGARD M10 manual Contents Overview Accessories Features Specifications Getting Started Using Your Headset Menu Functions Troubleshooting & FAQ Care and Maintenance Warranty 02 03 04 05 06 11 12 16 18 20 01 Overview 1. Talk Button Answer and end your calls directly from your headset 3. Earpiece Comes with extra earpieces (larger and smaller sizes) 2. Volume Buttons Manage the call volume without accessing your mobile phone 1 2 3 AC Adaptor Charging Cradle Extra Earpieces Accessories 02:03 Features Lightweight, small, cutting edge design In-ear Design, fits completely in ear Design to be wearable on the left or right ear Easy to use: only 3 buttons and one clear indicator light Battery will last all day long Specifications Weight: 5 grams Size: 23 mm x 22 mm x 31.5 mm Talk Time: Up to 3 hours Standby Time: Up to 100 hours Bluetooth Version 1.2 Class 2 04:05 5.1 Charging the battery Getting Started Charge ARGARD M10 for 8 hours before using it for the first time. While the ARGARD M10 is charging, the red light on the TALK button will come on. If it does not, please press the TALK button to activate. Once the battery is fully charged the red light will turn off. Recharging takes approximately 2 hours. Notes: 1. Connect the charging port of the ARGARD M10 to the charging port on the charging cradle. 2. Connect the DC jack of the adaptor to the DC jack socket of the charging cradle. 3. Plug the adaptor into the appropriate electrical outlet. Charging using the AC Adaptor 06:07 5.2.1 Setting the ARGARD M10 headset to pairing mode Press and hold down the TALK button for approximately 10 seconds. The blue light will flash rapidly 4 times. Continue holding the button until the red and blue lights flash alternately. Release the TALK button. 5.2 Pairing with the phone 5.2.2 Setting Bluetooth on the mobile phone to device searching and pairing modes Activate Bluetooth on the mobile phone and start searching for the new Bluetooth device. When the search is complete, the name of the ARGARD M10 will appear “M10” on the mobile phone screen and select pairing with M10. When the mobile phone requests a passkey, please enter “0000” (four zeros) and then press “Yes” or “OK”. 5.2.3 Connecting Bluetooth with a mobile phone Some mobile phone models support Bluetooth hand free profiles or have a function to select the type of connection. When set to “Always ask before connection”, the connection will be completed by either pressing the TALK button on the headset or entering the Bluetooth menu, choosing a connecting device, then pressing “Yes” or “OK” to confirm the connection. When the type of connection is set to “Automatic without confirmation”, the system will make a connection automatically after the pairing is complete. Table of Status Indicator Lights Power on Blue light, flashes 4 times Power off Red light, flashes 3 times Pairing mode Blue and red lights, alternating flashes Pairing successful Blue light, flash 1 time Standby mode Blue light, flash 1 time every 10 seconds Low battery Red light, flash 1 time every 10 seconds Charging battery Red light is on continuously Charging completed Red light goes out Incoming call Blue light, rapid flashes until the call is received During a call Blue light, flashes 2 times every 10 seconds OrderHeadset StatusHeadset Indicator Lights 1 2 3 4 5 6 7 8 9 10 08:09 ARGARD M10 Designed to completely fulfill user requirements for ease of use and convenience. Using the Headset 6.1 Wearing the headset Put one of the earpieces on the headset as shown in the figure on page 10. The earpiece can be placed in either the left or right ear, depending on the user's preference. 6.2 Answering and ending a call With just one touch of the TALK button on the headset, a call can be instantly answered or ended. 6.3 Low battery warning A warning tone will sound when the battery is low during a call or in stand-by mode, and the flashing blue TALK button light will change to a red light, with 1 flash every 10 seconds. 10:11 Menu Functions 7.1 Quick Connect/Disconnect If the mobile phone is already paired with the ARGARD M10, activate Bluetooth on the mobile phone, and then do the following: To turn on: press and hold the TALK button for approximately 2 seconds. The blue light will flash 3 times. To turn off: press and hold the TALK button for approximately 2 seconds. The red light will flash 3 times. 7.2 One-touch On/Off 7.3 Volume Up/Down The volume may be increased or decreased according to the wearer's preference: To increase the volume: press the “volume up” button located on the right side of the headset (when holding the headset with the TALK button turned towards the user). To connect: press and hold down the TALK button on the ARGARD M10 for approximately 2 seconds. When the blue light flashes 5 times, release the button. The ARGARD M10 will connect to the mobile phone automatically. To disconnect: press and hold the TALK button on the ARGARD M10 for approximately 2 seconds. When the red light flashes 3 times, release the button. The ARGARD M10 will disconnect from the mobile phone automatically. 7.5 Voice Dialing To use voice dialing, the voice command for the phone number to be called using voice dialing must first be recorded. Consult the mobile phone's User Guide for instructions on the recording methods available. Voice dialing Press the TALK button. Alternating high and low tones will be heard. Speak the voice command recorded in the phonebook. If the voice command is the same as that recorded in the phone book, the ARGARD M10 will repeat the sound voice command, and then call the recorded number. Cancel voice dialing Press the TALK button to cancel voice dialing. 7.4 One Touch Answer Call/End Call An incoming call can be answered or ended with one touch by pressing the TALK button. To decrease the volume: press the “volume down” button located on the left side (when holding the headset with the TALK button turned towards the user). 12:13 7.6 Transfer Ca…

Text truncated - open the document above for the full version.

CAM Products 2000(TM): CAM Products 2000(TM): CAM Products 2000(TM): CAM Products 2000(TM):

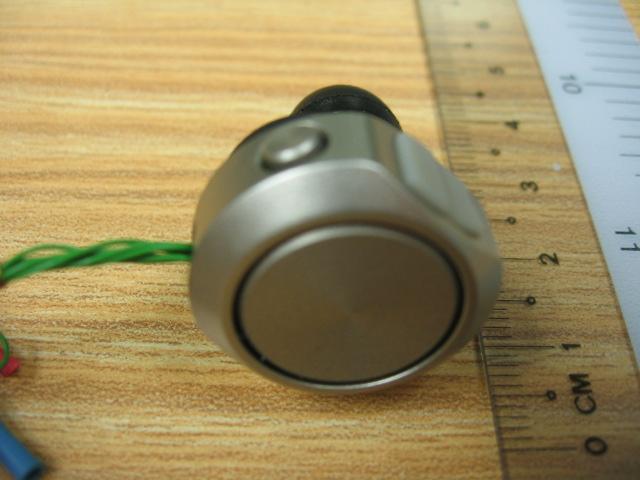

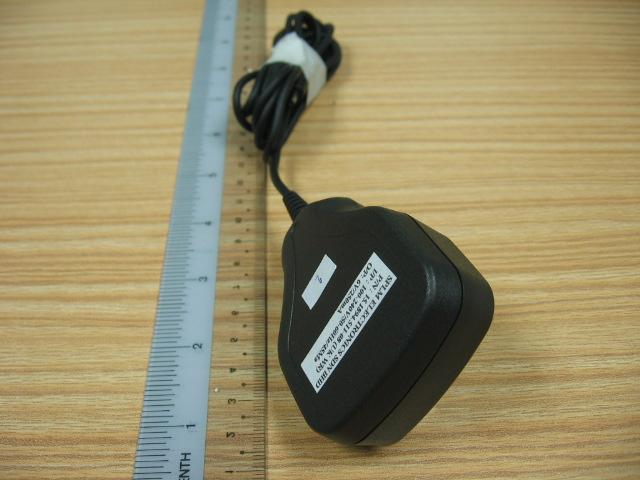

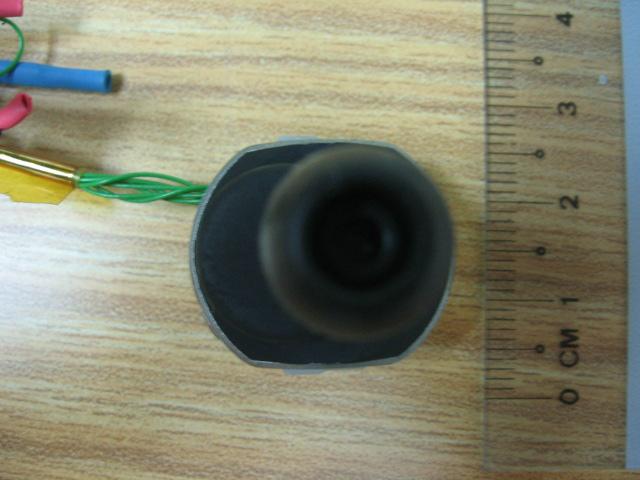

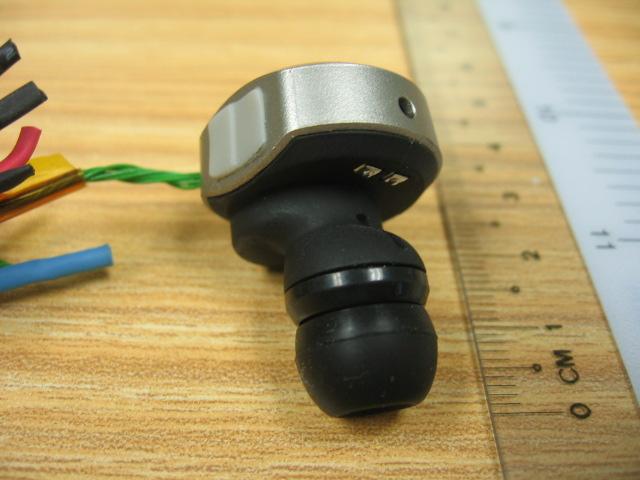

Test Report No. 56S060708/03 dated 12 Feb 2007 EUT PHOTOGRAPHS / DIAGRAMS ANNEX A Argard Co., Ltd.Page 64 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT PHOTOGRAPHS Front View Rear View Test Report No. 56S060708/03 dated 12 Feb 2007 EUT PHOTOGRAPHS / DIAGRAMS ANNEX A Argard Co., Ltd.Page 65 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT PHOTOGRAPHS Left View Right View Test Report No. 56S060708/03 dated 12 Feb 2007 EUT PHOTOGRAPHS / DIAGRAMS ANNEX A Argard Co., Ltd.Page 66 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT PHOTOGRAPHS Top View BottomView Test Report No. 56S060708/03 dated 12 Feb 2007 EUT PHOTOGRAPHS / DIAGRAMS ANNEX A Argard Co., Ltd.Page 67 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT PHOTOGRAPHS EUT Power Adapter Front View EUT Power Adapter Rear View Test Report No. 56S060708/03 dated 12 Feb 2007 EUT PHOTOGRAPHS / DIAGRAMS ANNEX A Argard Co., Ltd.Page 68 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT PHOTOGRAPHS EUT Charger Station Front View EUT Charger Station Rear View Test Report No. 56S060708/03 dated 12 Feb 2007 EUT PHOTOGRAPHS / DIAGRAMS ANNEX A Argard Co., Ltd.Page 69 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT PHOTOGRAPHS EUT Charger Station Left View EUT Charger Station Right View

Test Report No. 56S060708/03 dated 12 Feb 2007 EUT PHOTOGRAPHS / DIAGRAMS ANNEX A Argard Co., Ltd.Page 70 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT PHOTOGRAPHS Main-Board-PCB Component Side Test Report No. 56S060708/03 dated 12 Feb 2007 EUT PHOTOGRAPHS / DIAGRAMS ANNEX A Argard Co., Ltd.Page 71 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT PHOTOGRAPHS Main-Board-PCB Trace Side

Customer:ARGARD COLOR LEGENDAVL LEGEND Product:M10 WOA CLARIFYAVAVL VENDOR MUST APPLY Project: N/AAGARD CLARIFYOSOPEN SOURCE Dated:17 Jan 07CHANGE/HIGHLIGHT NOTE(OS)ALTERNATIVE VENDOR TO BE APPROVED Printed: 17 Jan 07NOTE:BRAND NAME FOR INFO ON OS ITEMS Revision: 1.0 A ITEMP/NMFG-ProPCBA LOCREFQPUTYPE/GENERIC DESCRIPTIONTECHAVLAVL VENDORREMARK ITEMPACKTYPECODE SMDAVBRAND NAMESPECIFICATION THROS MEC(OS) 259 UNITSAV/OSNAMEP/N M10 HEADSET 2TA03000001BOX BUILD COMPLETE SET M10SEMI 1ANT-0001-1-23TANTS00001TOPA11CUSTOM ANTENNA 2.4GHZ SMD AV FRACTUS FR05-S1-N-0-102 2CAP-0004-1-2 3TCS10N0001 TOPC1,C92CAP/0402 CAP CER X7R (X5R) 10N 16V 10% 0402 VOLTAGE RATING 6.3V OR HIGHER SMD OS PHYCOMP, YAGEO, AVX 2222 787 15636 (X7R/16V), CC 0402 K R X7R 7 BB 103, 0402 Y C 103 K AT2A (X7R/16V) 3CAP-0003-1-2 3TCS15P0001 BOTTOMC2,C5,C153CAP/0402 CAP CER NP0 15PF 16V 5% 0402 VOLTAGE RATING 6.3V OR HIGHER SMD OS PHYCOMP, YAGEO AVX, MURATA 2222 869 15159 (50V), CC 0402 J R NP0 9 BB 150, 0402 Y A 150 J AT2A (16V), GRM155C1H150JZ01B (50V) 4CAP-0006-1-2 3TCS47N0001 BOTTOMC3,C11,C143CAP/0402 CAP CER X7R (X5R) 47N 6.3V 10% 0402 VOLTAGE RATING 6.3V OR HIGHER SMD OS PHYCOMP, YAGEO AVX, MURATA 2222 247 15645 (X7R/10V), CC 0402 K R X7R 7 BB 473 (16V), 0402 3 C 473 K AT2A (X7R/25V), GRM155R71E473K (X7R/25V), GRM155R71A473KA01B (X7R/10V) 5CAP-0007-1-2 3TCS04U7001 BOTTOMC4,C8, C10 3CAP/0603 CAP CER X5R 4U7 6.3V 10% 0603 VOLTAGE RATING 6.3V OR HIGHER SMD OS PHYCOMP, YAGEO, AVX, MURATA 2222 206 13672 (X5R/6.3V), CC 0603 K R X5R 5 BB 4R76, 0603 6 D 475 K AT2A (X5R/6.3V), GRM188R60J475K 6CAP-0007-1-2 3TCS04U7001 TOPC171CAP/0603 CAP CER X5R 4U7 6.3V 10% 0603 VOLTAGE RATING 6.3V OR HIGHER SMD OS PHYCOMP, YAGEO, AVX, MURATA 2222 206 13672 (X5R/6.3V), CC 0603 K R X5R 5 BB 4R76, 0603 6 D 475 K AT2A (X5R/6.3V), GRM188R60J475K 7NEWBOTTOMC61CAP/0402 N/C SMD OS PHYCOMP, YAGEO, AVX, MURATA SPECIFY !!! 8NEWBOTTOMC71IND/0402CLIP INDUCTOR, THIN FILM , 2.2 NH +/-0.2 NH 0402 , ROSH , TAPE&REEL SMD AV MURATALQP15MN2N2W 02D 9CAP-0010-1-2 3TCS10P0001 TOPC121CAP/0402 CAP CER NP0 10PF 16V 5% 0402 VOLTAGE RATING 6.3V OR HIGHER SMD OS PHYCOMP, YAGEO, AVX 2222 869 15109 (50V), CC 0402 J R NP0 9 BB 100, 0402 Y A 100 J AT2A (16V) M10-11.xls ITEMP/NMFG-ProPCBA LOCREFQPUTYPE/GENERIC DESCRIPTIONTECHAVLAVL VENDORREMARK ITEMPACKTYPECODE SMDAVBRAND NAMESPECIFICATION THROS MEC(OS) 259 UNITSAV/OSNAMEP/N 10CAP-0011-1-2 3TCS03P3001 TOPC131CAP/0402 CAP CER NP0 3P3 50V 5% 0402 VOLTAGE RATING 6.3V OR HIGHER SMD OS PHYCOMP, YAGEO, AVX 2222 869 15338 (50V), CC 0402 J R NP0 9 BB 3R3, 0402 Y A 3R3 K AT2A (16V) 11CAP-0012-1-2 3TCS100N006 TOPC161CAP/0402 CAP CER X5R 100N 6.3V 10% 0402 VOLTAGE RATING 6.3V OR HIGHER SMD OS PHYCOMP, YAGEO, AVX, MURATA 2222 207 13649 (X5R/6.3V), CC 0402 K R X5R 5 BB 104, 0402 Z D 104 K AT2A (10V), GRM155R61A104K (X5R/10V) 12RES-0006-1-2 3TRS10K0001 TOPR11RES/0402 RES 10K 5% 0402 SMD OS PHYCOMP2322 705 70103 13RES-0010-1-2 3TRS01M0002 TOPR2,R102RES/0402 RES 1M 5% 0402 SMD OS PHYCOMP2322 705 70105 14RES-0004-1-2 3TRS02R2001 TOPR31RES/0402 RES 2R2 5% 0402 SMD OS PHYCOMP2322 705 70228 15RES-0004-1-2 3TRS02R2001 BOTTOMR61RES/0402 RES 2R2 5% 0402 SMD OS PHYCOMP2322 705 70228 16RES-0003-1-2 3TRS330R001 TOPR4,R52RES/0402 RES 330R 5% 0402 SMD OS PHYCOMP2322 705 70331 17RES-0008-1-2 3TRS220K001 TOPR7,R92RES/0402 RES 220K 1% 0402 SMD OS PHYCOMP2322 706 72204 18RES-0009-1-2 3TRS150K001 TOPR81RES/0402 RES 150K 1% 0402 SMD OS PHYCOMP2322 706 71504 19RES-0007-1-2 3TRS02K2001 BOTTOMR111RES/0402 RES 2K2 5% 0402 SMD OS PHYCOMP2322 705 70222 20DIO-0001-1-1 3TDIOS00015 TOPLED11LED/0603 LED RED 0603 SMD OS BRIGHTWIEW, LIGITECH, OSRAM BVS-166RT2, LG-192HRF-CT, ??? OSRAM SPEC? 21DIO-0002-1-1 3TDIOS00016 TOPLED21LED/0603 LED BLUE 0603 SMD OS BRIGHTWIEW, LIGITECH, OSRAM BVS-166BK2, LG-192DBK-CT, ??? OSRAM SPEC? 22NEW 3TDIOS00043 BOTTOMD11DIO/SOD323 DIODE , SCHOTTKY RECTIFIER 0.5A 20V SOD323, ROHS, TAPR&REEL SMD AV PHILIPSPMEG2005AEA 23ICS-0001-1-2 3TICSS00056 BOTTOMIC11IC/??? IC TYPE (BALUN) LFB21 SMD AV MURATALFB212G45BA1A220 24NEW 3TICSS00138 BOTTOMIC21IC/TFBGA, 96-BALL IC BC03_AUDIO_FLASH 8x8MM TFBGA 96-BALL BLUECORE3-AUDIO 40 MA. SMD AV CSRBC31A223B-IVN-E4 25ICS-0004-1-2 3TICSS00005 TOPIC31IC/USP-6B IC 2.7V LDO XCS621B272DR SMD AV TOREXXCS621B272DR 26FIL-0002-1-2 3TLS33U0001 TOPL11IND/RADIAL INDUCTOR 33UH SDR0302 RADIAL SMD AV BOURNS, MOTOCRAFT SDR0302-330K, SD0302-330K-E 27BOTTOML2,L42IND/0402CLIP INDUCTOR, THIN FILM , 15 NH +/-0.2 NH 0402 , ROSH , TAPE&REEL SMD AV MURATALQP15MN15NG02D M10-11.xls ITEMP/NMFG-ProPCBA LOCREFQPUTYPE/GENERIC DESCRIPTIONTECHAVLAVL VENDORREMARK ITEMPACKTYPECODE SMDAVBRAND NAMESPECIFICATION THROS MEC(OS) 259 UNITSAV/OSNAMEP/N 28BOTTOML31CAP//0402CHIP CAP,CERAMIC,NP0,1P0,6.3V ,5% 0402 ROHS,TAPE&REEL SMD OS PHYCOMP, YAGEO, AVX 2222 869 10108 (50V), CC 0402 J R NP0 9 BB 1R0, 0402 Y A 1R0 J AT2A (16V) 29SW I-0001-1-23TSW IS00001TOPSW11SW/TACT TACT SWITCH TOP SMD AV ALPS, MITSUMI SKRKAAE010, SOE-132HNT 30SW I-0002-1-23TSW IS00003TOPSW2,SW32SW/TACT TACT SWITCH SIDE SMD AV ALPS, MITSUMI SKRELJE010, SOH-113HST 31NEW3TXTLS00007TOPTX11XTAL/ 3.3x2.6 MM CRYSTAL 16 MHz CSX-333/112NF SM CRYSTAL 9PF, ROHS , TAPE&REEL SMD AV GOLLEDGE MA06152 32MECPCB1PCB PCB FR4 4-LAYER 22,4X29MM, 0.5-0.8 MM GOLD EMERSION MEC (OS) WELSA PCB GERBER SPEC DIMENTIONS ? 33NEW3TSPEM00002MECSPK1SPEAKER DYNAMIC SPEAKER, 32 OHM 10 MM. MAN AV SANYO SPEC? 34MECMIC1MICROPHONE UNI DIRECTIONAL MICROPHONE NON RUBBER. MAN AV ARIOSE ELECTRONICS, (ELMETRIC AB) M6022-UWC-1-A 35NEW3TMECM00052MEC12METAL HEADSET CHARGING CONTRACT,METAL SPRING NICKLE PLATE MEC (OS) LOCAL 36NEWMECBATTERY1BAT/2032 COIN CELL LI-ION BATTERY 3.7 V,PD1255 WITH WIRE STAMP MEC AV POWERCELL KOREA 37NEW3TMECM00053MEC42PLAST HEADSET VOLUME CONTROL LIFE/RIGHT,ABS PLASTIC MEC (OS) LOCAL 38NEW3TMECM00054MEC51PLAST HEADSET FRONT HOUSING,ABS PLASTIC MEC (OS) LOCAL 39NEW3TMECM00055MEC62RUBBER HEADSET SIDE RUBBER LEFT/RIGHT,HARDNESS 50-55 MEC (OS) LOCAL 40NEW3TMECM00056MEC71PLAST HEADSET FRONT BUTTON,ABS PLASTIC MEC (OS) LOCAL…

Text truncated - open the document above for the full version.

Test Report No. 56S060708/03 dated 12 Feb 2007 Note: This report is issued subject to TÜV SÜD PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G LA-2006-0355-C The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Corporation Pte. Ltd. Testing Group No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.psbcorp.com Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive #04-01/05 The Franklin Singapore 118223Page 1 of 74 FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 15B & C : 2006 OF A BLUETOOTH HEADSET [ Model : ARGARD M10 ] [ FCC ID : UGCM 10 ] TEST FACILITY TÜV SÜD PSB Corporation Pte Ltd, Telecoms & EMC, Testing Group, 1 Science Park Drive, Singapore 118221 FCC REG. NO.90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) 325572 (10m Anechoic Chamber) IND. CANADA REG. NO.IC 4257 (3m and 10m Anechoic Chambers) PREPARED FORArgard Co., Ltd. 2571 Latpraw Road, Wangthonglang Bangkok, 10310 Thailand Tel : +66 2 539 2026 9Fax : +66 2 539 0828 QUOTATION NUMBER56Q0600553 JOB NUMBER56S060708 TEST PERIOD04 Dec 2006 – 28 Jan 2007 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Associate Engineer ____________________ Lim Cher Hwee Assistance Vice President Test Report No. 56S060708/03 dated 12 Feb 2007 Argard Co., Ltd.Page 2 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS CONDUCTED EMISSION TEST RADIATED EMISSION TEST CARRIER FREQUENCY SEPARATION TEST SPECTRUM BANDWIDTH (20dB BANDWIDTH MEASUREMENT) TEST NUMBER OF HOPPING FREQUENCIES TEST AVERAGE FREQUENCY DWELL TIMETEST MAXIMUM PEAK POWER TEST RF CONDUCTED SPURIOUS EMISSIONS TEST BAND EDGE COMPLIANCE (CONDUCTED) TEST BAND EDGE COMPLIANCE (RADIATED)TEST PEAK POWER SPECTRAL DENSITY TEST DUTY CYCLE FACTOR COMPUTATION ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B-FCCLABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS Test Report No. 56S060708/03 dated 12 Feb 2007 Argard Co., Ltd.Page 3 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail FCC Part 15: 2006 15.107(a), 15.207Conducted EmissionsPass 15.109(a), 15.205, 15.209 Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.247(a)(1)Carrier Frequency SeparationPass Spectrum Bandwidth (20dB Bandwidth Measurement) Pass 15.247(a)(1)(iii)Number of Hopping FrequenciesPass Average Frequency Dwell TimePass 15.247(b)(1)Maximum Peak PowerPass 15.247(d)RF Conducted Spurious EmissionsPass 15.247(d)Band Edge Compliance (Conducted)Pass 15.247(d)Band Edge Compliance (Radiated)Pass 15.247(e)Peak Power Spectral DensityPass 15.35(c)Duty Cycle Factor ComputationRefer to page 61for details Test Report No. 56S060708/03 dated 12 Feb 2007 Argard Co., Ltd.Page 4 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] TEST SUMMARY Notes 1. Three channels as listed below, which respectively represent the lower, middle and upper channels of the Equipment Under Test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the test mode. Transmit ChannelFrequency (GHz) Channel 002.402 Channel 392.441 Channel 782.480 2. All the measurements in section 15.247 were done based on conducted measurements. 3.The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. 4. All test measurement procedures are according to ANSI C63.4: 2003. Modifications 1.No modifications were made. Test Report No. 56S060708/03 dated 12 Feb 2007 Argard Co., Ltd.Page 5 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is a Bluetooth Headset. Manufacturer: Argard Co., Ltd. 2571 Latpraw Road, Wangthonglang, Bangkok, Thailand Model Number: Argard M10 FCC ID: UGCM 10 Serial Number: Nil Microprocessor: CSR BC03_AF_2 Operating / Transmitting Frequency : 2.402GHz (lower channel) to 2.480GHz (upper channel) Modulation: Gaussian Frequency Shift Keying (GFSK) Port / Connectors:Refer to manufacturer's user manual / operating manual. Rated Input Power: Splim Electronics AC/DC Adapter Input: 100 - 240V 50Hz/ 60Hz Output: 6VDC 250mA Accessories: Nil Test Report No. 56S060708/03 dated 12 Feb 2007 Argard Co., Ltd.Page 6 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] SUPPORTING EQUIPMENT DESCRIPTION The EUT was tested as a stand-alone unit without any supporting equipment. Test Report No. 56S060708/03 dated 12 Feb 2007 Argard Co., Ltd.Page 7 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] EUT OPERATING CONDITIONS FCC Part 15 1.Conducted Emissions 2. Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) 3. Spectrum Bandwidth (20dB Bandwidth Measurement) 4. Maximum Peak Power 5. RF Conducted Spurious Emissions 6. Peak Power Spectral Density 7. Duty Cycle Factor Computation The EUT was exercised by operating in maximum continuous transmission with frequency hopping off, i.e transmitting at lower, middle and upper channels respectively at one time. FCC Part 15 1.Carrier Frequency Separation 2. Number of Hopping Frequencies 3. Average Frequenc…

Text truncated - open the document above for the full version.

Test Report No. 56S060708/03 dated 12 Feb 2007 Argard Co., Ltd.Page 14 of 74 Bluetooth Headset [ Model : Argard M10 ] [ FCC ID : UGCM 10 ] RADIATED EMISSION TEST Radiated Emissions Test Setup
