User’s Guide H a mm e rh ead & H a mm e rh ead X treme Thank You DRS Tactical Systems, Inc. Hammerhead User’s Guide –V062906 1 Thank You! DRS Tactical Systems, Inc. would like to thank you for purchasing a Hammerhead computer. Great care has been taken to provide you with a unique product designed to provide y ears of reliable service. The Hammerhead rugged tablet computer is now in its eighth generation. Each new generation builds on the str engths of the previous models to provide you with a state-of-the-ar t product designed to meet the real world needs of mobile users. This guide provides basic informat ion that you will need to take full advantage of your Hammerhead computer. The Hammerhead is a tool that is often configured to meet the precise needs of a specific application. As a result, there are many configuration options available and often, custom features are prov ided for large-scale applications. If you do not find illustrations ident ical to the equipment you have purchased or do not find needed information after having reviewed the User’s Guide, please feel free to c ontact Customer Service toll-free at 888-872-1100. You may also wish to visit our web site at www.drs-ts.com/hammerhead for updated information. This guide is intended to provide bas ic information on the features, operation, care, and maintenance of the Hammerhead. It is not offered as a technical resource to deal with larger integration issues. DRS and its many partners will be happy to work closely with you in resolving any challenges that you might face. Elements of this guide are available electronically for those customers wishing to develop their own training or technical support materials. Requests for electronic copies can be made through the general information request link at the www. drs-ts.com/hammerhead web site. We thank you for purchasing the Hammerhead rugged Tablet PC and look forward to getting to know you and assisting you in any way we can to make your experience with the Hammerhead as rewarding as possible. Table of Contents DRS Tactical Systems, Inc. Hammerhead User’s Guide –V062906 2 Table of Contents CHAPTER 1: INTR ODUCTION ......................... 4 Before you begin ..................................................................... 4 Standard feat ures ...................................................................... 5 Accessories and options ............................................................ 6 Exterior feat ures ..................................................................... 7 Tips for proper use and ca re of your comput er .......................... 11 CHAPTER 2: HARDWARE OPERATION ......... 12 Turning on t he unit ..................................................................... 12 Pen operat ions ...................................................................... 12 Touch operat ions ...................................................................... 14 Battery us e and ca re .................................................................. 15 Getting started with your new ba tteries ........................ 15 How to insta ll new batte ries ......................................... 15 When to rec harge batte ries .......................................... 16 How to recharge your batte ries .................................... 16 How to tell when batteries have finished charging ....... 17 How to increase ba ttery “run time” ............................... 17 When to replac e your ba ttery ....................................... 17 Where to purchase r eplacement ba tteries ................... 18 How to store batteries when they’re not in us e............. 18 Safety & handling consi derations for batteri es ............. 18 Disposing of y our batte ries ........................................... 19 Battery tips for the best perfo rmance ........................... 19 Calibrating Batteri es..................................................... 20 Removable har d driv e ................................................................ 21 Connectivity ...................................................................... 21 Port rep licator s ............................................................ 21 Desktop docki ng stati on .............................................. 24 Vehicle docking ........................................................... 25 Heater option ...................................................................... 26 CardBus/PCMC IA card s ............................................................ 26 Internal “flex spac e” for OEM modules ....................................... 27 ProtectIT™ (this featur e not yet sh ipping) .................................. 27 CHAPTER 3: SOFTW ARE OPERATION........... 28 Calibrati on ...................................................................... 28 Pen Tablet ca librati on .................................................. 28 Touch Screen calibrati on ............................................. 28 Battery Performanc e and Maint enance ...................................... 29 Monitoring y our batte ry ................................................ 29 Setting the ba ttery al arm .............................................. 29 Turning off power-c onsuming peri pherals .................... 29 Using power schem es.................................................. 30 Table of Contents DRS Tactical Systems, Inc. Hammerhead User’s Guide –V062906 3 Standby ...................................................................... 30 Hibernat ion .................................................................. 30 Adjusting Screen Brightne ss and Backlight Settings ................. 31 Manual bright ness adjus tment ..................................... 31 Auto backli ght setti ngs ................................................. 32 Power butt on functi on .................................................. 32 Advanced backli ght......................................................…

Text truncated - open the document above for the full version.

REVISIONS ECO# REV DESCRIPTION OF CHANGE BY MJD REVISIONS ECO# REV DESCRIPTION OF CHANGE BY MJD REVISIONS ECO# REV DESCRIPTION OF CHANGE BY MJD SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. G 136 C Crystals and Clock Distribution SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. G 136 C Crystals and Clock Distribution SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. G 136 C Crystals and Clock Distribution Intel Processor Intel 855GME South BridgeIntel ICH4-M DDR VGA out North Bridge SODIMM PCI 2.2 Bus USB 2.0 Bus USB 1 Top CARDBUS Mini-PCI Conn System Mgmt H8 Controller Firmware HUB Wireless Option Card EIDE PARACOM2COM1COM4 COM3 LPC Bus ICS950812 Clock Generator CHAMP USB 2 OEM4 USB 3 OEM5 USB 4 KyBd LEDBoard Battery Ethernet PHY Hammerhead/Hammerhead eXtreme Tablet Crystals and Clocks LVDS LCD USB 0 Side OptionBoard USB 5 USB 5 Pentium-M/Celeron-M Accelerometer BluetoothNSC LMX5452 Intel 2915802.11abg Super IO Clock & Crystal Summary AC97AudioCodec 14.31818MHz Crystal 100MHz Clk to Processor 100MHz In Created drawing for FCC 8/29/06 100MHz Clk to North Bridge100MHz Clk to ITP connector ITPConnector 100MHz In 24.576MHz Crystal 100MHz In66MHz In 66MHz to North Bridge 66MHz to South Bridge 48MHz to SS chip ICS91718 SS Chip 48MHz SS In for Graphics Note: SS = Spread Spectrum 48MHz to South Bridge for USB 33MHz to South Bridge 66MHz In 48MHz In14MHz In 14MHz to South Bridge 33MHz In 10.00MHz Crystal 13.000MHz Crystal 32.768KHz Crystal 33MHz to Wireless Board Interface (x3) 33MHz In (x3) 33MHz to FWH 33MHz In 33MHz In 33MHz to CardBus 48MHz to North Bridge for Graphics DotClk 48MHz In 33MHz to SIO 14MHz to SIO 14MHz In 33MHz In 33MHz to H8 33MHz In 4.91MHz Crystal 5/50MHz LAN Clk to Ethernet 5/50MHz In 25MHzCrystal 133.3MHz to SDRAM 40MHz/65MHz to LVDS 50MHz-350MHz to VGA Freq SchemName Source Receiver------------------------------------- 100 MHz HOST_CLK ClkGen CPU,NBridge,ITP 66 MHz CLK66 ClkGen NBridge,SBridge 33 MHz CLK33 ClkGen SBridge,SIO,FWH,CardBus,H8 33 MHz PCICLK ClkGen OptionCard(x3)14.18MHz CLK14 ClkGen SBridge,SIO 48 MHz DOTCLK ClkGen NBridge 48 MHz SSCCLKIN ClkGen SSchip 48 MHz USBCLK ClkGen SBridge 48MHz DREFSSCLK SSchip NBridge 5/50MHz LAN_CLK SBridge EthernetPhy(note 1) 40/65MHz LVDSCLKAx NBridge LCD(note 2)50-350MHz NBridge VGA PixelClk(note 3)133.3MHz MCLKDDRx NBridge SDRAM(x3)32.768KHz Crystal SBridgeRTC 4.91MHz Crystal LEDBoard 10.0MHz Crystal H8Controller13.000MHz Crystal BluetoothController14.318MHz Crystal ClkGen24.576MHz Crystal AudioCodec25.0MHz Crystal EthernetPhy (FWH) (SIO) GMCH I/O Board Notes for Clks and Crystals:1) LAN_CLK will be 5MHz for 10Mbps operation, 50MHz for 100Mbps operation 2) LVDS clk is 40MHz for 800x600 resolution, 65MHz for 1024x768 resolution3) Pixel clk varies with display resolution, refresh rate and color depth - 50MHz for basic 800x600, 350MHz for 2048x1536x24bpp with 75Hz refresh

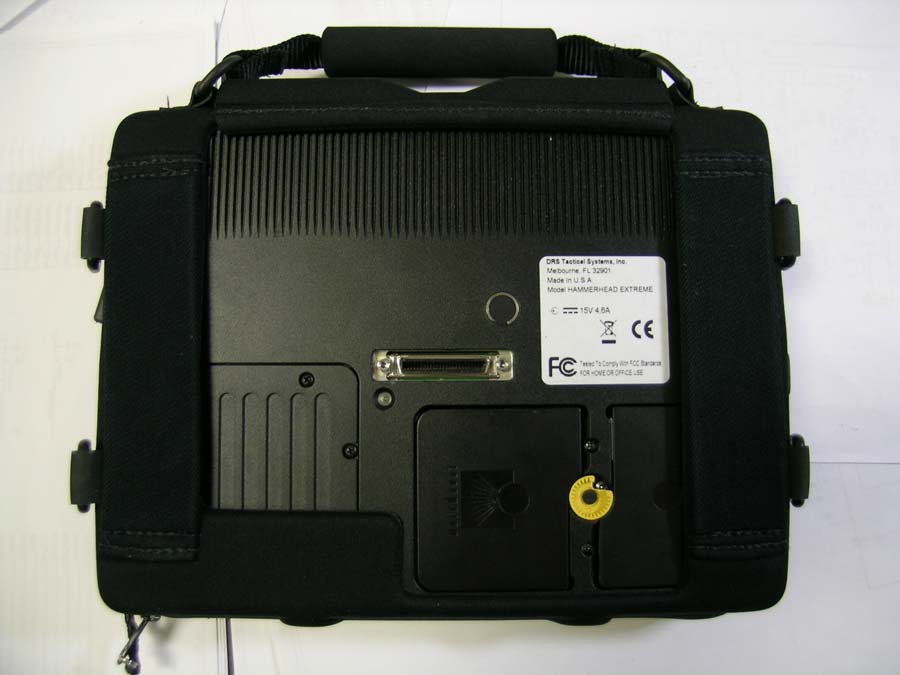

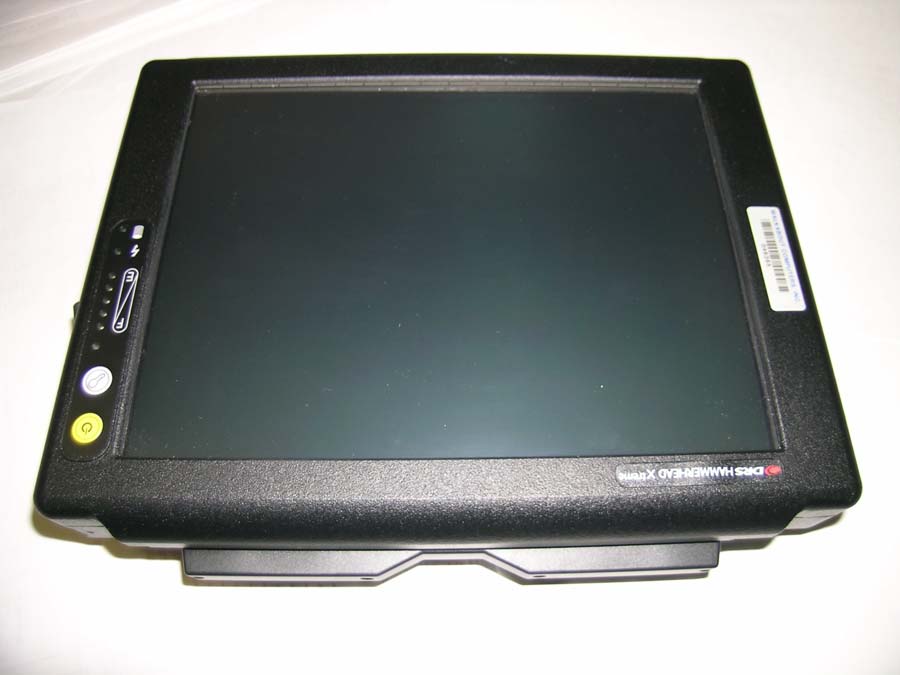

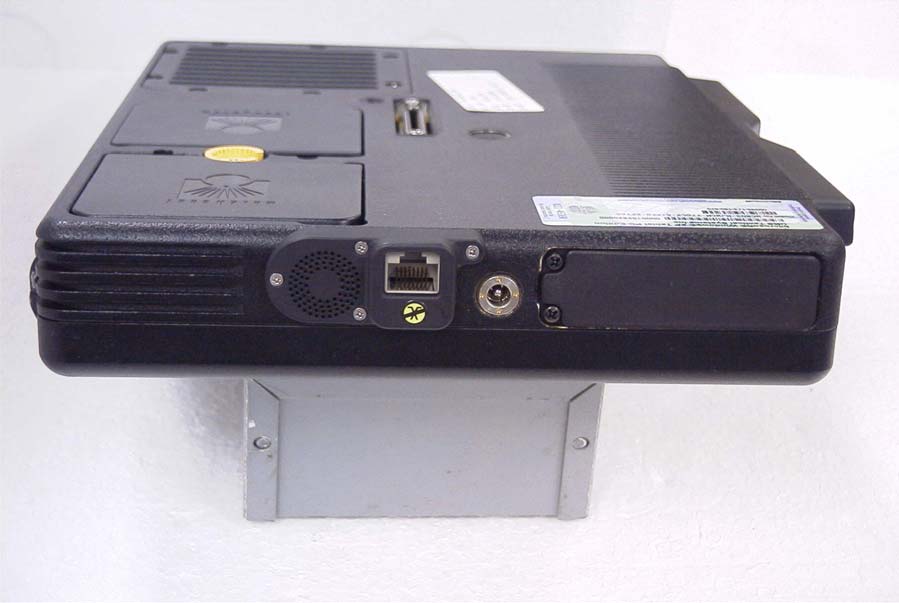

DRS TACTICAL SYSTEMS FCC ID: UGL9800178540001 EXTERNAL PHOTOS FRONT VIEW – NO CASE FRONT VIEW WITH CASE BACK VIEW WITH CASE BACK VIEW – NO CASE SIDE VIEW

INTERNAL PIC BOTTOM ASSEMBLY PCMCIA COVER REMOVED TOP ASSY_BACK SIDE TOP ASSY_LCD SIDE WIFI_BT BOARD BOTTOM WIFI_BT BOARD TOP WIFI_BT BOTTOM SIDE WIFI_BT SHIELDED WIFI_BT_UNSHIELDED WIFI_BT UNSHIELDED WIRELESS BOARD – FRONT WIRELESS BOARD BACK NO SHIELD WIRELESS BOARD MOUNTING

DRS Confidential and Proprietary Bluetooth Circuit Description Bluetooth controller (U3 on schematics): National Semiconductor LMX5452 Integrated Bluetooth 1.2 Baseband Controller and Radio. Controller communicates to main CPU board via the USB interface on J1. The LMX5452 is a one-chip solution that only requires an external crystal, an EEPROM (to store Bluetooth address and code updates), and 3.3V and 2.8V power sources. Crystal: 13.0000MHz (Y1) Power for module: 3.3V from main CPU board, 2.8V generated locally via linear regulator, National Semiconductor LP3985IM5-2.8 (U6). Antenna connector (J5): Hirose U.FL-SMT-R Schematics: DRS part# 9200-17854-0001 Changes to schematic to meet FCC requirements: Location C42 is populated with a 1.8pF capacitor (C42 is shown as a “no-stuff” on schematics). This is the only change to the schematics. The bill-of-materials is correct.

REVISIONS ECO# REV DESCRIPTION OF CHANGE BY 18687 G G1. SHEET 13 - CHANGED J5 FROM 3 PIN CONNECTOR TO 4 PIN TET REVISIONS ECO# REV DESCRIPTION OF CHANGE BY 18687 G G1. SHEET 13 - CHANGED J5 FROM 3 PIN CONNECTOR TO 4 PIN TET REVISIONS ECO# REV DESCRIPTION OF CHANGE BY 18687 G G1. SHEET 13 - CHANGED J5 FROM 3 PIN CONNECTOR TO 4 PIN TET SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. G 9200-15140-0000 136 C SCHEMATIC - PCB, CORE, CENTRINO SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. G 9200-15140-0000 136 C SCHEMATIC - PCB, CORE, CENTRINO SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. G 9200-15140-0000 136 C SCHEMATIC - PCB, CORE, CENTRINO Intel Processor Intel 855GME South BridgeIntel ICH4-M DDR Thermal Decoder VGA CHAMP North Bridge SODIMM PCI 2.2 Bus USB 2.0 Bus USB 1 Top CARDBUS Slot 0 Slot PCI System Mgmt H8S Controller Firmware HUB Option Card EIDE PARACOM2COM1COM4 COM3 LPC Bus AC97pg 21 Power VRs IMVP IV pg 305V, 3.3V pg 291.8V, 1.5V pg 321.2V, 1.05 pg 32V3.3_SMC pg 25 SS & CK-408 Clocking CHAMP USB 2 OEM4 USB 3 OEM5 USB 4 KyBd LEDBoard Battery Power Swpg 26 Ethernet ITP Hammerhead XRT-Centrino Tablet Port 80 pg 2-3, 31 pg 6-9 pg 14-16 pg 5 pg 10-12 pg 20pg 13 LVDS LCD pg 17 pg 20, 22, 28 pg 20 pg 24 pg 25 pg 4 SYSTEMSTATE LED pg 33 DDR VR POWER SEQ pg 34 Slot 1 USB 0 Side OptionBoard USB 5 USB 5 Pentium-M/Celeron-M pg 18-19 PWR BUDGET pg 35 Accelerometer pg 23 pg 4 pg25 pg 17 Index10) DDR SO-DIMM011) DDR Serial Termination12) DDR Parallel Termination13) LVDS14) ICH4-M (1/3)15) ICH4-M (2/3)16) ICH4-M (3/3)17) IDE / Option Board Connector18) CardBus PCI (1/2)19) CardBus Socket (2/2)20) I/O Board Connector21) AC97 Audio CODEC22) USB Connector23) Accelerometers24) FWH25) H8S System Management /Kybd26) Pwr On & SMC Suspend Timer27) Super I/O Controller28) Parallel, Serial, OEM Conn29) V5 & V3.3 VRs30) IMVP-IV VR Controller31) Pwr Good / CPU Decoupling32) V1.8/1.5/1.2/1.05 VRs33) DDR VR34) Power Sequencing35) Power Flow and Budget36) Board & EMI Information01) Block Diagram02) Pentium-M CPU (1/2)03) Pentium-M CPU (2/2)04) CPU Thermal Sensor & ITP05) CL-408 Clocking06) North Bridge 855GME (1/3)07) North Bridge 855GME (2/3)08) North Bridge 855GME (3/3)09) North Bridge Circuitry Bluetooth VoltageMonitoring 802.11x pg 27-28Super IO TEST3 Comp2 H_A#18 Comp3 H_A#7 H_D#28 H_A#30 H_D#43H_D#47 H_D#8 H_D#46H_D#56 H_A#15H_A#27 H_D#40H_D#39 H_D#16H_D#7 H_D#35H_D#60 H_D#23 H_A#5 H_D#54 H_A#29H_REQ#2 H_D#25H_D#10 H_D#38 H_A#10H_A#12H_A#14 H_D#14 H_IERR# H_D#57H_D#62 H_D#5 H_D#55H_D#42H_D#50H_D#59H_D#45 H_REQ#3 H_D#36 H_A#26 H_D#13H_D#27 H_A#25 H_D#33 H_D#1 H_D#41H_D#53 H_D#26 H_D#32 H_D#30 Comp0 H_A#28 Comp1 H_A#8 H_D#44 H_A#6 H_D#12H_D#20H_D#18 H_A#3 Comp0 H_A#16H_REQ#0H_A#22 H_D#61H_D#51 H_A#9 H_D#9 H_A#19 H_D#2H_D#22H_D#19 H_A#17H_A#13 H_D#49 Comp1 H_D#63H_D#37H_D#34 H_A#31 H_D#31 H_A#21 H_D#3 H_A#24H_REQ#1H_A#4 H_D#15 H_A#11 H_PROCHOT# Comp2 H_D#11H_D#0H_D#6 H_D#48 H_D#21 H_D#52 H_A#20H_A#23 H_D#58 H_REQ#4 H_D#24H_D#4H_D#29H_D#17 Comp3 +VCCP+VCCP +VCCP +VCCP +VCCP H_DSTBP#2 7 H_CPURST# 4,7 H_ADSTB#1 7 H_FERR# 14 ITP_DBRESET# 4,15 H_BPM5_PREQ# 4 H_BPRI# 7 H_RS#2 7 H_DSTBN#1 7 H_A#[31:3] 7 H_RS#1 7 H_CPUSLP# 14 H_TCK 4 H_PWRGD 14 H_THERMDA 4 H_DPSLP# 6,14 H_THERMDC 4 H_DBSY# 7 H_DST…

Text truncated - open the document above for the full version.

REVISIONS ECO# REV DESCRIPTION OF CHANGE BY 15936 C INITIAL RELEASE TET REVISIONS ECO# REV DESCRIPTION OF CHANGE BY 15936 C INITIAL RELEASE TET REVISIONS ECO# REV DESCRIPTION OF CHANGE BY 15936 C INITIAL RELEASE TET SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. D 9200-17854-0001 13 OPTION BOARD, WIRELESS, WIFI, BLUETOOTH SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. D 9200-17854-0001 13 OPTION BOARD, WIRELESS, WIFI, BLUETOOTH SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, DISTRIBUTION AUTHORIZED FOR USE PERDOCUMENT NUMBER 9120-02737-0100. VALIDATION REQUIRED FOR PLANNING, TESTING, INSPECTION, MANUFACTURING, PROCUREMENT AND QUOTES. CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 THE INFORMATION DISCLOSED IN THISDOCUMENT IS PROPRIETARY DATA OFAND MAY NOT BE REPRODUCED, USED, ORDISCLOSED WITHOUT THE PRIOR WRITTENDRS TACTICAL SYSTEMS, INC. AUTHORIZATION OF DRS TACTICAL SYSTEMS, INC. EXPORT CONTROLLED - WARNING - THIS DOCUMENT CONTAINS INFORMATION SUBJECT TO THE USINTERNATIONAL TRAFFIC IN ARMS REGULATIONS (ITAR) OR THE US EXPORT ADMINISTRATIONREGULATIONS (EAR). THIS INFORMATION MAY NOT BE EXPORTED, RELEASED, OR DISCLOSED TOFOREIGN NATIONALS WITHOUT FIRST COMPLYING WITH THE EXPORT LICENSING REQUIREMENTSOF THE ITAR AND/OR EAR. INCLUDE THIS NOTICE WITH ANY REPRODUCED PORTION OF THIS DOCUMENT. D 9200-17854-0001 13 OPTION BOARD, WIRELESS, WIFI, BLUETOOTH D2: SHEET 3 - Changed power connection for R25/C43 from +V3.3S to VDD_2.8.D1: SHEET 2 - Changed J3 from MOLEX 53261-07 to MOLEX-53780-08. D TET B D3: SHEET 3 - Changed ground connection for GND_VCO, added note.D4: SHEET 3 - Changed ground connection for antenna gnd and GND_RFx, added note.D5: SHEET 3 - Added notes for 4.7pF caps.D6: SHEET 3 - Removed note on U5 EEPROM.D7: SHEET 3 - Added note to J5 antenna conncetor. 16994 AA BB CC DD EE 4 4 3 3 2 2 1 1 PCI_AD19PCI_AD17PCI_C/BE2#PCI_IRDY#PM_CLKRUN#PCI_SERR#PCI_PERR#PCI_C/BE1#PCI_AD14PCI_AD12PCI_AD10PCI_AD8PCI_AD7PCI_AD5PCI_AD3PCI_AD1INT_PIRQG# CLK_PCI_SLOT1 PCI_REQ0#PCI_AD31PCI_AD29PCI_AD27PCI_AD25 INTEL_CH_DATA PCI_C/BE3#PCI_AD23PCI_AD21 INT_PIRQF#BUF_PCI_RST#PCI_GNT0#PCI_PME# INTEL_CH_CLK PCI_AD30PCI_AD28PCI_AD26PCI_AD24PCI_AD22PCI_AD20PCI_PARPCI_AD18PCI_AD16PCI_FRAME#PCI_TRDY#PCI_STOP#PCI_DEVSEL#PCI_AD15PCI_AD13PCI_AD11PCI_AD9 PCI_C/BE0# PCI_AD6PCI_AD4PCI_AD2PCI_AD0 OEM_CTL2_R SIM_PDSIM_CLK SIM_RST# VSIM1SIM_DATA SIM_-5V OEM_CTL1OEM_CTL2OEM_CTL0 SBO#SDONERST#INTC#INTA# CLK_1INTD#INTB# MASTER_RESET# OEM_CTL2 +V3.3ALWAYS +V3.3S +V3.3ALWAYS +V5S +V5S +V3.3ALWAYS +V3.3S +V5S VDD_2.8 +VDC +VDC +V1.25S +V5S +V5_ALWAYS +VCCP +V5S +V1.5S +V1.8S +V1.2S +V3.3S +V3.3S +V1.5 +V1.5ALWAYS PCI_AD16 18,23,24 BT_CH_CLK WLAN_CH_DATA VR_PWRGD OEM_CTL0 3 CLK_FWHPCI 3 OEM_CTL1 3 OEM_CTL2 3 CLK_PCI_PORT80 2 INT_PIRQH#INT_PIRQF#PM_CLKRUN#PCI_AD28PCI_AD26PCI_AD30PCI_TRDY#PCI_AD18PCI_STOP#PCI_AD16PCI_FRAME#PCI_AD22PCI_AD20 BUF_PCI_RST PCI_AD24PCI_AD15PCI_PARPCI_AD9PCI_AD11PCI_AD13PCI_AD0PCI_C/BE0#PCI_AD6PCI_AD4PCI_AD2 INT_PIRQE#INT_PIRQG#PCI_PERR# PCI_AD10 PCI_AD31 PCI_AD12 PCI_AD27PCI_AD29 PCI_DEVSEL# PCI_AD14PCI_C/BE1#PCI_IRDY#PCI_SERR#PCI_LOCK# INT_SERIRQ PCI_AD25PCI_C/BE2#PCI_AD19PCI_AD21PCI_AD23PCI_AD17PCI_C/BE3# PCI_AD1PCI_AD5PCI_AD8PCI_AD7PCI_AD3 LPC_AD2 2,3 LPC_AD1 2,3 LPC_AD3 2,3 LPC_AD0 2,3 USB_PP5_OPT_OUT 3 USB_PN5_OPT_OUT 3 PCI_GNT0# PCI_PME# PCI_GNT2# SUS_CLK_Q 2 PCI_GATED_RST# LPC_FRAME# 2,3 BUF_PCI_RST# 2,3 LPC_DRQ#1PM_SLP_S1# 3 PCI_REQ0# PM_SLP_S3# 3 PM_SLP_S4# 3 CLK_PCI_SLOT1PM_SLP_S5# 3 FWH_EN PCI_ACK64# SMB_DATASMB_CLK FWH_INIT# 3 PCI_REQ64# PCI_REQ2# SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, CAGE Code CSA Z99-1975, OR IEEE Std 315-1975 UNLESS OTHERWISE SPECIFIED 1RWE7 DISCLOSURE OF THE DATA ON THISPAGE IS SUBJECT TO THE DISTRIBUTION,AUTHORIZATION, PROPRIETARY DATAAND EXPORT CONTROL RESTRICTIONSON THE TITLE PAGE OF THIS DOCUMENT. B D 9200-17854-0001 23 OPTION BOARD, WIRELESS, WIFI, BLUETOOTH SIZE SCALE DOCUMENT NUMBER REV SHEET OF NONE TITLE ELECTRICAL INTERPRETATION INACCORDANCE WITH ANSI Y32.2-1975, CAGE Code CSA Z99-1975,…

Text truncated - open the document above for the full version.

FCC PART 15.247 FHSS TEST REPORT APPLICANT DRS Tactical Systems, Inc. ADDRESS 1110 West Hibiscus Blvd. Melbourne, FL 32901 FCC ID UGL9800178540001 PRODUCT DESCRIPTION Bluetooth transceiver DATE SAMPLE RECEIVED June 27, 2006 DATE TESTED June 28, 2006 TESTED BY Nam Nguyen APPROVED BY Mario de Aranzeta C.E.T. TIMCO REPORT NO. 981AUT6TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: DRS TACTICAL SYSTEMS, INC. FCC ID: UGL9800178540001 REPORT: V:\D\DRS\981AUT6\981AUT6TestReport.doc Page 2 of 18 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 GENERAL INFORMATION AND EQUIPMENT UNDER TEST........................................ 4 TEST EQUIPMENT LIST............................................................................................. 5 TEST PROCEDURE ................................................................................................... 6 POWER LINE CONDUCTED INTERFERENCE............................................................. 7 NUMBER OF HOPPING CHANNELS ........................................................................... 9 DWELL TIME OF A HOPPING CHANNEL .................................................................. 10 20 dB BANDWIDTH ................................................................................................. 11 CARRIER FREQUENCY SEPARATION ...................................................................... 12 POWER OUTPUT ..................................................................................................... 13 SPURIOUS EMISSIONS AT ANTENNA TERMINALS .................................................. 14 FIELD STRENGTH OF SPURIOUS EMISSIONS......................................................... 15 RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND............... 17 APPLICANT: DRS TACTICAL SYSTEMS, INC. FCC ID: UGL9800178540001 REPORT: V:\D\DRS\981AUT6\981AUT6TestReport.doc Page 3 of 18 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 NW State Road 45, Newberry, Florida 32669 USA. Certificate # 0955-01 Authorized by: Mario de Aranzeta Signature: <Mario de Aranzeta> Function: Engineer Date: August 7, 2006 Tested by: Nam Nguyen Signature: on file Date: July 17, 2006 APPLICANT: DRS TACTICAL SYSTEMS, INC. FCC ID: UGL9800178540001 REPORT: V:\D\DRS\981AUT6\981AUT6TestReport.doc Page 4 of 18 GENERAL INFORMATION AND EQUIPMENT UNDER TEST Test Report Purpose: Compliance of test article with FCC part 15.247 Applicable Standards: FCC Part 15.247 Test Result: The test results relate only to the items tested. Manufacture: DRS Tactical Systems, Inc. 1110 West Hibiscus Blvd. Melbourne, FL 32901 FCC ID: UGL9800178540001 Product Description: Bluetooth transceiver Operating Frequency: 2402 2480 MHz Max. Output Power (conducted): Conducted – 2 mW ERP - EIRP Type of Modulation: FHSS (Bluetooth) - GFSK Primary Power 110VAC/50-60Hz Power Supply: Secondary Power Vdc Test Item: Pre-Production Type of Equipment: Mobile Antenna Type: dipole Antenna Connector: unique Hirose connector Modification to the EUT: None Test Facilities: Timco Engineering Inc. 849 N.W. State Road 45, Newberry, FL 32669. Test Exercise (e.g. software description, test signal, etc.): The test article was set in a continuous transmit mode of operation Test Conditions: Temperature: 78°F Humidity: 55% APPLICANT: DRS TACTICAL SYSTEMS, INC. FCC ID: UGL9800178540001 REPORT: V:\D\DRS\981AUT6\981AUT6TestReport.doc Page 5 of 18 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303a01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B OPT 462 3188A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 APPLICANT: DRS TACTICAL SYSTEMS, INC. FCC ID: UGL9800178540001 REPORT: V:\D\DRS\981AUT6\981AUT6TestReport.doc Page 6 of 18…
