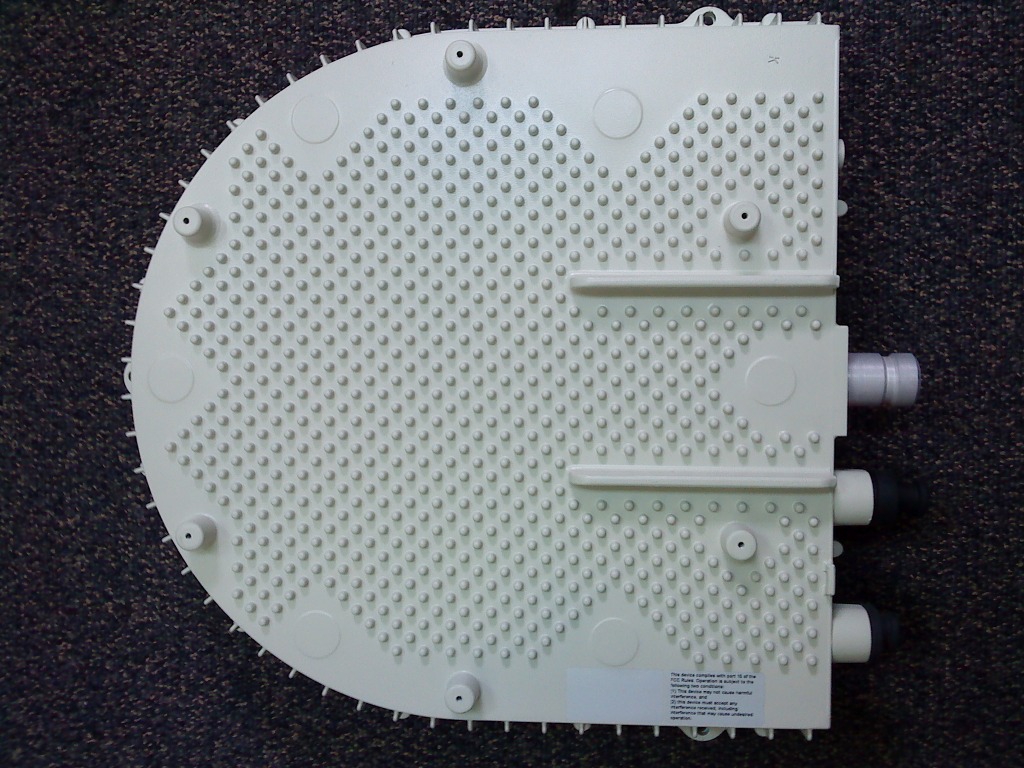

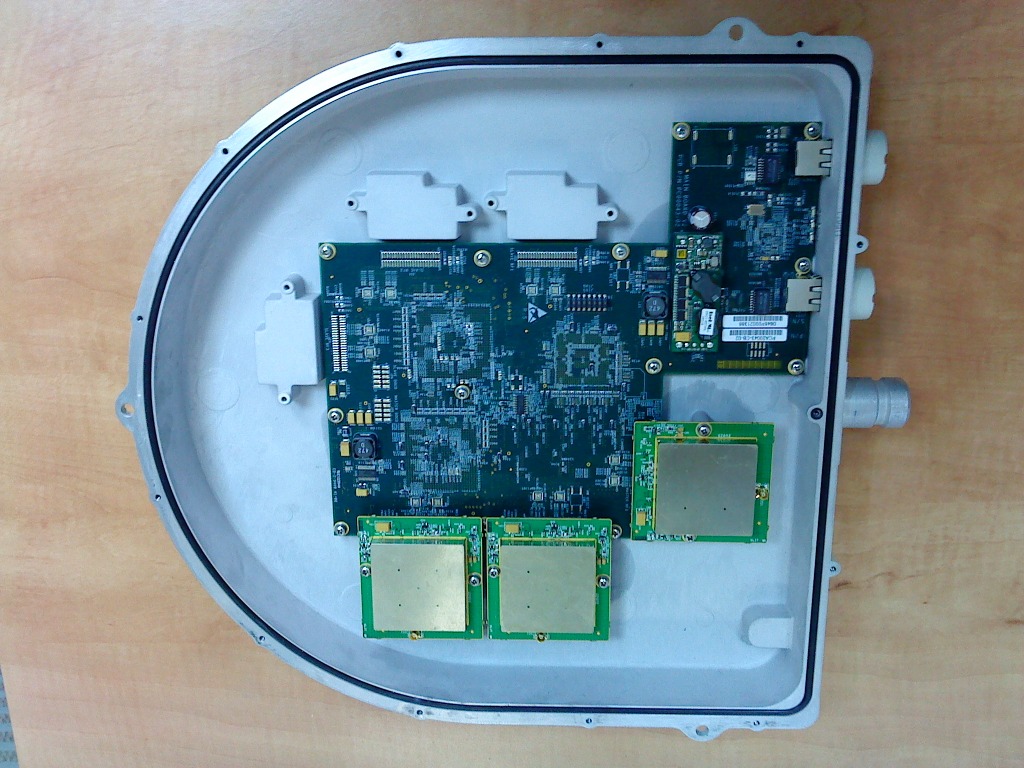

UGM-WBS2400-2SWBS-2400 Outdoor Wi-Fi Base Station

12/05/2009 6 Ha’yetsira Street, PO Box 580, Yoqne’am-Illit 20692 Main: +972.4.909.7300 Fax: +972.4.909.7322 Web: www.wavion.net Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen, This letter is to comply with the requirements of section 15.203 as we hereby state that the device pertaining to application FCC-ID UGM-WBS2400-2S requires professional installation due to the following reasons: A) This device must be professionally installed and used only with components (e.g. antennas) provided with the product. Failure to do so may result in significantly lower performance of the product. B) The device and all of its components should be installed only by experienced installation professionals who are familiar with local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities. C) The devices will be sold to dealers and service providers and will not be sold in general public stores. Sincerely, Oren Niv HW Manager

WBS-2400 & WBS-5800 Outdoor Wi-Fi Sector Base Station Installation Guide Rev. 3 February 2009 Note: To better reflect the value of Wavion products we are changing the name of our product family from Access Points (AP) to Wireless Base Stations (WBS), consequently the existing WS- 410 product name will be changed to Wavion WBS-2400. The new product name emphasizes the difference in architecture (Multiple Radio system) and the value to customer, superiority in performance (coverage, capacity, indoor penetration and immunity to interference) of Wavion WiFi base station over any other standard outdoor WiFi access point products available in the market. All references in Wavion's documentation to WS-410 refer also to the WBS-2400, and vice versa. Both products are exactly the same except for the name change. Copyright Notice ©2006, 2007, 2008 Wavion, Inc. All rights reserved. Wavion is a registered trademark of Wavion in the United States and certain other jurisdictions. Specifications are subject to change without notice. FCC Notice to Users and Operators This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by using one of the following measures: • Reorient or relocate the receiving antenna. • Increase separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician. Installation Guide 3 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: According to the FCC rules the WBS-5800 unit must only be used for fixed point to point applications with fixed clients. R&TTE Compliance Statement This equipment (ETSI-models only) complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) 4 Wavion Networks Contents Chapter 1 About This Guide........................................................................5 Preface ....................................................................................................5 Conventions.............................................................................................5 Contacting Technical Support....................................................................6 Chapter 2 Introduction...............................................................................7 Chapter 3 Package Content........................................................................8 Chapter 4 Installing the Wavion WBS-2400/5800 Sector Base Station..10 Important Safety Instructions.................................................................. 11 Preparing for Installation......................................................................... 12 Choosing a Location................................................................................ 13 Preparing the Site................................................................................... 13 Mounting Strategies................................................................................ 14 Using Hose Clamps................................................................................. 14 Mounting on a Pole/Streetlight ................................................................ 15 Grounding the Data Protection Device...................................................... 18 Connecting Power and DATA................................................................... 20 Safety Information for the Wavion WBS-2400/5800.................................. 24 Service Instructions ................................................................................ 25 Chapter 5 Product Specification WBS-2400 Sector..................................26 Chapter 6 Antenna 2.4GHz Specifications and Patterns..........................30 SF-245W 2.4GHz Sector Antenna............................................................. 30 Chapter 7 Product Specification WBS-5800.............................................33 Chapter 8 Antenna 5.8GHz Specifications and Patterns..........................39 MT-463009CV 5.8GHz Antenna Azimuth Patterns directional Antenna........ 39 Chapter 9 Installation Accessories...........................................................41 Ethernet Cables...................................................................................... 42 Sun Protection........................................................................................ 42 Lightning Protection................................................................................ 42 Power Over Ethernet............................................................................... 42 Chapter 10 Wind Loading Considerations..................…

Text truncated - open the document above for the full version.

Type 4 Type 4 Type 4 Type 4 enclosure enclosureenclosure enclosure Model: WBS-2400 Consult the installation Guide before applying power POE Input: 55VDC WARNING: FCC ID: UGM-WBS2400-2S P/N: 12406ASD Product: WBS-2400-AAA-DDD S/N: YYWWPSSSSSSSS MAC: ##.##.##.##.##.## SW: IV.x.x.x.xHW: rev-F.xx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Test Report No. 8912323629 Applicant: Wavion Ltd. Equipment Under Test: 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Section Test Report No.: 8912323629 Page 1 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Applicant: Wavion Ltd. Address: 6 Ha'yetsira Street, Yoqne'am-Illit, 20692, Israel Sample for test selected by: The customer The date of test: February 2009 Reference Documents: ™ CFR 47 FCC: Rules and Regulations; Part 15. “Radio frequency devices”; Subpart C: “Intentional radiators” (2007). ™ Test Results: The EUT was found meeting with the relevant requirements of CFR 47 FCC Part 15 Sections: 15.107, 15.109, 15.205, 15.207, 15.209, 15.247. This Test Report contains 65 Pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Description of Equipment Under Test (EUT): 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 Manufactured by: Wavion Ltd. Test Report No.: 8912323629 Page 2 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Table of Contents 1. Applicant information 3 2. Test performance 3 3. Scope 4 4. EUT (equipment under test) description. 4 4.1. General Description_______________________________________________________________4 4.2. EUT's sub-assemblies list. __________________________________________________________4 4.3. EUT ports and lines. ______________________________________________________________5 4.4. Potential emission source: __________________________________________________________5 4.5. Auxiliary equipment used: __________________________________________________________5 4.6. EUT technical characteristic ________________________________________________________6 5. Test configuration: 7 5.1. Environmental evaluation and exposure limit ___________________________________________9 6. Test specification, Methods and Procedures 10 7. Measurements, examinations and derived results 10 7.1. Location of the Test Site: __________________________________________________________10 7.2. Test condition: __________________________________________________________________10 7.3. Conducted emission test (Subscriber Unit) (per Section 15.207): ___________________________11 7.5 Radiated emission test (per section 15.209): ___________________________________________18 7.5. Conducted spurious emission_______________________________________________________21 7.6. Radiated emission test on Outdoor Radio Unit – spurious (per Section 15.209): _______________28 7.7. Radiated emission test on Outdoor Radio Unit - restricted bands (per Section 15.205): _________32 7.8. Minimum bandwidth _____________________________________________________________36 7.9. Maximum peak output power _______________________________________________________42 7.10. Peak power spectral density of digital modulated systems according to § 15.247(e)____________47 8. Appendix 1: Test equipment used 61 9. Appendix 2. Antenna Factor and Cable Loss 62 10. Appendix 3: Test configuration illustration 64 Test Report No.: 8912323629 Page 3 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S 1. Applicant information Company: Wavion Ltd. Address : 6 Ha'yetsira Street City: Yoqne'am-Illit Country : Israel 2. Test performance Location: SII EMC Section Wavion Ltd. Purpose of test: Apparatus compliance verification in according with CFR 47 FCC Requirement Test specification: CFR 47 FCC Part 15 Sections: 15.205, 15.207, 15.209, 15.247 Test FCC Part 15 Test result Conducted emission on unintentional radiation Sec.15.107 Complies Radiated emission on unintentional radiation Sec.15.109 Complies Radiated emissions in restricted bands Sec.15.205 Complies Radiated Emission on Radio Unit: spurious Sec.15.209 Complies Conducted emission Sec.15.207 Complies Radiated emission – general requirements Sec.15.209 Complies Minimum bandwidth Sec. 15.247 (a) Complies Maximum peak output power Sec.15.247 (b) Complies Peak power spectral density Sec.15.247 (e) Complies Conducted spurious emissions Sec.15.247 (d) Complies Electronics & Telematics Laboratory April 2009 Approved by: Eng. Yuri Rozenberg Tested by: Albert Herzenshtein Tested by: Michael Feldman Position: Head of EMC Branch Position: Test Engineer Position: Test Technician Test Report No.: 8912323629 Page 4 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S 3. Scope This test report contains results measured on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station (FCC ID: UGM-WBS2400-2S) according to the relevant requirements of CFR 47 FCC Part 15 Subparts B & C. 4. EUT (equipment under test) description. 4.1. General Description The WBS-2400 is a new category of Wi-Fi Wireless Base Station designed from the ground up for metro-Wi-Fi deployments. It is based on three antennas and radios and custom-built ASICs, utilizes Wavion's powerful multi-antenna signal processing technologies, and provides significant performance gains to off-the-shelf 802.11 standards-based Wi-Fi clients. The WBS-2400 Wi-Fi Wireless Base Station uses three sector antennas and beam- forming technology in order to provide significant performance gains to off-the-shelf 802.11 standards-based Wi-Fi clients. 4.2. EUT's sub-assemblies list. The EUT ports and lines are detailed in Table 1. No. Description P/N; Model Manufacturer 1 Digital Board PC00043 Wavion 2 RF Board PC00045 Wavion 3 DC/DC PS PKB4711PINB Ericsson 4 DC/DC PS 1/8 brick SQE48T20050 PowerOne 5 DC/DC PS 1/16 brick SSQE48T13050 PowerOne 6 DC/DC PS 0RCY-85T050 Bel 7 Antenna MT-343037/C…

Text truncated - open the document above for the full version.

Test Report No.: 8912323629 Page 42 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S 7.10. Maximum peak output power 7.10.1. Requirements: The maximum peak output power shall not exceed 1 Watt as required in sec. 15.247 (b). 15.247 (b) (4): The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Applying the restrictions from (c)(2)(ii), the conducted output power is derived as follows: • The antenna element gain is 10.5 dBi. • The maximum directional antenna gain is 10.5+10*log 10 (3) = 15.3 dBi. • The maximum aggregate peak output limit is 30 dBm – (15.3-6)/3 =26.9 dBm. • The maximum peak output limit for each transmit output and for each beam is 26.9-10*log 10 (3) = 22.1 dBm. If a transmitter employs an antenna that operates simultaneously on multiple directional beams using the same or different frequency channels, the power supplied to each emission beam is subject to the power limit specified in paragraph (c)(2)(ii) of this section. In addition, the aggregate power transmitted simultaneously on all beams shall not exceed the limit specified in paragraph (c)(2)(ii) of this section by more than 8 dB. 7.10.2. Test procedure: The output power measurements were performed at worst case mode, e.g. in multiple (two beams) mode operation. The measurements were performed in normal (transmitting) mode of operation for carrier (channel) frequency at low, middle and the high of the 2.412 - 2.462 GHz frequency range at each transmit output under two data transfer bit rates that reflect to the worst test results. Additionally, combined maximum peak output power was calculated and presented in table 11. 7.10.3. Test results: All test results met the requirements. The summaries of Peak Power measurements (worst case) are shown in Table 10. The reference limit at the measurements in 2 beams mode was taken the same as for the single beam mode. The aggregate power with two beams not exceeds the limit for one beam (see Table 11). The margin for the aggregate power with two beams is at least 8dB below standard requirements. Test Report No.: 8912323629 Page 43 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Frequency MHz Rate Mbps Output 1 Peak Power [dBm] Output 2 Peak Power [dBm] Output 3 Peak Power [dBm] FCC Limit Per 15.247(b) [dBm] Calculated Limit [dBm] Margin [dB] Output 1 Plot number Margin [dB] Output 2 Plot number Margin [dB] Output 3 Plot number 1 21.42 20.04 21.00 30 22.1 0.68 75 2.06 81 1.1 87 2412 6 20.34 20.04 20.20 30 22.1 1.76 76 2.06 82 1.90 88 1 21.48 20.42 20.66 30 22.1 0.62 77 1.68 83 1.44 89 2437 6 20.72 20.58 20.30 30 22.1 1.38 78 1.52 84 1.80 90 1 20.39 20.66 20.22 30 22.1 1.71 79 1.44 85 1.88 91 2462 6 19.98 20.01 20.01 30 22.1 2.12 80 2.09 86 2.09 92 Table 10. Peak Power (Outputs 1-3) test results. Carrier Frequency MHz Rate Mbps Calculated Limit [dBm] FCC Limit Per 15.247(b) [dBm]/W Calculated Limit [W] Calculated Combined (max) Output *, Peak Powe r [W] Margin [W] 1 26.9 30/1 0.49 0.37 0.12 2412 6 26.9 30/1 0.49 0.31 0.18 1 26.9 30/1 0.49 0.37 0.12 2437 6 26.9 30/1 0.49 0.34 0.15 1 26.9 30/1 0.49 0.33 0.16 2462 6 26.9 30/1 0.49 0.30 0.19 Table 11. Peak Power (combined output) test results. (*) - Calculated Combined (max) Output, Peak Power [W] is the sum of the measured Power from all Output terminals, where each result (output power from separate output terminal) mathematically conversed from Logarithm to linear units. The results were present in Watt. For example, the calculation for 2412 MHz frequency (1 Mbps bit rate) is the following: 1. 21.42dBm = 0.139W; 20.04dBm = 0.101W; 21.00dBm = 0.125W; 2. 0.139+0.101+0.125 = 0.365[W] Test Report No.: 8912323629 Page 44 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 75. Tx output 1. Peak power. Fc-2412 MHz. 1Mbps rate Plot # 76. Tx output 1. Peak power. Fc-2412 MHz. 6Mbps rate Plot # 77. Tx output 1. Peak power. Fc-2437 MHz. 1Mbps rate Plot # 78. Tx output 1. Peak power. Fc-2437 MHz. 6Mbps rate Plot # 79. Tx output 1. Peak power. Fc-2462 MHz. 1Mbps rate Plot # 80. Tx output 1. Peak power. Fc-2462 MHz. 6Mbps rate Test Report No.: 8912323629 Page 45 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 81. Tx output 2. Peak power. Fc-2412 MHz. 1Mbps rate Plot # 82. Tx output 2. Peak power. Fc-2412 MHz. 6Mbps rate Plot # 83. Tx output 2. Peak power. Fc-2437 MHz. 1Mbps rate Plot # 84. Tx output 2. Peak power. Fc-2437 MHz. 6Mbps rate Plot # 85. Tx output 2. Peak power. Fc-2462 MHz. 1Mbps rate Plot # 86. Tx output 2. Peak power. Fc-2462 MHz. 6Mbps rate Test Report No.: 8912323629 Page 46 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 87. Tx output 3. Peak power. Fc-2412 MHz. 1Mbps rate Plot # 88. Tx output 3. Peak power. Fc-2412 MHz. 6Mbps rate Plot # 89. Tx output 3. Peak power. Fc-2437 MHz. 1Mbps rate Plot # 90. Tx output 3. Peak power. Fc-2437 MHz. 6Mbps rate Plot # 91. Tx output 3. Peak power. Fc-2462 MHz. 1Mbps rate Plot # 92. Tx output 3. Peak power. Fc-2462 MHz. 6Mbps rate Test Report No.: 8912323629 Page 47 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S 7.11. Peak power spectral density of …

Text truncated - open the document above for the full version.

Test Report No.: 8912323629 Page 52 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 105. Tx output 1. Max peak point. Fc-2412 MHz. 1Mbps rate. Plot # 106. Tx output 1. PSD result. Fc-2412 MHz. 1Mbps rate Plot # 107. Tx output 1. Max peak point. Fc-2412 MHz. 6Mbps rate. Plot # 108. Tx output 1. PSD result. Fc-2412 MHz. 6Mbps rate . Test Report No.: 8912323629 Page 53 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 109. Tx output 1. Max peak point. Fc-2437 MHz. 1Mbps rate. Plot # 110. Tx output 1. PSD result. Fc-2437 MHz. 1Mbps rate. Plot # 111. Tx output 1. Max peak point. Fc-2437 MHz. 6Mbps rate. Plot # 112. Tx output 1. PSD result. Fc-2437 MHz. 6Mbps rate Test Report No.: 8912323629 Page 54 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 113. Tx output 1. Max peak point. Fc-2462 MHz. 1Mbps rate. Plot # 114. Tx output 1. PSD result. Fc-2462 MHz. 1Mbps rate. Plot # 115. Tx output 1. Max peak point. Fc-2462 MHz. 6Mbps rate. Plot # 116. Tx output 1. PSD result. Fc-2462 MHz. 6Mbps rate. Test Report No.: 8912323629 Page 55 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 117. Tx output 2. Max peak point. Fc-2412 MHz. 1Mbps rate. Plot # 118. Tx output 2. PSD result. Fc-2412 MHz. 1Mbps rate. Plot # 119. Tx output 2. Max peak point. Fc-2412 MHz. 6Mbps rate Plot # 120. Tx output 2. PSD result. Fc-2412 MHz. 6Mbps rate Test Report No.: 8912323629 Page 56 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 121. Tx output 2. Max peak point. Fc-2437 MHz. 1Mbps rate Plot # 122. Tx output 2. PSD result. Fc-2437 MHz. 1Mbps rate Plot # 123. Tx output 2. Max peak point. Fc-2437 MHz. 6Mbps rate Plot # 124. Tx output 2. PSD result. Fc-2437 MHz. 6Mbps rate Test Report No.: 8912323629 Page 57 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 125. Tx output 2. Max peak point. Fc-2462 MHz. 1Mbps rate Plot # 126. Tx output 2. PSD result. Fc-2462 MHz. 1Mbps rate Plot # 127. Tx output 2. Max peak point. Fc-2462 MHz. 6Mbps rate Plot # 128. Tx output 2. PSD result. Fc-2462 MHz. 6Mbps rate Test Report No.: 8912323629 Page 58 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 129. Tx output 3. Max peak point. Fc-2412 MHz. 1Mbps rate Plot # 130. Tx output 3. PSD result. Fc-2412 MHz. 1Mbps rate Plot # 131. Tx output 3. Max peak point. Fc-2412 MHz. 6Mbps rate Plot # 132. Tx output 3. PSD result. Fc-2412 MHz. 6Mbps rate Test Report No.: 8912323629 Page 59 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 133. Tx output 3. Max peak point. Fc-2437 MHz. 1Mbps rate Plot # 134. Tx output 3. PSD result. Fc-2437 MHz. 1Mbps rate Plot # 135. Tx output 3. Max peak point. Fc-2437 MHz. 6Mbps rate Plot # 136. Tx output 3. PSD result. Fc-2437 MHz. 6Mbps rate Test Report No.: 8912323629 Page 60 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Plot # 137. Tx output 3. Max peak point. Fc-2462 MHz. 1Mbps rate Plot # 138. Tx output 3. PSD result. Fc-2462 MHz. 1Mbps rate Plot # 139. Tx output 3. Max peak point. Fc-2462 MHz. 6Mbps rate Plot # 140. Tx output 3. PSD result. Fc-2462 MHz. 6Mbps rate Test Report No.: 8912323629 Page 61 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S 8. Appendix 1: Test equipment used All measurements equipment is on SII calibration schedule with a recalibration interval not exceeding once a year. Instrument Manufacturer Model Serial No. Due calibration date Signal Analyzer Rohde&Schwarz FSQ 8 100138 11/09 EMI Analyzer HP E7405A SII 4944 04/09 Antenna Double Ridge 1-18 GHz EMCO 3115 SII 4873 09/09 Antenna SHF-EHF Horn 14-40 GHz Schwarzbeck BBHA 9170 SII 5854 09/09 Biconilog Antenna 30 – 2000 MHz Schaffner- Chase CBL-6112D S/N 23181 09/09 Antenna Mast R&S HCM - N/A Metallic turntable R&S HCT12 100001 N/A Positioning controller R&S HCC - N/A LISN 9 kHz – 30 MHz FCC LISN- 50/250-32-4-16 SII 5023 10/09 Transient limiter 0.009-200 MHz HP 11947A 31074A3105 03/09 Test Report No.: 8912323629 Page 62 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S 9. Appendix 2. Antenna Factor and Cable Loss Cable Loss (10m cable + Mast) Point Frequency (MHz) Cable Loss (dB) Point Frequency (MHz) Cable Loss (dB) 1 30 0.53 21 1000 3.68 2 50 0.75 22 1100 3.82 3 100 1.08 23 1200 4.07 4 150 1.39 24 1300 4.24 5 200 1.61 25 1400 4.43 6 250 1.752 26 1500 4.6 7 300 2.00 27 1600 4.7 8 350 2.15 28 1700 4.85 9 400 2.26 29 1800 4.98 10 450 2.383 30 1900 5.19 11 500 2.52 31 2000 5.34 12 550 2.606 32 2100 5.51 13 600 2.75 33 2200 5.69 14 650 2.856 34 2300 5.89 15 700 3.06 35 2400 6.07 16 750 3.201 36 2500 6.22 17 800 3.27 37 2600 6.28 18 850 3.38 38 2700 6.41 19 900 3.46 39 2800 6.53 20 950 3.55 40 2900 6.84 Test Report No.: 8912323629 Page 63 of 65 Pages Title: Test on 2.4 GHz Band Outdoor WiFi (802.11b/g) Wireless Base Station Model: WBS-2400 FCC ID: UGM-WBS2400-2S Antenna Factors: For Bilog Antenna, Model Number: CBL 6112D, S/N: 23181 For Double Ridged Guide Antenna mfr EMCO model 3115 No. f / MHz AF / dB/m f / MHz AF / dB/m 1 30 19.1 160 10.0 2 35 16.0 180 9.5 3 40 13.4 200 9.4 4 45 10.4 250 12.0 5 50 8.3 300 13.1 6 60 6.8 400 15.7 7 70 6.3 500 17.2 8 80 6.8 600 18.3 9 90 8.7 700 19.1 10 100 10.8 800 19.8 11 120 12.2 900 20.7 12 140 11.3 1000 21.2 No. F MHz AF dB/m F …

Text truncated - open the document above for the full version.
