UHTBTH18BLUETOOTH HEADSET

® Product Specification and User Manual SUNITEC ENTERPRISE CO., LTD. Tong-Fu-Yu Ind, Ku-Keng, Guan-Lan, Bao-An District, Shenzhen 518110, China. TEL:86-755-28088244/28089953 FAX:86-755-28088153 Email: [email protected] http://www.sunitec.com.tw Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the users authority to operate the equipment. Product Specification and User Manual Product Name Bluetooth Mono Headset Product Model. BTH-F1 Customer V Three Document Ve r s i o n V1.0 Product Development Department DATE Prepared By: Approved By: BTH-F1 www.sunitec.com.tw - 1 - ® Product Specification and User Manual DOCUMENT CHANGE HISTORY Version Date Person Remarks V1.0 2007/04/05 Denglibing First release BTH-F1 www.sunitec.com.tw - 2 - ® Product Specification and User Manual 1. Product Features: Compatible Bluetooth Specification V2.0+EDR Operating Frequency Band: 2.4GHz ~ 2.48GHz unlicensed ISM band Class 2 Output Power Support Profiles: Headset and Hands Free 1.5 profiles Support Multiple paired. (Up to 8 Bluetooth Phone can be paired) Battery type: DC3.7V 85 mAH Talk time: 3-5hours Standby time: 70hours Size: (L)33 mm*(W)22 mm*(H)12.2 mm 2. Charging Your Bluetooth Headset The headset comes with a built-in rechargeable battery. Prior to using the headset, it is recommendable to charge the battery fully for the first time. Normal fully charger time is 1.5 hrs. (Approx.). Connect the charger to an AC wall outlet and the charge plug to headset charging socket. After completion of charge, please remove the chargers from headset and outlet. IMPORTANT: (a) Charging indication will be delayed for a few minutes if the headset has not been used for a long time or the battery is drained. (b) When battery becomes low, LED will flash red every 3 seconds Please recharge the battery as described above. (c) To prolong durability of battery, it’s recommended to charge the headset whenever low battery is encountered. Under low battery condition, if headset is continuously used, it’ll decrease durability of battery, as well as standby time, and cause longer charge time than normal 2 hrs. (d) The red LED will flash on while charging is in progress and flash off when charge is completed. 3.Button Functionality: Buttons Functions Description “MFB”Button Power ON/OFF Pairing Answer Call End/Cancel Call Vo i c e D i a l Reject Call Last No. Redial “V+”and“V-”Buttons Vo l u m e c o n t r o l Mute Call transfer Passkey Code 0000 BTH-F1 www.sunitec.com.tw - 3 - ® Product Specification and User Manual 4.Operation Procedure: Power ON： Under idle stage Press and hold the MFB for 3 seconds until you hear a short beep. The blue LED will flash on 1 second. Power OFF： Press and hold the MFB for 5 seconds until you hear a long beep. The red LED will flash on 1 second. Headset will be off. The LED will stop flashing. Pairing your Headset: A.Place the headset and the mobile phone no more then 1meter and ensure there is nothing in between. B.Ensure the headset is OFF. C.Press and hold the “MFB” button 5 seconds until the headset LED alternately flashs blue and red. D.Activate you mobile phone Bluetooth function by referring to you mobile phone user guide for details. E. Set mobile phone to search for Bluetooth device “BTH-F1”, and select “BTH-F1” from deive list. F. Enter the passkey “0000” and press “OK” to pair your headset and mobile phone. When the pariring is complete, the headset LED will flash blue 5 times followed by a long beep. G. Press “Return” to go back to your mobile phone main menu, a headset icon will be shown on the screen, you will can to make and receive calls use your headset. IMPORTANT:If the pairing cannot be completed within 2 minutes while the pairing mode is activated, the headset LED will and headset will enter standby mode, Please repeat the above pairing procedures. Connect your headset A.Headset is under off status, Turn on the Headset for headset to search for the last connected devices and obtain Bluetooth connection automatically. B.Headset is under standby mode, Press the MFB for the headset to search for the last connected devices and obtain Bluetooth connection automatically. IMPORTANT: Under power on mode or removal of Bluetooth connection (link), if connection is not completed within 10 minutes, the headset will power off. Using your headset （1）Answer Call When there in an incoming call, will hear ringing through the earphone, Press the “MFB”button answer the call. （2）End Call Press the “MFB” button once during going call. （3）Reject Call Press and Hold the “MFB” button 3sec during incoming call. BTH-F1 www.sunitec.com.tw - 4 - ® Product Specification and User Manual （4）Voice Dial From you headset If your phone is equipped with a voice dialing function, Under Standby mode press “MFB” button. Wait for the beep, Then say the name of the person you want to call. （5）Last No. Redial Under Standby mode press the “MFB” button twice within 1.2 sec. Recall the last number dialled. （6）Transfer Call Transfer Call from Headset to mobile phone: Press and hold the “V-” button 3sec to transfer the call from headset to mobile phone during conversation. Transfer Call from mobile phone to Headset: Press and hold the “V-” button 3sec or Press the “MFB” button once to transfer the call from mobile phone to headset during conversation. （7）Volume Adjustment To increase speaker volume, press the “V+” button repeatedly until the user reaches the desired volume level. To decrease speaker volume, press the “V-” button repeatedly until the user reaches the desired volume level. （8）Muting / Un-muting the Microphone To mute the mi…

Text truncated - open the document above for the full version.

Block Diagram

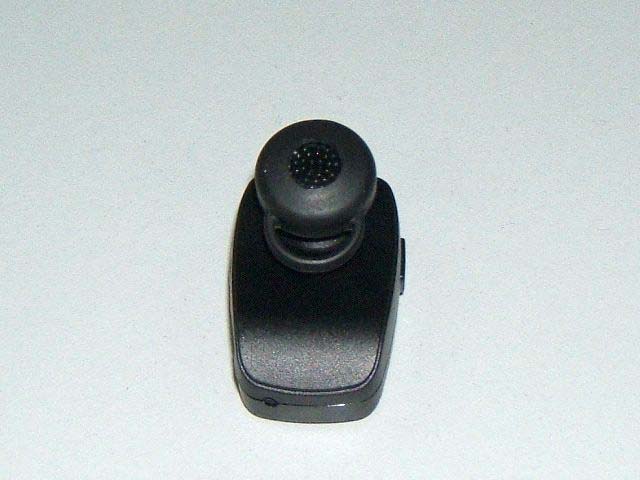

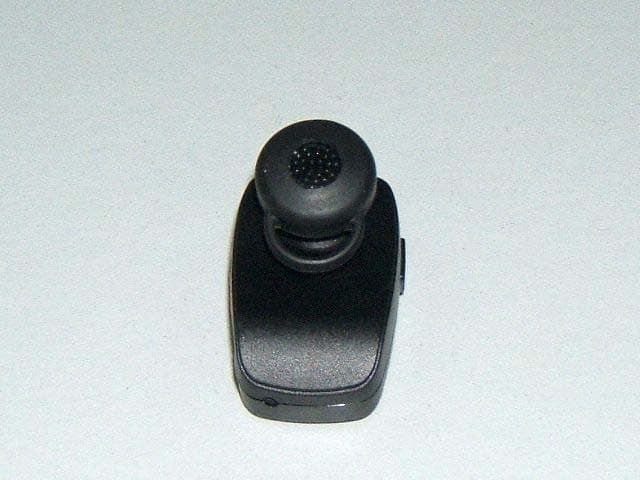

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07040005 FCC ID: UHTBTH18 Top View of EUT Bottom View of EUT

FCC ID Label and Location APPLICANT: V THREE INTERNATIONAL LIMITED FCC ID: UHTBTH18 Model: BTH-F1 Model Name: BTH-F1 FCC ID: UHTBTH18

FCC ID Label and Location APPLICANT: V THREE INTERNATIONAL LIMITED FCC ID: UHTBTH18 Model: BTH-F1 Model Name: BTH-F1 FCC ID: UHTBTH18

System Architecture Headset LED Button Antenna Matching Band pass Filter Bluecore04-Headset Chips BC413159A06 Crystal 16MHZ 32K EEPROM BCM-09 Microphone bias Microphone The Bluetooth mono headset is use CSR BC04-Audio ROM solution, the BC04-Audio Rom consists of the Battery change circuit, Power Supply Circuit and Tolerant LED Drivers. The headset consists of the bc04-Audio Rom module BCM-09, Status indicating LED and Three Multifunction Buttons for power on/off, Pairing, Call control and Volume Control etc. Battery Charge Circuit The Battery use Rechargeable mA Battery, The battery charger is use internal battery changer circuit. Bluetooth Class 2 Module BCM-09 The BCM-09 is a Class 2 Bluetooth sub-system using BlueCore4-Audio Rom chipset from leading Bluetooth chipset supplier Cambridge Silicon Radio with a maximal output power of less than 4dBm. The module block includes CSR BC04-Audio IC, 32k EEPROM, Microphone Bias, Band pass Filter and Crystal for clock. When used with the CSR Bluetooth software stack, it provides a fully compliant Bluetooth system to v2.0+EDR specification for data and voice communications. The RF circuit includes the antenna matching components and a MMC Antenna AHD1103-244ST01. 32K EEPROM The headset is use 32K EEPROM from Microchip Technology, an EEPROM is necessary to store parameters such as the Bluetooth address.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07040005 FCC ID: UHTBTH18 DATE: 04/23/2007 Page 1 of 27 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF BLUETOOTH MONO HEADSET FCC ID: UHTBTH18 MODEL No.: BTH-F1 LISTED MODELS: BTH-18, BTH-19, BTH-20, BTH-21, BELLO BRAND NAME: N/A REPORT NO: WE07040005 ISSUE DATE: Apr 23, 2007 Prepared for SHENZHEN SKYPOWER INDUSTRY DEVELOPMENT CO., LTD. 2408A, SEG PLAZA HUAQIANG NORTH RD, SHENZHEN Prepared by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD. d.b.a. SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD. HUATONGWEI BUILDING, KEJI RD. 12 S., HIGH-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, P.R.CHINA TEL: 86-755-26748099 FAX: 86-755-26748005 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07040005 FCC ID: UHTBTH18 DATE: 04/23/2007 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: V THREE INTERNATIONAL LIMITED Room 620, Advanced Technology Centre, 2 Choi Fat Street, Sheung Shui, Hong Kong Product Description: Bluetooth Mono Headset Brand Name: N/A Model Number: BTH-F1(Representative model for test) Serial Number: BTH-18; BTH-19; BTH-20; BTH-21; BELLO File Number: WE07040005 Date of Test: Apr 10, 2007 ~ Apr 19, 2007 We hereby certify that: The above equipment was tested by SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Jimmy Li / Executive Manager Tracy Qi / RF Engineer SHENZHEN HUA TONG WEI SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. INTERNATIONAL INSPECTION CO., LTD. Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07040005 FCC ID: UHTBTH18 DATE: 04/23/2007 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION............................................................................................................. 5 1.1 PRODUCT DESCRIPTION................................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................................ 5 1.3 TEST METHODOLOGY........................................................................................................................................ 5 1.4 TEST FACILITY...................................................................................................................................................... 5 1.5 SPECIAL ACCESSORIES.................................................................................................................................... 6 1.6 EQUIPMENT MODIFICATIONS........................................................................................................................... 6 1.7 LABORATORY ACCREDITATIONS AND LISTINGS.......................................................................................... 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 8 2.1 EUT CONFIGURATION........................................................................................................................................ 8 2.2 EUT EXERCISE...................................................................................................................................................... 8 2.3 CONFIGURATION OF TESTED SYSTEM......................................................................................................... 8 3. SUMMARY OF TEST RESULTS................................................................................................... 9 4. DESCRIPTION OF TEST MODES................................................................................................ 9 5. CONDUCTED EMISSIONS TEST............................................................................................... 10 5.1 MEASUREMENT PROCEDURE:...................................................................................................................... 10 5.2 TEST SET-UP (B LOCK DIAGRAM OF CONFIGURATION)...................................................................................... 10 5.3 MEASUREMENT EQUIPMENT USED:............................................................................................................ 10 5.4 CONDUCTED POWER LINE EMISSION LIMIT.............................................................................................. 11 5.5 MEASUREMENT RESULT:................................................................................................................................11 6. SPURIOUS RADIATED EMISSION TEST.............................................................................. 12 6.1 MEASUREMENT PROCEDURE....................................................................................................................... 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................................... 12 6.3 MEASUREMENT EQUIPMENT USED:............................................................................................................ 13 6.4 FIELD STRENGTH CALCULATION.................................................................................................................. 13 6.5 MEASUREMENT RESULT.................................................................................................................................. 14 7. 20dB BANDWIDTH MEASUREMENT....................................................…

Text truncated - open the document above for the full version.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07040005 FCC ID: UHTBTH18 DATE: 04/23/2007 Page 1 of 27 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF BLUETOOTH MONO HEADSET FCC ID: UHTBTH18 MODEL No.: BTH-F1 LISTED MODELS: BTH-18, BTH-19, BTH-20, BTH-21, BELLO BRAND NAME: N/A REPORT NO: WE07040005 ISSUE DATE: Apr 23, 2007 Prepared for V THREE INTERNATIONAL LIMITED ROOM 620, ADVANCED TECHNOLOGY CENTRE, 2 CHOI FAT STREET, SHEUNG SHUI, HONG KONG Prepared by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD. d.b.a. SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD. HUATONGWEI BUILDING, KEJI RD. 12 S., HIGH-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, P.R.CHINA TEL: 86-755-26748099 FAX: 86-755-26748005 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07040005 FCC ID: UHTBTH18 DATE: 04/23/2007 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: V THREE INTERNATIONAL LIMITED Room 620, Advanced Technology Centre, 2 Choi Fat Street, Sheung Shui, Hong Kong Product Description: Bluetooth Mono Headset Brand Name: N/A Model Number: BTH-F1(Representative model for test) Serial Number: BTH-18; BTH-19; BTH-20; BTH-21; BELLO File Number: WE07040005 Date of Test: Apr 10, 2007 ~ Apr 19, 2007 We hereby certify that: The above equipment was tested by SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Jimmy Li / Executive Manager Tracy Qi / RF Engineer SHENZHEN HUA TONG WEI SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. INTERNATIONAL INSPECTION CO., LTD. Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07040005 FCC ID: UHTBTH18 DATE: 04/23/2007 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION............................................................................................................. 5 1.1 PRODUCT DESCRIPTION................................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................................ 5 1.3 TEST METHODOLOGY........................................................................................................................................ 5 1.4 TEST FACILITY...................................................................................................................................................... 5 1.5 SPECIAL ACCESSORIES.................................................................................................................................... 6 1.6 EQUIPMENT MODIFICATIONS........................................................................................................................... 6 1.7 LABORATORY ACCREDITATIONS AND LISTINGS.......................................................................................... 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 8 2.1 EUT CONFIGURATION........................................................................................................................................ 8 2.2 EUT EXERCISE...................................................................................................................................................... 8 2.3 CONFIGURATION OF TESTED SYSTEM......................................................................................................... 8 3. SUMMARY OF TEST RESULTS................................................................................................... 9 4. DESCRIPTION OF TEST MODES................................................................................................ 9 5. CONDUCTED EMISSIONS TEST............................................................................................... 10 5.1 MEASUREMENT PROCEDURE:...................................................................................................................... 10 5.2 TEST SET-UP (B LOCK DIAGRAM OF CONFIGURATION)...................................................................................... 10 5.3 MEASUREMENT EQUIPMENT USED:............................................................................................................ 10 5.4 CONDUCTED POWER LINE EMISSION LIMIT.............................................................................................. 11 5.5 MEASUREMENT RESULT:................................................................................................................................11 6. SPURIOUS RADIATED EMISSION TEST.............................................................................. 12 6.1 MEASUREMENT PROCEDURE....................................................................................................................... 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................................... 12 6.3 MEASUREMENT EQUIPMENT USED:............................................................................................................ 13 6.4 FIELD STRENGTH CALCULATION.................................................................................................................. 13 6.5 MEASUREMENT RESULT.................................................................................................................................. 14 7. 20dB BANDWIDTH MEASUREMENT....................................…

Text truncated - open the document above for the full version.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07040005 FCC ID: UHTBTH18 Radiated Emission Setup Photos
