UHTMMI238TBluetooth Audio Transmitter

1 Helen Zhao Subject: FW: (Revised) V THREE INTERNATIONAL LIMITED, FCC ID: UHTMMI238T, Assessment NO.: AN06T6112, Notice#1 Exhibit-H-External_ Photos-rev.... Exhibit-C-Test_Rep ort-rev..pdf... Exhibit-B-Internal_P hotos-rev.... From: iris Sent: Monday, September 11, 2006 7:33 PM To: Helen Zhao Subject: Re: (Revised) V THREE INTERNATIONAL LIMITED, FCC ID: UHTMMI238T, Assessment NO.: AN06T6112, Notice#1 Dear Helen, Ans#1: Pls find the internal photos. The components are identical on the PCB and only different in the appearance. Ans#2: Pls find the detailed information of MP3 player in the sheet 7 of the test report. Ans#3: Pls find the sheet 32 of the test report for your reference. Best Regards, Iris Lin -----Original Message----- Sent: Tuesday, September 05, 2006 4:05 PM Subject: V THREE INTERNATIONAL LIMITED, FCC ID: UHTMMI238T, Assessment NO.: AN06T6112, Notice#1 Question #1: Please explain model difference among MMI-2T, MMI-3T, MMI-8T, MMI-XX. The external photos show the difference in appearance, are they sharing all components except outer cases? Please indicate clearly in the test report. Question #2: The test report indicates no support equipment was used during the test, but test setup photos show MP3 player was used. Please update the test report. Question #3: The test report - summary of dwell time, the max dwell tim in DH1/DH3/DH5 mode is incorrect. Please update. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in 2 application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

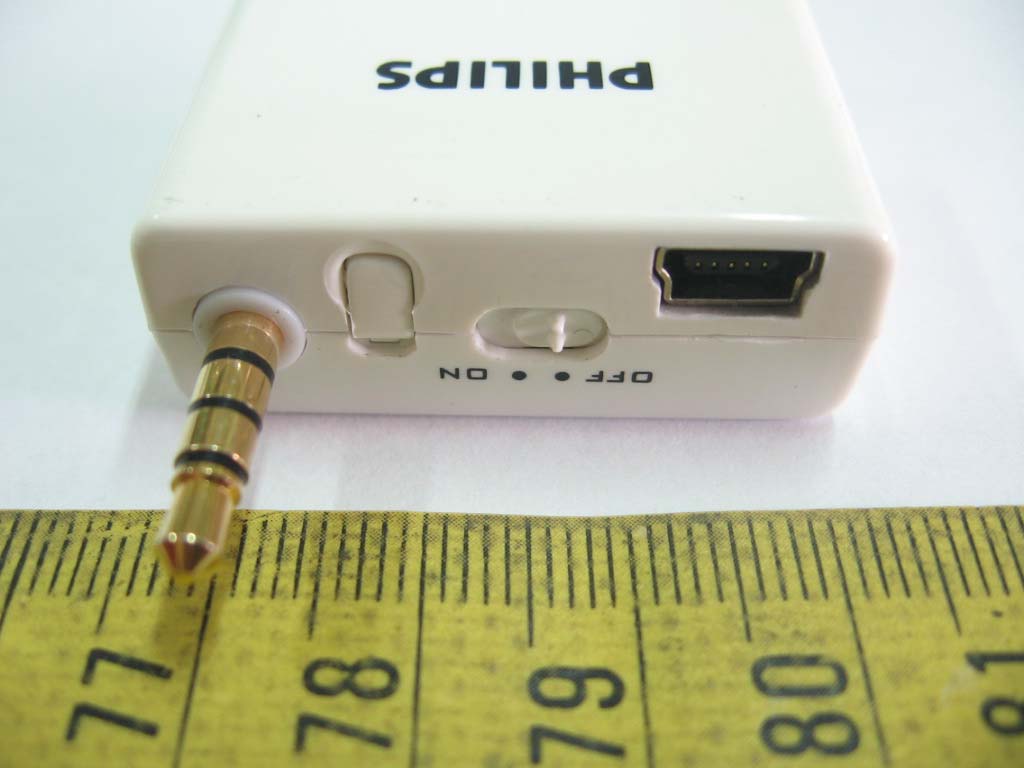

ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT A. Model No. MMI-2T Top View of EUT Side View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Front View of EUT Side View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Top View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT B. Model No. MMI-3T Top View of EUT Side View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Front View of EUT Side View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Rear View of EUT Bottom View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT C. Model No. MMI-8T Top View of EUT Side View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Front View of EUT Side View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Rear View of EUT Bottom View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT D. Adaptor(MMI-2T, MMI-3T, MMI-8T) Top View of Adaptor Side View of Adaptor ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Side View of Adaptor Side View of Adaptor

Model : MMI-2T 20mm x 5mm Model : MMI-3T 20mm x 5mm Model : MMI-3T 20mm x 5mm

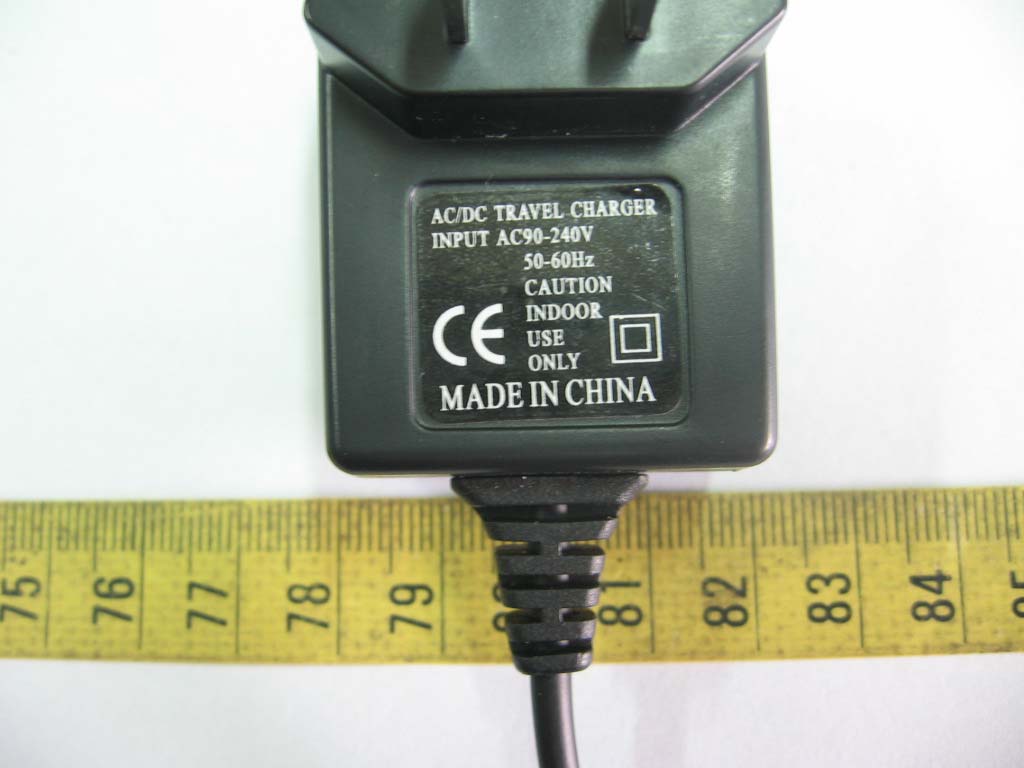

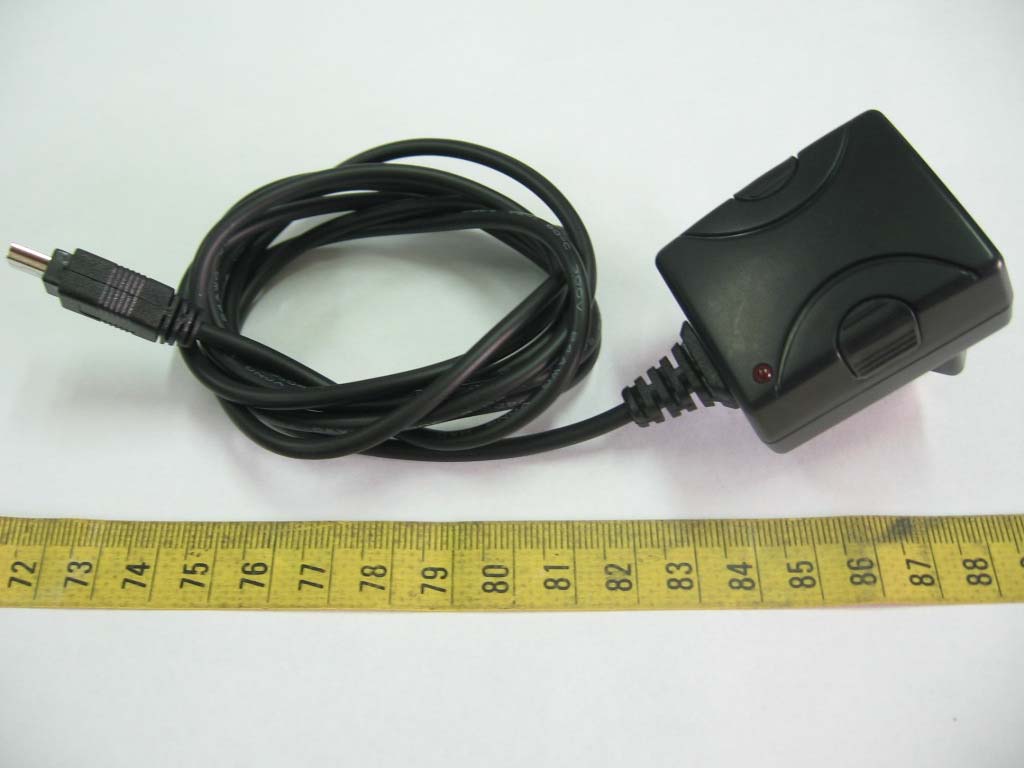

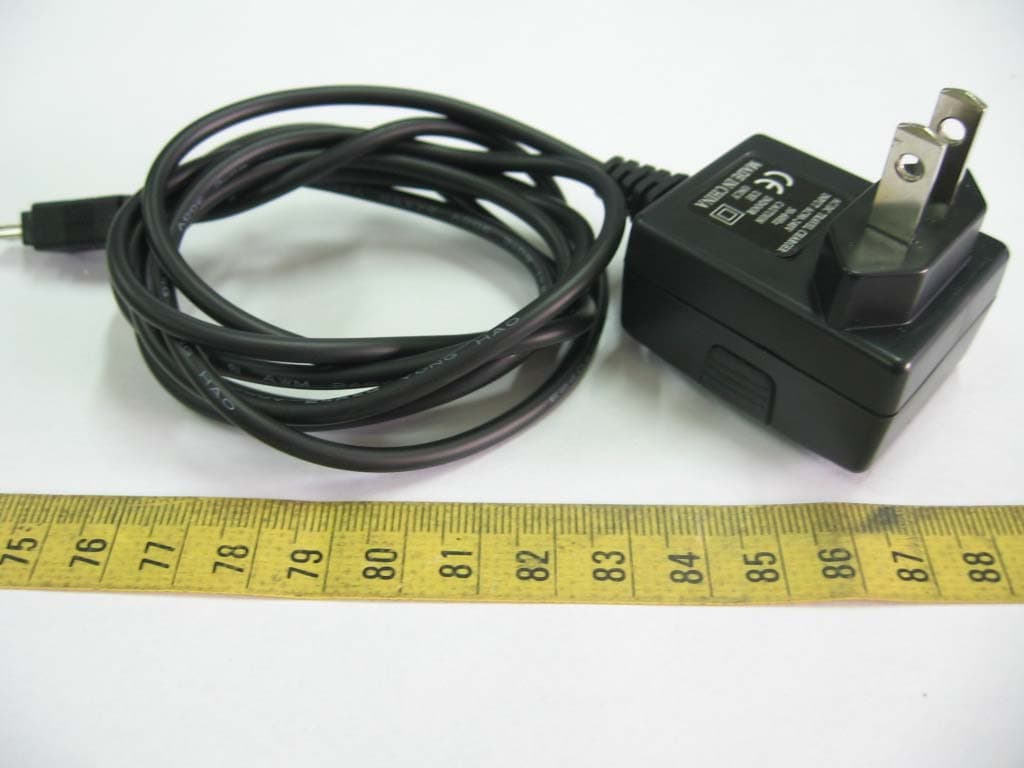

ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of Adaptor’s PCB Solder View of Adaptor’s PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth Audio Transmitter Model : MMI-2T FCC ID : UHTMMI238T for APPLICANT : V THREE INTERNATIONAL LIMITED ADDRESS : Room 620, Advanced Technology Centre, 2 Choi Fat Street, Sheung Shui, Hong Kong. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 06-08-RBF-030-03 ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : V THREE INTERNATIONAL LIMITED Room 620, Advanced Technology Centre, 2 Choi Fat Street, Sheung Shui, Hong Kong. Manufacture : ---- ---- Description of Device : a) Type of EUT : Bluetooth Audio Transmitter b) Trade Name : V3 c) Model No. : MMI-2T d) Power Supply : AC I/P: 90-240Vac; 50-60Hz; DC 3.7V 230mAh e) The data also apply to : MMI-3T ; MMI-8T ; MMI-XX (XX ＝ 0~9, A~Z, or blank) Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2005) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Aug. 30, 2006 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 Tx Portion .......................................................................................................................................... 11 4.4.2 Radiated Emissions in Restricted Bands ............................................................................................ 14 4.4.3 Other Emissions ................................................................................................................................. 15 4.5 Field Strength Calculation ......................................................................................................... 15 4.6 Photos of Radiation Measuring Setup........................................................................................ 16 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 17 5.1 Standard Applicable ................................................................................................................... 17 5.2 Measurement Procedure............................................................................................................. 17 5.3 Conducted Emission Data .......................................................................................................... 18 5.4 Result Data Calculation ............................................................................................................. 22 5.5 Conducted Measurement Equipment ......................................................................................... 22 5.6 Photos of Conduction Measuring Setup.........................................…

Text truncated - open the document above for the full version.

ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 Photos of Radiation Measuring Setup ETC Report No. : 06-08-RBF-030-03 FCC ID.: UHTMMI238T Rev. No 2.1 Photos of Conduction Measuring Setup
