UJU9QDENIM000PDA PHONE WITH WIFI, BLUETOOTH, AND GSM/EDGE

CONTENT CHAPTER 1 BEFORE USING YOUR O2 Xda Denim 6 1.1 WHAT’S IN THE BOX 6 1.2 FAMILIARIZING YOURSELF WITH YOUR O2 Xda Denim 7 1.3 FEATURES 10 1.4 INSERT THE BATTERY & SIM CARD 11 1.5 SIM 12 1.6 BATTERY 12 1.7 HOW TO USE THE CAPSENSE KEYS 12 1.8 LOCK/UNLOCK 13 1.9 POWER 14 CHAPTER 2 GETTING STARTED 16 2.1 DISPLAY INFORMATION 16 2.2 SCREEN ORIENTATION 25 2.3 SETTING TIME & DATE 26 2.4 USING THE STYLUS 26 2.5 SCREEN ALIGNMENT 26 2.6 INPUT METHOD 27 2.7 DRAWING ON THE SCREEN 28 2.8 RECORDING A MESSAGE 29 2.9 EDITING MY INFO 30 2.10 PASSWORD SETUP 30 2.11 MEMORY EXPANSION 30 2.12 DATA BACKUP 30 CHAPTER 3 PHONE FUNCTIONS 32 3.1 PHONE DIALER SCREEN AND KEY INTRODUCTION 32 3.2 MAKING A CALL 33 3.3 RECEIVING / IGNORING A CALL 33 3.4 INTERNATIONAL CALLS 33 3.5 EMERGENCY CALLS 34 1 2 3.6 VOLUME ADJUSTMENT 34 3.7 CONTACTS 34 3.8 CREATING A NEW CONTACT 35 3.9 CALL HISTORY 36 3.10 SETTING RING TONE AND PASSWORD 36 3.11 SIM MANAGER 37 3.12 VIDEO TELEPHONY 38 CHAPTER 4 SETTINGS 44 4.1 PERSONAL SETTINGS 44 4.2 SYSTEM SETTINGS 49 CHAPTER 5 SYNCHRONIZATION 56 5.1 ABOUT SYNCHRONIZATION 56 5.2 INSTALLING ACTIVESYNC 57 5.3 CHOOSING YOUR SYNCHRONIZATION TYPE 58 5.4 USING ACTIVESYNC TOOLS 59 5.5 ACTIVESYNC ERRORS 61 CHAPTER 6 GETTING CONNECTED 64 6.1 WIRELESS MANAGER 64 6.2 GPRS 65 6.3 BLUETOOTH 68 6.4 WI-FI 73 6.5 USB CARD READER 74 6.6 INTERNET SHARING 74 6.7 CELL BROADCAST SETTING 74 6.8 CONNECTING TO THE INTERNET 75 CHAPTER 7 MESSAGING 79 7.1 SHORT MESSAGE (SMS) 79 7.2 MULTIMEDIA MESSAGES (MMS) 82 3 7.3 VOICE MAIL 87 7.4 E-MAIL 87 7.5 PUSH E-MAIL 89 7.6 WINDOWS LIVE MESSENGER 89 CHAPTER 8 MULTIMEDIA 92 8.1 CAMERA 92 8.2 VIDEO RECORDER 95 8.3 PHOTO EDITOR 97 8.4 FM RADIO 98 8.5 PICTURES & VIDEOS 98 8.6 JAVA 99 8.7 STREAMING PLAYER 99 8.8 RECORDER 100 CHAPTER 9 APPLICATIONS 102 9.1 CALENDAR 102 9.2 TASKS 103 9.3 FILE EXPLORER 104 9.4 INTERNET EXPLORER 104 9.5 WINDOWS MEDIA 105 9.6 GAMES 106 9.7 CALCULATOR 106 9.8 TORCH 106 9.9 ZIP 106 9.10 PDF VIEWER 106 9.11 EXCEL MOBILE 107 9.12 POWERPOINT MOBILE 109 9.13 WORD MOBILE 110 9.14 ANSWER MACHINE 111 9.15 SELF DIAGNOSTICS 112 9.16 NOTES 112 9.17 SEARCH 113 9.18 WINDOWS LIVE 113 CHAPTER 10 MANAGING YOUR O2 Xda Denim 116 10.1 O2 AUTOINSTALL 116 10.2 O 2 CONNECT 116 10.3 O2 AUTO CONFIG 116 10.4 O2 SMS PLUS 117 10.5 MEMORY MANAGEMENT 118 10.6 RUNNING PROGRAMS MANAGEMENT 119 10.7 ADDING OR REMOVING PROGRAMS 119 CHAPTER 11 IMPORTANT SAFETY INFORMATION 122 11.1 SAFETY INFORMATION 122 11.2 PHONE CARE 122 11.3 DRIVING SAFETY 124 11.4 ELECTRONIC DEVICES 124 11.5 OTHER SAFETY GUIDELINES 125 11.6 CAUTIONS 125 11.7 ABOUT THIS GUIDE 126 CHAPTER 12 SPECIFICATIONS 130 CHAPTER 13 FAQS 134 Index 136 4 Chapter 1 Before Using Your O2 Xda Denim 1.1 What’s in the box 1.2 Familiarizing yourself with your O 2 Xda Denim 1.3 Features 1.4 Insert the battery & SIM card 1.5 SIM 1.6 Battery 1.7 How to use the capsense keys 1.8 Lock/Unlock 1.9 Power 6 Chapter 1. Before Using Your O2 Xda Denim 1.1 What’s in the box Thank you for selecting O2 Xda Denim. Please check if your package comes with the following items. If any of them is missing, please contact your retailer. 1 Before Using Your O 2 Xda Denim O2 Xda D e ni m - yo ur Windows Mobile-based Pocket PC Phone Quick Start Guide Getting Started Disc User Manual Stylus USB Cable Standard Battery High Quality Stereo Wired Headset Universal AC Adapter with four plugs for different countries Warranty Card 7 1 1.2 Familiarizing yourself with your O2 Xda Denim This section introduces you to the hardware of the device and its function keys. NoItemFunction 1Touch screenDisplay screen. Use stylus to select items on the screen. 2Left soft keyThis is capsense key. Tap to execute the function displayed on the bottom left of the screen. 3Right soft keyThis is capsense key. Tap to execute the function displayed on the bottom right of the screen. 4Talk/Send keyYou can make or answer a call by pressing Talk/Send key, or go to Phone Dialer screen. 5End keyPress this key to end a call or to return to Today screen from any screen. 6 Windows key This is a capsense key. Tap the Windows key to open Start menu options. 7OK keyTap this capsense key to execute or terminate a selected function or application. 85- Way navigation keyThe 5-way navigation key is a capsense key. Tap up, down, left and right directions to navigate. Tap the center key to execute the selected function or application. 9Front camera lensUse when making Video calls. 10Numeric keypadYou can use the numeric keypad to dial phone numbers or input text. Before Using Your O 2 Xda Denim 1 3 7 2 4 5 6 8 10 9 NoItemFunction 15Soft reset buttonPress the button with stylus to soft reset your device. 16Camera keyPress and hold Camera key to launch camera function. In Camera mode, press half way to focus and full press to capture pictures. 8 1 Before Using Your O 2 Xda Denim NoItemFunction 11Power on/offPress and hold Power key for a few seconds to power on/of f your device. 12Micro SD card slotYou can insert your Micro SD card here. 13LED IndicatorThe LED indicator indicates the status of your device by showing diffrent colors. Blue: Bluetooth is activated. Orange: Wi-Fi is activated. Green: Mobile network is detected. 14Mini USB slotUse USB connector to synchronize data with your desktop PC, transmit data or charge the battery. 15 16 17 18 19 14 12 11 13 17Headset plugPlug in headset, and then you can listen to the FM radio, music via the headset or use the device's hands-free kit. 18Volume keySlide this key upwards or downwards to adjust volume. Press and hold this key to directly record voice note. 19SIM card slotOpen the hatch and insert your SIM card. 9 1 Before Using Your O 2 Xda Denim NoItemFunction 20Stylus holder & stylusUse the stylus to touch the screen panel. 21Rear camera lensT h e CMOS camera on the back of the device supports 2-mega-pixel photo and high quality video. 22SpeakerBesides using stereo headset, you may play music/voice through the built-in speaker. 23Flash lightFlash light for came…

Text truncated - open the document above for the full version.

Chapter 8 Multimedia 8.1 Camera 8.2 Video recorder 8.3 Photo editor 8.4 FM radio 8.5 Pictures & videos 8.6 JAVA 8.7 Streaming player 8.8 Recorder 92 Chapter 8 Multimedia 8.1 Camera You may use camera function in your O2 Xda Denim to capture important moments. Tap Start > Programs > Camera, or press down Camera key to launch camera. Capture mode During capture mode, you can tap the icons on the top of the screen to switch through different modes, or tap to open the full camera options menu. To switch to Video mode, simply press the center navigation key or tap to enter the video standby mode. No.IconFunctionDescription 1 Image Mode Includes the following modes: Auto (default) / Day / Cloudy / Fluorescent and Night 2 Image Size You can choose among:1600 x 1200 / 1280 x 960 / 800x 600 / 640 x 480 (default) / 320 x 240 / 160 x 120 3 Image QualityNormal (default), Fine, Low. 4 Flash LightAuto (default), On, Off. 5 Sequential Shot18,12,6,3,Off (default) 6 Shutter SoundOn (default), Off 7 ZoomZoom Range: 1.0x (default) / 1.2x / 1.4x / 1.6x / 1.8x /2.0x / 2.2x / 2.4x 8 Multimedia 93 8 Multimedia NoIconFunctionDescription 8 EV Compensation Provides the following values: +2.0 / +1.5 / +1.0 / +0.5 /0.0 (default) / -0.5 / -1.0 / -1.5 / -2.0 9 Macro/Normal mode Tap this icon to switch between Macro (within 10~60 cm) mode and normal mode. 10 Remained Shots Indicates estimate number of photos you can take using the current storage location. 11 ExitTap this icon to exit camera mode. 12 Options Menu Tap this icon to open options menu, in which the following options are provided: Mode, Effect, EV , Size, Quality, Timer, Sequential Shot, Flash, Shutter Sound, Storage, Reset Camera Settings and Flicker Frequency. 13 Pictures & Videos Tap this icon to go to Pictures & Videos where the taken photos and videos are stored. 14 Video ModeTap this icon to change to Video mode. 15 Front camera lensTap this icon to take picture from the front lens. 16 Digital camera lensTap this icon to take picture from the back lens. Switching between video conference camera lens and digital camera lens: Tap the icon or to switch between the two camera lenses. You can choose the camera lens you would like to use. Taking a photo 1. On Camera capture mode, focus on the object. 2. You can also tap on the icons on the top or open options menu to change camera settings. 3. Half way press Camera key to auto-focus, fully press Camera key to take photo. 4. Af ter you take a photo, the image will be categorized in Pictures& Videos. Please note: The default storage location is phone memory. 94 Photo confi rm screen After taking a photo, you will enter the confi rm screen where you can choose to delete or send out the image. On this screen you can tap the following icons to: NoIconFunctionDescription 1 CameraReturn to camera capture mode. 2 SendChoose to send out this photo via E-mail or MMS. 3 DeleteDelete the photo on screen. 4 Pictures & VideosGo to Pictures & Videos. 8 Multimedia 95 8 Multimedia 8.2 Video recorder The phone camera can also be used as a video recorder to record memorable moments of your life. Tap Start > Programs > Camera > , or directly press Camera key > to enter video mode. NoIconFunctionDescription 1 Video Mode Tap this icon to switch among the following modes: Auto (default) / Day / Cloudy /Fluorescent and Night. 2 Video SizeSet to be 320 x 240. 3 Remained Video Length Indicates the estimated length of video you can take using the current storage location. 4 ExitTap this icon to exit video mode. 5 Prepared to record /Recording Indicates the video recorder status. 6 Options Menu Tap this icon to open options menu, in which the following options are provided: Mode, Ef fect, Video Format, MMS Video, Storage and Flicker Frequency. 7 Pictures & Videos Tap this icon to go to Pictures & Videos where the taken clips are stored. 8 Video ModeTap this icon to change to Video mode. 96 Recording a clip 1. On Video recorder mode, focus on the object. You can also tap on the icons on the top or open options menu to change video recorder settings. 2. Press Camera key to start video fi lming. 3. Press Camera key again to stop fi lming. 4. After you record a clip, it will be categorized in Pictures & Videos. Please note: The default storage location is phone memory. Video confi rm screen After recording, you will enter the confi rm screen where you can choose to delete or send out the clip. On this screen you can tap the following icons to: NoIconFunctionDescription 1 VideoReturn to video mode. 2 SendChoose to send out this clip via E-mail or MMS. 3 DeleteDelete the photo on screen. 4 Pictures & VideosGo to Pictures & Videos. 8 Multimedia 97 8 Multimedia 8.3 Photo editor You can handwrite messages on photos, or apply colorful frames and stamps by tapping Start > Programs > Photo Editor. On the editor screen, you can tap Undo to reverse the steps, or tap Menu to get further editing options. The tool bar on the bottom also provides 7 functions: NoIconFunctionDescription 1 Save This button appears after you have modified a picture. Tap this to save the current image. 2 UndoRevert 3 Pen SizeChoose a brush size. 4 Choose Color Choose a color of your pen from color palette or mix a paint by yourself . 5 Effect5 effects are available: Gray / Blur / Emboss / Negative / Classic 6 Choose Frame3 photo frames are available: Star / Fall / Flower 7 Add Stamp5 stamps for you to add more fun touches to your picture. 98 8 Multimedia 8.4 FM radio You can listen to FM radio through your O2 Xda Denim by searc hing c hannels. Please plug in the stereo headset before listening to FM radio. 1. S e lect Start > Programs > FM Radio. 2. You may use function bar or number key on radio screen to enter your favorite channel. 3. Ta p Exit to turn off the radio and exit, or 4. Tap on the top right of screen to exit radio screen and play the radio on the background. Now the radio function is still running and you may use some other applications at the same time. Rad…

Text truncated - open the document above for the full version.

GIGA-BYTE Communications Inc. 1/1 Date: July 10, 2007 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : UJU9QDENIM000 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days: z External Photographs (file: Denim ExtPho.pdf) z Internal Photographs (file: Denim IntPho.pdf) z Test Setup Photographs (file: Denim TSup.pdf) z User manual (file: Denim UserMan Part 1.pdf & file: Denim UserMan Part 2.pdf) The application contains technical information, which GIGA-BYTE Communications Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Tim Tsai GIGA-BYTE Communications Inc. 8F, No. 43, Fu-Hsin Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. TEL: 886-2-2218-6161 FAX: 886-2-5591-5800 e-mail: [email protected]

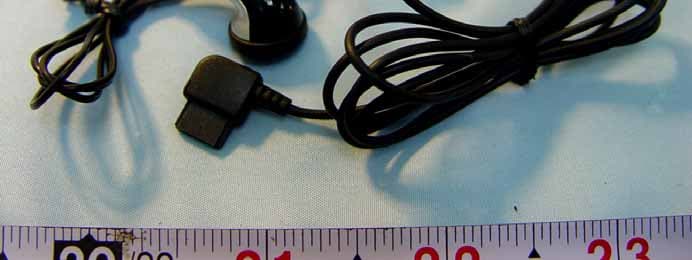

FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A1 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 APPENDIX A. External Photographs of EUT 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A2 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A3 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A4 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A5 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A6 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A7 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A8 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A9 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A10 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A11 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A12 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A13 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A14 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : A15 OF A15 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev.02 FCC ID: UJU9QDENIM000 760116-01

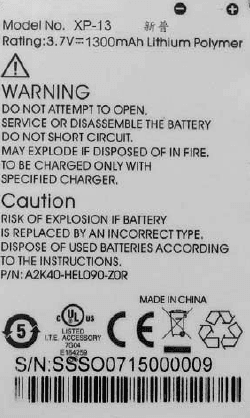

LABEL The label is under the battery compartment.

FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B1 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 APPENDIX B. Internal Photographs of EUT GSM / WCDMA Antenna 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B2 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 Bluetooth Antenna WLAN Antenna FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B3 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B4 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B5 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B6 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B7 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B8 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B9 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B10 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01 FCC TEST REPORT REPORT NO. : FG760116-01A SPORTON International Inc. Page Number : B11 OF B11 TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID: UJU9QDENIM000 760116-01

©2007 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.02 FCC SAR Test Report Test Report No FA760116-01-1-2-01 Specific Absorption Rate (SAR) Test Report for GIGA-BYTE Communications Inc. on the 3.5G HSDPA/UMTS/GSM900/DCS1800/PCS1900 PDA Phone Report No. : FA760116-01-1-2-01 Trade Name :O 2 Model Name :Xda Denim FCC ID : UJU9QDENIM000 Date of Testing : Jun. 12, 16, and 17, 2007 Date of Report : Jul. 10, 2007 Date of Review : Jul. 10, 2007 ‚ The test results refer exclusively to the presented test model/sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Report Version: Rev.02. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ©2007 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.02 FCC SAR Test Report Test Report No FA760116-01-1-2-01 Table of Contents 1. Statement of Compliance-------------------------------------------------------------------------------------------------------------------------------- 2 2. Administration Data --------------------------------------------------------------------------------------------------------------------------------------- 3 2.1 Testing Laboratory ---------------------------------------------------------------------------------------------------------------------------------- 3 2.2 Detail of Applicant----------------------------------------------------------------------------------------------------------------------------------- 3 2.3 Detail of Manufacturer ----------------------------------------------------------------------------------------------------------------------------- 3 2.4 2.4 Application Detail------------------------------------------------------------------------------------------------------------------------------- 3 3. General Information --------------------------------------------------------------------------------------------------------------------------------------- 4 3.1 Description of Device Under Test (DUT) ------------------------------------------------------------------------------------------------------ 4 3.2 Applied Standards: --------------------------------------------------------------------------------------------------------------------------------- 5 3.3 Device Category and SAR Limits --------------------------------------------------------------------------------------------------------------- 6 3.4 Test Conditions: ------------------------------------------------------------------------------------------------------------------------------------- 6 3.4.1 Ambient Condition ---------------------------------------------------------------------------------------------------------------------- 6 3.4.2 Test Configuration ---------------------------------------------------------------------------------------------------------------------- 6 4. Specific Absorption Rate (SAR) ----------------------------------------------------------------------------------------------------------------------- 7 4.1 Introduction ------------------------------------------------------------------------------------------------------------------------------------------- 7 4.2 SAR Definition --------------------------------------------------------------------------------------------------------------------------------------- 7 5. SAR Measurement Setup -------------------------------------------------------------------------------------------------------------------------------- 8 5.1 DASY4 E-Field Probe System------------------------------------------------------------------------------------------------------------------- 9 5.1.1 ET3DV6 E-Field Probe Specification ---------------------------------------------------------------------------------------------10 5.1.2 ET3DV6 E-Field Probe Calibration ------------------------------------------------------------------------------------------------10 5.2 DATA Acquisition Electronics (DAE) ---------------------------------------------------------------------------------------------------------- 11 5.3 Robot-------------------------------------------------------------------------------------------------------------------------------------------------- 12 5.4 Measurement Server------------------------------------------------------------------------------------------------------------------------------ 12 5.5 SAM Twin Phantom ------------------------------------------------------------------------------------------------------------------------------- 12 5.6 Device Holder for SAM Twin Phantom ------------------------------------------------------------------------------------------------------- 14 5.7 Data Storage and Evaluation ------------------------------------------------------------------------------------------------------------------- 15 5.7.1 Data Storage ---------------------------------------------------------------------------------------------------------------------------- 15 5.7.2 Data Evaluation ------------------------------------------------------------------------------------------------------------------------ 15 5.8 Test Equipment List ------------------------------------------------------------------------------------------------------------------------------- 18 6. Tissue Simulating Liquids ----------------------------------------------------------------------------------------------------------------------------- 19 7. Uncertainty Assessment-------------------------------------------------------------------------------------------------------------------------------- 21 8. SAR Measurement Evaluation ------------------------------------------------------------------------------------------------------------------------ 23 8.1 Purpose of System Performance check----…

Text truncated - open the document above for the full version.

SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 02 FCC TEST REPORT Report No. : FG760116-01A FCC TEST REPORT for 47 CFR Part 24E Equipment : 3.5G HSDPA/UMTS/GSM900/DCS1800/PCS1900 PDA Phone Trade Name : O 2 Model No. : Xda Denim FCC ID : UJU9QDENIM000 Tx Frequency Range : 1850~1910 MHz Max. ERP/EIRP Power : PCS (GSM) : 1.40 W PCS (EDGE) : 0.58 W Emission Designator : GSM : 300KGXW EDGE : 300KG7W Applicant : GIGA-BYTE Communications Inc. 8F., No.43, Fu-Hsin Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Jun. 21, 2007 at Sporton International Inc. LAB. ‚ Report No.: FG760116-01A, Report Version: Rev. 02. Roy Wu Deputy Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Jul. 10, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID : UJU9QDENIM000 FCC TEST REPORT Report No. : FG760116-01A Table of Contents History of this test report....................................................................................................................................ii 1. General Information ........................................................................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2 Manufacturer ..................................................................................................................................................................................1 1.3 Basic Description of Equipment under Test ...................................................................................................................................1 1.4 Feature of Equipment under Test ..................................................................................................................................................2 1.5 Report Date ....................................................................................................................................................................................2 2 Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner ...................................................................................................................................................................................3 2.2 Test Mode ......................................................................................................................................................................................3 2.3 Connection Diagram of Test System .............................................................................................................................................3 2.4 Ancillary Equipment List.................................................................................................................................................................3 3. General Information of Test Site ....................................................................................................................4 3.1 Test Voltage ...................................................................................................................................................................................4 3.2 Test in Compliance with .................................................................................................................................................................4 3.3 Frequency Range Investigated ......................................................................................................................................................4 3.4 Test Distance ........................................................................................................................................................…

Text truncated - open the document above for the full version.
