UJU9QSTEAL000MOBILE PHONE WITH BT AND WLAN

101 9 Getting started 2. Tap Menu, and then select Open File to open files not in the library; Select Update Library to update library list. 3. Select and hold the file or folder for playing, and then select Play or Queue Up . 4. By tapping Back icon, you can return to the Windows Media Player control panel. Playing Audio or Video Files 1. Tap to view in full screen. 2. Tap to connect to Windows Media Mobile website, from which you can find the music and image you want to play. 3. Tap to return to the beginning of current file or previous file. 4. Tap or to play or pause 5. Tap to skip to next file 6. Tap or to adjust volume 7. Tap the icon to active or disable sound. You may use synchronization to copy sound and image files from your computer to this device. The Windows Media Player in this device can play Windows Media and MP3 files. 9.6 Games You may access Games to select games you like in your O2 Xda Stealth for entertainment. 1. Tap Start > Programs > Games. 2. Tab Bubble Breaker or Solitary to launch a game. 9.7 Download Agent Download Agent allows you to manage downloaded files, including installation or deletion. Select the desired downloaded file and tap Install or Cancel to install the file or cancel installation. Installing applications O2 Xda Stealth is powered by Windows Mobile 5.0. It allows installation and removal of external applications downloaded from the web, purchased from stores or send to you from friends over Bluetooth, e-mail or other means. Please note: Always try to install applications to your Storage Card instead of the phone in order to leave more main storage space for your PIM, E-mail and other system applications. 9.8 STK (SIM Tool Kit) service The service’s availability depends on your operator. Tap Start > Programs > STK, and then select the STK services provided by your operator. 102 9 Getting started 9.9 Calculator Calculator allows you to run simple operations in your O2 Xda Stealth. Tap Start > Programs > Calculator to use your calculator. 9.10 Backup You can create backup of your personal settings and data, and restore the data later. 1. Tap Start > Programs > Backup. 2. Check Create backup image to create system backup. Check Restore to restore the settings and data. When you select to create a backup or restore an image, your O 2 Xda Stealth will need to reboot. Please note: If you install a new version firmware on your O 2 Xda Stealth, the backup file of previous version can’t be used to restore on the new one. 9.11 Torch By tapping this icon, you can switch on/of the LED light on beside the camera lens to get significant glow to let you see in the dark. At standby mode, you can also hold End key to turn the light on, and press 5 Way Navigation key Center or OK key to turn the light off. 9.12 ZIP You can save storage space and increase efficiency of your O2 Xda Stealth by compressing some of your files with this ZIP tool. Zipping files 1. To zip a file, tap Start > File Explorer. 2. Tap and hold on a file you would like to zip. A pop-up menu will appear. 3. Select Add to Zip File in the pop-up menu. In the newly appeared window, you may: ● Select a zip method according to your need. ● Set a password, which will be asked for when you unzip the file. 4. Tap Start to start compressing the file. Unzipping Files 1. To unzip a file, tap Start > Programs > ZIP. 2. Tap Unzip button on the pop-up window. A list of zipped files will appear. 3. You may select a different folder for more zip files. In the file list, tap on the file you would like to unzip. 4. Tap OK and enter the password (if required) to decompress the zip file. 103 9 Getting started 9.13 Auto Configurator When you first switch on your O2 Xda Stealth, you can use Auto Configurator to setup your GPRS for using MMS and surfing the Internet. This application provides a user-friendly way to set up operator specific settings, including GPRS, WAP, and MMS. The auto-configuration process can be performed as soon as the SIM card is accessible. The ways in which this function operates are: 1. During every cold/warm boot, your O 2 Xda Stealth will compare the operator ID with the current setting. If these two don’t match, a dialog box will ask if you want to perform network configuration now. Once confirmed, the auto-configurator will be launched to configure your O 2 Xda Stealth to the current preferred network. 2. By your tapping Start > Programs > Auto Configurator, the same detection process will be carried out and possible selections will be listed in the preferred network. Confirm your choice and tap Done to apply the setting or tap List All Settings to choose other operator settings. If you cannot find your operator network in the list, you can always setup data connection manually. Launch Auto Configurator by tapping Start > Program > Auto Configurator. The application will search from its internal database for appropriate network setting profiles and display the names of these profiles in the Preferred Network list. Please note: Please ensure your SIM card is inserted and flight mode is turned off, for The auto- configuration process is started only when your O 2 Xda Stealth is in HOME network (not international roaming). 104 9 Getting started 9.14 ClearVue PDF ClearVue PDF allows you to read Portable Document Format files. These files usually have a .pdf extension. Opening a PDF file 1 Tap Start > Programs > ClearVue PDF 2.Tap File > Open to view a list of PDF files stored on your O 2 Xda Stealth, and choose the file you would like to view. Reading a PDF file You can move around using scroll bars in the page when a document is larger than one screen: ● Tap the up/down and right/left arrows to move one line in the desired direction. You can also use the navigation pad to move around the screen. ● Click and hold the space between the arrow and the scroll bar to move one screen to the desired position. ● Use the left, right, up and down arrow keys on the soft keyboard to move to the desired …

Text truncated - open the document above for the full version.

Chapter 1 Before Using Your O 2 Xda Stealth 1.1 What’s in the box 1.2 Familiarizing yourself with your O2 Xda Stealth 1.3 Key definitions 1.4 Features 1.5 Insert the battery & SIM card 1.6 SIM 1.7 Battery 1.8 Lock/Unlock 1.9 Memory expansion 1.10 Data backup 1.11 Power management 4 Chapter 1. Before Using Your O2 Xda Stealth 1.1 What’s in the box Thank you for selecting O2 Xda Stealth. Please check if your package comes with the following items. If any of them is missing, please contact your retailer. O2 Xda Stealth—your Windows Mobile-based Pocket PC phone Stylus Standard Battery Universal AC Adapter with four plugs for different countries High Quality Stereo Wired Headset USB Cable ActiveSync and Application Software CD User Manual Quick Start Guide Warranty Card 1 Before Using Your O 2 Xda Stealth 5 1 1.2 Familiarizing yourself with your O2 Xda Stealth This section introduces you to the hardware of the device and its function keys No.ItemFunction 1ReceiverYou can hear caller’s voice through receiver. 2Touch screenDisplay screen. Use stylus to select items on the screen. 3Call keyYou can make or answer a call by pressing Call key, or press to launch Phone screen. 4 keyPress the key to open Start menu options. 5End keyPress this key to end a call or to return to Today screen from any screen. 6OK keyPress this key to execute or terminate a selected function or application. 75- Way navigation keyUse up, down, left and right directions to navigate. Press the center key to execute the selected function or application. 8Dial keypadYou can use the dial keypad to dial telephone numbers. Before Using Your O 2 Xda Stealth 6 1 Getting started No.ItemFunction 12MicrophoneTalk on the phone. 13Mini USB / Charging slotConnect a charger adapter to this slot to start charging. This slot is also a USB slot. You may connect your O2 Xda Stealth to computers or other devices with a USB cable and transfer files between the phone and that device. No.ItemFunction 9Power on/offPress and hold Power key for a few seconds to power on/off your device. 10Monophonic speakerBesides using earphones, you may play music/voice through the built-in speaker. 11LED indicatorThe LED indicator indicates the status of your device by showing different colors. Blue: Bluetooth is activated. Orange: Wi-Fi is activated. Green: mobile network is detected. 7 1 Getting started No.ItemFunction 14Headset plugPlug in stereo headset and then you can listen to the music via the headset or use the phone’s hands-free kit. 15Mini SD card slotYou can insert your Mini SD card here to save data in your card. 16Soft reset buttonPress the button with the stylus to soft reset your phone. 17Camera keyPress and hold Camera key to launch camera function. In Camera mode, press as 2-step shutter key to capture pictures. 18Volume keySlide this key upwards or downwards to adjust volume. Press and hold this key to directly record voice note. No.ItemFunction 19Flash lightSupport Auto Flash, Forced Flash On, and Forced Flash Off modes. 20Stylus holder & StylusUse the stylus to touch the screen panel. 21BatteryPower your O2 Xda Stealth. 22Battery lockPull down the battery lock to remove the battery. 23Camera lensThe CMOS camera supports 2-mega-pixel photo and high quality video. 8 1 Getting started 1.3 Key definitions KeyFunction 5-way navigation key – UpMove cursor up. 5-way navigation key – DownMove cursor down. 5-way navigation key – LeftMove cursor to the left. 5-way navigation key– RightMove cursor to the right. 5-way navigation key - CenterExecute your selection. CallPick up calls and make new calls. EndPress: return to Today screen. Press and hold: torch light. Power on/offPress: enter suspend mode. Press and hold: power off. keyPress: display or hide Start menu. OK keyPress: execute the function of the top right screen ( or ). Press and hold: switch screen display to portrait or landscape. Camera keyPress and hold: enter camera mode. Volume keySlide up: increase volume. Slide down: decrease volume. Press: activate voice command. Press and hold: activate voice note. Soft reset buttonSoft reset your O 2 Xda Stealth. 1.4 Features Like a standard mobile phone, your O2 Xda Stealth supports basic dialing features. Besides, it also integrates Personal Digital Assistant (PDA) capability. The following section provides more information about the phone’s features: ● Touch screen: 2.4” TFT LCD display with 65,536 colors effective. ● 5-way navigation key. ● Windows key. ● Monophonic speaker & microphone. ● Slide-to-answer Mode. ● Mini-USB connector for connection and battery charging. ● Camera: 2.0 mega pixels. ● Connections: Bluetooth, and Wireless LAN. ● Microsoft Windows Mobile 5.0: Pocket MSN, Pocket Outlook, Pocket Explorer, and Office tools (Word, Excel, and PowerPoint). Also features Windows Media Player 10, Terminal Services Client, Pictures & Videos, Calculator, Games, ActiveSync, and File Explorer. ● O2 programs: O2 Connect, O2 AutoInstaller ● Other programs: Answering Machine, Phone Recording, Recorder, GPRS Monitor, Auto Configurator, Java support, Torch, ClearVue PDF viewer, etc. 9 1 Getting started 1.5 Insert the battery & SIM card Before inserting/removing a SIM card, please make sure your O2 Xda Stealth is powered off and is not connected to any power supply by the USB cable or charger. ● Look at the back of the phone. Pull down the battery lock and lift the battery upward as shown below in order to remove it. ● Find the SIM card slot and insert the SIM card with the metallic part facing down and the clipped corner in the left direction. ● Insert the battery back to the battery slot. 10 1 Getting started 1.6 SIM Before using your O2 Xda Stealth, you must contact a network operator to get a personal SIM (Subscriber Identity Module). The SIM card contains your O 2 Xda Stealth number, the services included in your subscription, and your personal data such as your phonebook and messages. The phone is unusable (except for emergency calls) until a valid…

Text truncated - open the document above for the full version.

GIGA-BYTE Communications Inc. 1/1 Date: 09/01/2006 Federal Communications Commission Authorization and Evaluation Division FCC ID：UJU9QSTEAL000 Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List 5. Tune-up Procedure (for phone) The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Tim Tsai GIGA-BYTE Communications Inc. 8F, No. 43, Fu-Hsin Road, Hsin Tien, Taipei Hsien, Taiwan, R.O.C. TEL: 886-2-2218-6161 FAX: 886-2-2218-5151 e-mail: [email protected]

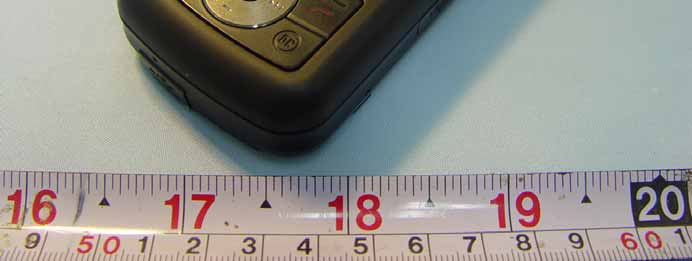

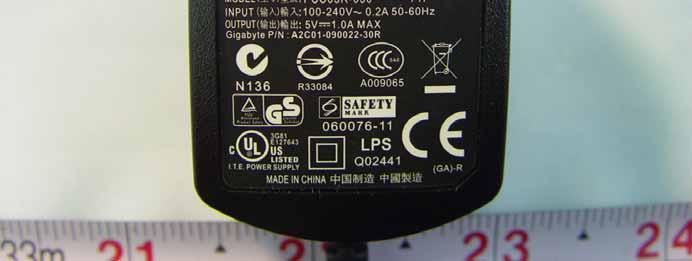

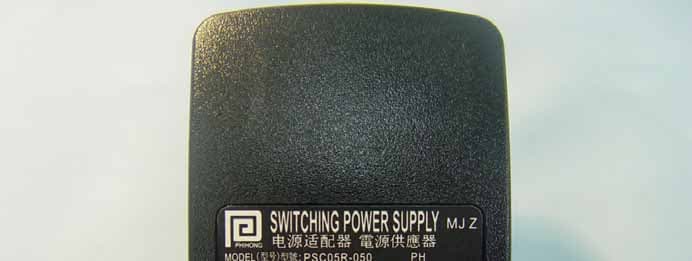

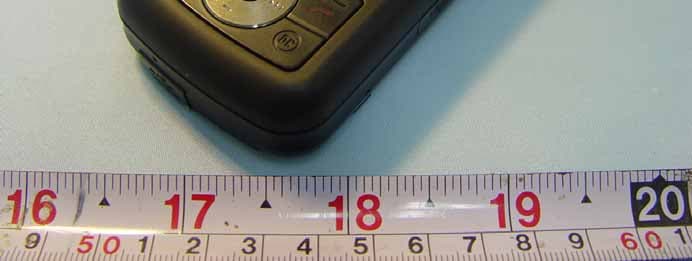

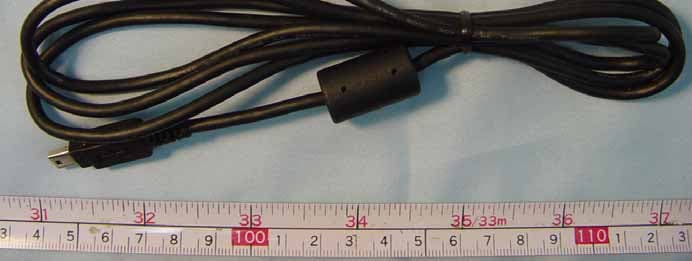

FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A1 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A2 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A3 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A4 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A5 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A6 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A7 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A8 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A9 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A10 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418 FCC/IC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : A11 OF A11 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 681418

FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B1 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 APPENDIX B. Internal Photographs of EUT 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B2 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B3 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B4 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B5 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B6 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B7 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B8 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B9 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418 FCC TEST REPORT REPORT NO. : FG681418-B SPORTON International Inc. Page Number : B10 OF B10 TEL : 886-2-2696-2468 Report Issued Date : Aug.30, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 681418

©2006 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 01 FCC SAR Test Report Test Report No FA681418-B-2-2-01 Specific Absorption Rate (SAR) Test Report for GIGA-BYTE Communications Inc. on the GSM900/DCS1800/PCS1900/Bluetooth/WLAN Mobile Phone Report No. : FA681418-B-2-2-01 Trade Name : GIGABYTE Model Name : Stealth Marketing Name : Xda Stealth FCC ID : UJU9QSTEAL000 Date of Testing : Aug. 23, 2006 Date of Report : Aug. 28, 2006 Date of Review : Aug. 28, 2006 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Report Version: Rev. 01 SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. 1190 ILAC MRA ©2006 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 01 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No FA681418-B-2-2-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................................ 1 2. Administration Data..................................................................................................................................................................... 2 2.1 Testing Laboratory ........................................................................................................................................................... 2 2.2 Detail of Applicant............................................................................................................................................................ 2 2.3 Detail of Manufacturer ..................................................................................................................................................... 2 2.4 Application Detail............................................................................................................................................................. 2 3. Scope ............................................................................................................................................................................................ 3 3.1 Description of Device Under Test (DUT).......................................................................................................................... 3 3.2 Product Photo.................................................................................................................................................................. 4 3.3 Applied Standards: .......................................................................................................................................................... 5 3.4 Device Category and SAR Limits .................................................................................................................................... 6 3.5 Test Conditons................................................................................................................................................................. 6 3.5.1 Ambient Condition:......................................................................................................................................... 6 3.5.2 Test Configuration:......................................................................................................................................... 6 4. Specific Absorption Rate (SAR) ................................................................................................................................................. 7 4.1 Introduction...................................................................................................................................................................... 7 4.2 SAR Definition ................................................................................................................................................................. 7 5. SAR Measurement Setup ............................................................................................................................................................ 8 5.1 DASY4 E-Field Probe System ..................................................................................................... .................................... 9 5.1.1 ET3DV6 E-Field Probe Specification............................................................................................................... 10 5.1.2 ET3DV6 E-Field Probe Calibration.................................................................................................................. 10 5.2 DATA Acquisition Electronics (DAE) ...............................................................................................................................11 5.3 Robot............................................................................................................................................................................. 12 5.4 Measurement Server ..................................................................................................................................................... 12 5.5 SAM Twin Phantom ....................................................................................................................................................... 12 5.6 Data Storage and Evaluation ......................................................................................................................................... 14 5.6.1 Data Storage ................................................................................................................................................... 14 5.6.2 Data Evaluation ..............................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 02 FCC TEST REPORT Report No. : FR681418 FCC TEST REPORT for 47 CFR Part 15 Subpart C Equipment : GAM900/DCS1800/PCS1900/Bluetooth/WLAN Mobile Phone Trade Name : GIGABYTE Model No. : Stealth Marketing Name : Xda Stealth FCC ID : UJU9QSTEAL000 Filing Type : Certification Applicant : GIGA-BYTE Communications Inc. 8F, No.43, Fu-Hsin Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Aug. 19, 2006 at Sporton International Inc. LAB. ‚ Report No.: FR681418, Report Version: Rev. 02 Roy Wu Deputy Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Sep. 07, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID : UJU9QSTEAL000 FCC TEST REPORT Report No. : FR681418 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1 Applicant ........................................................................................................................................................................................1 1.2 Manufacturer ..................................................................................................................................................................................1 1.3 Basic Description of Equipment under Test ...................................................................................................................................1 1.4 Feature of Equipment under Test ..................................................................................................................................................2 2 Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner ...................................................................................................................................................................................3 2.2 Test Mode ......................................................................................................................................................................................3 2.3 Connection Diagram of Test System .............................................................................................................................................3 2.4 Ancillary Equipment List.................................................................................................................................................................5 3. RF Utility ...........................................................................................................................................................6 4. General Information of Test............................................................................................................................7 4.1 Test Voltage ...................................................................................................................................................................................7 4.2 Standard for Methods of Measurement..........................................................................................................................................7 4.3 Test in Compliance with .................................................................................................................................................................7 4.4 Frequency Range Investigated ......................................................................................................................................................7 4.5 Test Distance .................................................................................................................................................................................7 5. Test Data and Test Result...............................................................................................................................8 5.1 List of Measurements and Examinations .......................................................................................................................................8 5.2 6dB Bandwidth Measurement ......................................................................................................................................................10 5.3 Power Spectral Density Measurement .........................................................................................................................................17 5.4 Band Edges Measurement...........................................................................................................................................................25 5.5 Hopping Channel Separation .......................................................................................................................................................34 5.6 Number of Hopping Frequency ....................................................................................................................................................38 5.7 Hopping Channel Bandwidth...................................................................................................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. Page No. : 108 of 127 TEL : 886-2-2696-2468 Report Issued Date : Sep. 07, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID : UJU9QSTEAL000 FCC TEST REPORT Report No. : FR681418 ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal SPORTON International Inc. Page No. : 109 of 127 TEL : 886-2-2696-2468 Report Issued Date : Sep. 07, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID : UJU9QSTEAL000 FCC TEST REPORT Report…

Text truncated - open the document above for the full version.
