UKU-HEXMOD01Hexbug HeXMods

2.4 GHz RC TUNER CARS NIGHT HAWK ™ Get Started/ Pour commencer/ Cómo Comenzar Chassis Mods/ Modifications du châssis / Chasis Mods Body Mods/ Modifications de la Carrosserie/ Carrocería Mods Table of Contents/ Sommaire/ Tabla de Contenido Transmitter & Battery Install/ Transmetteur et installation des batteries/ Instalación del Transmisor y la Batería Pairing/ Appairage / Emparejamiento Controls/ Contrôles/ Controles Steering Trim/ Ajustement de direction/ Ajuste de Dirección Steering Sensitivity/ Sensibilité de direction/ Sensibilidad de la Dirección How to use the tool/ Comment utiliser l’outil/ Cómo utilizar la herramienta Chassis: Charging/ Châssis: Chargement/ Chasis: carga Install Body/ Installez la carrosserie/ Instalar Carrocería Install Underglow/ Installez lumières sous-châssis/ Instalar iluminación bajo carrocería Wheel & Tire Replacement/ Remplacement des pneus et roues/ Reemplazo de Ruedas y Neumáticos Replace Front Suspension/ Remplacement de la suspension avant/ Reemplazar Suspensión Delantera Replace Rear Suspension/ Remplacement de la suspension arrière/ Reemplazar Suspensión Trasera Change Speed/ Changement de Vitesse/ Cambiar Velocidad Steering Link/ Barre de direction/ Enlace de Dirección RWD, FWD, AWD/ RWD, FWD, AWD/ Tracción Trasera, Tracción Delantera, Tracción Trasera y Delantera Remove Rear Differential/ Retirer le différentiel arrière/ Retire el Diferencial Trasero Install Front Differential/ Installer le différentiel avant/ Instale el Diferencial Delantero Install Decals/ Installation des autocollants/ Instalar Calcomanías Barriers/ Barrières/ Barreras Front Bumper/ Pare-chocs avant/ Parachoques Delantero Rear Bumper & Exhaust/ Pare-chocs arrière & échappement Replace Spoiler/ Changement de spoiler/ Reemplazar el Alerón Install Head & Tail Lights/ Installer les phares avant et arrière Replace Hood/ Changement de capot/ Reemplazar el Capó Replace Roof/ Remplacer le toit/ Reemplazar Techo Engine Cover/ Couvert de moteur/ Cubierta del motor Replace Side Skirts/ Remplacer les jupes latérales/ Reemplazar Faldones Laterales Regulatory/ Règlementaire/ Ajuste de Dirección 03 04 05 06 07 08 09 10 11 12 13 14 15-17 18 19 20-21 22-23 24 25 26 27 28 29 30 31 33 32 34-35 3x AAA/R03 03 1 2 3 4 5 6 7 8 9 1 2 5 6 7 8 9 3 4 Transmitter & Battery Install/ Transmetteur et Installation des Batteries/ Instalación del Transmisor y la Batería LED Indicator/ Indicateur DEL/ Indicador LED Power Button/ Bouton d’alimentation/ Botón de Encendido Left Steering Trim/ Ajustement de direction gauche/ Ajuste Izquierdo de la Dirección Right Steering Trim/ Ajustement de direction droit/ Ajuste Derecho de la Dirección High & Low Speed/ Haute & basse vitesse/ Velocidad Alta y Baja Steering Sensitivity Switch/ Bouton de sensibilité de la direction/ Interruptor de Sensibilidad de la Dirección Steering Wheel/ Volant/ Volante Throttle Trigger/Gâchette d’accélérateur/ Gatillo del Acelerador Battery Door/Couvercle de batterie/ Puerta de la Batería + + - - 12 3 4 on/off allumé/éteint encendido/apagado Pairing/ Appairage/ Emparejamiento Power on the controller Allumez le transmetteur Encienda el controlador If the controller LED is blinking quickly, make sure the WHEEL and TRIGGER are centered. Si la DEL du transmetteur clignote rapidement, assurez-vous que la ROUE et la G CHETTE sont centrées Si el LED del controlador parpadea rápidamente, asegúrese de que la RUEDA y el GATILLO estén centrados. Once the controller LED starts blinking slowly, flip car over and press the power button on the car for 2 seconds. Une fois que la DEL du transmetteur clignote lentement, retournez la voiture et appuyez sur le bouton d’alimentation de la voiture pendant 2 secondes. Una vez que el LED del controlador comience a parpadear lentamente. Da la vuelta al auto y presiona el botón de encendido del auto durante 2 segundos. The controller LED turns solid red when it is paired with the car. La DEL du transmetteur brillera en continue et de couleur rouge quand il est associé avec la voiture. El LED del controlador se vuelve rojo fijo cuando está emparejado con el automóvil. 05 Controls/ Contrôles/ Controles Left Forward/ Gauche et avant/ Avanzar a la Izquierda Left Reverse/ Gauche et marche arrière/ Retroceder hacia la Izquierda Low Speed/ Basse Vitesse/ Velocidad BajaHigh Speed/ Haute Vitesse/ Velocidad Alta Forward/ Avant/ Adelante Reverse/ Marche arrière/ Marcha atrás Right Forward/ Droite et avant/ Avanzar hacia la Derecha Right Reverse/ Droite et marche arrière/ Retroceder hacia la Derecha Steering Trim/ Ajustement de Direction/ Ajuste de Dirección If car is turning left without touching the steering wheel, press right trim button to correct the car as needed. Si la voiture tourne à gauche sans que le volant soit tourné, appuyez sur le bouton d’ajustement de la direction droite pour corriger la direction comme nécessaire. Si el automóvil gira a la izquierda sin tocar el volante, presione el botón de ajuste derecho para corregir el automóvil según sea necesario. If car is turning right without touching the steering wheel, press left trim button to correct the car as needed. Si la voiture tourne à droite sans que le volant soit tourné, appuyez sur le bouton d’ajustement de la direction gauche pour corriger la direction comme nécessaire. Si el automóvil gira a la derecha sin tocar el volante, presione el botón de ajuste izquierdo para corregir el automóvil según sea necesario. 07 Steering Sensitivity/ Sensibilité de Direction/ Sensibilidad de la Dirección Low Steering Sensitivity/ Sensibilité de Direction Basse/ Sensibilidad Baja de la Dirección Medium Steering Sensitivity/ Sensibilité de Direction Moyenne/ Sensibilidad Media de Dirección High Steering Sensitivity/ Sensibilité de Direction Haute/ Sensibilidad Alta de Dirección Flip Retourner Voltear How to use the tool/ Comment Utiliser l’outil/ Cómo utilizar la Herramienta Tighten/Serrer/ Apretar Tighten/Serrer/ Apretar Loosen/ Desserrer/ Aflojar Loosen/ Desserrer/ Aflojar…

Text truncated - open the document above for the full version.

2.4 GHz RC TUNER CARS NIGHT HAWK TM Head to HEXBUG.com/HEXmodsTips for helpful mod tips. Naviguez vers HEXBUG.com/HEXmodsTips pour des astuces de modifications utiles. Dirígete a HEXBUG.com/HEXmodsTips para obtener útiles consejos sobre modificaciones. For more options check out the Pro Series Elite TM at your local retailer. Pour plus d’options, cherchez la Pro Series Elite TM chez votre détaillant local. Para obtener más opciones, consulte el Pro Series Elite TM en su distribuidor local 434-7135-750-REV3 434-7134 Hexbug HeXMods - Small Set 434-7135 Hexbug HEXmods - Large Set This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

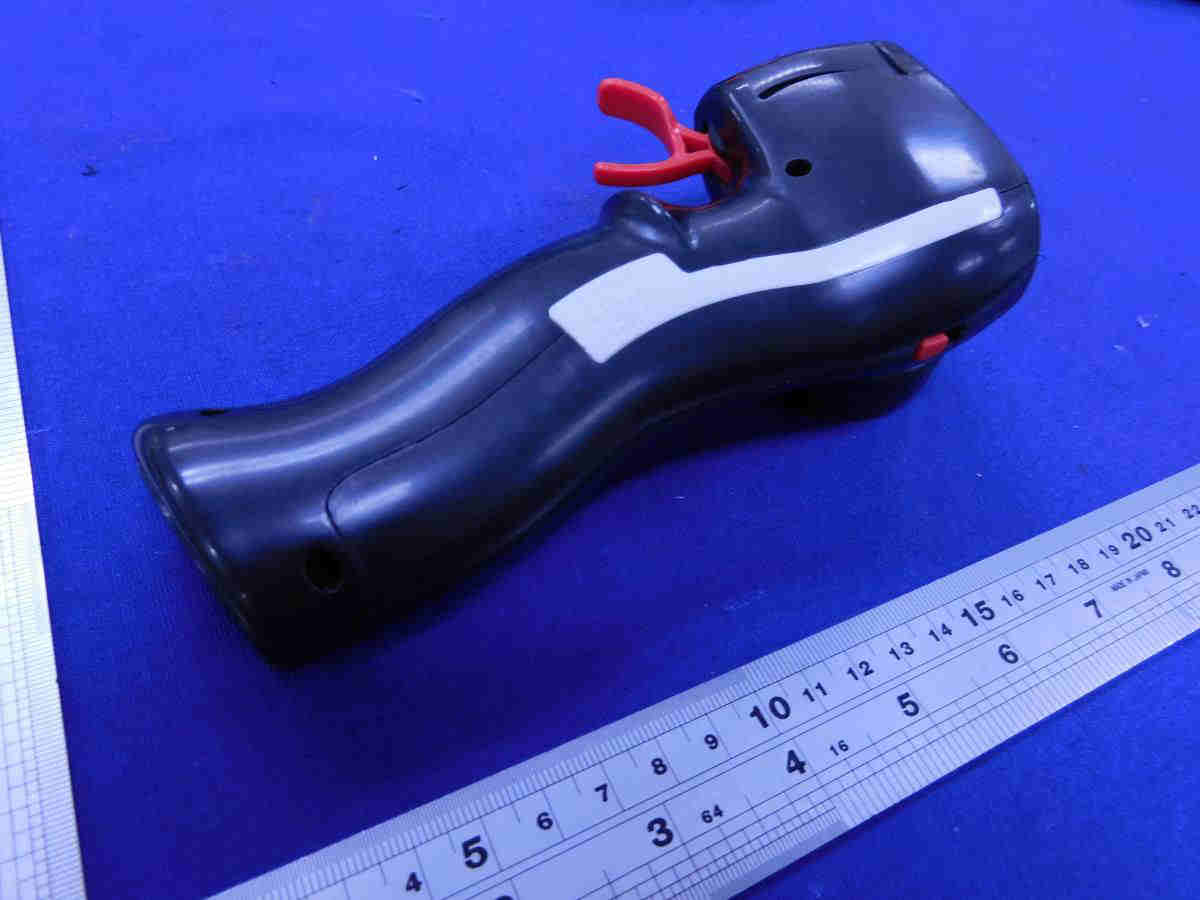

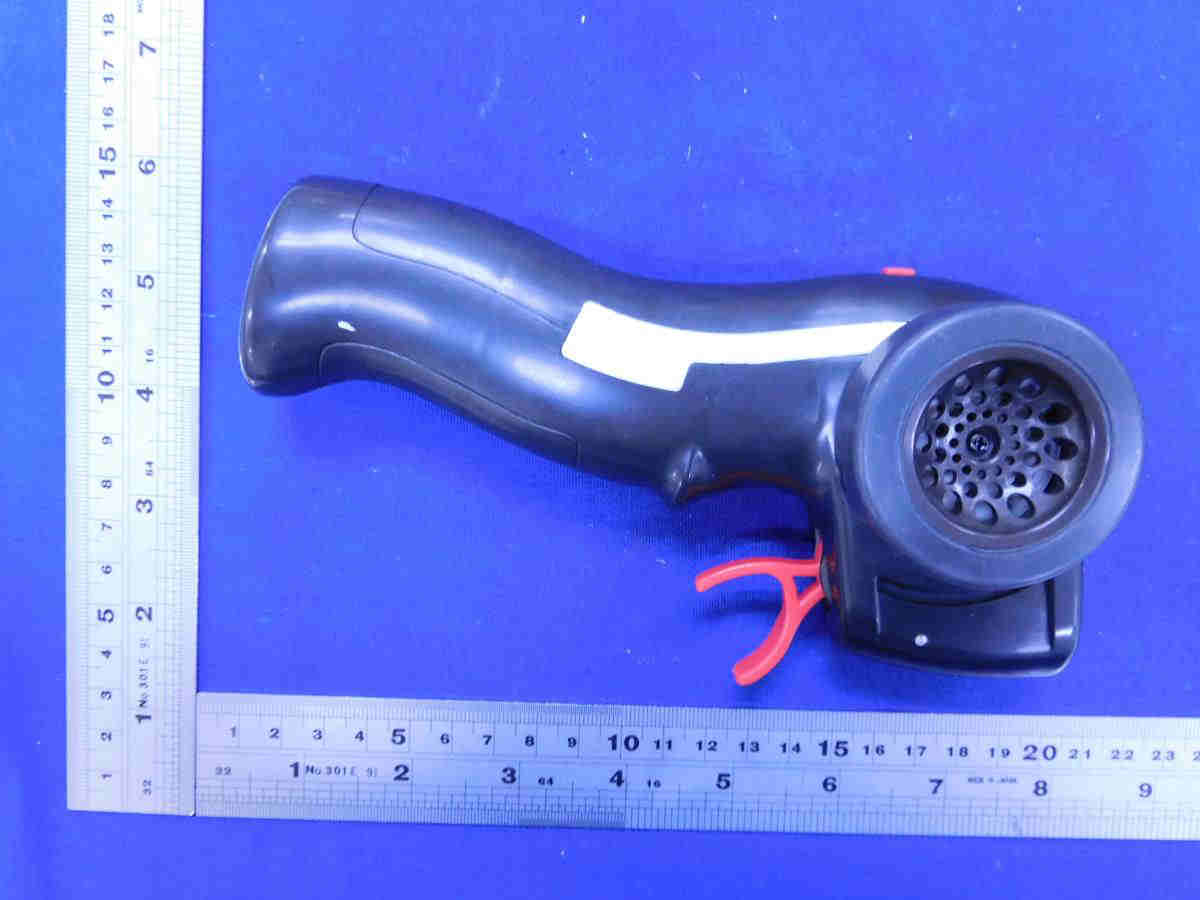

Page 1 of 2 External Photos Page 2 of 2

Label Artwork and Location SIZE: 25mm (W) x 11mm (H)

Page 1 of 2 Internal Photos Page 2 of 2

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Hexbug HeXMods operating at 2.4G Band. The EUT can be powered by DC 4.5V (3 x 1.5V AAA batteries). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: 2.0dBm (tolerance: +/- 3dB). The normal conducted output power is 2.0dBm (tolerance: +/- 3dB). Modulation Type: GFSK. According to the KDB 447498: The Maximum peak radiated emission for the EUT is 96.9 dBμV/m at 3m in the frequency 2466MHz The EIRP = [(FS*D) ^2 / 30] mW = 1.67dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 96.1 dBμV/m at 3m in the frequency 2416MHz The EIRP = [(FS*D) ^2 / 30] mW = 0.87dBm which is within the production variation. The maximum conducted output power specified is 5dBm= 3.162mW The source- based time-averaging conducted output power =3.162* Duty cycle mW <3.162 mW(Duty cycle <100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.466) mW = 9.55 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 10.1449ms Effective period of the cycle = 1.0870ms DC =1.0870ms / 10.1449ms =0.1071 or 10.71% FCC ID: UKU-HEXMOD01

Innovation First, Inc. TEST REPORT SCOPE OF WORK FCC TESTING– MODEL: 434-7135-901 REPORT NUMBER SZHH01564298-004 ISSUE DATE MAY 14, 2021 PAGES 24 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: SZHH01564298-004 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 24 FCC ID 249_C Test Report Innovation First, Inc. Application for Certification FCC ID: UKU-HEXMOD01 Hexbug HeXMods Model: 434-7135-901 Additional Models: 434-7134, 434-7135 2.4GHz Transmitter Report No.: SZHH01564298-004 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Sign on file Terry Tang Assistant Supervisor Kidd Yang Technical Supervisor Date: May 14, 2021 Intertek Report No.: SZHH01564298-004 Version: 01-November-2017 Page: 2 of 24 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel / Fax: 86-755-8601 6288/86-755-8601 6751 Intertek Report No.: SZHH01564298-004 Version: 01-November-2017 Page: 3 of 24 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result .......................................................................................... 4 2.0 General Description ................................................................................................. 5 2.1 Product Description ................................................................................................. 5 2.2 Related Submittal(s) Grants .................................................................................... 5 2.3 Test Methodology .................................................................................................... 5 2.4 Test Facility ............................................................................................................ 5 3.0 System Test Configuration ...................................................................................... 6 3.1 Justification ............................................................................................................. 6 3.2 EUT Exercising Software ......................................................................................... 6 3.3 Special Accessories ................................................................................................ 6 3.4 Equipment Modification ........................................................................................... 6 3.5 Measurement Uncertainty ....................................................................................... 6 3.6 Support Equipment List and Description .................................................................. 6 4.0 Emission Results ..................................................................................................... 7 4.1 Radiated Test Results ............................................................................................. 7 4.1.1 Field Strength Calculation ..................................................................................... 7 4.1.2 Radiated Emission Configuration Photograph ....................................................... 8 4.1.3 Radiated Emissions .............................................................................................. 8 4.1.4 Transmitter Spurious Emissions ......................................................................... 11 5.0 Equipment Photographs ........................................................................................ 15 6.0 Product Labelling ................................................................................................... 15 7.0 Technical Specifications ........................................................................................ 15 8.0 Instruction Manual ................................................................................................. 15 9.0 Miscellaneous Information .................................................................................... 16 9.1 Bandedge Plot ....................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 Radiated Photos Up to 1GHz (The EUT placed at the center of the turntable) Page 2 of 2 Above 1GHz (The EUT placed at the center of the turntable)
