UKU-RAD17123 Coder

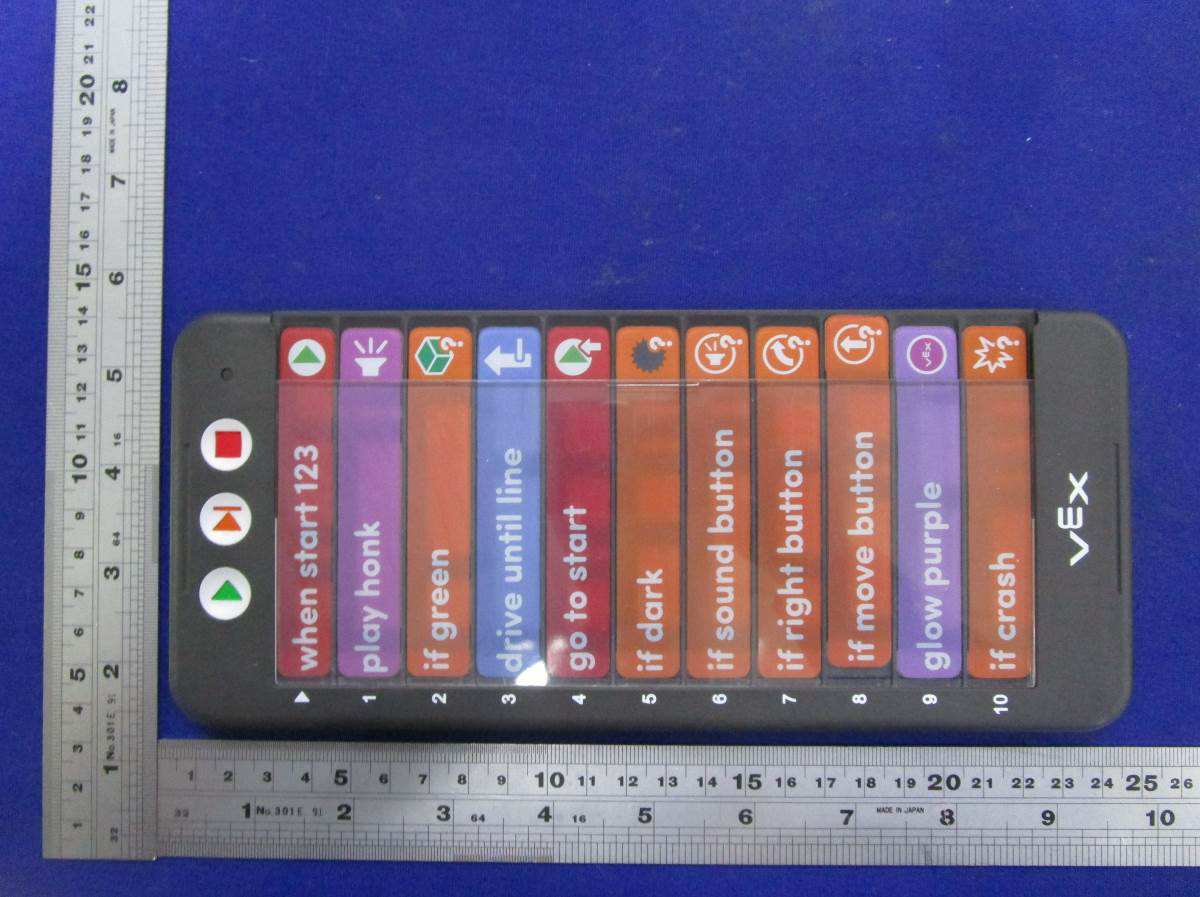

Page 1 of 2 External Photos Page 2 of 2

Label Artwork and Location Size: 100mm(W) x 10mm(H)

Page 1 of 3 Internal Photos Page 2 of 3 Page 3 of 3

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a 123 Coder with Bluetooth function operating in 2402-2480MHz. The EUT is powered by DC 3.0V ( 2 x 1.5V AAA batteries). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Modulation Type: GFSK Antenna Gain: 0dBi Bluetooth Version: 5.1 BLE (Single Mode) The normal radiated output power (e.i.r.p) is: -9.0dBm (tolerance: +/- 3dB). The normal conducted output power is -9.0dBm (tolerance: +/- 3dB). According to the KDB 447498: T he Maximum peak radiated emission for the EUT is 87.8 dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = -7.43dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 84.3 dBμV/ m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -10.93dBm which is within the production variation. The maximum conducted output power specified is -6dBm= 0.251 mW The source- based time-averaging conducted output power =0.251* Duty cycle mW =0.251 mW(Duty cycle =100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Si nce the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: UKU-RAD17

Innovation First, Inc. TEST REPORT SCOPE OF WORK FCC TESTING–248-6900 REPORT NUMBER SZHH01524544-001 ISSUE DATE [REVISED DATE] January 28, 2021 [---------------------] PAGES 23 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: SZHH01524544-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 23 FCC ID 249_C Test Report Innovation First, Inc. Application For Certification FCC ID: UKU-RAD17 123 Coder Model: 248-6900 2.4GHz Transceiver Report No.: SZHH01524544-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Sign on file Terry Tang Assistant Supervisor Kidd Yang Technical Supervisor Date: January 28, 2021 Intertek Report No.: SZHH01524544-001 Version: 01-November-2017 Page: 2 of 23 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6661 Intertek Report No.: SZHH01524544-001 Version: 01-November-2017 Page: 3 of 23 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 5.0 Equipment Photographs .............................................................................................. 16 6.0 Product Labelling ........................................................................................................ 16 7.0 Technical Specifications ............................................................................................... 16 8.0 Instruction Manual ..................................................................................................... 16 9.0 Miscellaneous Information .......................................................................................... 17 9.1 Bandedge P…

Text truncated - open the document above for the full version.

Page 1 of 2 Radiated Photos Up to 1GHz (The EUT placed at the center of the turntable) Page 2 of 2 Above 1GHz (The EUT placed at the center of the turntable)
