276-3245-750 VEXnet Key 2.0 Radio Module User Guide 08/06/2013 Rev2 www.VEXrobotics.com Page 1 VEX Robotics, Inc. 276-3245 VEXnet Key 2.0 Radio Module User Guide 276-3245-750 VEXnet Key 2.0 Radio Module User Guide 08/06/2013 Rev2 www.VEXrobotics.com Page 2 Table of Contents 1. Overview ................................................................................................................................. 2 2. Operation ................................................................................................................................. 2 3. FCC / Industry Canada Compliance Information ................................................................... 2 4. Appendix A: Document Version History ................................................................................ 3 1. Overview This document describes how to use the 276-3245 2.4 GHz VEXnet Key 2.0 Radio Module. 2. Operation The VEXnet Key 2.0 Radio Module is not configurable by the user. When plugged in to a suitable host, the host will set the frequencies, power levels and other registers. It will transmit and receive data in the 2.4 GHz band with center frequencies from 2.402 GHz to 2.480 GHz. 3. FCC / Industry Canada Compliance Information FCC Compliance Statement (United States): Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada Compliance Statement This device complies with Industry Canada licence-exempt RSS Standards. Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Conformité aux normes d'Industrie Canada Cet appareil est conforme aux normes RSS exemptes de licence d'Industrie Canada. Son utilisation doit répondre aux deux conditions suivantes :(1) cet appareil ne doit pas générer d'interférences et (2) il doit 276-3245-750 VEXnet Key 2.0 Radio Module User Guide 08/06/2013 Rev2 www.VEXrobotics.com Page 3 supporter toutes les interférences, y compris les interférences susceptibles de provoquer des dysfonctionnements. 4. Appendix A: Document Version History Date Code Rev Changes 2013-08-06 1 Initial document release. 2013-08-26 2 Updated Industry Canada Compliance Statement. 2013-09-17 3 add FCC statement

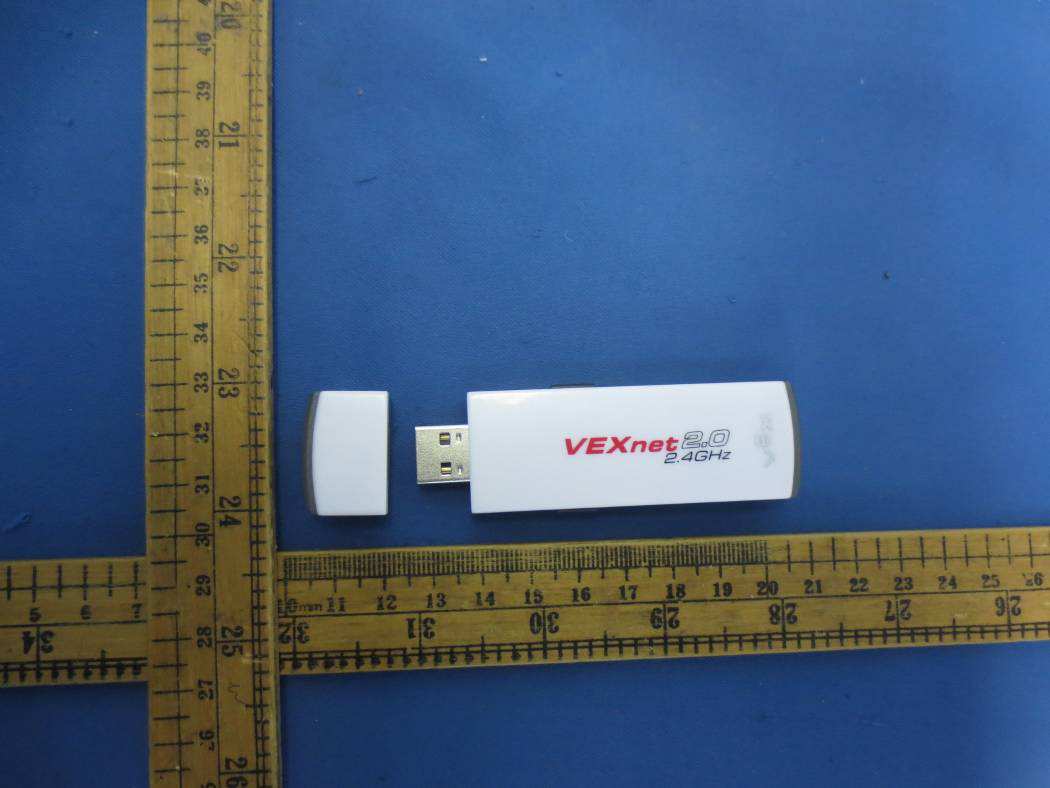

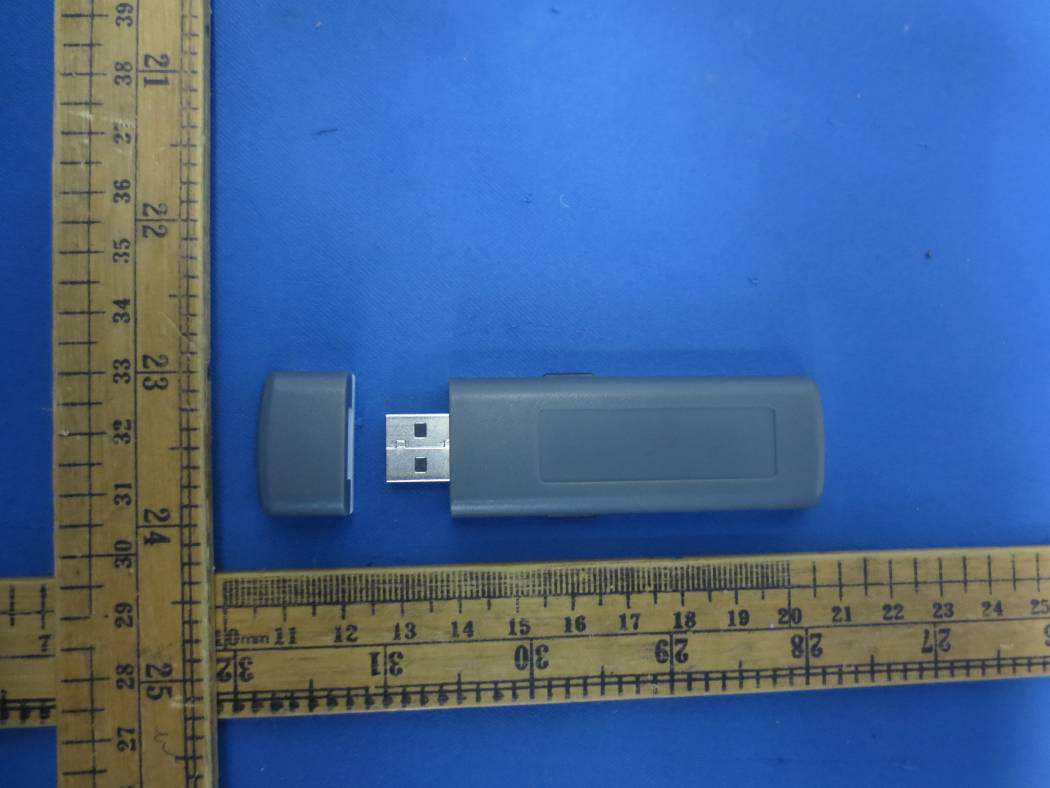

External Photos

Label Artwork and Location Label Size:42.8MM(H)*12.6MM(L)

Internal Photos

1 INTERTEK TESTING SERVICES RF Exposure The Equipment under Test (EUT) is a VEXnet Key 2.0 unit model: 276-3245 operating at 2.4GHz band. The EUT is powered by USB port of Robot Brain and the Robot Brain is powered by a 7.2V rechargeable battery (This 7.2V rechargeable battery should be charged by external charger). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: 15.0dBm (tolerance: +/- 3dB). The normal conducted output power is 15.0dBm (tolerance: +/- 3dB). Modulation Type: GFSK. According to the KDB 447498: The M aximum peak radiated emission for the EUT is 112.4dBμV/m at 3m in the frequency 2441MHz The EIRP = [(FS*D) ^2 / 30] mW = 17.2dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 107.6dBμV/m at 3m in the fr equency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = 12.4dBm which is within the production variation. The maximum conducted output power specified is 18.0dBm = 63.1 mW The source- based time-averaging conducted output power = 63.1 * Duty Cycle mW= 3.6 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: UKU-RAD03 2 Transmitter Duty Cycle Calculation The duration of one cycle = 25.12ms Effective period of the cycle = 1.44ms DC = 1.44ms / 25.12ms = 0.0573 or 5.73% This requirement is according to KDB 865664 D02 FCC ID: UKU-RAD03
