UKWMANOVA-BT-78NSWiNG Bluetooth Speaker

Instruction manualmodel:BT-78N 'SWiNG' Portable Bluetooth speaker (for smart phones; with NFC passivepairing function) Product Features zStylish hidden ‘SWiNG’ ON/OFF switch z*Bluetooth® v3.0 (OR v4.0) wireless connection up to 10M zNFC™ pairing function zSuperb sound portable speaker zBuilt-in 5W amplified speaker zCoaxial Bass Enhancer built-in zBuilt-in battery rechargeable via. USB zSpeaker phone call-pick function zTravel switch lock zPortable simplicity design zAUX 3.5mm audio input via. accessory cable zIdeal audio mate for smart phones or other multimedia player devices This superb sound speaker is compliant with Bluetooth v3.0 (OR v4.0) wireless standard, and powered by its built-in battery which is rechargeable by USB port from. The simplicity drum shape casing is a stylistic desktop design which can be portable as well. An ideal wireless audio companion for smart phones. NFC™ Pairing with your phone Turn on the travel lock slide switch at the bottom from to position; and push the main body ‘swing’ to ON position (fig.2) to switch on the speaker, and then If your smart phone is NFC enabled, a) Firstly, locate the NFC antenna spot on your smart phone (fig.3) b) NFC antenna is now ‘at the top’ of our BT-78N speakers (fig.3) c) Align NFC antennas as close as possible, you will hear a ‘cling’ sound when they matched (fig.4) d) Wait for a few second and you will hear a “Bloop” sound from the speaker and its blue LED will lit continuously. The pairing is completed now. Note- 1. "The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries." 2. Some phone models are NFC enabled, but their NFC Apps were not built-in. For these models you will need to install a NFC Apps and activate the NFC function on your phone– Please visit our website to download the driver installer : http://www.manova.com.hk/download.php Pairing the speaker (manually)- if your phone is NOT NFC enabled a.) Turn on the travel lock slide switch at the bottom from to position; and push the main body ‘swing’ to ON position (fig.2) to switch on the speaker, and then, power is auto ON within 3 sec. and LED indicates blue on front. For first time use, the blue LED will be flashing fast (8 times every sec.) to show it is ready for pairing. Browse your smart phone Bluetooth device list found, and select the one named ‘SWiNG’ to confirm pairing on your smart phone. You will hear a beep tone on the speakers which is sent from your phone, and then the speakers’ blue LED flashes steadily (1.5 times every sec.). Pairing connection is successful then. b.) When you need to disconnect the speaker, you first switch off Bluetooth function on your smart phone, the speaker’s blue LED will flash slowly (1 time every sec.) Then you switch to OFF the speaker (swing main body back to straight), the pairing memory will be then kept there. Next time when you swing the main body to turn ON the speaker, it will automatically connect to your smart phone again and blue LED lit continuously (when your smart phone’s Bluetooth function is also ON and nearby <5M). c) If you need to pair the speaker with a new smart phone, switch off Bluetooth function on your old smart phone first. Then power on your new smart phone’s Bluetooth function. After that switch OFF and swing main body to slanted position to power ON the speaker until the speakers’ blue LED will be flashing fast again (8 times every sec.), and then you repeat steps as in above paragraph a.). Call-pick function When speakers is connected to your smart phone (blue LED lit continuously), whenever there is an incoming call ring, you can press [play/call] button once on the speakers to pick up and use it as speaker phone. (press and hold [play/call] button 2 sec. will switch the call to your smart phone) How to Use / Controls Adjust volume: during music playback or call, press & hold [+] button to increase speaker volume, or press & hold [-] button to reduce speaker volume. You have to ‘press and hold’ until adjust volume to desire level. During music playback, press [+] button once will forward to play next track; press [-] button once will backward to previous track. Press [play/call] button once will pause playback, press again to resume play. If battery power becomes low, there will be some beeping alert sound during playback, and LED flashes RED and BLUE quickly (8 times every sec., Red light interval every 4 sec.). Then charge the speaker as mentioned in above section. (You can play music at the same time while charging the built-in battery...) (You will need to operate the smart phone to resume music playback when you disconnect the AUX cable and use it wireless again, and operate the speaker buttons as usual) Specifications: dimensions: W 100 x D 51 x H 105 mm product weight: 405g Bluetooth wireless connection v3.0 +EDR; class II; typ. 8M visible distance; max. 10M support multiple pairing: up to 4 devices** driver: dia. 50mm frequency response (0dB at 1KHz): 100 Hz ~ 20,000 Hz amplifier max. output : 5W (THD=10%, 1KHz@0dB) signal to noise ratio: 85dB operation voltage min. 3V; max. 4.2V DC built-in 3.7V Li-polymer rechargeable battery battery charging voltage typ. 5V; max. 5.5V DC (via. USB port) battery charging current 500mA max. battery charging time 2.5 hours. drain current (power on, no input) <=35mA playback time up to 8 hours (fully charged, volume at 1/3 level) standby time up to 20 hours *The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Manova International Limited is under license. Other trademarks and trade names are those of their respective owners. *Design and specifications are subject to change per technical needs, without prior notice **This speaker supports pairing ‘records’ up to 4 devices, but NOT ‘connection’ to 4 devices at the same time dd 2014/07/04 Charging the speaker As shown (fig.1), connect the micro USB port with …

Text truncated - open the document above for the full version.

MANOVA International Ltd. Flat A, 13th Floor, Century Industrial Centre, 33~35 Au Pui Wan Street, Fo Tan,N.T., H.K. --------------------------------------------------------------------------------------------------------------------- Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: UKWMANOVA-BT- 78N Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics UKWMANOVA-BT-78N_FCCID_Schematics Block Diagram UKWMANOVA-BT-78N_FCCID_BlockDiagram Operational Description UKWMANOVA-BT-78N_FCCID_OperationalDescription The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, MANOVA International Ltd. ------------------------- (Wayne Man)

MANOVA International Ltd. Flat A, 13 th Floor, Century Industrial Centre, 33~35 Au Pui Wan Street, Fo Tan,N.T., H.K. -------------------------------------------------------------------------------- (FCC IDΚUKWMANOVA-BT-78N) POWER OF ATTORNEY DATE: 2014-09-15 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen SEM.Test Technology Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen SEM.Test Technology Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, MANOVA International Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, MANOVA International Ltd. ------------------------- (Wayne Man)

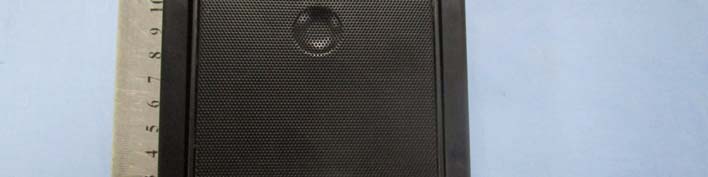

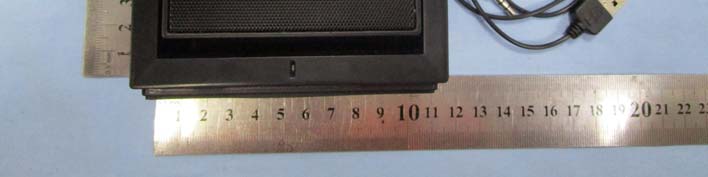

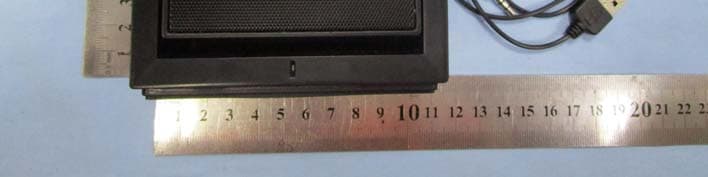

MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 EUT View 3 EUT View 4 MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 EUT View 5 EUT View 6 MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 EUT View 7

MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UKWMANOVA-BT-78N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UKWMANOVA-BT-78N This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5 MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 Solder Board-Component View 6 Solder Board-Component View 7

RF Exposure Requirements Product Description: “SWiNG” Bluetooth Speaker Model No.:BT-78N FCC ID: UKWMANOVA-BT-78N According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: -2.237 dBm Maximum Output Power: 0.597mW Limit: 10mW Source-based time-averaged output power is 0.597mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

MANOVA International Ltd. Model: BT-78N REPORT NO.: STR1409004I PAGE 1 OF 56 FCC PART 15.247 FCC Part 15C Measurement and Test Report For MANOVA International Ltd. Flat A, 13 th Floor, Century Industrial Centre, 33~35 Au Pui Wan Street, Fo Tan, N.T., H.K. FCC ID: UKWMANOVA-BT-78N FCC Rule(s): FCC Part 15.247 Product Description: “SWiNG” Bluetooth Speaker Tested Model: BT-78N Report No.: STRD1409004I Tested Date: 2014-09-02 to 2014-09-12 Issued Date: 2014-09-15 Tested By: Mark chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. MANOVA International Ltd. Model: BT-78N REPORT NO.: STR1409004I PAGE 2 OF 56 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. ANTENNA REQUIREMENT .................................................................................................................................. 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 EVALUATION INFORMATION .................................................................................................................................. 9 5. FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................... 10 5.1 STANDARD APPLICABLE ....................................................................................................................................... 10 5.2 FREQUENCY HOPPING SYSTEM............................................................................................................................. 10 5.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................... 11 6. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ................................................... 12 6.1 STANDARD APPLICABLE ....................................................................................................................................... 12 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 12 6.3 TEST PROCEDURE ................................................................................................................................................. 12 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 7. DWELL TIME OF HOPPING CHANNEL .......................................................................................................... 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. 20DB BANDWIDTH ............................................................................................................................................... 28 8.1 STANDARD APPLICABLE ....................................................................................................................................... 28 8.2 TEST EQUIPMENT LIST AND DETAILS ..…

Text truncated - open the document above for the full version.

MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) MANOVA International Ltd. Model: BT-78N REPORT NO.: STRD1409004I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
