ULI-CYRFRX05Nano RF Receiver

Presenter RC132/612 User’s Manual RF132, Presenter with RF wireless technology 1 !!! Attention!!! A. Do not allow minors to use the laser pointer unsupervised. Laser pointers are not toys. B. Avoid direct eye exposure. C. Never shine the laser pointer at anyone. The laser pointer is designed to illustrate inanimate objects. D. Do not point the laser pointer at mirror-like surfaces. A reflected beam can act like a direct beam on the eye. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF132, Presenter with RF wireless technology 2 Table of Content INTRODUCTION ........................................................................................................ 3 FEATURES................................................................................................................... 4 PACKAGE CONTENTS ............................................................................................. 5 SYSTEM REQUIREMENTS ..................................................................................... 5 INSTALLATION AND OPERATION ....................................................................... 6 1. OPEN THE BATTERY COVER AND INSTALL BATTERIES ...................................... 6 2. INSTALL RECEIVER ............................................................................................ 6 3. PRESENTER BUTTON FUNCTION ............................................................................ 7 4. INSTALL aimMaster EZ FOR MICROSOFT® WINDOWS® 2000/XP/ VISTA/7 ....... 8 5. USE aimMaster EZ FOR MICROSOFT® WINDOWS® 2000/XP/ VISTA/7 ............ 11 TROUBLE SHOOTING ........................................................................................... 15 V1.0 RF132, Presenter with RF wireless technology 3 Introduction Thank you for purchasing Presenter. Please read this user’s manual carefully before operating the unit, and keep it for future reference. The wireless presenter is the ideal wireless remote controller for large-scale presentations and conference rooms. 2.4GHz of wireless technology lets you concentrate on your presentation. The preset RF connection enables true plug-and-play capability; no driver is required. The presenter features dedicated PowerPoint ® page-up and page-down control keys, a 360-degree mouse, and a laser pointer. The software, aimMaster EZ (for Microsoft ® Windows ® 2000/XP/ Vista/7) allows you to put marks during the presentation to attract the audiences’ attention. A travel-friendly design that stores the receiver dongle into presenter also turns off the switch to conserve power. We make no representation for the errors, omissions or updates of this document. RC132 RF612 RF132, Presenter with RF wireless technology 4 Features 1. 2.4 GHz RF wireless transmission provide up to 20 meters omni- directional working range. 2. Built-in laser pointer for presentation guidance. 3. Built-in cursor mouse for 360-degree control. 4. Plug and Play. No driver required. 5. Store wireless USB receiver inside presenter. 6. Useful and friendly software, aimMaster EZ (for Microsoft ® Windows ® 2000/ XP/ Vista/7/ 8), works under Windows 2000/ XP/ Vista/ 7/ 8 OS and allows you to put marks to attract audiences’ attention. 7. Compact design uses hidden dongle as on/off power switch of RF and laser. 8. Bright laser beam provides easy to see pointer visibility. 9. Compatible with MS, Openoffice, Google Docs 10. Two AAA batteries provide long and reliable usage. RF132, Presenter with RF wireless technology 5 Package Contents  Presenter  USB type RF Dongle receiver  aimMaster EZ Software (for Microsoft ® Windows ® 2000/ XP/ Vista/ 7 /8) and User’s Manual CD-ROM  Two AAA batteries  Quick Guide System Requirements  Microsoft ® Windows ® 2000/XP/ Vista/ 7/ 8 and Mac OS  512MB RAM recommended  CD-ROM drive or DVD-ROM Drive  USB Port; PC platform RF132, Presenter with RF wireless technology 6 Installation and operation 1. Open the battery cover and Install batteries Open the battery cover of presenter and take off the receiver with 45 degrees angle from the receiver dock before you start to use. (Please insert the receiver into the receiver dock of the presenter with 45 degrees angle after the presentation. The Power Switch inside the presenter dock will turn off the power when you put the receiver in) Put in two AAA batteries and close the battery cover. 2. Install Receiver Plug receiver (with golden pins face up for notebook computer) into the USB port of your computer. If the blue indicator on receiver does not flash once, unplug receiver, turn the receiver upside down and plug in again. Keep the presenter close to receiver (within 5 cm, or 2 inches) and press any button except the LASER button of the receiver for more than one second. If the receiver’s blue indicator light is blinking, you may start to use the receiver for presentation. Otherwise, do the Receiver dock Power on/off button RF132, Presenter with RF wireless technology 7 following steps to pair the presenter and the receiver: Pairing A. Press and hold both UP and DOWN buttons around 3 seconds until the red indicator on the presenter flashes. Release both buttons. B. Put your presenter close to the receiver within 5 cm (2 inches) and C. Press and hold any button except LASER button of the presenter for 1~3 seconds. The red indicator on the presenter will be on for 1 second if the pairing is successful. Release the button. D. The blue indicator of receiver blinks when the presenter keys (except the LASER button) are pressed. 3. Presenter button function PAGE UP PAGE DOWN LASER Mouse STICK LEFT RIGHT PAGE UP PAGE DOWN Red indicator RF132, Presenter with RF wireless technology 8 Button Function or PAGE UP button (suit for left-handed or right-handed user) or PAGE DOWN button (su…

Text truncated - open the document above for the full version.

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

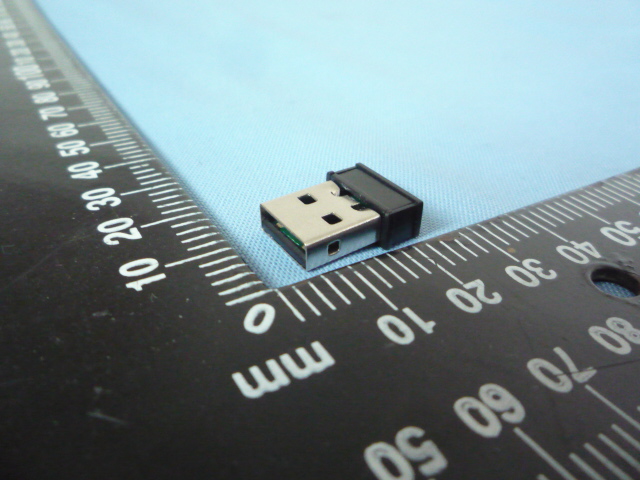

Report No.: E-R1210002 Page 1 of 1 Rev: None External View of EUT Model: RF612 Photo 1 Model: RF612 Photo 2 Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China.

Label Location

Report No.: E-R1210002 Page 1 of 2 Rev: None Internal View of EUT Model: RF612 Photo 1 Model: RF612 Photo 2 Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Report No.: E-R1210002 Page 2 of 2 Rev: None Model: RF612 Photo 3 Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China.

Antenna Test Report 1. General Description Antenna Type: Printed on PCB Manufacturer: Formosa21 Inc. Model No.: RF612; RF612x; RF612-xxx (x=0~9，A~Z)-Antenna The antenna is integrated on the main PCB for 2.4GHz frequency range application. 2. Specification Unit 1 Frequency Range (MHz) 2400 –2483.5 Max.Gain + 1.1 dBi VSWR 2.0:1 max Polarization Linear Vertical HPBW/H Please see attached table 1 HPBW/E Please see attached table 1 Temperature 30ºC to +75ºC Humidity 5%to95% RH 3. Antenna Performance 3-1 Antenna Gain Antenna Sample Peak Gain Avg. Gain Data Freg. E H E H E H 2.4 GHz 1.011 dBi 1.086dBi -3.270 dBi -1.021 dBi 64.28 deg Not Found 2.45 GHz 1.114dBi 1.027 dBi -3.124 dBi -1.424 dBi 64.51 deg Not Found 2.5 GHz 1.069dBi 1.057 dBi -3.068dBi -1.365dBi 57.71 deg Not Found 3-2 Transmitter Antenna Pattern E-Plane H-Plane 2.4GHz 2.45GHz 2.5GHz

Report No.: E-F1210001 Page 1 of 27 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. FCC Verification Test Report For Formosa21 Inc. EUT Name: Nano RF Receiver Model No.: RF612; RF612x; RF612-xxx (x=0~9，A~Z) Brand Name: Prepared By: Asia Institute Technology (Dongguan) Limited Date of Receipt: Sep. 20, 2012 Date of Test: Sep. 21~Oct.15, 2012 Date of Issue: Oct. 16, 2012 Test Result: Pass This report shall not be reproduced except in full, without the written approval of Asia Institute Technology (Dongguan) Limited. Report No.: E-F1210001 Page 2 of 27 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Verification of Compliance Client Information: Applicant: Formosa21 Inc. EUT Information: EUT Name: Nano RF Receiver Model No.: RF612; RF612x; RF612-xxx (x=0~9，A~Z) Brand Name: Test procedure used: FCC Part 15 Subpart B Class B ICES-003 This device described above has been tested by Asia Institute Technology (Dongguan) Limited, and the test results show that the equipment under test (EUT) is in compliance with the FCC and IC requirements. And it is applicable only to the tested sample identified in the report. Reviewed by: Approved by: Test director Technical director Applicant add.: 8F-6, No.351, Sec. 2, Zhongshan Rd., Zhonghe Dist., New Taipei City 23504, Taiwan (R.O.C.) Report No.: E-F1210001 Page 3 of 27 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ...........................................................................................................................................................3 2 TEST SUMMARY ..................................................................................................................................................4 2.1 MEASUREMENT UNCERTAINTY............................................................................................................................5 3 TEST FACILITY.....................................................................................................................................................6 3.1 DEVIATION FROM STANDARD...............................................................................................................................6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS....................................................................................................6 4 GENERAL INFORMATION ...................................................................................................................................7 4.1 GENERAL DESCRIPTION OF EUT ........................................................................................................................7 4.1.1 EUT Test Mode ...................................................................................................................7 4.2 DESCRIPTION OF TEST SETUP.............................................................................................................................8 4.3 PERIPHERAL LIST...............................................................................................................................................9 4.4 EUT PERIPHERAL LIST........................................................................................................................................10 5 EQUIPMENTS LIST FOR ALL TEST ITEMS .....................................................................................................11 6 EMISSION TEST RESULTS ...............................................................................................................................12 6.1 MAINS TERMINALS DISTURBANCE VOLTAGE MEASUREMENT..............................................................................12 6.1.1 E.U.T. Operation ...............................................................................................................12 6.1.2 Test Specification ..............................................................................................................12 6.1.3 Measurement Data............................................................................................................13 6.1.4 Test Setup Photograph .....................................................................................................16 6.2 RADIATED EMISSION MEASUREMENT................................................................................................................17 6.2.1 E.U.T. Operation ...............................................................................................................17 6.2.2 Test Specification ..............................................................................................................17 6.2.3 Measurement Data............................................................................................................18 6.2.4 Test Setup photograph......................................................................................................23 7 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS ...........................................................25 Report No.: E-F1210001 Page 4 of 27 Rev: None Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. 2 Test Summary Test Test Requirement Test Method Criterion Result Mains Terminals Disturbance Voltage, 150kHz to 30MHz FCC Part 15 Subpart B ICES-003 FCC Part 15 Subpart B ANSI C63.4: 2009 Limits PASS Radiated Emissions 30MHz to 1GHz 1 GHz to 6 GHz FCC Part 15 Subpart B ICES-003 FCC Part 15 Subpart B ANSI C63.4: 2009 Limits PASS Remark: None Model description: The only different about RF612;RF612x;RF612-xxx(x=0~9，A~Z) exterior and printing. x may represent different alphabet (A-Z) or numeral (0-9). Report No.: E-F1210001 Page 5 of 27 Rev: Non…

Text truncated - open the document above for the full version.

Report No.: E-R1210002 Page 1 of 3 Rev: None Test Setup Photograph Conducted Measurement Photos Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Report No.: E-R1210002 Page 2 of 3 Rev: None Radiated Measurement Photos 30MHz-1GHz Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China. Report No.: E-R1210002 Page 3 of 3 Rev: None 1GHz-18GHz Asia Institute Technology (Dongguan) Limited No,6.Binhe Road, Tianxin Village, Huangjiang, Dongguan, Guangdong, China.
