ULI-CYRFTX03Aim Presenter RC240

RC240 3D Mouse Presenter V1.3 1 Motion Sensor Presenter RF240/611 RC240 3D Mouse Presenter V1.3 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RC240 3D Mouse Presenter V1.3 3 Table of Contents PACKAGE CONTENTS.................................................................................4 SYSTEM REQUIREMENTS.............................................................................4 RECHARGING THE PRESENTER.....................................................................4 KEY DEFINITIONS......................................................................................5 USE PRESENTER WITHOUT RUNNING AIMMASTER™ PRO SOFTWARE......................5 INSTALL AIMMASTER™ PRO.........................................................................5 START USING PRESENTER...........................................................................6 POWER ON THE PRESENTER..........................................................................6 POWER OFF THE PRESENTER.........................................................................6 USE MICRO SD CARD.................................................................................6 BASIC MODE...........................................................................................6 Language.................................................................................. 6 Exit.......................................................................................... 6 Basic Mode Key Definitions............................................................. 7 Virtual Laser Pointer...................................................................... 7 Enable/Disable 3D Mouse...............................................................7 Open/Close Slide Show.................................................................. 8 Page Up/Down and Scrolling........................................................... 8 Group Vibrating............................................................................ 8 Change 3D Mouse Speed...............................................................8 Volume Adjust............................................................................. 9 STANDARD MODE......................................................................................9 Standard Mode Key Definitions......................................................... 9 Place Check Mark........................................................................10 Draw Line Mark...........................................................................10 Undo or Remove all Marks. ............................................................11 Timer Setting.............................................................................11 Show Timer...............................................................................11 Plug & Present............................................................................12 Change Laser Icon.......................................................................12 Group Vibrating...........................................................................13 Anti Shaking..............................................................................13 LINK PRESENTER WITH RECEIVER....................................................................13 ADVANCE MODE.....................................................................................14 Change Hotkey Map.....................................................................14 Use the Motion keys.....................................................................16 CHECK RELEASE NUMBERS..........................................................................18 FEATURES ............................................................................................19 PRODUCT SPECIFICATIONS .......................................................................20 Q & A ..................................................................................................21 RC240 3D Mouse Presenter V1.3 4 Package Contents z Presenter z Receiver z aimMaster™ Pro Software CD (for Microsoft ® Windows ® 7/Vista/XP), Quick Instruction Guide, and User's Manual (stored in the Receiver flash memory) z USB Recharge Cable z Leather Bag z Quick Instruction Guide Sheet System Requirements z Microsoft ® Windows ® 7/Vista/XP z 1GB RAM recommended z CD-ROM drive or DVD-ROM Drive z USB Port Recharging the Presenter Fully charge the Presenter by connecting the miniUSB connector of the USB cable to the Presenter miniUSB Port. Connect the Presenter with the computer by the USB cable. The orange light of the LASER key is flashing. Wait for about 2.5 hours until the light of LASER key changes to blue; the Presenter is fully charged and ready for use. Click any key will flash the blue light on the LASER key. The battery can last more than 20 hours for continuous usage. When the battery capacity is low, click any key will flash the orange light on the LASER key. RC240 3D Mouse Presenter V1.3 5 Key Definitions Use Presenter without running aimMaster™ Pro software Before installing the powerful Presenter Auxiliary Tools – aimMaster™ Pro, you can use the functions include 3D Air Mouse, Page Up/Down, Group Vibration alarm, Volume Adjust, etc. However, the Virtual Laser Pointer can’t work. Install aimMaster™ Pro Insert the CD to your computer. The following windows will pop up. Follow the instructions to install aimMaster™ Pro. Double Click the shortcut icon of aimMaster™ Pro shown on your desktop to activate aimMaster™ Pro. The message window will pop up three seconds to remind you that the aimMaster™ Pro is activated. You will see the aimMaster™ Pro icon on the System Tray. RC240 3D Mouse Presenter V1.3 6 Start Using Presenter The default mode entered is Basic …

Text truncated - open the document above for the full version.

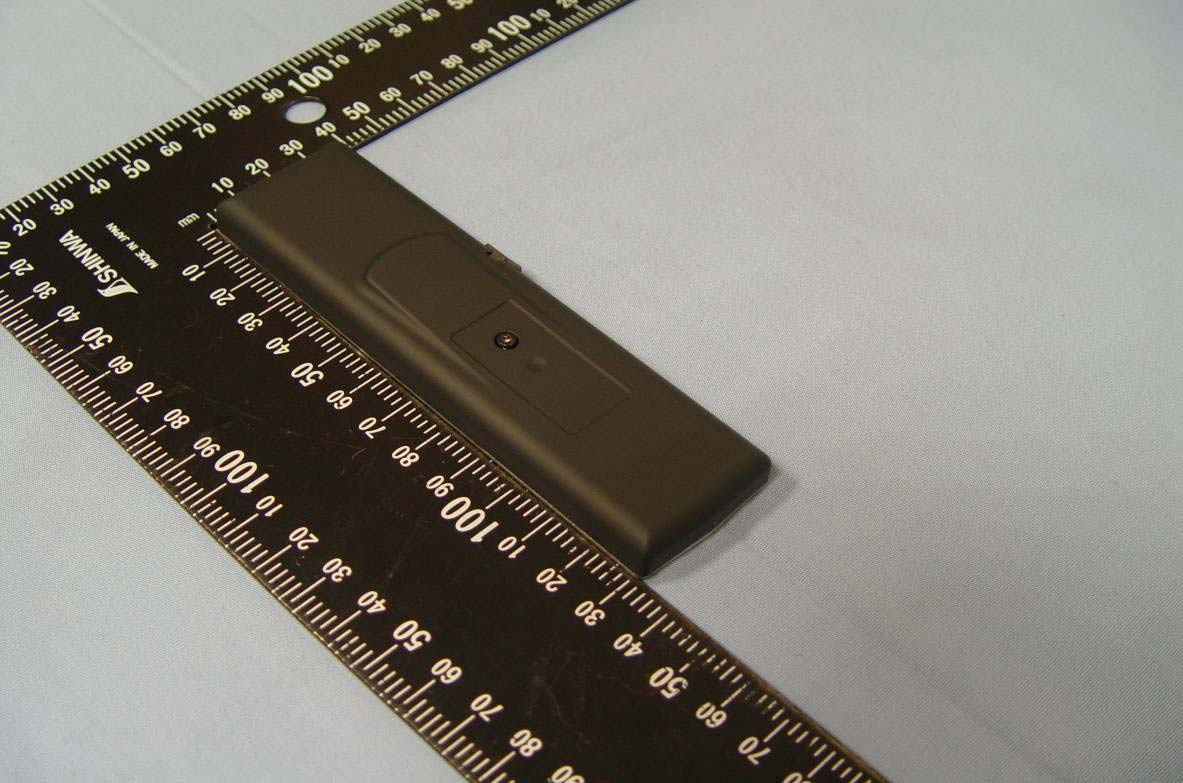

Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 1 Total Page: 9 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 2 Total Page: 9 Rev. 00

Label Location

Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100609002 Date of Issue: June 30, 2010 A1 - 9 Rev. 00 Printed Antenna

NORTHWESTREV EMC df4.13 05/06/2004 EUT:Wiggle with ground planeWork Order:CYPS0007 Serial Number:N/ADate: Customer: Cypress SemiconductorTemperature:70 Attendees:Ram KandiarHumidity:46% Cust. Ref. No.:N/ABarometric Pressure29.85 Tested by:Rod PeloquinPower:N/AJob Site:EV01 SAMPLE CALCULATION S COMMENTS EUT OPERATING MODES Test Distance (m)Run # Other 0.00 90.00 180.00 270.00 Frequency2440.00 Measurement Antenna Polarity Horizontal Antenna Under Test (AUT) PolarityY Tested By: RELATIVE GAIN DATA SHEET Y axis 37 05/28/04 Relative Gain of AUT 55.0 65.0 75.0 85.0 95.0 105.0 0 90 180 270 NORTHWESTREV EMC df4.13 05/06/2004 EUT:Wiggle with ground planeWork Order:CYPS0007 Serial Number:N/ADate: Customer: Cypress SemiconductorTemperature:70 Attendees:Ram KandiarHumidity:46% Cust. Ref. No.:N/ABarometric Pressure29.85 Tested by:Rod PeloquinPower:N/AJob Site:EV01 SAMPLE CALCULATION S COMMENTS EUT OPERATING MODES Test Distance (m)Run # Other 0.00 90.00 180.00 270.00 Frequency2440.00 Absolute Gain of Reference Antenna (dBi)8.86 Reference Antenna Relative Gain Max (dBuV/m)102.80 AUT Relative Gain Max (dBuV/m)95.10 Difference (Reference Antenna - AUT) (dB)7.70 AUT Setup Loss (dB)0.00 Maximum Absolute Gain of AUT (dBi )2.46 Correction Factor (Convert From Relative to Absolute Gain) (dB)92.64 Measurement Antenna Polarity Horizontal Antenna Under Test (AUT) PolarityY Tested By: ABSOLUTE GAIN DATA SHEET Y axis 37 05/28/04 Relative Gain of AUT 55.0 65.0 75.0 85.0 95.0 105.0 0 90 180 270 Absolute Gain of AUT -40.0 -30.0 -20.0 -10.0 0.0 10.0 0 90 180 270

Compliance Certification Services Inc. Report No.: T100609002-RP1 FCC ID: ULI-CYRFTX03 Date of Issue: July 1, 2010 Page 40 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(i) and §1.1307(b)(1) of this chapter. EUT Specification EUT aim Presenter RC240 Frequency band (Operating) 2.402GHz ~ 2.479GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 2.54 dBm (1.79mW) Antenna gain (Max) 2.46 dBi (Numeric gain: 1.76) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 2.54dBm (1.79mW) at 2479MHz (with 1.76numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. MPE EVALUATION Not applicable Compliance Certification Services Inc. Report No.: T100609002-RP1 FCC ID: ULI-CYRFTX03 Date of Issue: July 1, 2010 Page 41 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 1.79mW Numeric Antenna gain = 1.76 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.000626 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: T100323001-D Page 1 / 21 FCC 47 CFR PART 15 SUBPART B TEST REPORT for Motion Sensor Presenter MODEL: RC240; RC240-X Test Report Number: T100323001-D Issued to: FORMOSA21 Inc. 8F-6, NO.351, CHUNG SHAN RD., SEC.2, CHUNG HO CITY, TAIPEI, TAIWAN, R.O.C. Issued by: Compliance Certification Services Inc . Sindian BU. No.163-1, Jhongsheng Rd., Sindian City, Taipei County 23151, Taiwan TEL: 886-2-22170894 FAX: 886-2-22171029 Issued Date: April 16, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: T100323001-D Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 16, 2010 Initial Issue ALL Eva Fan Report No.: T100323001-D Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ........................................................................... 4 2 EUT DESCRIPTION................................................................................................ 5 3 TEST METHODOLOGY.......................................................................................... 6 3.1. DECISION OF FINAL TEST MODE ........................................................................ 6 3.2. EUT SYSTEM OPERATION ................................................................................... 6 4 SETUP OF EQUIPMENT UNDER TEST ................................................................ 7 4.1. DESCRIPTION OF SUPPORT UNITS.................................................................... 7 4.2. CONFIGURATION OF SYSTEM UNDER TEST..................................................... 7 5 FACILITIES AND ACCREDITATIONS ................................................................... 8 5.1. FACILITIES ............................................................................................................. 8 5.2. ACCREDITATIONS................................................................................................. 8 5.3. MEASUREMENT UNCERTAINTY .......................................................................... 8 6 CONDUCTED EMISSION MEASUREMENT .......................................................... 9 6.1. LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................ 9 6.2. TEST INSTRUMENTS ............................................................................................ 9 6.3. TEST PROCEDURES........................................................................................... 10 6.4. TEST SETUP ........................................................................................................ 11 6.5. DATA SAMPLE ..................................................................................................... 11 6.6. TEST RESULTS ................................................................................................... 12 7 RADIATED EMISSION MEASUREMENT ............................................................ 13 7.1. LIMITS OF RADIATED EMISSION MEASUREMENT .......................................... 13 7.2. TEST INSTRUMENTS .......................................................................................... 14 7.3. TEST PROCEDURES........................................................................................... 15 7.4. TEST SETUP ........................................................................................................ 16 7.5. DATA SAMPLE ..................................................................................................... 17 7.6. TEST RESULTS ................................................................................................... 18 8 PHOTOGRAPHS OF THE TEST CONFIGURATION........................................... 20 APPENDIX 1 - PHOTOGRAPHS OF EUT Report No.: T100323001-D Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Product: Motion Sensor Presenter Model: RC240; RC240-X (X=0~9 or A~Z) Brand: aim Applicant: FORMOSA21 Inc. 8F-6, NO.351, CHUNG SHAN RD., SEC.2, CHUNG HO CITY, TAIPEI, TAIWAN, R.O.C. Manufacturer: FORMOSA21 Inc. 8F-6, NO.351, CHUNG SHAN RD., SEC.2, CHUNG HO CITY, TAIPEI, TAIWAN, R.O.C. Tested: April 13, 2010 & April 15, 2010 EMISSION Standard Item ResultRemarks Conducted (Power Port) PASS Meet Class B limit FCC 47 CFR Part 15 Subpart B, ICES-003 Issue 4 ANSI C63.4-2003 Radiated PASS Meet Class B limit Note: 1. The statements of test result on the above are decided by the request of test standard only; the measurement uncertainties are not factored into this compliance determination. 2. The information of measurement uncertainty is available upon the customer’s request. Deviation from Applicable Standard None The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Report No.: T100323001-D Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Motion Sensor Presenter Brand Name aim Model RC240; RC240-X (X=0~9 or A~Z) Applicant FORMOSA2…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100609002-RP1 FCC ID: ULI-CYRFTX03 Date of Issue: July 1, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 44 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For aim Presenter RC240 Trade Name: aim Model: RC240 Issued to FORMOSA21 Inc. 8F-6, NO.351, CHUNG SHAN RD., SEC.2, CHUNG HO CITY, TAIPEI, TAIWAN, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100609002-RP1 FCC ID: ULI-CYRFTX03 Date of Issue: July 1, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4 INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................8 4.3 MEASUREMENT UNCERTAINTY ...............................................................................................9 5 FACILITIES AND ACCREDITATIONS ........................................................................................10 5.1 FACILITIES.......................................................................................................................................10 5.2 EQUIPMENT......................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................11 6 SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7 FCC PART 15.247 REQUIREMENTS.............................................................................................13 7.1 6DB BANDWIDTH.............................................................................................................................13 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................17 7.4 BAND EDGES MEASUREMENT ................................................................................................18 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................20 7.6 SPURIOUS EMISSIONS.................................................................................................................20 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................20 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................20 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................20 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100609002-RP1 FCC ID: ULI-CYRFTX03 Date of Issue: July 1, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: FORMOSA21 Inc. 8F-6, NO.351, CHUNG SHAN RD., SEC.2, CHUNG HO CITY, TAIPEI, TAIWAN, R.O.C. Equipment Under Test: aim Presenter RC240 Trade Name: aim Model Number: RC240 Date of Test: June 21 ~ 30, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard N/A We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certifica…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100609002-RP1 FCC ID: ULI-CYRFTX03 Date of Issue: July 1, 2010 Page 42 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: T100609002-RP1 FCC ID: ULI-CYRFTX03 Date of Issue: July 1, 2010 Page 43 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: T100609002-RP1 FCC ID: ULI-CYRFTX03 Date of Issue: July 1, 2010 Page 44 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
