LevelOne WPC-0600 N_One Wireless CardBus Adapter User Manual V1.0.0-0705 Table of Contents CHAPTER 1 INTRODUCTION...................................................................................... 1 Package Contents ................................................................................................ 1 LEDs....................................................................................................................... 1 Operation............................................................................................................... 1 CHAPTER 2 INITIAL INSTALLATION ......................................................................... 2 Requirements........................................................................................................ 2 Procedure .............................................................................................................. 2 CHAPTER 3 USING THE WINDOWS UTILITY............................................................ 5 Overview ................................................................................................................ 5 System Tray Icon .................................................................................................. 5 Auto Connect ........................................................................................................ 6 Site Survey Screen ............................................................................................... 6 Profile Manager Screen........................................................................................ 8 Network Status Screen ...................................................................................... 13 About Screen...................................................................................................... 14 APPENDIX A SPECIFICATIONS ............................................................................... 15 Wireless Adapter ................................................................................................ 15 APPENDIX B ABOUT WIRELESS LANS .................................................................. 16 Modes .................................................................................................................. 16 BSS/ESS .............................................................................................................. 16 Channels.............................................................................................................. 17 WEP & WPA-PSK ................................................................................................ 17 Wireless LAN Configuration.............................................................................. 17 i Chapter 1 Introduction This Chapter provides an overview of the Wireless Adapter's features and capabilities. Congratulations on the purchase of your new Wireless Adapter. The Wireless Adapter provides a wireless network interface for your Notebook or PC. Package Contents The following items should be included: • WPC-0600 • Quick Installation Guide • CD Manual/Driver/Utility If any of the above items are damaged or missing, please contact your dealer imme- diately. LEDs Wireless Adapter The Wireless Adapter has Link and Act LED. Act LED • On - Associated with the CardBus Adapter. • Off - Not associated with the CardBus Adapter. Link LED • On - Associated with the network. • Off - Not associated with the network. • Blinking - Data being transferred. Operation You should install the supplied software on the CD-ROM before inserting the Wireless adapter. 1 Chapter 2 Initial Installation This Chapter covers the software installation of the Wireless Adapter. Requirements • Windows 2000/XP/Vista • CardBus Card Slot • CD-ROM Drive. • IEEE802.11n, IEEE802.11b or IEEE802.11g Wireless LAN. Procedure You should install the supplied software BEFORE inserting the Wireless Adapter. 1. Insert the CD-ROM into the drive on your PC. 2. The installation program should start automatically. If it does not, run autorun.exe program. 3. Select the desired installation language on the screen. Figure 1: Start Installation 4. On the screen above, click "Next" to start the installation. 5. Step though the procedure. 2 N_One Wireless CardBus Adapter Figure 2: Installation Screen 6. Click "Continue Anyway" on the screen above. Figure 3: Information 7. Press the Cardbus Card firmly into the slot, then click "OK". 8. The Windows "New Hardware" wizard will then start. • Select Install the software automatically to allow it to complete the installation of the Windows driver • If using Windows XP, you may see a warning screen like the example below. If you do see this screen, just click "Continue Anyway" Figure 4: Windows XP Warning 3 N_One Wireless CardBus Adapter 9. When the Windows wizard is complete, you will now have a new icon in your system tray, as shown below. Figure 5: System Tray Icon Wireless Adapter Icon Table Connection to the Wireless Adapter is established. The length of green color indicates the signal strength. No connection to the Wireless Adapter. The Wireless Adapter is unplugged. 10. You can double- click this icon to configure the Wireless interface. See the follow- ing chapter for details. 4 Chapter 3 Using the Windows Utility This Chapter provides Setup details for the AP mode of the Wireless Adapter. Overview If using Windows, you can use the supplied utility to configure the Wireless interface. To Use the supplied Windows utility for Configuration • Right-click the System Tray icon • From the pop-up menu, select "Restore". This Chapter assumes you are using the supplied WPC-0600 Wireless LAN Utility. System Tray Icon If the Wireless LAN Utility program is running, you can double-click the icon in the System Tray to open the application. If the program is not running, you can start it using the option in the Start menu cre- ated by the installation. For the Wireless Adapter, this will be Start - …

Text truncated - open the document above for the full version.

Request for non-disclosure RF_501_02 Digital Data Communication Asia Co., Ltd 8F, No.41, Lane 221, Kang-Chien Rd., Neihu Dis., Taipei City, 115 Taiwan, R.O.C. To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: ULT540560070602) Reference number: WPC-0600 Date: 2007/07/03 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), Digital Data Communication Co., Ltdhereby requests non- disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( ULT540560070602) a. Schematic diagrams b. Operational description c. Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Digital Data Communication Co., Ltd understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Name/ Title: Wyatt Tseng Signature:

RF_160, Issue 01 Declaration of Authorization We Name: Digital Data Communication Asia Co., Ltd Address: 8F, No.41, Lane 221, Kang-Chien Rd., Neihu Dis., City: Taipei City, 115 Country: Taiwan, R.O.C. Declare that: Name: Exclusive Certification Corporation Address: 4F-2, No.28, Xing-Ai Rd. City: Neihu, Taipei 114 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: N_One Wireless CardBus Adapter Type designation: WPC-0600 Trademark: LevelOne on our behalf. Date: 2007/07/03 City: Taipei Name: Wyatt Tseng Signature:

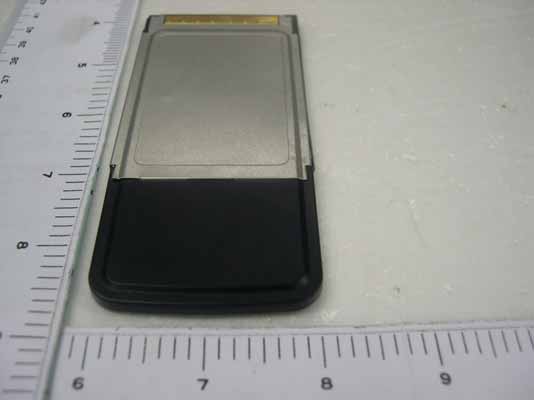

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 1 of 4 FCC Test Report: FI06050201-C Appendix A. Photographs of EUT 06050201-C 06050201-C

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 2 of 4 FCC Test Report: FI06050201-C 06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 3 of 4 FCC Test Report: FI06050201-C 06050201-C 06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 4 of 4 FCC Test Report: FI06050201-C 06050201-C 06050201-C

Report No： 079054R-HP-US-P09V01 Page: 1 of 23 Version:1.0 SAR Test Report Product Name ： N_One Wireless Cardbus Adapter Model No. ： WPC-0600 Applicant： Digital Data Communications Asia, Co., Ltd Address ： 8F, No.41, Lane221, Kang-Chien Rd., Neihu Dis., Taipei 115, Taiwan R.O.C. Date of Receipt ：2007/08/30 Issued Date ：2007/08/31 Report No. ：079054R-HP-US-P09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 079054R-HP-US-P09V01 Page: 2 of 23 Version:1.0 Test Report Certification Issued Date: 2007/08/31 Report No.:079054R-HP-US-P09V01 Product Name ： N_One Wireless Cardbus Adapter Applicant ： Digital Data Communications Asia, Co., Ltd Address ： 8F, No.41, Lane221, Kang-Chien Rd., Neihu Dis., Taipei 115, Taiwan R.O.C. Manufacturer ： Digital Data Communications Asia, Co., Ltd Model No. ： WPC-0600 Trade Name ： LevelOne Applicable Standard ： FCC Oet65 Supplement C June 2001 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.31 W/kg 802.11g: 0.186 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Engineering Adm. Assistant / Nicole Huang) Tested By ： (Senior Engineer / Shine Hsu) Approved By ： (Deputy Manager / Vincent Lin) Report No： 079054R-HP-US-P09V01 Page: 3 of 23 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 Amplifier Range................................................................................................................. 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Test Results ......................................................................................... 19 8. Test Results ......................................................................................... 20 8.1 SAR Test Results Summary ......................................................................................... 20 Report No： 079054R-HP-US-P09V01 Page: 4 of 23 Version:1.0 Appendix ............................................................................................................................ 23 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No： 07905…

Text truncated - open the document above for the full version.

Report No：079054R-HP-US-P09V01 Page: 35 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 6x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.042 W/kg Power Drift-Finish: 0.042 W/kg Power Drift (%) : 0.972 DUT Position : 802.11g- EUT Top Channel : 6 1 gram SAR value : 0.050 W/kg 10 gram SAR value : 0.042 W/kg Area Scan Peak SAR : 0.058 W/kg Zoom Scan Peak SAR : 0.086 W/kg Report No：079054R-HP-US-P09V01 Page: 36 of 60 Version:1.0 This is previous page plot (zoom in) Report No：079054R-HP-US-P09V01 Page: 37 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 6x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.044 W/kg Power Drift-Finish: 0.043 W/kg Power Drift (%) : -2.774 DUT Position : 802.11g- EUT Top Channel : 11 1 gram SAR value : 0.057 W/kg 10 gram SAR value : 0.053 W/kg Area Scan Peak SAR : 0.062 W/kg Zoom Scan Peak SAR : 0.090 W/kg Report No：079054R-HP-US-P09V01 Page: 38 of 60 Version:1.0 This is previous page plot (zoom in) Report No：079054R-HP-US-P09V01 Page: 39 of 60 Version:1.0 ALSAS-10U VER 2.3.1APREL Laboratories SAR Test Report (802.11n MIMO) Report Date : 14-Aug-2006 Measurement Date : 14-Aug-2006 Product Data Device Name : Belkin Type : Other Model : Frequency : 2450.00 MHz Max. Transmit Pwr : 0 W Drift Time : 0 min(s) Length : 120 mm Width : 54 mm Depth : 4.4 mm Antenna Type : Internal Phantom Data Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 325-B Frequency : 2450.00 MHz Last Calib. Date : 14-Aug-2006 Temperature : 23.10 °C Ambient Temp. : 23.60 °C Humidity : 54.00 RH% Epsilon : 51.29 F/m Sigma : 1.979 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 264 Model : E020 Type : E-Field Triangle Serial No. : 264 Last Calib. Date : 21-Mar-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.2 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：079054R-HP-US-P09V01 Page: 40 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.069 W/kg Power Drift-Finish: 0.066 W/kg Power Drift (%) : -4.494 DUT Position : Touch EUT Front Channel : 1 1 gram SAR value : 0.081 W/kg 10 gram SAR value : 0.072 W/kg Area Scan Peak SAR : 0.112 W/kg Zoom Scan Peak SAR : 0.110 W/kg Report No：079054R-HP-US-P09V01 Page: 41 of 60 Version:1.0 This is previous page plot (zoom in) Report No：079054R-HP-US-P09V01 Page: 42 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.074 W/kg Power Drift-Finish: 0.071 W/kg Power Drift (%) : -3.738 DUT Position : Touch EUT Front Channel : 6 1 gram SAR value : 0.089 W/kg 10 gram SAR value : 0.072 W/kg Area Scan Peak SAR : 0.109 W/kg Zoom Scan Peak SAR : 0.100 W/kg Report No：079054R-HP-US-P09V01 Page: 43 of 60 Version:1.0 This is previous page plot (zoom in) Report No：079054R-HP-US-P09V01 Page: 44 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.074 W/kg Power Drift-Finish: 0.071 W/kg Power Drift (%) : -4.494 DUT Position : Touch EUT Front Channel : 11 1 gram SAR value : 0.093 W/kg 10 gram SAR value : 0.075 W/kg Area Scan Peak SAR : 0.095 W/kg Zoom Scan Peak SAR : 0.140 W/kg Report No：079054R-HP-US-P09V01 Page: 45 of 60 Version:1.0 This is previous page plot (zoom in) Report No：079054R-HP-US-P09V01 Page: 46 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 5x7x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.154 W/kg Power Drift-Finish: 0.157 W/kg Power Drift (%) : 1.887 DUT Position : Touch EUT Back Channel : 1 1 gram SAR value : 0.180 W/kg 10 gram SAR value : 0.122 W/kg Area Scan Peak SAR : 0.195 W/kg Zoom Scan Peak SAR : 0.280 W/kg Report No：079054R-HP-US-P09V01 Page: 47 of 60 Version:1.0 This is previous page plot (zoom in) Report No：079054R-HP-US-P09V01 Page: 48 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 6x7x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.172 W/kg Power Drift-Finish: 0.178 W/kg Power Drift (%) : 3.363 DUT Position : Touch EUT Back Channel : 6 1 gram SAR value : 0.179 W/kg 10 gram SAR value : 0.121 W/kg Area Scan Peak SAR : 0.197 W/kg Zoom Scan Peak SAR : 0.280 W/kg Report No：079054R-HP-US-P09V01 Page: 49 of 60 Version:1.0 This is previous page plot (zoom in) Report No：079054R-HP-US-P09V01 Page: 50 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 5x7x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.169 W/kg Power Drift-Finish: 0.173 W/kg Power Drift (%) : 2.240 DUT Position : Touch EUT Back Channel : 11 1 gram SAR value : 0.173 W/kg 10 gram SAR value : 0.110 W/kg Area Scan Peak SAR : 0.212 W/kg Zoom Scan Peak SAR : 0.250 W/kg Report No：079054R-HP-US-P09V01 Page: 51 of 60 Version:1.0 This is previous page plot (zoom in) Report No：079054R-HP-US-P09V01 Page: 52 of 60 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 23.10 °C Ambient Temp. : 23.60 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : …

Text truncated - open the document above for the full version.

Page: 1 of 21 Appendix D. Probe Calibration Data Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 2450MHz Head Calibration page 2~11 2450MHz Body Calibration page 12~21 Page: 2 of 21 Page: 3 of 21 Page: 4 of 21 Page: 5 of 21 Page: 6 of 21 Page: 7 of 21 Page: 8 of 21 Page: 9 of 21 Page: 10 of 21 Page: 11 of 21 Page: 12 of 21 Page: 13 of 21 Page: 14 of 21 Page: 15 of 21 Page: 16 of 21 Page: 17 of 21 Page: 18 of 21 Page: 19 of 21

Page: 20 of 21 Page: 21 of 21 Appendix E. Dipole Calibration Data Validation Dipole 2450MHz P/N: ALS-D-2450-S-2 S/N: QTK-319

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 1 of 103 FCC Test Report: FI06050201-C FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant Digital Data Communications Asia Co. Ltd Address 8F No.41 Lane 221 Kang-Ching Rd. Nei-Hu Dis. 114 Taipei, Taiwan R.O.C. Equipment N_One Wireless CardBus Adapter Model No. WPC-0600 FCC ID ULT540560070602 Trade Name LevelOne Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 2 of 103 FCC Test Report: FI06050201-C Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode and Test Software..................................................................................................... 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System..........................................................................................8 2.6 General Information of Test........................................................................................................ 9 2.7 History of this test report ..........................................................................................................10 3. Antenna Requirements..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain............................................................................. 11 4. Test of Conducted Emission............................................................................................................12 4.1 Test Limit..................................................................................................................................12 4.2 Test Procedures.......................................................................................................................12 4.3 Typical Test Setup ...................................................................................................................13 4.4 Measurement equipment .........................................................................................................13 4.5 Test Result and Data................................................................................................................14 4.6 Test Photographs .....................................................................................................................20 5. Test of Radiated Emission ...............................................................................................................21 5.1 Test Limit..................................................................................................................................21 5.2 Test Procedures.......................................................................................................................22 5.3 Typical Test Setup ....................................................................................................................23 5.4 Measurement equipment .........................................................................................................23 5.5 Test Result and Data................................................................................................................24 5.6 Test Photographs .....................................................................................................................60 6. 6dB Bandwidth Measurement Data .................................................................................................61 6.1 Test Limit ..................................................................................................................................61 6.2 Test Procedures .......................................................................................................................61 6.3 Test Setup Layout...................................................................................................................61 6.4 Measurement equipment .........................................................................................................61 6.5 Test Result and Data................................................................................................................61 7. Maximum Peak Output Power .........................................................................................................71 7.1 Test Limit ..................................................................................................................................71 7.2 Test Procedures .................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 53 of 103 FCC Test Report: FI06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 54 of 103 FCC Test Report: FI06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 55 of 103 FCC Test Report: FI06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 56 of 103 FCC Test Report: FI06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 57 of 103 FCC Test Report: FI06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 58 of 103 FCC Test Report: FI06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 59 of 103 FCC Test Report: FI06050201-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 61 of 103 FCC Test Report: FI06050201-C 6. 6dB Bandwidth Measurement Data 6.1 Test Limit The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 6.2 Test Procedures 1. The transmitter output was connected to the spectrum analyzer. 2. Set RBW of spectrum analyzer to 100 KHz and VBW to 100 KHz. 3. The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. 6.3 Test Setup Layout 6.4 Measurement equipment Instrument/Ancillary Model No. ManufacturerSerial No. Valid Date. Spectrum Analyzer FSP40 R&S 100047 2007/01/16 6.5 Test Result and Data (1) Modulation Standard: IEEE 802.11b (11Mbps) Test Date: Jun. 28, 2006 Temperature: 24 Humidity: 68% Atmospheric pressure: 1012 hPa Channel Frequency (MHz) 6dB Bandwidth (MHz) 01 2412 8.5 06 2437 8.5 11 2462 8.5 (2) Modulation Standard: IEEE 802.11g (54Mbps) Test Date: Jun. 28, 2006 Temperature: 24 Humidity: 68% Atmospheric pressure: 1012 hPa Channel Frequency (MHz) 6dB Bandwidth (MHz) 01 2412 19.1 06 2437 19.0 11 2462 19.3 (3) Modulation Standard: IEEE 802.11MIMO (144Mbps) Test Date: Jun. 28, 2006 Temperature: 24 Humidity: 68% Atmospheric pressure: 1012 hPa Channel Frequency (MHz) 6dB Bandwidth of TX0 (MHz) 6dB Bandwidth of TX1 (MHz) 01 2412 17.8 17.8 06 2437 17.7 17.7 11 2462 17.7 17.9 (4) Modulation Standard: IEEE 802.11MIMO (300Mbps) Test Date: Jun. 28, 2006 Temperature: 24 Humidity: 68% Atmospheric pressure: 1012 hPa Channel Frequency (MHz) 6dB Bandwidth of TX0 (MHz) 6dB Bandwidth of TX1 (MHz) 03 2422 36.2 36.4 06 2437 36.6 36.4 09 2452 36.2 35.8 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 62 of 103 FCC Test Report: FI06050201-C Modulation Standard: 802.11b (11Mbps) Channel: 01 Channel:06 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 02, 2007 63 of 103 FCC Test Report: FI06050201-C …
