USB Wireless Adaptor User Manual 1 150Mbps USB Wireless Adaptor User Manual 一、Network Card Installation Please follow the following steps to install your new wireless network card: 1. Insert the USB wireless network card into an empty USB2.0 port of your computer when computer has power on. Never use force to insert the card, if you feel it’s stuck, flip the card over and try again; 2. Insert device driver CD into the CDROM drive of your computer, double click the ‘Setup.exe’ icon and run the ‘Setup.exe’ program; 3. Select ‘I accept the terms of the license agreement’, and then click ‘Next’; 4. Select the setup type that best suits your needs, ‘Install driver and Ralink WLAN Utility’ are recommended; USB Wireless Adaptor User Manual 2 5. Click ‘Next’ , show the ‘Select Configuration Tool’ dialogue, you can manage this wireless adapter both by “Ralink Configuration Tool” and “Microsoft Zero Configuration Tool”; 6. Click ‘Next’, and Show ready to install dialogue; USB Wireless Adaptor User Manual 3 7. Click ‘Install’, and the installation is in process; 8. Finally, click ‘Finish’ to finish the driver installation; USB Wireless Adaptor User Manual 4 USB Wireless Adaptor User Manual 5 二、Connect to Wireless Access Point 1. After installation has finished, it will try to connect to any unencrypted wireless access point automatically. If you want to connect a specific wireless access point, or the access point you wish to connect uses encryption, you have to configure the wireless network card and input the correct password to get connected to the wireless access point. Double click to open desktop lower icon ; 2. Displays the following picture; 3. Click the icon ; Scan available wireless access point. Scan results will display in the ‘Network’ zone. If you can’t find the access point you wish to connect here, click the Refresh button, until you can find your wireless access point; USB Wireless Adaptor User Manual 6 4. Choose the wireless access point’s SSID, and double-click it. If the AP is encrypted, you should follow the prompts to select the appropriate encryption type and enter a password; 5. After you have connected to the wireless access point successfully, you can get the detail information of connected access point, such as status、IP address、 USB Wireless Adaptor User Manual 7 speed and so on. Click the icon ，then the ，you will see the signal quality and signal strength information. USB Wireless Adaptor User Manual 8 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the useris encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment should be installed and operated with minimum distance 0.5cm between the radiator and your body. The antenna is external antenna(Reserve SMA-type). And is rotatable. SAR restriction applies to this dedicated antenna.SAR compliance is restricted to the dedicated external dipole antenna with an antenna gain of 4 dBi. The use of any other antenna type or antenna with higher gain is not permitted.

Digital Data Communications Asia Co., Ltd. 8F, No.41, Lane 221, Kang-Chien Rd., Nei-Hu,114, Taipei, Taiwan Date:2012-07-17 FCC ID: ULTWUA-0614 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name: Aaron Lee Title: Project Manager Tel: 15817621710

Authorization Letter We, (the approval holder) Company name Digital Data Communications Asia Co., Ltd Addresss 8F, No.41, Lane 221, Kang-Chien Rd., Nei-Hu,114 City Taipei Country Taiwan declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description 300M Wireless USB adapter Type or Model(s) WUA-1610, WUA-1610H Tradename or Brand(s) Product Description 150M Wireless USB adapter Type or Model(s) WUA-0614, WUA-0624 Tradename or Brand(s) Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen 2012/6/7 Aaron Lee PM

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Digital Data Communications Asia Co., Ltd . Addresss 8F, No.41, Lane 221, Kang-Chien Rd., Nei-Hu,114 City Taipei Country Taiwan request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: ULT WUA-1610 FCC ID ULT WUA-0614 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Shenzhen 2012/6/7 Aaron Lee PM

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:2012-07-09 FCC ID: ULTWUA-0614 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Signature Name: Aaron Lee Title: Project Manager Tel: 15817621710

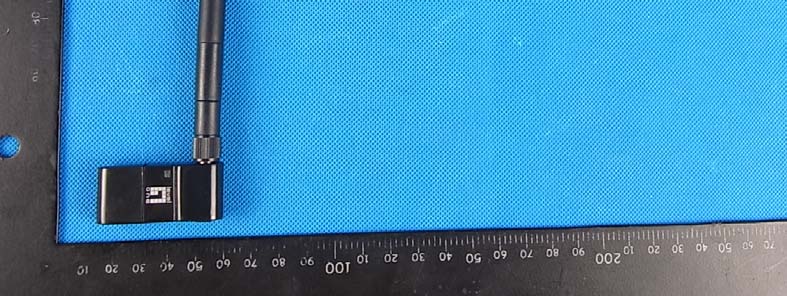

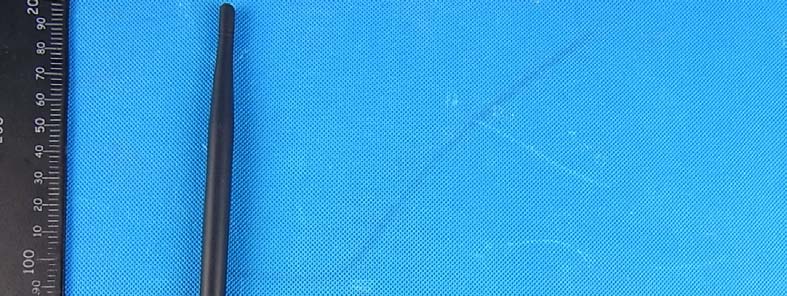

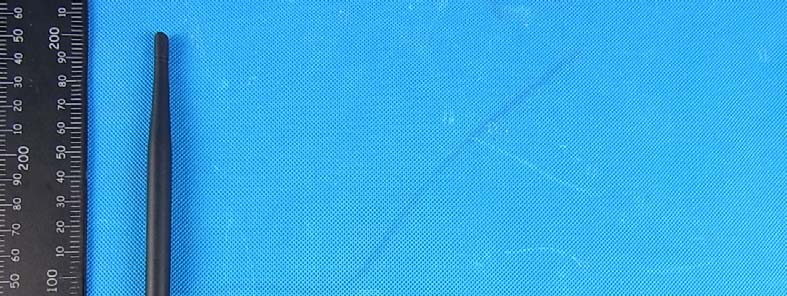

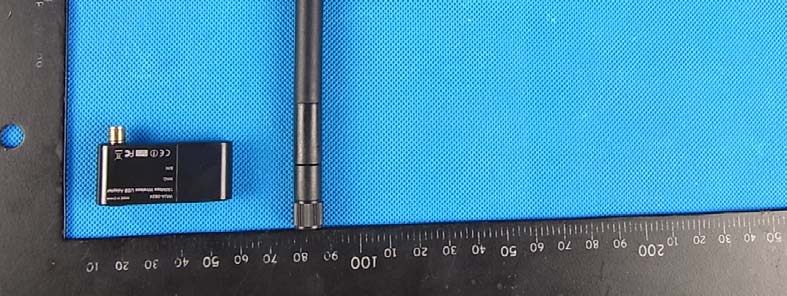

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

Photo 10 Photo 11 Photo 12
