Master US_EN Telephone answering machine Warning Use only rechargeable batteries. Charge the handset for 24 hours before use. ! CD 155 Register your product and get support at www.philips.com/welcome cd155_ifu_master_en_us.book Page 1 Wednesday, October 24, 2007 6:46 PM cd155_ifu_master_en_us.book Page 2 Wednesday, October 24, 2007 6:46 PM Table of contents1 1Safety information3 1.1Equipment Approval Information3 1.2Interference Information4 1.3Hearing Aid Compatibility (HAC)5 1.4FCC RF Radiation Exposure Statement5 2Important6 2.1Power requirements6 2.2Conformity7 2.3Electric, Magnetic and Electromagnetic Fields ("EMF") 7 2.4Recycle your batteries7 2.5Service Centers8 3Your phone9 3.1Whatβs in the box9 3.2Overview of your phone10 3.3Display icons12 3.4Overview of the base station 13 4Getting started14 4.1Connect the base station14 4.2 Wall mounting the base14 4.3Install your phone15 4.4Menu structure16 5Using your phone18 5.1Make a call18 5.2Answer a call19 5.3End a call19 6Use more of your phone20 6.1Switch the handset on/off20 6.2Keypad lock/unlock20 6.3Text or number entry20 6.4Call in progress20 6.5Using your phonebook21 6.6Using the redial list23 6.7Using the call log23 6.8Using the intercom25 6.9Paging26 6.10Chain dialling26 7Personal settings27 7.1Change the handset name27 7.2Handset Tones27 7.3Change the display language28 Table of contents CD155_IFU_TDM.fm Page 1 Wednesday, October 24, 2007 6:55 PM 2Table of contents 7.4Activate/deactivate auto hang-up28 8Clock and Alarm29 8.1Set date and time29 8.2Set date/time format29 8.3Set alarm29 8.4Set alarm tone30 9Advanced settings31 9.1Change Master PIN31 9.2Registration31 9.3Unregister32 9.4Reset unit32 9.5Set area code32 9.6Set prefix33 9.7Change recall time33 9.8Change the dial mode34 9.9Set first ring34 9.10Default settings34 10Telephone answering machine (TAM)35 10.1Play35 10.2Delete all messages36 10.3Switch the answering machine on/off via handset36 10.4Record your personalised outgoing message (OGM)36 10.5Set the answer mode37 10.6Answering machine settings37 11Technical data40 12Frequently asked questions41 13Index43 Table of contents CD155_IFU_TDM.fm Page 2 Wednesday, October 24, 2007 6:55 PM Safety information3 1Safety information 1.1Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1.1.1Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes β’ This equipment may not be used on coin service provided by the telephone company. β’ Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. β’ Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. β’ If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom. REN Number is located on the cabinet bottom. 1.1.2Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances cd155_ifu_master_en_us.book Page 3 Wednesday, October 24, 2007 6:46 PM 4Safety information warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. 1.2Interference Information This equipment generates and uses radio frequency energy which may interfere with residential radio and television reception if not properly installed and used in accordance with instructions contained in this manual. Reasonable protection against such interference is ensured, although there is no guarantee this will not occur in a given installation. If interferenβ¦
Text truncated - open the document above for the full version.

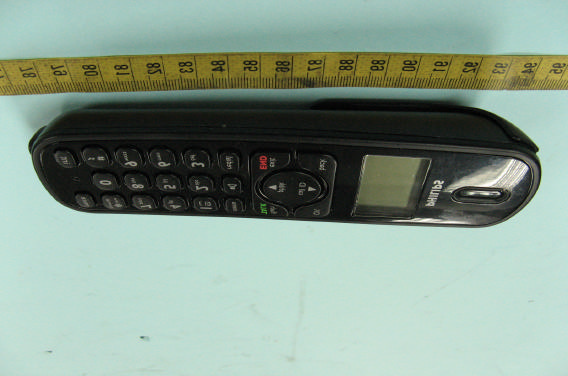

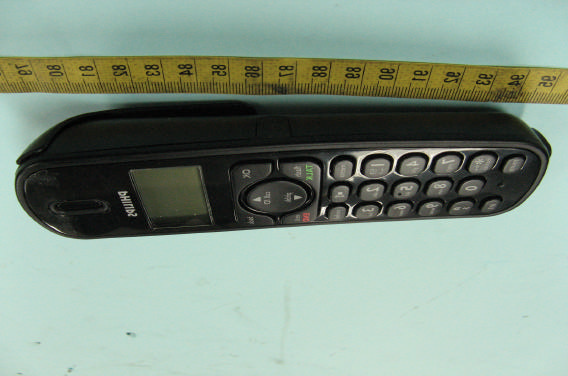

ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model CD155 Top View of EUT Bottom View of EUT ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model CD150 Top View of EUT Bottom View of EUT ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Charger Top View of Charger Bottom View of Charger ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Adapter Top View of Adapter Bottom View of Adapter
ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model CD155 Internal View of EUT ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Component View of PCB ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model CD150 Internal View of EUT ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Component View of PCB ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Charger ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB
Report No.: 07-11-MAS-196-03 Page 1 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 1 Report No.: 07-11-MAS-196-03 Client: Philips consumer electronics Product: Master US-EN Telephone Answering Machine Model: CD155 Manufacturer/supplier: Huiyang CCT Telecommunications Products Co. Ltd. Date test item received: 2007/12/11 Date test campaign completed: 2007/12/13 Date of issue: 2007/12/14 Test Result: β Compliance β‘ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 W/kg averaged over any 1g tissue according to FCC OET Bulletin 65 Supplement C (Edition 01-01) and Industry Canada RSS-102 (Issue 2, 2005). The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 71 pages Test Engineer Eric Lin Checked by Joe Hsieh Approved by Winpo Tsai The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. SAR Evaluation Report for FCC OET Bulletin 65 Supplement C and Industry Standard RSS-102 Issue 2 Report No.: 07-11-MAS-196-03 Page 2 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 2 Applicant Information Client : Philips consumer electronics Address : 9, rue Maurice Trintignant-72000 Le Mans-France Contact : Anthony Raucoule Manufacturer : Huiyang CCT Telecommunications Products Co. Ltd. Address : CCT Technology Park, San He Economic Developmental Zone,Huiyang District, Huizhou City, Guangdong Province, PRC EUT : Master US-EN Telephone Answering Machine Trade Name : Philips Model No. : CD155 Standard Applied : FCC OET 65 Supplement C (Edition 01-01, June 2001) Industry Standard RSS-102 Issue 2 (November 2005) IEEE Standard 1528-2003 Test Location : Electronics Testing Center, Taiwan (www.etc.org.tw) No.8, Lane 29, Wenming RD.,LeShan Tsuen, GuiShan Shiang,Taoyuan County 33383, Taiwan, R.O.C. The US DECT handset of CD155 is in compliance with the FCC Report and Order 93-326 and Health Canada Safety Code 6, and the tests were performed according to the FCC OET65c and RSS-102 Issue 2 for uncontrolled exposure. Report No.: 07-11-MAS-196-03 Page 3 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 3 Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1 GENERAL INFORMATION............................................................................................................. 6 1.1 Description of Equipment Under Test ..................................................................................... 6 1.2 Photograph of EUT .................................................................................................................. 6 1.3 Environment Conditions .......................................................................................................... 7 1.4 FCC Requirements for SAR Compliance Testing ................................................................... 7 1.4.1 RF Exposure Limits ..........................................................................................................................7 1.5 The SAR Measurement Procudure for Mobile ........................................................................ 8 1.5.1 General Requirements.......................................................................................................................8 1.5.2 Phantom Requirements .....................................................................................................................8 1.5.3 Test Positions ....................................................................................................................................8 1.5.4 Test Procedures ...............................................................................................................................10 1.5.5 Test Procedures for Handset with Ear-Microphone and Belt-Clip .................................................11 2 DESCRIPTION OF THE TEST EQUIPMENT.................................................................................. 12 2.1 Test Equipment List ............................................................................................................... 12 2.2 DASY4 Measurement System Diagram ................................................................................ 13 2.3 DASY4 Measurement Server................................................................................................. 14 2.4 DAE (Data Acquisition Electronics)...................................................................................... 15 2.5 Phantom.................................................................................................................................. 16 2.6 Device Holder ........................................................................................................................ 16 2.7 Specifications of Probes ......................................................................................................... 17 2.8 SAR Measurement Procedures in DASY4 ............................................................................ 17 2.9 Simulating Liquids ................................................................................................................. 18 2.10 System Performance Check ................................................................................................... 18 2.10.1 Purpose .......................................................................................................................................18 2.10.2 System Performance Check Procedure..β¦
Text truncated - open the document above for the full version.
Report No.: 07-11-MAS-196-03 Page 54 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 54 ANNEX C: DIPOLE CERTIFICATE Report No.: 07-11-MAS-196-03 Page 55 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 55 Report No.: 07-11-MAS-196-03 Page 56 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 56 Report No.: 07-11-MAS-196-03 Page 57 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 57 Report No.: 07-11-MAS-196-03 Page 58 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 58 Report No.: 07-11-MAS-196-03 Page 59 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 59 Report No.: 07-11-MAS-196-03 Page 60 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 60 Report No.: 07-11-MAS-196-03 Page 61 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 61 Report No.: 07-11-MAS-196-03 Page 62 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 62 Report No.: 07-11-MAS-196-03 Page 63 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 63 ANNEX D: PROBE CERTIFICATE Report No.: 07-11-MAS-196-03 Page 64 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 64 Report No.: 07-11-MAS-196-03 Page 65 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 65 Report No.: 07-11-MAS-196-03 Page 66 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 66 Report No.: 07-11-MAS-196-03 Page 67 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 67 Report No.: 07-11-MAS-196-03 Page 68 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 68 Report No.: 07-11-MAS-196-03 Page 69 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 69 Report No.: 07-11-MAS-196-03 Page 70 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 70 Report No.: 07-11-MAS-196-03 Page 71 of 71 FCC ID: UMQCD150H Electronics Testing Center, Taiwan (ETC) Rev. No.1.3 71
FCC ID: UMQCD150H ETC Report No.: 07-11-MAS-196-01 Sheet 1 of 41 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D (15.323c) Report No.: 07-11-MAS-196-01 Client: Philips consumer electronics Product: Master US-EN Telephone Answering Machine (PP) Model: CD155 (Multiple Model List please see page 4.) FCC ID: UMQCD150H Manufacturer/supplier: Huiyang CCT Telecommunications Products Co. Ltd. Date test item received: 2007/11/27 Date test campaign completed: 2007/12/14 Date of issue: 2007/12/14 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 41 pages Test Engineer Checked By Approved By James Cheng Joe Hsieh Winpo Tsai FCC ID: UMQCD150H ETC Report No.: 07-11-MAS-196-01 Sheet 2 of 41 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENARAL INFORMATION.................................................................................................................3 1.1 Testing Laboratory.............................................................................................................................3 1.2 Client Information...............................................................................................................................3 1.3 Manufacturer......................................................................................................................................3 2 TEST INFORMATION..........................................................................................................................4 2.1 Description of Tested Device(s)......................................................................................................4 2.2 Test Environment...............................................................................................................................5 3 TEST REPORT SUMMARY................................................................................................................6 3.1 Test Summary....................................................................................................................................6 3.2 Other Comments...............................................................................................................................7 4 TEST SETUP.........................................................................................................................................8 4.1 Monitoring Tests................................................................................................................................8 5 TEST EQUIPMENT LIST....................................................................................................................9 6 TEST RESULT....................................................................................................................................10 6.1 Monitoring time.................................................................................................................................10 6.2 Monitoring threshold........................................................................................................................11 6.3 Maximum transmit period...............................................................................................................12 6.4 System Acknowledgement.............................................................................................................14 6.5 Least Interfered Channel, LIC.......................................................................................................19 6.6 Random waiting...............................................................................................................................28 6.7 Monitoring bandwidth and reaction time......................................................................................29 6.8 Monitoring antenna..........................................................................................................................36 6.9 Monitoring threshold relaxation.....................................................................................................37 6.10 Duplex system LBT.......................................................................................................................38 6.11 Co-located device LBT.................................................................................................................39 6.12 Fair Access.....................................................................................................................................40 A PPENDIX1 MANUFACTURER DECLARATION...........................................................................................41 FCC ID: UMQCD150H ETC Report No.: 07-11-MAS-196-01 Sheet 3 of 41 Sheets Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 1 GENARAL INFORMATION 1.1 Testing Laboratory Name: Electronic Testing Center, Taiwan Address: No. 8, Lane 29, Wenming Rd., Leshan Tsuen, Guishan Shiang, Taoyuan Country, 33383, Taiwan, R.O.C. Telephone: 886-3-3280026 Fax: 886-3-3276188 NVLAP lab registration #: 200133-0 IC OATS registration #: IC 2949-1 E-Mail: [email protected] 1.2 Client Information Name: Philips consumer electronics Address: 9 rue Maurice Trintignant - 72000 Le Mans - France 1.3 Manufacturer Name: Huiyang CCT Telecommunications Products Co. Ltd. Address: CCT Technology Park, San He Economic Developmental Zone, Huiyang District, Huizhou City, Guangdong Province, PRC FCC ID: UMQCD150H ETC Report No.: 07-11-MAS-196-01 Sheet 4 of 41 Sheets Electronics Testing Cβ¦
Text truncated - open the document above for the full version.
Rev. No 1.0 FCC Part 15 Subpart D of E.U.T. : Master US-EN Telephone Answering Machine MODEL : CD150,CD150 Extra Handset,CD150 Duo ,CD150Trio,CD150 Quattro CD155,CD155 Extra Handset,CD155 Duo ,CD155Trio,CD155 Quattro FCC ID. : UMQCD150H for APPLICANT : Philips consumer electronics ADDRESS : 9,rue Maurice Trintignant-72000 Le Mans- France Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http://www.etc.org.tw ; e-mail:[email protected] Report Number : 07-10-RBF-110-02 ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Philips consumer electronics 9,rue Maurice Trintignant-72000 Le Mans-France Manufacturer : Huiyang CCT Telecommunications Products Co. Ltd. CCT Techonology Park, San He Economic Development Zone, Huiyang District, Huizhou City, Guangdong Province, PRC Description of EUT a) Type of EUT : Master US-EN Telephone Answering Machine b) Trade Name : Market Direct c) Model No. : CD150,CD150 Extra Handset,CD150 Duo ,CD150Trio,CD150 Quattro CD155,CD155 Extra Handset,CD155 Duo ,CD155Trio,CD155 Quattro d) Power Supply : Adaptor: I/P: 120Vac, 60Hz, 0.2AO/P: 6Vdc, 150mA Battery: 1.2V , 550mAh*2 e) Frequency Range : 1921.536~1928.448MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart D (2006) ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.17-2006/ ANSI C63.4-2003, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Dec. 06, 2007 Test Engineer : (falcon Shi) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Testing Laboratory.....................................................................................................................1 1.2 Client Information.......................................................................................................................1 1.3 Manufacturer..............................................................................................................................1 2 TEST INFORMATION.................................................................................................................2 2.1 Descriptino of Tested Device(s)..................................................................................................2 3 TEST REPORT SUMMARY........................................................................................................3 3.1 Test Summary............................................................................................................................3 3.2 Devices for Tested System.........................................................................................................4 4 TEST SETUP..................................................................................................................................5 4.1 Frequency and Timing Measurements.........................................................................................5 4.2 Conducted Emission Tests..........................................................................................................5 4.3 Radiated Emission Tests.............................................................................................................6 4.4 Power Line Conducted Tests......................................................................................................6 5 TEST EQUIPMENT LIST............................................................................................................7 6 TEST RESULT...............................................................................................................................8 6.1 Corrdination with fixed microwave..............................................................................................8 6.2 Cross Reference.........................................................................................................................9 6.3 Labeling Requirements..............................................................................................................10 6.4 Power Line Conducted Emissions.............................................................................................11 6.5 Antenna Requirement...............................................................................................................18 6.6 digital Modulation Techniques...................................................................................................18 6.7 Peak Power Output..................................................................................................................19 6.8 Power Spectral Density............................................................................................................22 6.9 Antenna Gain...........................................................................................................................25 6.10 Automatic discontinuation of transmission................................................................................25 6.11 Safety exposure levels............................................................................................................26 6.12 Emission Bandwidth B.............................................................................................................27 6.13β¦
Text truncated - open the document above for the full version.
ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 6.4.4 Photos of Conduction Measuring Setup Model: CD155 Mode: Handset Charging ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 Model: CD150 Mode: Handset Charging ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 6.13.4 Photos of Radiation Measuring Setup Model CD155 Mode: Handset Charging ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 Model CD155 Mode: Handset On Line ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 Model CD150 Mode: Handset Charging ETC Report No. : 07-10-RBF-110-02 FCC ID. : UMQCD150H Rev. No 1.0 Model CD150 Mode: Handset On Line
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15D | 1.92 GHz - 1.93 GHz | 74.00 mW |
US DECT PHONE-HEADSET
Equipment Class
PUE - Part 15 Unlicensed PCS portable Tx held to ear
MASTER US-EN TELEPHONE ANSWERING MACHINE
Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
US DECT Phone - Base
Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
US DECT Phone - Headset
Equipment Class
PUE - Part 15 Unlicensed PCS portable Tx held to ear
US DECT PHONE -- BASE
Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
