UNTLM2471-EMZigbee Module

ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr REVISION HISTORY Version Date Description VER.1.0 2014.10.10 ▪ First version release. ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr 1. INTRODUCTION The LM2471-EM is a module applied by the MG2471-F48, System-on-Chip (SOC) of RadioPulse. It is designed for IEEE802.15.4 and RF4CE to realize low power and low cost application. Basically it is used on ISM band of 2.405~2.48GHz, and it supports multiple data-rate modes(31.25Kbps ~ 1Mbps) applied with channel coding beside IEEE802.15.4 data-rate. 2. DEFINITIONS M G2471-F48: 2.4GHz System-on-Chip developed by RadioPulse. LM2471-EM: 2.4GHz Evaluation module(2-Layer) applied to ZigBee, IEEE802.15.4, and RF4CE. ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr 3. APPLICATIONS
2.4 GHz IEEE 802.15.4 Applications
RF4CE Remote Control Systems
Lighting Systems
Voice Applications
Home/Building Automation
Industrial Control and Monitoring
Energy Management
Low Power Wireless Sensor Networks
Consumer Electronics
Health-care equipments
Toys 4. FEATURES R F Transceiver
Single-chip 2.4GHz RF Transceiver
Low Power Consumption
High Sensitivity of –98dBm at 250kbps
No External T/R Switch or Filter needed
On-chip VCO, LNA, and PA
Programmable Output Power up to +9dBm
Direct Sequence Spread Spectrum
O-QPSK Modulation
Scalable Data Rate including 250Kbps specified in IEEE802.15.4: 31.25Kbps ~ 1Mbps
RSSI Measurement
Compliant to IEEE802.15.4 Hardwired MAC
Two 256-byte circular FIFOs
FIFO management
AES Encryption/Decryption Engine(128 bit)
CRC-16 Computation and Check ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr 8051-Compatible MCU
8051 Compatible (single cycle execution)
64KB Embedded Flash Memory
6KB Data Memory
128-byte CPU dedicated Memory
1KB Boot ROM
Dual DPTR Support
I2S/PCM Interface with two 256-byte FIFOs
Two High-Speed UARTs with Two 16-byte FIFOs(up to 1Mbps)
Four Timer/Counters
5 PWM channels
Watchdog Timer
Sleep Timer using the 32KHz RC-OSC clock
Quadrature Signal Decoder
22 General Purpose I/Os for MG2471-F48B
Internal 32KHz RC oscillator for Sleep Timer
16 MHz High Speed RC oscillator for the fast start-up from reset & power-down mode
On-chip Power-on-Reset and Brown-out detector
4-channel 12-bit ADC( ENOB > 10-bit)
SPI Master/Slave Interface with two 16-byte FIFOs
Programmable IR(Infra-Red) Modulator
ISP (In System Programming)
External clock output function(500KHz, 1/2/4/8/16/32 MHz selectable) Clock Inputs
32MHz Crystal for System Clock Power
1.8V(Core)/2.0~3.6V(I/O) Operation
Power Management Scheme with Deep Sleep Mode
Separate On-chip Regulators for Analog and Digital Circuitry.
Power Supply Range for Internal Regulator(2.0V(Min) ~ 3.6V(Max)) Package
Lead-Free 48-pin QFN Package (7mm x 7mm) ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr 5. HARDWARE DESCRIPTION LM2471-EM is a ZigBee module using MG2471-F48. The components of LM2471-EM are as follows; - MG2471-F48 : RadioPulse ZigBee System-on-Chip (SOC) - Crystal : 32MHz Crystal (CL=9pF) - RF Connector : SMA Type RF Connector - CON(20PIN) : 20-Pin Connector*2 with 1.27mm pin pitch In addition, this module needs only few components such as resistors and capacitors. 5.1. Block Diagram A s shown in [Figure 1], LM2471-EM includes the following features. - MG2471: ZigBee Single chip embedded with 2.4GHz RF transceiver, base-band modem, a hardwired MAC, 64KB internal flash memory, 8051 microcontroller, 6KB data RAM, voice codec block, I2C, and 5-channel PWM. - SMA type Antenna. - 22 General Purpose I/Os, 4-channel 10-bit ADC, various peripherals such as Two High-Speed UARTs etc. - Firmware downloading by UART1 in ISP mode (In-System-Programming) mode. Figure 1. LM2471– –– –EM Block Diagram ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr Figure 2. Appearance of LM2471-EM ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr 5.2. Module Dimension The following [Figure 3] shows the dimension of the LM2471-EM module. (a), (c) in [Figure 3] shows the component placement. (b) in [Figure 3] shows the dimension of LM2471-EM and placement for the connector pin. Two 20-pin connectors are located at the bottom. (a) Top (b) Dimension (C) Bottom Figure 3. LM2471-EM ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr 5.3. Antenna Matching Circuitry [Figure 4] shows the recommended RF matching circuit. For PCB pattern, please refer to the [Figure 5]. Figure 4. Antenna Matching Circuit ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr RF Matching Procedure . ① The value of L2/C2/L4/C4 is adjusted to 2.4GHz. ② L4 and C4 are fixed value to organize Narrow Band-Filter. ③ Adjust L1 and C5 value to maximize output level. ④ Adjust L4 and C4 to minimize 2 nd and 3 rd harmonic. *PCB Thickness: 1mm /0.5 OZ(2- Layer) Figure 5. Antenna PCB Pattern Table 1. PCB Thickness 50ohm Line Width H(mm) W(mm) Z0(Ohm) 0.4 0.5 49.487 0.8 0.7 50.514 1.0 0.8 49.798 1.2 0.8 50.821 1.6 0.9 50.192 ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr 6. SPECIFICATION 6.1. Absolute maximum ratings 6.2. DC Characteristics Symbol Parameter Min Typ. Max Unit 3V_IN AVDD3V1,AVDD3V2,DVDD3V1 ,DVDD3V2 2 3.0 3.6 V VIH High level input voltage 2.5 V VIL Low level input voltage 0.4 V VOH High level output voltage 2.5 V VOL Low level output voltage 0.4 V TA Air temperature -40 85 °C Symbol Parameter Rating Unit 3V_IN AVDD3V1,AVDD3V2,DVDD3V1 ,DVDD3V2 -0.3 to 3.6 V Core ADCOUPL1,ADCOUPL2,ADCO UPL3,AVDD18V,DVDD,DXOSC 18V -0.3 to 2 V RFIN Input RF level 10 dBm TSTG Storage Temperature -40 to 85 °C ADS0902 LM2471-EM Datasheet www.radiopulse.co.kr 6.3. RF Characteristics (25°C °C°C °C) 6.3.1. Electrical specifications Condition: EVM Board, at 25°C °C°C °C, 3V_IN=3.0V, Freq=2.45GHz, Chip rate =2MCPS Item Spec Remark Frequency Range 2400 ~ 2480MHz Frequency Tolerance <±20ppm Occupied B.W 2MHz Output Power (Normal) 9dBm (±1dB) Min. 7dBm VSWR <2.0 : 1 Flatness <1.5 dB Spurious Emissions 1GHz Under 1GHz ~ 2.4GHz ~ 12GH…

Text truncated - open the document above for the full version.

RadioPulse Inc. 3rd Fl., Hans B/D II, 111-6 Seongnae-Dong, Gangdong-Gu, Seoul, Korea, 134-883, Korea Tel. +82-2-478-2963 Fax +82-2-478-2966 Novmeber 03, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID : UNTLM2471-EM including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from RadioPulse Inc. LTA Co.,LTD. (Contact Person) Contact name: Jae-Ho Lee Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] YoungHun JUNG/ Principal Engineer RadioPulse Inc.

RadioPulse Inc. 3rd Fl., Hans B/D II, 111-6 Seongnae-Dong, Gangdong-Gu, Seoul, Korea, 134-883, Korea Tel . +82-2-478-2963 Fax +82-2-478-2966 Novmeber 03, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : RadioPulse Inc. FCC ID : UNTLM2471-EM Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, RadioPulse Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give RadioPulse Inc. emporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX UNTLM2471-EM SCH DIA.pdf Parts list CONF APPENDIX UNTLM2471-EM PL.pdf Block diagram CONF APPENDIX UNTLM2471-EM BLK DIA.pdf Operational description CONF APPENDIX UNTLM2471-EM OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF UNTLM2471-EM EXT Photo.pdf Internal Photos SHORT-TERM CONF UNTLM2471-EM INT Photo.pdf Test-Setup Photos SHORT-TERM CONF UNTLM2471-EM Test Photo.pdf User’s Manual SHORT-TERM CONF UNTLM2471-EM Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. YoungHun JUNG/ Principal Engineer RadioPulse Inc.

RadioPulse Inc. 3rd Fl., Hans B/D II, 111-6 Seongnae-Dong, Gangdong-Gu, Seoul, Korea, 134-883, Korea Tel. +82-2-478-2963 Fax +82-2-478-2966 Novmeber 03, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : RadioPulse Inc. FCC Application for FCC ID: UNTLM2471-EM To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, YoungHun JUNG/ Principal Engineer RadioPulse Inc.

RadioPulse Inc. 3rd Fl., Hans B/D II, 111-6 Seongnae-Dong, Gangdong-Gu, Seoul, Korea, 134-883, Korea Tel. +82-2-478-2963 Fax +82-2-478-2966 FCC ID: UNTLM2471-EM Request for Single Modular approval Transmitter Module Characteristics  The module will be used to the ma nufactured product by RadioPulse Inc. No Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered thought logic or microprocessor inputs. 3 Have it own power supply regulation Internal 3.0V power regulation. Refer to Module Block diagram 4 Meet the antenna requirements of Section 15.203 Refer to external photos. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on a supplied developmen t platform for single modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out side of the device into which the module is installed must also display a label referring to the enclosed module Label is to be placed in Front of the EUT(UNTLM2471-EM), and other label is to be placed in the User’s Guide. Refer to FCC ID label format. 7 The modular transmitter is manufactured so t hat the user cannot influence the operation of the transmitter that will operate outsi de of the scope of the regulations. Refer to “User’s Guide” 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1091. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). This device is categorically excluded from routine environmental because it operate at very low power level

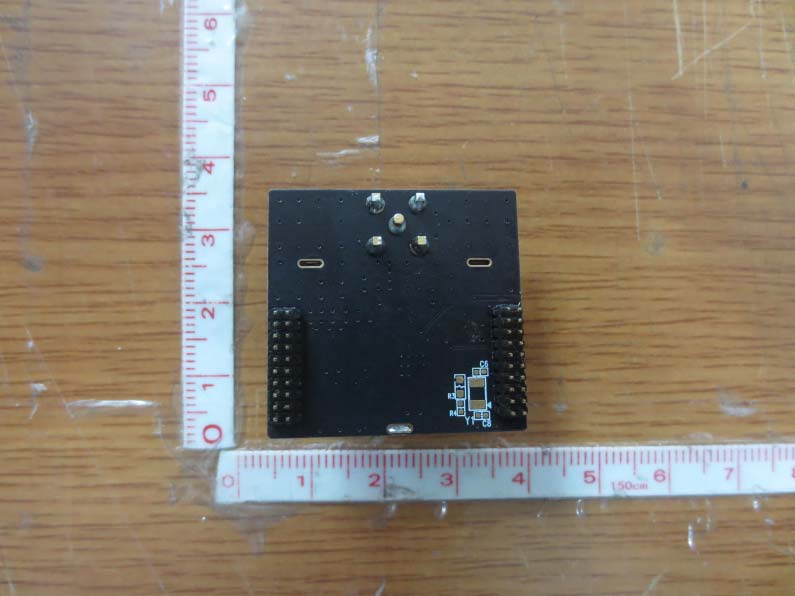

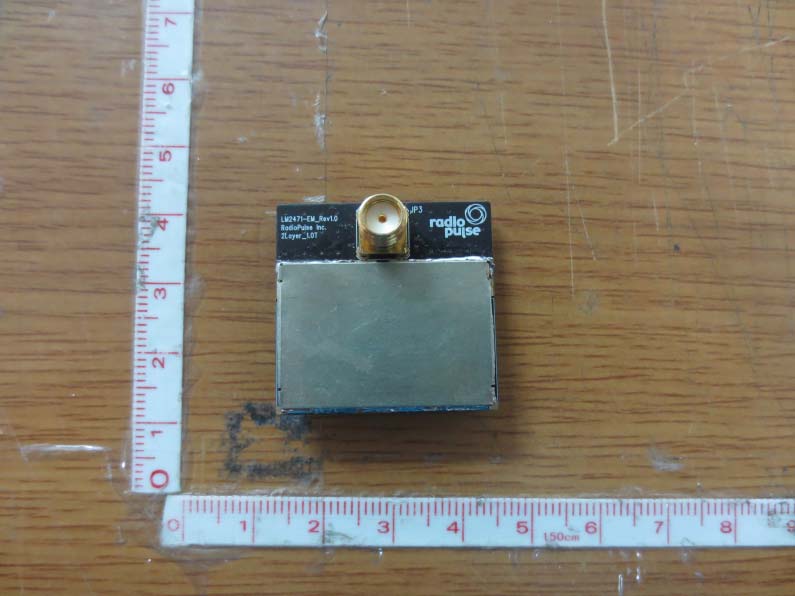

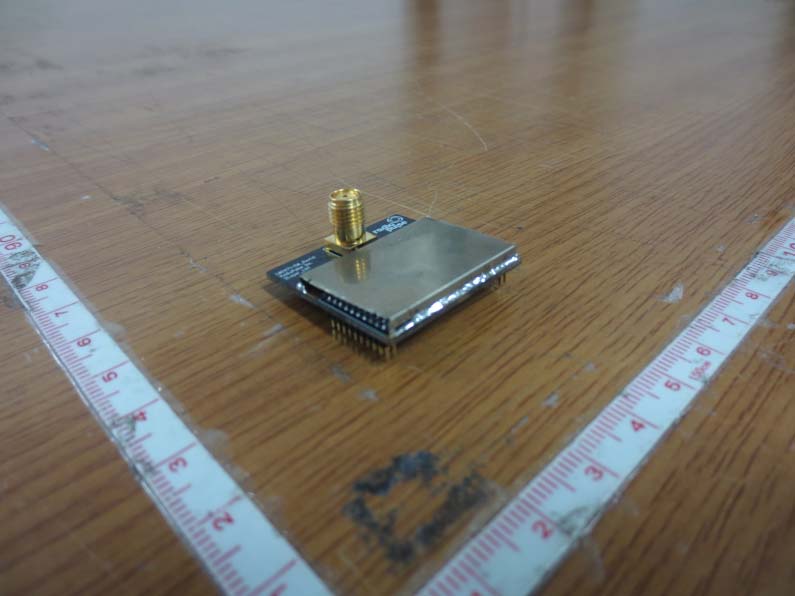

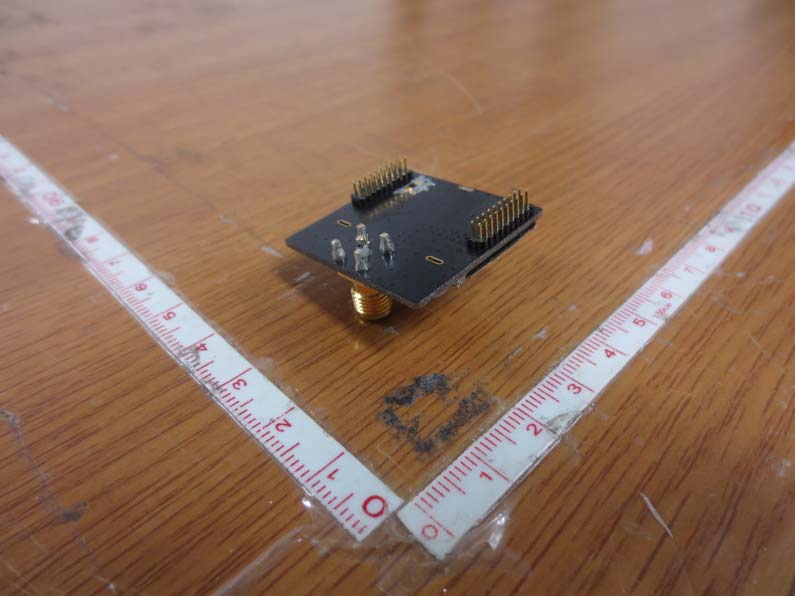

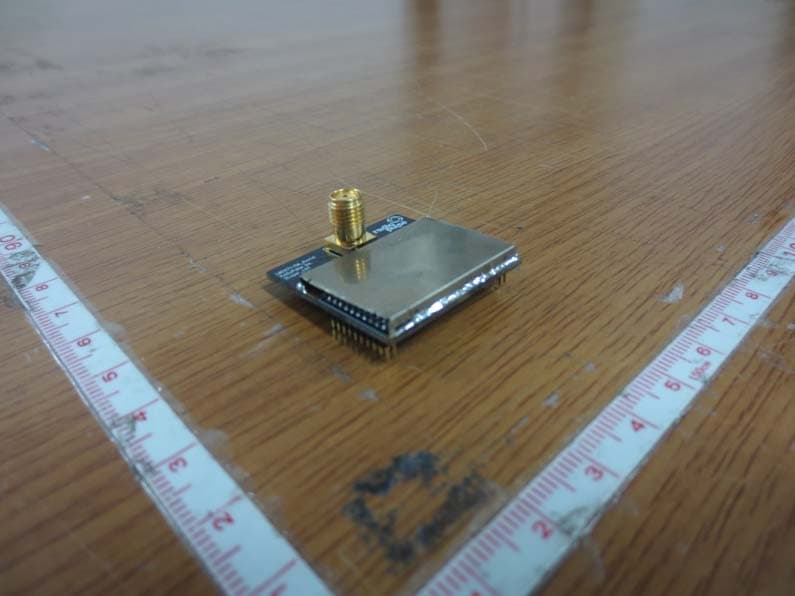

FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 3 upper Lower FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 3 Front Rear FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 3 CONNECTOR : reverse SMA ANTENNA- M/N: WE-2400TO

FCC ID: UNTLM2471-EM Copyright Ⓒ 2014, LTA Co., Ltd. SAMPLE LABEL & LOCATION Model : LM2471-EM FCC ID : UNTLM2471-EM Made in Korea RadioPulse Inc.

FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd.Page 1 of 2 MainBoard–Front MainBoard–Rear FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd.Page 2 of 2 Total internal

ATTACHMENT FCC ID: UNTLM2471-EM ** MPE Calculations for Zigbee (2.4GHz) ** **2.4GHz Bands Worst Case of Zigbee The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 11.75 dBm +2.5 dBi EIRP = 14.25 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) S = (14.96* 0.60) / (4 * 20 2 * π) S = 0.0018 mW/cm 2 The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW /cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = √(14.96* 0.60/ 4π) R = 0.845 cm The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log-1 (2.5 / 10) G = 0.60

Ref. No.: LR500111411A Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 29 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: October 20 ~ November 03, 2014 Test Report S/N: LR500111411A Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : Zigbee Module Manufacturer : RadioPulse Inc. Model name : LM2471-EM Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C ; ANSI C-63.4-2009 Frequency Range : 2405MHz ~ 2475MHz Max. Output Power : Max 11.75dBm – Conducted Data of issue : November 03, 2014 This test report is issued under the authority of: The test was supervised by: Jae-Ho Lee, Manager Young-Jin Lee, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this r eport even partly without the allowance of the te st laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP , NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 UNTLM2471-EM RadioPulse Inc. Ref. No.: LR500111411A Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 29 TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 6dB BANDWIDTH ------------------------------------------------------------------------------ 3.2.2 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY --------------------------------------------------------------- 3.2.4 BAND EDGE ----------------------------------------------------------------------------------- 3.2.5 CONDUCTED SPURIOUS EMISSIONS ------------------------------------------------------- 3.2.6 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.7 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 9 12 15 18 22 25 28 Ref. No.: LR500111411A Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 29 1. General information 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2015-09-30 ECT accredited Lab. RRA KOREA KR0049 2015-03-06 EMC accredited Lab. FCC U.S.A 610755 2017-04-21 FCC filing FCC U.S.A 649054 2015-04-17 FCC CAB VCCI JAPAN R2133(10 m), C2307 2017-06-21 VCCI registration VCCI JAPAN T-2009 2016-12-23 VCCI registration VCCI JAPAN G-563 2015-05-28 VCCI registration IC CANADA 5799A-1 2015-06-21 IC filing KOLAS KOREA NO.551 2017-01-08 KOLAS accredited Lab. Ref. No.: LR500111411A Copyright ○ c 2014, LTA Co., Ltd. Page 4 of 29 2. Information about test item 2-1 Client & Manufacturer Company name : RadioPulse Inc. Address : 3rd Fl., Hans B/D II, 111-6 Seongnae-Dong, Gangdong-Gu, Seoul, Korea, 134-883, Korea Tel / Fax : TEL No : +82-2-478-2963 / FAX No : +82-2-478-2966 2-2 Equipment Under Test (EUT) Trade name : Zigbee Module Model name : LM2471-EM Serial number : Identical prototype Date of receipt : October 14, 2014 EUT condition : Pre-production, not damaged Antenna type : Dipole antenna (M/N: WE-2400TO) Max Gain 2.5 dBi Frequency Range : 2405MHz ~ 2475MHz RF output power : Max 11.75dBm – Conducted Number of channels : 15 Type of Modulation : O-QPSK Channel spacing : 5MHz Power Source : 3.0Vdc Firmware Version : V1.0.0 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2405 2440 2475 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook Vostro 1015 DN9RBN1 DELL Ref. No.: LR500111411A Copyright ○ c 2014, LTA Co., Ltd. Page 5 of 29 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Conditio n Status (note 1) 15.247(a) 6 dB Bandwidth > 500kHz Conducted C 15.247(b) Transmitter Peak Output Power < 1Watt C 15.247(d) Transmitter Power Spectral Density < 8dBm @ 3kHz C 15.247(d) Band Edge > 20 dBc C 15.209 Field Strength of Harmonics Emission Radiated C 15.207 AC Conducted Emissions Emissions Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards.  Antenna Requirement The RadioPulse Inc FCC ID: UNTLM2471-EM unit complies with the requirement of §15.203. The antenna connector is the reverse SMA connector. The sample was tested according to the following specification: *FCC Parts 15.247; ANSI C-63.4-2009 *FCC KDB Publication No. 558074 v03r02 *FCC TCB Workshop 2012, April Ref. No.: LR500111411A Copyright ○ c 2014, LTA Co., Ltd. Page 6 of 29 3.2 Technical Characteristics Test 3.2.1 6 dB Bandwidth Procedure: The bandwidth at 6dB below the highest in-band spectral density was measured with a spectrum analyzer connected to the antenna terminal, while EUT is operating in transmission mode at the appropriate frequencies. After the trace being stable, Use the marker-to-peak function to set…

Text truncated - open the document above for the full version.

FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 4 Radiate Emission (9kHz ~ 30MHz) FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 4 Radiate Emission (30MHz ~ 1GHz) FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 4 Radiate Emission (Above 1GHz) FCC ID: UNTLM2471-EM Copyright ○ c 2014, LTA Co., Ltd. Page 4 of 4 Conducted Emission
