UNTRP-M100AZIGBEE MODULE

RadioPulse Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Dec 05, 2011
Application Purpose: Original Equipment
Date of Application: Dec 05, 2011
Equipment Note: ZIGBEE MODULE
Frequency Range: 2405.00000000 - 2480.00000000
Company: RadioPulse Inc.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

▣ IEEE 80 VERSION 2 File No.: 11 Date : 2 02.15.4 RF M 2.0 10527A003 2011-05-27 Mode Part Spec Date Rema Module Spec el Number Number cification. arks cification She eet Manu a IEE al RP-M10 AT-M10 EE802.15.4 R MAY 27. 00A 00A RF Module 2011 Page 1 ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 2 REVISION HISTORY NO REASON DESCRIPTION OF CHANGES REMARKS DATE 1 2 New Rev 1 RP-M100A Manual For Approval first releases Update of “Specification For Approval” Ver.1.1 Ver. 2.0 2010.02.22 2011.05.27 ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 3 1. SPECIFICATION 1.1 Scope This specification is applied to IEEE802.15.4 ZigBee Transceiver Module This module has Chip Antenna and embeds 16MHz X-TAL and Single chip SOC. 1.2 Description Item Description Application Transceiver Module Frequency Range 2.4 ~ 2.4835 GHz Technical Standard IEEE802.15.4 Type SMD Type Size 17.9 x 14.9 x 2.6 mm 1.3 Appearance 1) Out line Unit :mm ▣ IEEE 80 VERSION 2 2) Pcb draw NOT 02.15.4 RF M 2.0 wing (top vie TE) Silk pa Module Spec ew). Silk(w=0.15m Pads of Pads of Pads of aste inserting “Solde shoul again s cification She 1. SP mm f pin 1~41 f pin 42,45 f pin 43,44 for Short pr o ermask ope d be enou st these pad 1mm eet PECIFICAT ; (W*L: 0.7* ; (R=0.75, C ; (R=0.625, C otection, when ening of 42~ ugh about ds size”. TION 1.6mm) Circle) Circle) 0.8mm n soldering ~45 pins 25~50% Page 4 ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 5 1. SPECIFICATION 1.4 Absolute maximum ratings 1.5 DC Characteristics Symbol Parameter Min Typ. Max Unit VDD Chip core supply voltage (AVDD_1.5V,DVDD_1.5V) 1.35 1.5 1.65 V VDDIO I/O supply voltage(3V_IN) 1.35(*) 3.0 3.3 V VIH High level input voltage 0.7 X V DDIO VDDIO V VIL Low level input voltage 0 0.3X VDDIO V VOH High level output voltage VDDIO -0.5 VDDIO V VOL Low level output voltage 0 0.4 V TA Air temperature -40 85 °C Symbol Parameter Rating Unit VDD Chip core supply voltage -0.3 to 1.65 V VDDIO I/O supply voltage(3V_IN) -0.3 to 3.3 V RFIN Input RF level 10 dBm TSTG Storage Temperature -40 to 85 °C ESD HBM(JESD22-A114-F) 2000 V MM(JESD22-A115-A) 150 V CDM(JESD22-C101-E) 500 V (*) : MSV=”L”, min 1.9V(regulator drop voltage), 3VIN=2.7~3.3V is Recommended. ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 6 1.SPECIFICATION 1.6 Electrical specifications (Condition: EVM Board RF Conduction, at 25°C, 3V_IN=3.0V, VDD(AVDD,DVDD=1.5V,X-tal 16MHz) 1.6.1 Current Consumption and timing characteristics Parameter Min Typ. Max Unit Current Consumption Active MCU without RX/TX operation (AES, Peripheral, SADC Disabled) 4.6 mA Active MCU with TX Mode (AES, Peripheral, SADC Disabled) @ +8dBm output power @+0dBm output power 45.0 32.5 mA Active MCU with RX Mode (AES, Peripheral, SADC Disabled) 35 mA PM1(BOD Off) 25 90 uA PM2 1.7 uA PM3 0.3 uA AES 3.1 mA Peripheral 2.6 mA Sensor ADC 1 mA ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 7 1. SPECIFICATION 1.6.2 RF Characteristics (Fc=2450MHz) Parameter Min Typ Max Unit RF Frequency Range 2400 2483.5 MHz Spurious radiation @30MHz ~ 1000MHz @1GHz ~ 12.75GHz -65 -70 dBm Received RF Bandwidth 2 MHz Channel Bandwidth 5 MHz Receiver Sensitivity (PER≤1%,Packet length of 22-byte) Normal mode (250 kbps) Turbo mode (500 kbps) Premium mode (1000 kbps) -98 -95 -91 dBm Adjacent Channel Rejection +5MHz -5MHz 50 49 dB Alternate Channel Rejection +10MHz -10MHz 55 54 dB Co-Channel Rejection -8 dB Blocking / Desensitization +5MHz / -5MHz +10MHz / -10MHz +20MHz / -20MHz +30MHz / -30MHz +50MHz / -50MHz -53 / -52 -48 / -46 -44 / -40 -43 / -38 -41 / -37 dBm ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 8 1. SPECIFICATION Parameter Min Typ Max Unit TX output power 5.5 8 dBm Transmit chip rate 2000 kChips/s Spurious Emission(30Hz~1GHz) -50 dBm Spurious Emission(1GHz~2.5GHz) -40 dBm Spurious Emission(2.5GHz~12.7GHz) -50 dBm 2 nd Harmonics -50 dBm 3 nd Harmonics -65 dBm Frequency Error Tolerance -100 +100 KHz Error Vector Magnitude(EVM) 10 35 % Saturation(Maximum Input Level) 5 dBm RSSI Dynamic Range 90 dB RSSI Accuracy ±1.2 +6/-3 dB RSSI Linearity ±0.2 ±6 dB RSSI Average Time 128 usec Frequency Synthesizer Phase Noise (Unmodulated carrier) @±100KHz offset @±1MHz offset @±2MHz offset @±3MHz offset @±5MHz offset -75 -106 -112 -119 -129 dBc/Hz PLL Lock Time 110 us PLL Jitter 16 Psec ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 9 1. SPECIFICATION 1.6.2.1 Antenna Description Parameter Description Chip Antenna ( used in RP-M100A) Model Name ISM-SWC-01 Frequency 2400 ~ 2500 (MHz) Bandwidth 100 (MHz) Gain(max) -0.97dBi Connector Chip Dipole Antenna ( used in RP-M110A) Model Name WE-2400TO Frequency 2400~24835 (MHz) Bandwidth 83.5 (MHz) Gain(max) 1.98 dBi Connector Reverrse SMA male ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 10 1. SPECIFICATION 1.6.3 16MHz Crystal Oscillator & On-chip RC Regulator & ADC & On-chip Voltage Regulator Parameter Min Typ Max Unit 16MHz Crystal Oscillator Crystal Frequency 16 MHz Crystal Frequency Accuracy Requirement -20 +20 ppm ESR 80 Ω C0 3 ㎊ CL 9 ㎊ On-chip RC Regulator Frequency 32.78 KHz Sensor ADC Number of Bits 12 bits Conversion Time 256 usec Differential Nonlinearity(DNL) ±16 LSB Integral Nonlinearity(INL) ±16 LSB SINAD(Sine Input) 51.0 dB On-chip Voltage Regulator Supply range for Regulator 1.9 3.0 3.6 V Regulated Output 1.5 V Maximum Current 140 mA No Load Current 15 uA Start-up Time 260 usec ▣ IEEE 802.15.4 RF Module Specification Sheet VERSION 2.0 Page 11 1. SPECIFICATION 1.7 Electrical Interface Terminal NAME Interface I/O Description 1 ACH0 Analog I/O Sensor ADC input 2 ACH1 Analog I/O Sensor ADC input 3 ACH2 Analog I/O Sensor ADC input 4 ACH3 Analog I/O Sensor ADC input 5 AVDD_1.5V Power I/O 1.5V Power Supply input/output 6 AGND Ground - RF Ground 7 MS0 Digital I Mode select 8 MS1 Digital I Mode select 9 MS2 Digital I Mode select 10 MSV Digital I Mode select of voltage(0=1.5V) 11 RESETB Digital I Reset (Active Low) 12 …

Text truncated - open the document above for the full version.

Attestation Statements

Cover Letter(s)

Radiopulse Inc. 3rd Fl., Hans B/D II, 111-6 Seongnae-Dong, Gangdong-Gu, Seoul, Korea, 134-883 TEL : +82-2-478-2963 FAX : +82-2-478-2967 November 22, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Radiopulse Inc. FCC ID : UNTRP-M100A Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Radiopulse Inc.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Radiopulse Inc.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX UNTRP-M100A SCH DIA.pdf Parts list CONF APPENDIX UNTRP-M100A PL.pdf Block diagram CONF APPENDIX UNTRP-M100A BLK DIA.pdf Operational description CONF APPENDIX UNTRP-M100A OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF UNTRP-M100A EXT Photo.pdf Internal Photos SHORT-TERM CONF UNTRP-M100A INT Photo.pdf Test-Setup Photos SHORT-TERM CONF UNTRP-M100A Test Photo.pdf User’s Manual SHORT-TERM CONF UNTRP-M100A Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, DongHwan LEE / Manager Radiopulse Inc.

Cover Letter(s)

Radiopulse Inc. 3rd Fl., Hans B/D II, 111-6 Seongnae-Dong, Gangdong-Gu, Seoul, Korea, 134-883 TEL : +82-2-478-2963 / FAX : +82-2-478-2967 FCC ID: UNTRP-M100A Request for Transmitter Modular approval Transmitter Module Characteristics  The module will be used to the manufactured product by Radiopulse Inc. No Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered th ought logic or microprocessor inputs. 3 Have it own power supply regulation Internal 3.3V powe r regulation. Refer to Module Block diagram and schematic 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna connector (U.FL), and chip antenna. Refer to external photos. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on a supplied development platform for Single modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out side of the device into which the module is installed must also display a label referring to the enclosed module Label is to be placed in front of the EUT(RP-M 100A), and other label is to be placed in the User’s Guide. Refer to FCC ID label format. 7 The modular transmitter is manufactured so t hat the user cannot influence the operation of the transmitter that will operate outsi de of the scope of the regulations. Refer to “User’s Guide” 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1091. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). This device is categorically excluded from routine environmental because it operate at very low power level

External Photos

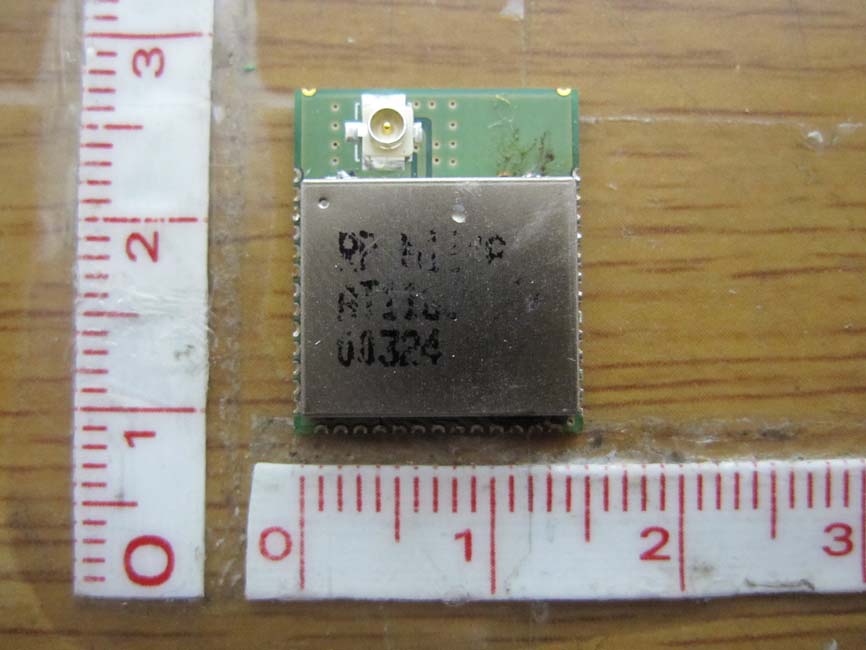

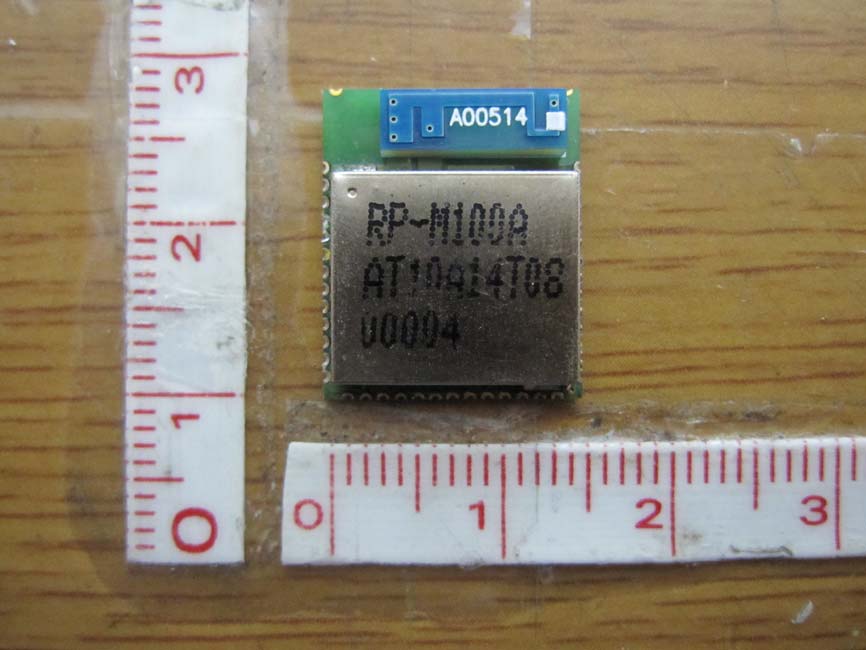

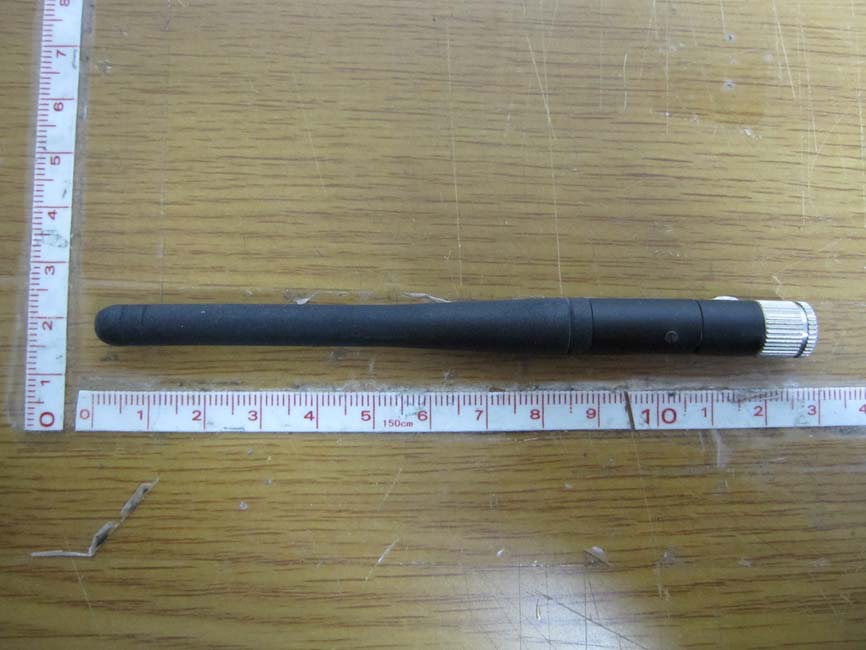

FCC ID: UNTRP-M100A Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 6 Basic model (Chip Type) Upper Lower FCC ID: UNTRP-M100A Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 6 Front Rear FCC ID: UNTRP-M100A Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 6 U.FL Type Upper Lower FCC ID: UNTRP-M100A Copyright ○ c 2011, LTA Co., Ltd. Page 4 of 6 Front Rear FCC ID: UNTRP-M100A Copyright ○ c 2011, LTA Co., Ltd. Page 5 of 6 ANTENNA- M/N: WE-2400TO (Reverse SMA Type) Reverse SMA male type FCC ID: UNTRP-M100A Copyright ○ c 2011, LTA Co., Ltd. Page 6 of 6 ANTENNA- M/N: ISM-SWC-01

ID Label/Location Info

Internal Photos

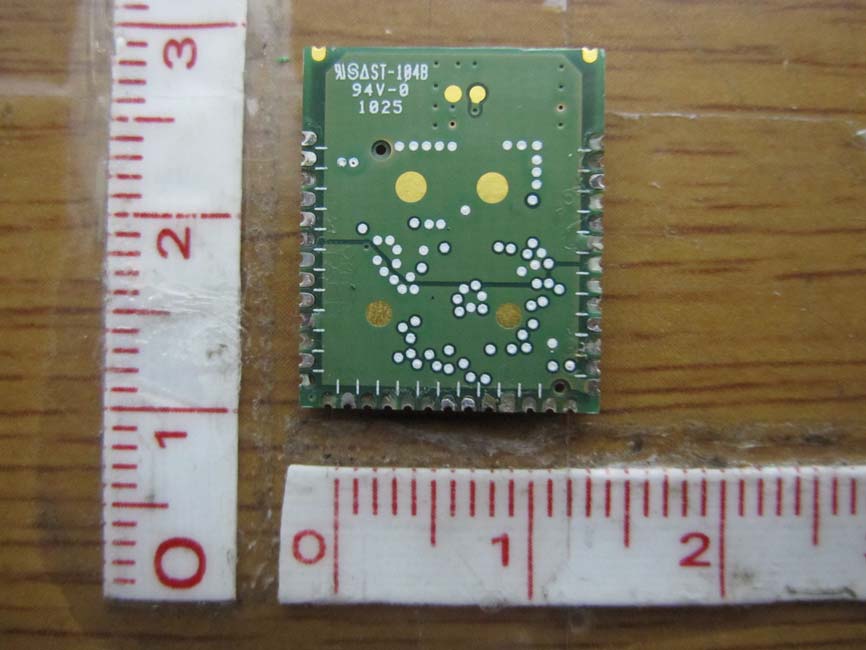

FCC ID: UNTRP-M100A Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 4 RP-M100A(Basic model – Chip type) MainBoard – Front(remove shield) MainBoard – Rear FCC ID: UNTRP-M100A Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 4 RP-M110A(U.FL type) MainBoard – Front(remove shield) MainBoard – Rear
