UNYVDPT-200Wireless Video-Eye People Counter

K&J Electronics FCC Warning: Under FCC rules, the device cannot be modified or altered. 11

EUT External Photo EUT Top view EUT Bottom view

EXHIBIT A – FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label The FCC labels should contain FCC statement in FCC 15.19 paragraph (3). A sample of the statement is presented hereinafter as reference. Also, as per FCC §15.19 a(4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: UNYVDPT-200” Proposed Label Location on EUT Rear View of EUT / Proposed FCC ID Location As per FCC §15.19 (b) (4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: UNYVDPT-200 2.1875" 1.0"

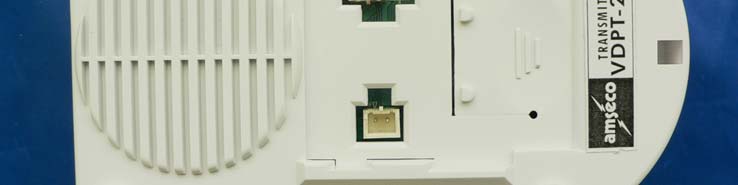

EUT Internal Photos EUT Cover off view EUT Radio Card- Component view EUT Radio Card- Solder view EUT PCB with Camera- Component view EUT PCB with Camera- Solder view Power Supply view

Circuit Description for VDPT-200 This product design for home, offices, retail shops, department stores, or any other facility that announcing people’s entry or exit events with pleasant chime sounds. The VDP-200T “Video-Eye People Counter” is a digital image tracking technology based people traffic counter and door announcer system integrating a Video Camera as detecting sensor. The system distinguishes and counts entry/exit traffic events simultaneously by its unique Object’s Motion Detection Algorithm through radiofrequency link to VDP-200. • Entry/Exit Detect Circuit: motion/movement switch to complete sense the entry/exit detect, through R22, R44, Q7 & Q8 to amplify then trigger the MCU IC pin 22 & 23 to send the RF signal link to the system to process the obtain signal. • Sensor Circuit: switch detect the door from close to open then through D2, D3, Q7 & Q8 detect the signal and amplify then trigger the MCU to send the RF signal link to the system. • Oscillator: control and regulate the oscillating frequency to X1, from MCU (U1) data signal control the radio frequency and generate ACK modulation. • Power Supply Circuit: battery through regulator U3 (7806) generates 5.0V voltage supply to MCU and other circuits. • MCU: U1 (39P0F4XZZ) composed of signal processor and control center of the entire circuit.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For K&J Electronics #103-603, Buchun Techno-Park, Buchin-city, Kyunggi-do, Korea 421-809 FCC ID: UNYVDPT-200 This Report Concerns: Original Report Product Type: Wireless Video-Eye People Counter Test Engineer: Choon Sian Ooi Report No.: R0611211 Report Date: 2006-11-28 Reviewed By: Test Engineer: James Ma Prepared By: (ct) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089, U.S.A. Tel: (408) 732-9162 Fax: (408) 732-9164 K&J Electronics FCC ID: UNYVDPT-200 Report # R0611211 Page 2 of 26 FCC Part 15.231 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 MECHANICAL DESCRIPTION.........................................................................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................5 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 ANTENNA CONNECTED CONSTRUCTION......................................................................................................................8 §15.207 – CONDUCTED EMISSIONS .......................................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 CONDUCTED EMISSIONS TEST DATA...........................................................................................................................9 §15.205, §15.209, & §15.231(A1-A5) – RESTRICTED BAND AND RADIATED EMISSION DATA................12 APPLICABLE STANDARD: FCC §15.205 RESTRICTED BANDS OF OPERATION.............................................................12 APPLICABLE STANDARD: FCC §15.209 RADIATED EMISSION LIMITS, GENERAL REQUIREMENTS...............................12 APPLICABLE STANDARD: FCC §15.231 PERIODIC OPERATION IN THE BAND 40.66 - 40.70 MHZ AND ABOVE 70 MHZ.13 §15.231(A) – PERIODIC OPERATION IN THE BAND 40.66 – 40.70 MHZ AND ABOVE 70 MHZ ...............14 APPLICABLE STANDARD REQUIREMENT....................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST SETUP DIAGRAM...............................................................................................................................................14 TEST RESULT......................................…

Text truncated - open the document above for the full version.

EXHIBIT B – RADIATED & CONDUCTED SETUP PHOTOGRAPHS Radiated Emissions - Front View Radiated Emissions – Rear View Conducted Emissions - Front View Conducted Emissions – Rear View
