MMSP2 (MP2520F) VIDEO ENCODER SDRAM 32MB*4 NAND FLASH (32MB) SD CARD CON USB HOST EXTERNAL INTERFACE 7 ” TFT LCD (480*234) TOUCH SCREEN RGB MONITOR SPEAKER SD CARD GPS MODULE BOARD EXTERNAL DEVICE EXTERNAL DEVICE AC97 CODEC VIDEO DECODER TV & S-VIDEO 7 ” NAVIGATION BLOCK DIAGRAM EAR PHONE BACKVIEW FM TRANSMITTER (MODULE)

EMC compliance Ltd. 82-1 Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Confirmation letter for FM Transmitter Applicant : 3SOFT, Inc. FCC ID : UO7BD-200 We, EMC compliance, Ltd would like to answer following questions for requesting by the TCB. 1) How does this device operate? 1. Click icon for set-up mode. 2. Select output on Audio option. (Speaker, FMT, speaker & FMT) 3. Select FMT frequency by up & down key and press SET button. 4. CPU communicates with FM module by 12C data format method and send RF signals. 5. The signals are being converted in FM module. Video output For LCD, digital LCD is adopted whose resolution is 480(RGB)X234. CPU outputs video signal of R8bit, G8bit and B8bit, and LCD receives the signal and outputs video. Also, the video encoder(CX25874)IC receives the same video signal and converts it into CVBS signal of an analogue signal to make it viewed in general monitor. AC97 AC97 signal is the international standard of audio signal. It converts audio in an MP3 file or a video file into AC97 format in CPU and outputs it into WM9712 IC. AC97 format of a digital signal is inputted into WM9712, and WM9712 converts it into audio of an analogue signal, and outputs it into speaker, earphone etc. Video output For LCD, digital LCD is adopted whose resolution is 480(RGB)X272. CPU outputs video signal of R8bit, G8bit and B8bit, and LCD receives the signal and outputs video. Also, the video encoder(CX25874)IC receives the same video signal and converts it into CVBS signal of an analogue signal to make it viewed in general monitor. SDRAM SDRAM is memory to execute the program in the CPU, making the program loaded onto the memory and flexibly run. Data line is read or written in 32 bits. EMC compliance Ltd. 82-1 Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. SD CARD As a storage medium, SD CARD saves an MP3 file or a video file to enable these to be played in the set. NAND FLASH NAND FLASH is a storage medium containing all programs implemented in the set and delivered in a stored condition. CPU reads the program in FLASH to execute the program. USB 1.1 USB 1.1 is international standard and supports the USB 1.1 HOST function in the set. RS232 The GPS module conducts 232 communication with CPU. GPS delivers satellite information to CPU through 232 communication, and CPU receives the satellite information and indicates the current position in the screen. *References-Operation description file EMC compliance Ltd. 82-1 Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. 2) Provide information on the device and its antenna. The EUT is composite device, main function is PMP functions; MP3 play, Navigation, FM transmitter A pattern antenna is used on PCB board for transmitting. TOP EMC compliance Ltd. 82-1 Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. BOTTOM *References-Operation description file 3) How is it installed? This device use 12V DC battery, External antenna is not used for transmitting. *References-Test report/Page 7 - 4.1 production description EMC compliance Ltd. 82-1 Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. 4) What test procedure was used? Test procedure is ANSI C63.4:2003. Please refer to test report. *References- Test report/Page 1 Test Procedure Test report/Page 10 - 5.2 Standards & results Test report/Page 10 - 6.1.1/2 Conducted Emission Test report/Page 13~14 - 6.2.1/2 Radiated emission Test report/Page 18 - 6.3.1/3 Occupied Bandwidth 5) If tested in a car, how was it configured/tested? N/A 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. Yes, The tuning range is 88.1 ~ 107.9MHz, (100KHz step) Revised contents : a few pictures were taken and put in the test report (setting as program firmware) EMC compliance Ltd. 82-1 Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. *MIN(88.1MHz) *STEP(100KHz) EMC compliance Ltd. 82-1 Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. *MAX(107.9MHz) *References- Test report/Page 21 – 6.5 Tuning controls 7) Was the bandwidth properly tested with maximum audio input? Of course. MP3 file was used for testing. Maximum setting is required in Transmitting mode.( 88.1 ~ 107.9MHz) *References- Test report/Page 19~20 – 6.3.3 Test data

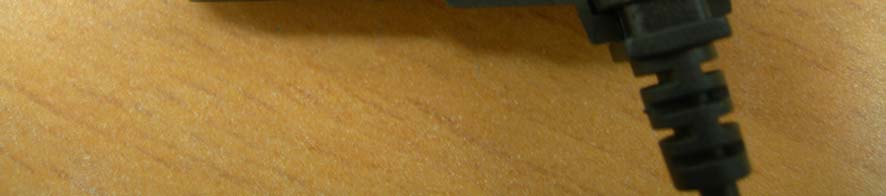

EMC Compliance Ltd. 82-1 JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO 449-825 KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. External photos EMC Compliance Ltd. 82-1 JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO 449-825 KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. CIGER JACK

EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval ID Label EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval ID Label Location

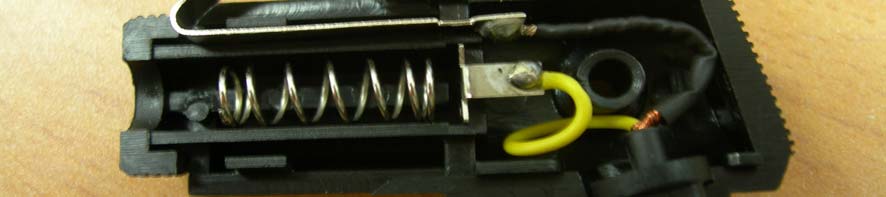

EMC Compliance Ltd. 82-1 JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO 449-825, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval Internal photos EMC Compliance Ltd. 82-1 JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO 449-825, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval Main Top Main Bottom EMC Compliance Ltd. 82-1 JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO 449-825, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval LCD Top LCD Bottom EMC Compliance Ltd. 82-1 JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO 449-825, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval Sensor Board Top Sensor Board Bottom EMC Compliance Ltd. 82-1 JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO 449-825, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval CIGER JACK Board Top CIGER JACK Board Bottom EMC Compliance Ltd. 82-1 JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO 449-825, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval FMT The arrow(FMT antenna) indicates this is one antenna. BOTTOM TOP

EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Operation Description The NS73 is a FM stereo transmitter IC designed for FM transmitter embedded into battery operated portable devices. EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. The EUT is composite device, main function is PMP functions; MP3 play, Navigation, FM transmitter A pattern antenna is used on PCB board for transmitting. Niigata Seimitsu Confidential P. 1/16 NS73 V.3.15D Subject to change without further notice. NIIGATA SEIMITSU Engineering Division 05/10/17 P. 1/16 TEL:+81-3-3437-3570 FAX:+81-3-3437-5622 http://www.niigata-s.co.jp NS73 User’s Manual (Ver3.15D) The NS73 is a FM stereo transmitter IC designed for FM transmitter embedded into battery operated portable devices. This document is programmer’s manual to design software for host processor. Subject to change without notice due to ongoing development. Niigata Seimitsu Confidential P. 2/16 NS73 V.3.15D Subject to change without further notice. NIIGATA SEIMITSU Engineering Division 05/10/17 P. 2/16 TEL:+81-3-3437-3570 FAX:+81-3-3437-5622 http://www.niigata-s.co.jp Ve r s i o n H i s t o r y Version Paragraph Description Revised by Date 2.3 Register Map A1]2:0]->A1[1:0] DEV deleted +/-94.5kHx H. Miyagi Feb.17,05 2.31 All Correction of sentence H. M Feb. 19,05 2.4 Register Map Addition Register CIA, CIB M.Tsubokawa Feb. 28, 05 2.5B2 All Register Name Change M.Tsubokawa Mar. 11, 05 2.5B2 All Correct Spell miss M.Tsubokawa Mar. 22, 05 2.51B2 All Correct some miss M.Tsubokawa Apr. 01, 05 2.51B2 Data transmission format Add wave form and those specification M.Tsubokawa Apr. 05, 05 2.52B2 Data transmission format Modify some value M.Tsubokawa Apr. 11, 05 2.52B2 Controller basic operation routines Correct figure M.Tsubokawa Apr. 11, 05 2.52B1 All Make Change to B1 M.Tsubokawa Apr. 18, 05 3.00C2 All Make Change to C2 M.Tsubokawa May. 11, 05 3.10D Register Map Explanation of the registers operation routines Make Change to D. Change explanation of register "MUTE". Change chart of operation routines. M.Tsubokawa Jul. 25, 05 3.11D Register Map Explanation of the registers Delete register "DEV". Change explanation of register "CEX". Change chart of operation routines. M.Tsubokawa Jul. 27, 05 3.12D All Delete "S32K", "FR" Change Description "PE", "PDX" Add figure "Frequency error" Change "PLT" bit length (3 -> 1) Change Description "CIA"(Current value was made fourth) M.Tsubokawa Aug. 10, 05 3.13D Register Map Operation routines Change Address8 data ("xx11 1000" -> "xx01 1000") M.Tsubokawa Aug. 11, 05 3.14D Register Map Change Address4 data ("xxxx xx01" -> "xxxx xx00") Delete figure "Frequency error" M.Tsubokawa Sep. 22, 05 3.15D Explanation of the registers Add Description "Relationship of PE and PDX" Change CEX explanation M.Tsubokawa Oct. 17, 05 Niigata Seimitsu Confidential P. 3/16 NS73 V.3.15D Subject to change without further notice. NIIGATA SEIMITSU Engineering Division 05/10/17 P. 3/16 TEL:+81-3-3437-3570 FAX:+81-3-3437-5622 http://www.niigata-s.co.jp 1. Block diagram of connection to the MCU (Host Microprocessor) NS73 NS73 CK DA LA VDD VDD I 2 C Bus Data Transmission MCU IIC VDD or GND VDD CK DA LA 3-Wire Data Transmission IIC VDD MCU fig.1 Communication to MCU The NS73 has two types of serial data interface: 3-wire and I 2 C bus. The interface type is selected by level setting of IIC pin. IIC = 0 (connect to Ground) -Æ 3-wire transmission IIC = 1 (connect to VDD) -Æ I 2 C bus transmission The function of CK, DA, and LA pins vary according IIC pin setting; In case of IIC=0 3-wire mode (see fig.1); CK = Serial clock input DA = Serial data input LA = Latch input In case of IIC=1 I 2 C mode (see fig.1); CK = Serial clock input DA = Serial data input and output LA = Address Selection. Usually, LA is set to low level (connect to GND). If I 2 C address conflicts with other I 2 C devices in same system, set LA to high level (connect to VDD) Note) Follow below instructions otherwise it may be cause chip damage or improper operation of NS73. a. The voltage at any pins of NS73 must not exceed VDD+0.3V or below -0.3V. b. Take same ground potential between NS73 and other devices. c. Keep low noise level on transmission lines while debugging. Niigata Seimitsu Confidential P. 4/16 NS73 V.3.15D Subject to change without further notice. NIIGATA SEIMITSU Engineering Division 05/10/17 P. 4/16 TEL:+81-3-3437-3570 FAX:+81-3-3437-5622 http://www.niigata-s.co.jp 2. Data transmission format for MCU 2.1 3-Wire mode The MCU should send data to NS73 from LSB of Address first and LSB of Data to D7 continuously. Total transmission data is 12 bits. After sending all data (12 bit), send latch pulse of active high to LA port. Then the data sent by MCU is stored into the register of NS73 whose address is assigned by A0 to A3. In case of using serial interface of MCU with 8 bits data length (hardware data transmission), the data is sent twice continuously. First 8 bits of transmission is address with dummy data (see fig-2) and next 8-bit is data. Dummy data should be sent at first. XX XX XXX A0D0A1 A3 D1 D3 D4 D5 D6 D7A2D2XXX DA start to send LA fig-2b data validIgnored Data Considered AddressConsidered Data XXX A0D0A1 A3 D1 D3 D4 D5 D6 D7A2D2 DA LA start to send DataAddressDummy Data fig-2a The last 12 bits data is valid if more than 12 bits data is sent The first 4 bits dummy data is needed when 2 bytes data transmission is used. The last 12 bits (12 bits before latch pulse) are acceptable as valid data. Niigata Seimitsu Confidential P. 5/16 NS73 V.3.15D Subject to change without further notice. NIIGATA SEIMITSU Engineering Division 05/10/17 P. 5/16 TEL:+81-3-3437-3570 FAX:+81-3-3437-5622 ht…

Text truncated - open the document above for the full version.

EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Operation Description Video output For LCD, digital LCD is adopted whose resolution is 480(RGB)X234. CPU outputs video signal of R8bit, G8bit and B8bit, and LCD receives the signal and outputs video. Also, the video encoder(CX25874)IC receives the same video signal and converts it into CVBS signal of an analogue signal to make it viewed in general monitor. AC97 AC97 signal is the international standard of audio signal. It converts audio in an MP3 file or a video file into AC97 format in CPU and outputs it into WM9712 IC. AC97 format of a digital signal is inputted into WM9712, and WM9712 converts it into audio of an analogue signal, and outputs it into speaker, earphone etc. Video output For LCD, digital LCD is adopted whose resolution is 480(RGB)X272. CPU outputs video signal of R8bit, G8bit and B8bit, and LCD receives the signal and outputs video. Also, the video encoder(CX25874)IC receives the same video signal and converts it into CVBS signal of an analogue signal to make it viewed in general monitor. EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. SDRAM SDRAM is memory to execute the program in the CPU, making the program loaded onto the memory and flexibly run. Data line is read or written in 32 bits. SD CARD As a storage medium, SD CARD saves an MP3 file or a video file to enable these to be played in the set. NAND FLASH NAND FLASH is a storage medium containing all programs implemented in the set and delivered in a stored condition. CPU reads the program in FLASH to execute the program. USB 1.1 USB 1.1 is international standard and supports the USB 1.1 HOST function in the set. RS232 The GPS module conducts 232 communication with CPU. GPS delivers satellite information to CPU through 232 communication, and CPU receives the satellite information and indicates the current position in the screen. EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. *FM Transmitter (Main chip) The NS73 is a FM stereo transmitter IC designed for FM transmitter embedded into battery operated portable devices. EMC Compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. The EUT is composite device, main function is PMP functions; MP3 play, Navigation, FM transmitter A pattern antenna is used on PCB board for transmitting.

FM Transmitter antenna trace Via hole Note : hole FMT Module PCB Bottom side PCB Top side The above yellow via hole is under the SD slot. So you cannot find the picture. Please refer to the attached PCB film file.

1/32 NIIGATA SEIMITSU CO., LTD. PRODUCT SPECIFICATION 納 入 仕 様 書 MODEL NAME 型 名： NS73B0WC33-01-EF-E1 Please return one copy after stamping your acceptance sign on this product specification. When there is no return within two months from the date of the issue, this product specification will be regarded as accepted. お手数ですが、当納入仕様書に貴社受領印を押印の上、一部を当社へご返却下さい。 発行年月日より2ヶ月間以内にご返却いただけない場合、当納入仕様書は受領されたものとさせて いただきます。 新潟精密（株） NIIGATA SEIMITSU Co., Ltd. 発行年月日 DATE 2005.Dec.26 承認 APPROVED 調査 CHECKED 作成 DRAWN RECEPTION STAMP 御客様受領印 2/32 NIIGATA SEIMITSU CO., LTD. CONTENTS; 目次 1. SCOPE ; 適用···························································································································· 4 2. MODEL NAME ; 型名················································································································ 4 3. BLOCK DIAGRAM ; ブロック図································································································· 4 4. ABSOLUTE MAXIMUM SPECIFICATION ; 絶対最大定格······················································· 4 5. ELECTRICAL SPECIFICATION; 電気的仕様··········································································· 5 6. ELECTRICAL CHARACTERISTICS; 電気的特性···································································· 5 6.1. Standard Test Condition; 標準試験条件················································································· 5 6.2. Circuit of Measurement; 測定用接続図·················································································· 6 6.3. Electrical Characteristics Item; 電気的特性項目··································································· 7 7. SERIAL INTERFACE; シリアルインターフェース········································································· 8 7.1. 3-wire bus Mode; ３線シリアル方式························································································· 8 7.2. I 2 C bus Mode; I 2 C方式·········································································································· 10 7.2.1. I 2 C-bus Terminology; I 2 Cで使用される用語······································································ 10 7.2.2. START Condition and STOP Condition; 「スタート」条件と「ストップ」条件·························· 10 7.2.3. Data Transfer; データ転送·································································································11 7.2.4. Acknowledge; アクノリッジ（受信確認）·············································································· 12 7.2.5. Electrical Specification and Timing for I/O Stages ····························································13 7.2.6. Definition of Bits in a Byte; 1バイト内の各ビット定義························································· 14 7.2.7. Command Format; コマンドフォーマット············································································ 15 8. SOFTWARE CONTROL SPECIFICATION; ソフトウェア制御仕様··········································· 16 8.1. Set Register(outline); レジスタ設定（概要）············································································ 16 8.2. Standard Clock; 基準クロック································································································ 16 8.3. Muting ···································································································································· 16 8.4. Reset for Serial Interface······································································································16 8.5. PLL Setting Method; PLL（Pレジスタ）設定方法···································································· 17 8.6. Register Map; レジスタマップ································································································· 18 8.7. Controller basic operation routines····················································································· 21 9. PBFREE SOLDER REFLOW PROFILE; 鉛フリー・リフロープロファイル·································· 23 3/32 NIIGATA SEIMITSU CO., LTD. 10. OUTER DIMENSION AND TERMINALS FOR CONNECTION; 外形寸法及び外部接続端子·23 11. ASSIGNMENT OF PINS; ピン配置·························································································· 24 12. INTERNAL PIN CONFIGURATION; 端子内部構成································································· 25 13. RECOMMENDED FOOT PATTERN; 推奨フットパターン························································· 28 14. APPLICATION CIRCUIT ; 応用回路······················································································· 29 15. APPEARANCE SPECIFICATION; 外観規格·········································································· 30 16. NOTES OF USE ; 使用上の注意事項······················································································ 30 16.1. Notes of designing the board; 設計時の注意事項··························································· 30 16.2. Notes of installation; 実装上の注意事項··········································································· 30 16.3. Notes of usage conditions; 取り扱い時の注意事項·························································· 31 16.4. Notes of storage; 保管上の注意事項················································································· 31 16.5. Notes of others; その他の注意事項··················································································· 31 17. REVISION; 改訂履歴··············································································································· 32 4/32 NIIGATA SEIMITSU CO., LTD. 1. Scope ; 適用 This specification applies to the FM STEREO TRANSMITTER IC： NS73B0WC33-01-EF-E1. 2. Model Name ; 型名 NS73B0WC33-01-EF-E1 3. Block Diagram ; ブロック図 LIMITER LPF LIMITER LPF PRE- EMPHASIS PRE- EMPHASIS STEREO GENERATOR FM ModulatorDAC ADC ADC I/Q Mixer & Local Oscillator FREQUENCY SYNTHESIZER SHIFT REGISTER IIC LOGIC LATCH XOSC SYSTEM CLOCK GENERATOR PA GND (Digital) GND VDD (Digital)VDD RIN LIN CP2X1CKLADA IIC RFO CP1 CAPC OS2OS1 4. Absolute Maximum Specification ; 絶対最大定格 No. ITEM 項目 MIN. 最小値 MAX. 最大値 UNIT 単位 1 Maximum supply voltage 最大電源電圧 -0.3 3.7 V 2 Maximum input voltage 最大入力電圧 -0.3 VDD+0.3V 3 Storage…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A AUDIO_DMB_R AUDIO_OUTR AUDIO1_L X24.576 AUDIO_MONO_OUT AUDIO1_R AUDIO_OU3 AUDIO_DMB_L AUDIO_MONO_OUT AUDIO_OU2 ULD AUDIOL_TX AUDIOR_TX AUDIO_AMP_EN AUDIO_OU2 AUDIO_OU3 AUDIO_OUTR GNDA971x VCC9711 GNDA971x VCC9711 VCC3P3_DU VCC5 VCC3P3_DU GNDA971x VCC9711 GNDA971x GNDA971x GNDA971x GNDA971x VCC3P3_DU GNDA971x GNDA971x VCC3P3_DU VCC9711 VCC9711 GNDA971x GNDA971x GNDA971x A_VSEL1 EX_MX AUDIO_AMP_EN X24.576 EX_PY AUDIO1_LAUDIO_DMB_R AC97_DATOUTAC97_SYNCAC97_nRST AUDIO1_R EX_MY A_VSEL0 CVBS_OUT EX_PX AC97_BITCLKAC97_DATIN AUDIO_DMB_L IRQ9711 SCL SDA ULD AUDIO_IN_BACK TitleSize Document Number R e v Date: Sheet of Bule Bird 0.4 AUDIO A3 814 Wednesday, September 27, 2006 R178,R179 삭제및도면변경 AVOUT C11910uF/10V/2012 RP13R-ARRAY4-10K 1234 5678 C??100P C1032.2uF/10V/1608 R11682K C1052.2uF/10V/1608 R11522K C??100P C110 10uF/10V/2012 BC590.1uF CE4100uF/16V/TT/SMD/B-SIZE FB FB27HH-1T1608-800 R118 4.7K C1110.1uF C10733pF BC610.1uF C106 2.2uF/10V/1608 C126 1uF/10V/1005 C??100P C112 10uF/10V/2012 FB FB??HH-1T1608-800 BC620.1uF C1221uF/10V/1005 CV12 PESD04 02-060 C11622pF CE3100uF/16V/TT/SMD/B-SIZE R117 0R R106100K C11822pF C??100P FB FB25HH-1T1608-800 C101 2.2uF/10V/1608 C176 10uF/10V/2012 C??100P C1271uF/10V/1005 FB FB23HH-1T1608-800 C12110uF/10V/2012 U22LM4871M SHDN 1 IN- 4 BP 2 VO1 5 GND 7 VDD 6 VO2 8 IN+ 3 C1090.1uF +- U21BLM358/SO 56 7 84 MODULE1FMT(SBT-5002T) ANT 1 SCK 2 LA 3 SDA 4 I2C/3W 5 GND 6 VCC3 7 A-R 8 A-L 10 ULD 11 C102 2.2uF/10V/1608 C10833pF CV13PESD04 02-060 C1241uF/10V/1005 ZP14 1 R1124.7K C??100P R113220K R119 0R C175100uF/6.3V/TT/3528 TP16 1 FB FB24HH-1T1608-800 ZP11 1 C114 10uF/10V/2012 R109 10K U19 74HC4052( 16TSSOP) X0 12 X1 14 X2 15 X3 11 Y0 1 Y1 5 Y2 2 Y3 4 EN 6 A 10 B 9 X 13 Y 3 VDD 16 GND 8 VEE 7 R111100K ZP13 1 C177 10uF/10V/2012 FB FB??HH-1T1608-800 CV14 PESD04 02-060 +- U21A LM358/SO 32 1 84 L172.2uH/FSLM2520-2R2/TOKO 1 2 ZP16 1 C1002.2uF/10V/1608 Y3 Y24.576MHz(FUND.)/5*3.2*0.9 L182.2uH/FSLM2520-2R2/TOKO 1 2 ZP12 1 FB FB26 HH-1T1608-800 ZP17 1 R110100K J8TSH-3756 1 1 2 2 3 3 4 4 11 11 10 10 C11510uF/10V/2012 U20WM9712L/QFN DBVDD 1 XTLIN 2 XTLOUT 3 DGND1 4 SDATAOUT 5 BITCLK 6 DGND2 7 SDATAIN 8 DCVDD 9 SYNC 10 RESETB 11 CREF/WIPER/AUX4 12 AVDD/TPVDD 13 AGND1/TPGND 18 PCBEEP 19 PHONE 20 MIC1 21 MIC2 22 LINEINL 23 LINEINR 24 OUTR2 36 OUTL2 35 SPKGND 34 MONOOUT 33 CAP2 32 MICBIAS 28 VREF 27 GPIO5/SPDIF 48 GPIO4 47 GPIO3 46 GPIO2/IRQ 45 GPIO1 44 HPVDD 43 AGND2 42 HPOUTR 41 HPGND 40 HPOUTL 39 SPKVDD 38 OUT3 37 NC/X+ 14 NC/Y+ 15 NC/X- 16 NC/Y- 17 AVDD 25 AGND 26 CMP1/AUX1 29 CMP2/AUX2 30 CMP3/BMON/AUX3 31 C12510uF ZP15 1 R108 22R C104 2.2uF/10V/1608 FB FB36HH-1T1608-800 TP17 1 BC580.1uF R12010K C1130.1uF BC600.1uF R114 4.7K C12010uF/10V/2012 R105100K R107 100K LS1SPEAKER/0.5W 8OHM +- C??100P
