UOR-MOD950T1106Wireless Monitor Transmitter

INSTALLATION AND OPERATION INSTRUCTIONS The Wireless Monitor Receiver (950R) automatically records sensor readings received from Field Transmitters (950T) for collection and display on a computer. Each Field Transmitter can read up to four (4) Watermark soil moisture sensors, temperature sensors or Irrometer Model RSU (4-20mA transducer) sensors. The Receiver unit can also read a direct input from a switch closure sensor or rain gauge. SENSOR INSTALLATION Watermark soil moisture sensors must be “conditioned” prior to installation. The sensors should be soaked to saturation and then dried fully, twice, and then soaked to saturation again prior to installation. This “conditioning” of the sensors ensures quick response to changing soil moisture conditions. If a sensor is only soaked and then installed, several irrigation cycles must pass before the sensor will respond accurately. Soak the sensors in a bucket of water for several hours to saturate them. Hang them up overnight to dry sufficiently. After “conditioning” they are ready for installation. Sensors MUST be installed in an active portion of the root zone of the plant to be monitored, either vertically or up to a 45° angle. Bore a 7/8” (22mm) diameter access hole to the desired depth, then insert the sensor. Be careful to ensure a snug fit between the sensor and the surrounding soil. Then backfill the hole firmly. The access hole can be made by pounding a 7/8” (22mm) diameter bar (or ½” IPS pipe) to the desired depth, then extracting the bar, being careful not to disturb the soil surrounding the borehole. With hard or rocky soil, a larger diameter hole can be made with a soil auger. Mix the auger cuttings with water to create a slurry and pour into the borehole. Then insert the sensor into the hole. Once the slurry dries, the sensor will have been “grouted” in to ensure good contact with the soil. The sensor can be attached to ½” class 315 PVC pipe with a PVC to ABS cement. The pipe becomes a conduit to protect the sensor wires. Also, this makes the sensor easier to push into the access hole and remove, if desired. The top of this pipe section should be capped or plugged so surface water does not travel down to the sensor. Drill a small hole in the side of the pipe just above the sensor to allow water to drain away if it becomes trapped in the pipe. To measure soil temperature and compensate the accompanying Watermark sensors on the same Field Transmitter, the temperature sensor should be installed in the soil near a representative soil moisture sensor. Only one temperature sensor can be used per Field Transmitter. Bore a 1/2” (13mm) hole in the soil and insert the sensor. Then backfill the hole. #89 TROUBLESHOOTING Please reference the suggestions below, look in the Help section of WaterGraph or contact Irrometer for further assistance. No Display: Check battery, replace if <7.2 Volts. Try RESET, see below. Unusual readings: The following are possible readings that may be displayed instead of a soil moisture, temperature or switch position: DRY-meaning the resistance is so high that there must be an open wiring connection on a Watemark or a low temperature reading (frozen) on a temperature sensor, check for broken wires. SHORT- meaning the resistance is so low that the circuit must be shorted on a Watermark, or off scale on a temperature sensor, check for shorts. No reading reported for too long: Sensor may have lost contact with the soil. Re-install sensor, being sure to establish good soil contact. Communication may be poor from that location. Transmission can be checked from the Field Transmitter to the Receiver by pressing the small button in the middle of the transmitter circuit board. Each press of this button should register another reading on the counter in the display of the Receiver. Relocate or elevate antenna as necessary for better transmission. Soft RESET: Use the end of a paper clip or other small object to press the RESET button located underneath the small hole labeled RESET on the faceplate. Hard RESET: Disconnect the battery. Press and hold the RESET button down for at least 5 seconds. Then re-insert the battery. Firmware upgrading: Using the “Update Datalogger” command in the “Tools” menu in WaterGraph, select the new firmware version (.hex format) and press “Open.” If the upload process is interrupted, then Monitor will be locked up and it’s display will stay on “Uploading.” If this happens, use the “Recover Monitor Update” command in the “Tools” menu to finish the upload process. The Company Mail: P.O. Box 2424 Riverside, CA 92516 Phone: (951) 689-1701 Fax: (951) 689-3706 [email protected] www.Irrometer.com WARRANTY: The IRROMETER COMPANY warrants its products against defective workmanship or materials under normal use for one year from date of purchase. Defective parts will be replaced at no charge for either labor or parts if returned to the manufacturer during the warranty period. The seller’s or manufacturer’s only obligation shall be to replace the defective part and neither seller nor manufacturer shall be liable for any injury, loss or damage, direct or consequential,arising out of the use of or inability to use the product. This warranty does not protect against abuse, shipping damage, neglect, tampering or vandalism, freezing or other damage whether intentionally or inadvertently. SPECIFICATIONS 433 MHz, FCC Part 15 compliant, license free for the user Records capacity: 8062 total readings from Field Transmitters 254 switch closures (127 irrigation events, date/time stamped) 254 rain gauge records (up 655 inches 2 11 The Wireless Monitor Receiver should be mounted on a post at least 4 feet (1.2 m) high and within 1500 ft (457m) line-of- sight transmission range of the area where the Field Transmitters are installed. The solar panel should be oriented to catch as much sunlight as possible. The included pipe clamps can be used for a post as large as 2 inch (51mm) in diameter. Alternately, the clam…

Text truncated - open the document above for the full version.

September 28, 2006 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc. as an Agent for Irrometer Co., Inc., P.O. Box 2424, Riverside, CA 92516, for a period of one year, to sign applications before the certification body on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the certification body in connection with certification of the following Irrometer Co., Inc. product: Wireless soil moisture and temperature sensor data-logging system under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Irrometer Co., Inc. nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Irrometer Co., Inc. will notify the Federal Communications Commission if, at any time, the situation changes causing Irrometer Co., Inc. to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at (951) 689-1701. Sincerely, Tom Penning President

September 28, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, Irrometer Co., Inc. would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at (951) 689-1701. Sincerely, Tom Penning President

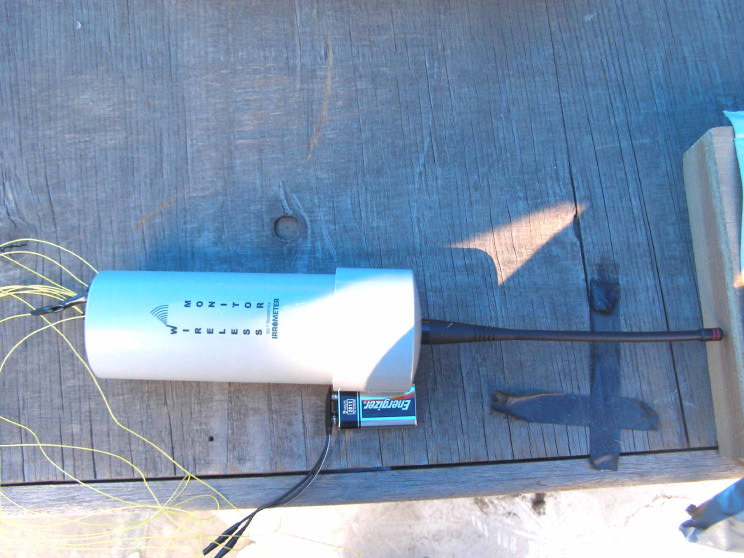

Side 1 ViewSide 2 View

Ref Lvl 112 dB
V Ref Lvl 112 dB
V RF Att 20 dB A Unit dB
VSWT 5 ms Center 433.90998 MHz500
s/ TDS RBW 3 MHz VBW 3 MHz I2D 1VIEW1AP 20 30 40 50 60 70 80 90 100 12 112 1 1 Delta 1 [T1] -0.51 dB 611.222445
s 1 [T1] 27.45 dB
V 1.863727 ms 1 [T1] -0.51 dB 611.222445
s Date: 11.OCT.2006 09:19:19 Time of One Pulse = 611.222445 uS Ref Lvl 112 dB
V Ref Lvl 112 dB
V RF Att 20 dB A Unit dB
VSWT 5 ms Center 433.90998 MHz500
s/ TDS RBW 3 MHz VBW 3 MHz I2D 1VIEW1AP 20 30 40 50 60 70 80 90 100 12 112 1 1 Delta 1 [T1] -1.66 dB 1.192385 ms 1 [T1] 27.45 dB
V 1.863727 ms 1 [T1] -1.66 dB 1.192385 ms Date: 11.OCT.2006 09:19:46 Time of One Pulse with Blanking Interval = 1.192385 mS Total Duty Cycle = 611.222445 uS / 1.192385 mS = 51.26% Ref Lvl 112 dB
V Ref Lvl 112 dB
V RBW 1 MHz VBW 1 MHz RF Att 20 dB A I2D Unit dB
VSWT 200 ms Center 433.90998 MHz20 ms/ TDS 1VIEW1AP 20 30 40 50 60 70 80 90 100 12 112 Date: 11.OCT.2006 09:17:30 Plot Showing the Pulses just repeat on a continuous basis.
