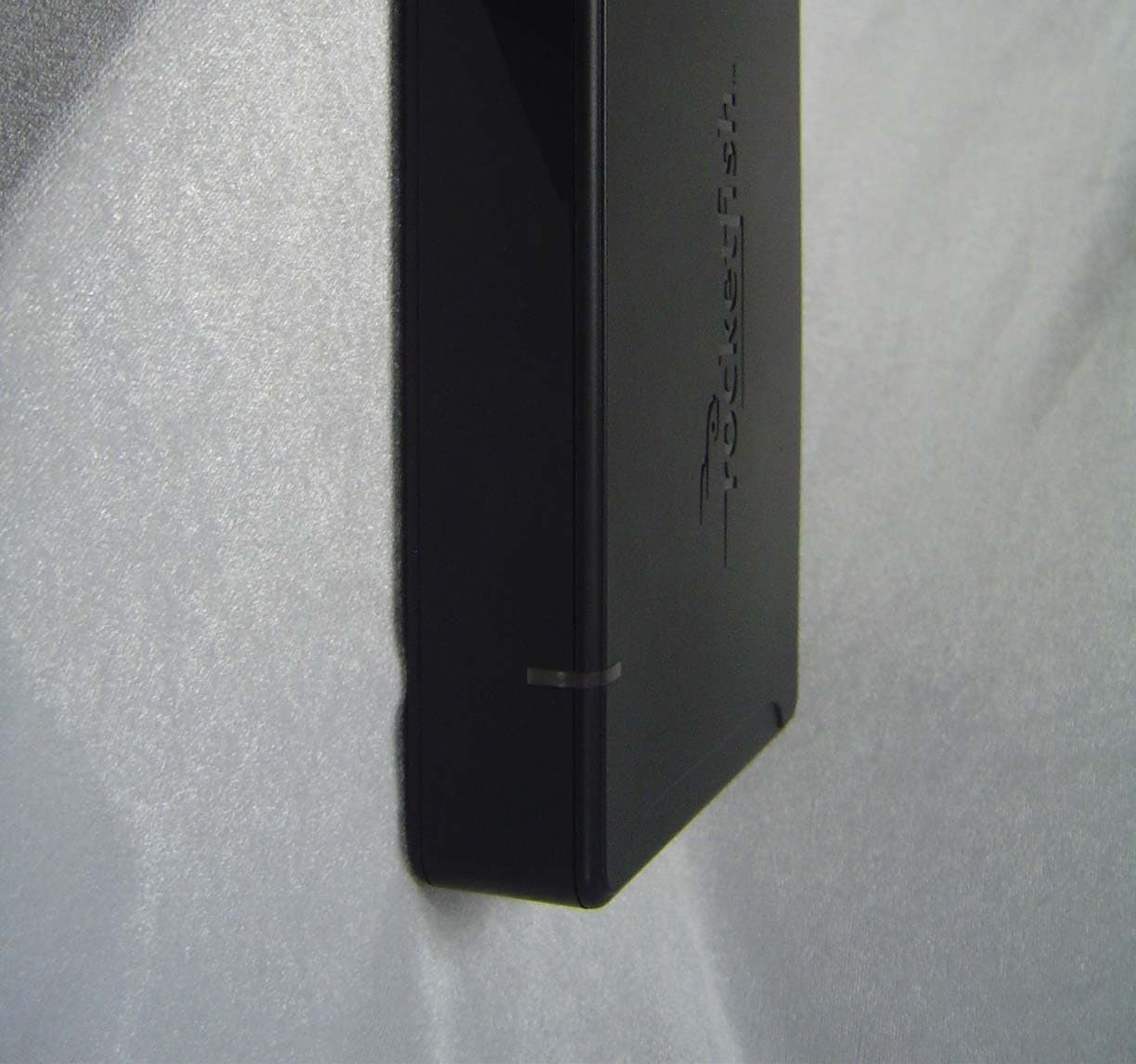

UQ5RFWHTIBRECRF-WHTIB (Receiver)

Universal Wireless Rear Speaker Kit RF-WHTIB User Guide RF-WHTIB - English only.fm Page 1 Wednesday, February 7, 2007 6:38 AM 2 Rocketfish RF-WHTIB Universal Wireless Rear Speaker Kit Contents Introduction ........................................................................... 2 Features.................................................................................... 5 Setting up your universal wireless rear speaker kit.. 8 Using your universal wireless rear speaker kit .........13 Troubleshooting .................................................................15 Specifications .......................................................................16 Legal notices ........................................................................16 1 Year Limited Warranty ...................................................19 Introduction Congratulations on your purchase of a Rocketfish RF-WHTIB Universal Wireless Rear Speaker Kit. Your RF-WHTIB represents the state of the art in wireless speaker kit design, and is designed for reliable and trouble-free performance. This manual explains how to correctly install, operate, and get the best performance from your universal wireless rear speaker kit. Read this user guide carefully before installing your system, then keep it near your system for quick reference. Your RF-WHTIB Universal Wireless Rear Speaker Kit uses a proprietary 2.4 GHz wireless communication system to transmit low-latency, high fidelity audio to a stereo amplifier, providing a superior level of audio quality and resistance to interference. RF-WHTIB - English only.fm Page 2 Wednesday, February 7, 2007 6:38 AM 3RF-WHTIB The system accepts speaker-level inputs, and is compatible with a complete range of multichannel home theater amplifier systems or AV receivers. Safety information WARNI NG: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RF-WHTIB - English only.fm Page 3 Wednesday, February 7, 2007 6:38 AM RF-WHTIB - English only.fm Page 4 Thursday, March 1, 2007 6:56 PM 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. AAdditiotiotionalalal s s safefetfety in in informrmatrmatioionion


12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 11) Only use attachments/accessories specified by the manufacturer. S3125A PORTABLE CART WARNING (Symbol provided by RETAC The AC power plug or an appliance coupler is used as the disconnect device. This disconnect device shall remain readily operable. Read the Rating Labels on the bottom of the sender and receiver for power input and other safety information. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 4 5RF-WHTIB Features • 2.4 GHz wireless sender and receiver • Transmits high quality audio over a radio frequency communication link •Compact size • Hidden antennas • Low power consumption Package contents Examine the contents of the box for your RF-WHTIB Universal Wireless Rear Speaker Kit. The box should contain: •A sender unit •A receiver unit • A holder for the receiver unit • An AC power adapter (for the sender unit) • Two 2-foot speaker wires •A User Guide RF-WHTIB - English only.fm Page 5 Wednesday, February 7, 2007 6:38 AM 6 Sender unit The sender transmits audio signals over a 2.4 GHz radio frequency carrier to the receiver. #Feature 1Power indicator LED 2Power button 3Right speaker input terminals 4Left speaker input terminals 5DC IN jack 6Manual connect button 1 2 3 45 6 Front view Back view Bottom view RF-WHTIB - English only.fm Page 6 Wednesday, February 7, 2007 6:38 AM 7RF-WHTIB Receiver unit The receiver unit receives the 2.4 GHz audio signals from the sender. #Feature 1Power indicator LED 2Power button 3Volume control knob 4Manual connect button …

Text truncated - open the document above for the full version.

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 March 7, 2007 Dear Application Examiner: On behalf of Best Buy Purchasing, LLC, Northwest EMC Inc is submitting this application for the certification of the 2.4GHz transmitter, FCC ID: UQ5RFWHTIBREC. The transmitter will be installed in Best Buy’s Rocketfish home theater device, M/N: RF- WHTIB (Receiver). This is the listener unit for a wireless home-theater-in-a-box rear-channel speaker extender. There is a single data rate available for link control and Over-the-Air Serial Interface control information. The transceiver uses PI/4 differential quadrature phase shift keying modulation and 2MHz channel spacing. Channels used extend from 2405MHz (Channel 2) to 2477MHz (Channel 38). The RF-WHTIB unit is powered from the AC Mains. The radio has two antenna ports. Both ports utilize a Walsin Technology Corporation 2dBi ceramic chip antenna. This configuration satisfies the requirements of 47 CFR 15.203. The technical reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.247 as a DTS transmitter. Your efforts in reviewing this application are greatly appreciated. Best regards, Northwest EMC, Inc.

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 March 7, 2007 Dear Application Examiner: Best Buy Purchasing, LLC transceiver, FCC ID: UQ5RFWHTIBREC, is seeking limited modular approval. The radio does not meet the requirements for full modular approval as detailed in FCC Public Notice DA00-1407. Compliance or noncompliance to each of those requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module does not have its own RF shielding.. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” The transmitter does not have its own power supply regulation. DC supplying the module is regulated in the host unit. Please see Schematics exhibit. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was not tested in a stand-alone configuration. The EUT was tested in the host device, M/N: RF-WHTIB (Receiver). 6. “The modular transmitter must be labeled with its own FCC ID number.” The EUT is labeled with its own FCC ID number. Please see FCC ID label exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detailed instructions for maintaining compliance are given in the User Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see RF Exposure Exhibit. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, Northwest EMC, Inc.

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 AVNE0008 Information about the Applicant Company Name Best Buy Purchasing, LLC Grantee Nigel Waites Address 7601 Penn Avenue South City, State, Zip Richfield, MN 55423 Job Number AVNE0008 Model RF-WHTIB (Receiver) FCC ID UQ5RFWHTIBREC Agent Avnera Approval Type Original Equipment Class DTS Digital Transmission System Rule Part 15.247DSSS Industry Canada Information Model Industry Canada ID Rule Part Overview See Cover Letter Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature 3/8/2007 Dean Ghizzone, TCB Committee

Walsin Technology Corporation Page 1 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 MULTILAYER CERAMIC ANTENNA RFANT BROADBAND Series 2.4 GHz ISM Band Working Frequency
   *Contents in this sheet are subject to change without prior notice. Walsin Technology Corporation Page 2 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 REVISION HISTORY Rev P/N Description Date V01 RFANT7635110A1T First Version 2004-07-13 V06 RFANT7635110A1T Increase Revision History as Page-2 Update the “±” Mark. 2004-12-08 Walsin Technology Corporation Page 3 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 FEATURES
Surface Mounted Devices with a small dimension of 7.6 x 3.5 x 1.1 mm 3 meet future miniaturization trend.
 380MHz broad bandwidth design makes less influence, less frequency shifting due to outside environmental deviation.
 70% small footprint compared to normal band design (140MHz).
Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
 High Stability in Temperature / Humidity Change
 Free Impedance Matching APPLICATIONS
Bluetooth
Wireless LAN
 HormRF
 ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth TM typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has been designed to a typical 400MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic) technology and superior product design via 3D EM Simulation Skill. This antenna has a rectangular ceramic body with a tiny dimension of 7.6 x 3.5 x 1.1 mm 3 meet the future SMT automation and miniaturization requirements on modern portable devices. CONSTRUCTION Fig 1. Outline of 2.4GHz Chip Antenna DIMENSIONS Figure Dimension Port definition L 7.60 ² 0.30 mm - W 3.50 ² 0.20 mm - T 1.10 ² 0.10 mm - Fd 0.50 ² 0.20 mm Feed termination G 0.80 ² 0.20 mm Ground termination C 0.50 ² 0.20 mm D 0.50 ² 0.20 mm P 1 0.80 ² 0.20 mm Solder termination P 2 0.80 ² 0.20 mm Solder termination P 3 0.50 ² 0.10 mm Solder termination MARKING: Upon customer requested, max. 5-digit code is allowed. P 3 G L P 2 D C Fd G P 1 WTC W T P 3 G L P 2 D C Fd G P 1 WTC W T Walsin Technology Corporation Page 4 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 L L p Wp Wf Wg L g Ws L h L f
          W    L L p Wp Wf Wg L g WsWs L h L f
          W    SOLDER LAND PATTERN DESIGN Figure Symbol Dimension L 8.10 ² 0.10 mm Lp 1.00 ² 0.10 mm Wp 1.20 ² 0.10 mm Lf 1.50 ² 0.10 mm Wf 0.80 ² 0.10 mm Lg 1.50 ² 0.10 mm Wg 1.50 ² 0.10 mm Ws 0.40 ² 0.10 mm Lh 0.50 ² 0.10 mm ELECTRICAL CHARACTERISTICS Item Specification Central frequency 2.450 GHz (Note-1) Bandwidth 380 MHz (Typical value) Gain 0 ~ 2 dBi VSWR 2 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50W Rated Power (max.) 5 Watts Maximum Input Power 10 Watts for 5 minutes Operation Temperature -40 ̓ C ~ +85 ̓ C Note-1. Central Frequency should be defined after customers’ application approval. Walsin Technology Corporation Page 5 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. Walsin’s LTCC chip antenna is an electrically small antenna (size smaller than 1/10l). The specification of RFANT7635110A1x series chip antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Return Loss (S11) E-Plane (dBi) H-Plane (dBi) The typical tuning range of Walsin’s chip antenna is about ±150MHz. The performance of embedded ceramic antenna is sensitive influenced by customer's ground area, PC board size, thickness, material, mechanical design and the material of housing for end product. WTC engineers have significant expertise on embedded antenna designs and applications. We can work closely with you to ensure the requirements are met, and optimise the WTC’s antenna performance when installing on your application.

 50 W !"

 50 W !" Walsin Technology Corporation Page 6 of 8 ASC_ANT7635110A1T_V06 Dec.-2004 RELIABILITY TEST Mechanical performance Test item Test condition / Test method Specification Solderability Solder temp. : 235 ² 5∞C Immersion time: 2 ² 1 sec Solder: SN63 95% min. coverage of all metabolised area Resistance to soldering heat Solder: Sn63 Preheating temperature: 150 ² 10∞C Solder Temperature: 260 ² 5 ∞ C Immersion time: 10 ² 1 sec Measurement to be made after keeping at room temp. for 24 ² 2 hrs. No mechanical damage. Ceramic surface shall not be exposed in the middle of the termination or on the terminated product edge by leaching. Drop test Height : 75 cm Direction : 3 directions Times : 3 times for each direction. No mechanical damage. Samples shall satisfy electrical specification after test..  Environmental characteristics Test item Test condition / Test method Specification Humidity Resistance Humidity:90% to 95% R.H. Tempertaure:40²2∞C Time: 500 ² 24 hours. Measurement: After placing for 24 hours Minimum. No mechanical damage. Samples shall satisfy electrical specification after test. Temperature cycle 1. 30 ² 3 minutes at -40∞C ² 3∞C, 2. 10~15 minutes at room temperature, 3. 30±3 minutes at +85∞²3∞C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement after placing for 48 ²2 hrs min. No mechanical damage. Samples shall satisfy electrical specification after test. High temperature Temperature: 85∞C²2∞C Test duration: 24 hours Measurement must be taken after subjection to the above conditions, followed by exposure in room envir…

Text truncated - open the document above for the full version.

Compliance with 47 CFR 15.247(i) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT is a 2.4GHz transmitter installed in the Rocket Fish M/N RF-WHTIB wireless rear-channel speaker extender. The EUT will only be used with a separation distance of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). The EUT has two antenna ports; both ports use the same antenna model. The max gain of the antenna is +2dBi. The maximum peak conducted output power is 7.9mW. The maximum peak power is 12.52 mW (EIRP) for FCC ID: UQ5RFWHTIBREC. The transmit frequency is in the 2400-2483.5MHz frequency range. The EUT is not subject to routine environmental evaluation per 47 CFR 2.1091. Per 47 CFR 1.1310, the EUT must meet the General Population/ Uncontrolled exposure limits listed in Table 1. The MPE estimates are as follows: Table 1 in 47 CFR 1.1310 defines the maximum permissible exposure (MPE) for the general population as (f MHz /1500) mW/cm 2 . The exposure level at a 20 cm distance from the EUT’s transmitting antenna is calculated using the general equation: S = (PG)/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = numeric power gain relative to an isotropic radiator R = distance to the center of the radiation of the antenna (20 cm = limit for MPE estimates) PG = EIRP Solving for S, the maximum power density 20 cm from the transmitting antenna is summarized in the following table: MPE Estimate Antenna Type Antenna Manufacturer Antenna Part No. Transmit Frequency Max Peak Conducted Output Power Antenna Gain Minimum Antenna Cable Loss Power Density @ 20 cm General Population Exposure Limit from 1.1310 (MHz)(mW)(dBi)(dB) (mW/cm 2 )(mW/cm 2 ) Multilayer Ceramic Chip Walsin Technology Corporation RFANT763511 0A1T 24007.9200.0021 FCC ID: UQ5RFWHTIBREC The power density does not exceed 1.0 mW/cm 2 at 20 cm; therefore, the exposure condition is compliant with FCC rules. The applicant’s radio, FCC ID: UQ5RFWHTIBREC, is compliant with the requirements of 15.247(i).

Avnera RF-WHTIB (Receiver) March 07, 2007 Report No. AVNE0008 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2007 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: March 7, 2007 Avnera Model: RF-WHTIB (Receiver) Emissions Test Description Specification Test Method Pass Fail AC Powerline Conducted Emissions FCC 15.207:2006 ANSI C63.4:2003 Occupied Bandwidth FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Output Power FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Band Edge Compliance FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Spurious Radiated Emissions FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Power Spectral Density FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Spurious Conducted Emissions FCC 15.247:2006 DTS ANSI C63.4:2003, KDB No. 558074 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400, Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: (503) 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Donald Facteau, IS Manager This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0604C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI: Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been …

Text truncated - open the document above for the full version.

NORTHWEST EMC photo CONDUCTED EMISSIONS PSA-ESCI 2007.01.24 NORTHWEST EMC BAND EDGE COMPLIANCE XMit 2006.11.13 NORTHWEST EMC OCCUPIED BANDWIDTH XMit 2006.11.13 NORTHWEST EMC OUTPUT POWER XMit 2006.11.13 NORTHWEST EMC POWER SPECTRAL DENSITY XMit 2006.11.13 NORTHWEST EMC SPURIOUS CONDUCTED EMISSIONS XMit 2006.11.13 NORTHWEST EMC Radiated Emissions PSA 2007.01.31 NORTHWEST EMC Radiated Emissions PSA 2007.01.31
