UQJ-070REMOTE CONTROL

USER MANUAL REMOTE CONTROL TEL007-M Réf document : (TEL007-M)UserMan.doc Page 1/1 FCC REGULATION NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE , AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 1 Description and use The remote control TELOO7-M is design to command MG International fall detector at a distance of about 15 feet.
The grey button is dedicated to the activation of the fall detector. - To switch from OFF mode to DISARMED mode - To switch from DISARMED mode to ARMED mode It is also used to stop the siren triggered after it sets off. For all these actions, press one time the grey button
The red button is designed to be used in combination with the grey button to deactivate the fall detector: Press the red button continuously and then press the grey button 2 Replacing the battery When the battery charge is too low, the remote control signals it with: • Either quick blinks of the red light during 3 seconds • Either the red light does not switch on when you press the grey button Designed, manufactured in France by: MG International - ZI Athélia II 13600 La Ciotat - France siren 441 743 002 Red button Grey button Plastic case Unscrew the screw behind the case Carefully remove the used battery thanks to a screwdriver and replace it with a new one (3V DL2032)

Réf document : (TEL007-M)BlkDia.doc Page 1/1 BLOCK DIAGRAMS REMOTE CONTROL TEL007-M Schematic block TX

MG International ZI ATHELIA II-220 IMPASSE DU SERPOLET-13600 La Ciotat - France Tél. +33(0)4 42 98 14 90 – Fax +33(0)4 42 08 64 46 – www.aquasensor.com [email protected] SA au capital de 245 803 € - RCS Marseille 2002 B 01104 – Siret 441 743 002 00038 – TVA Intra FR 80441743002 – NAF 316 D La Ciotat, vendredi 16 mars 2007 Object: FCC certification for MG International remote control for pool alarm. MG International, as a French manufacturer of pool alarm system, wishes to distribute his product in the USA in order to extend his commercial zone. TEL007-M (FCC Id: UQJ-070) – the remote control - is a Class 1 MG International remote control for pool alarm that MG international assigned to this market. As a consequence MG International asks the FCC Part 15 certification for this product. For MG International: Sebastien Chaussin Project Manager MG International

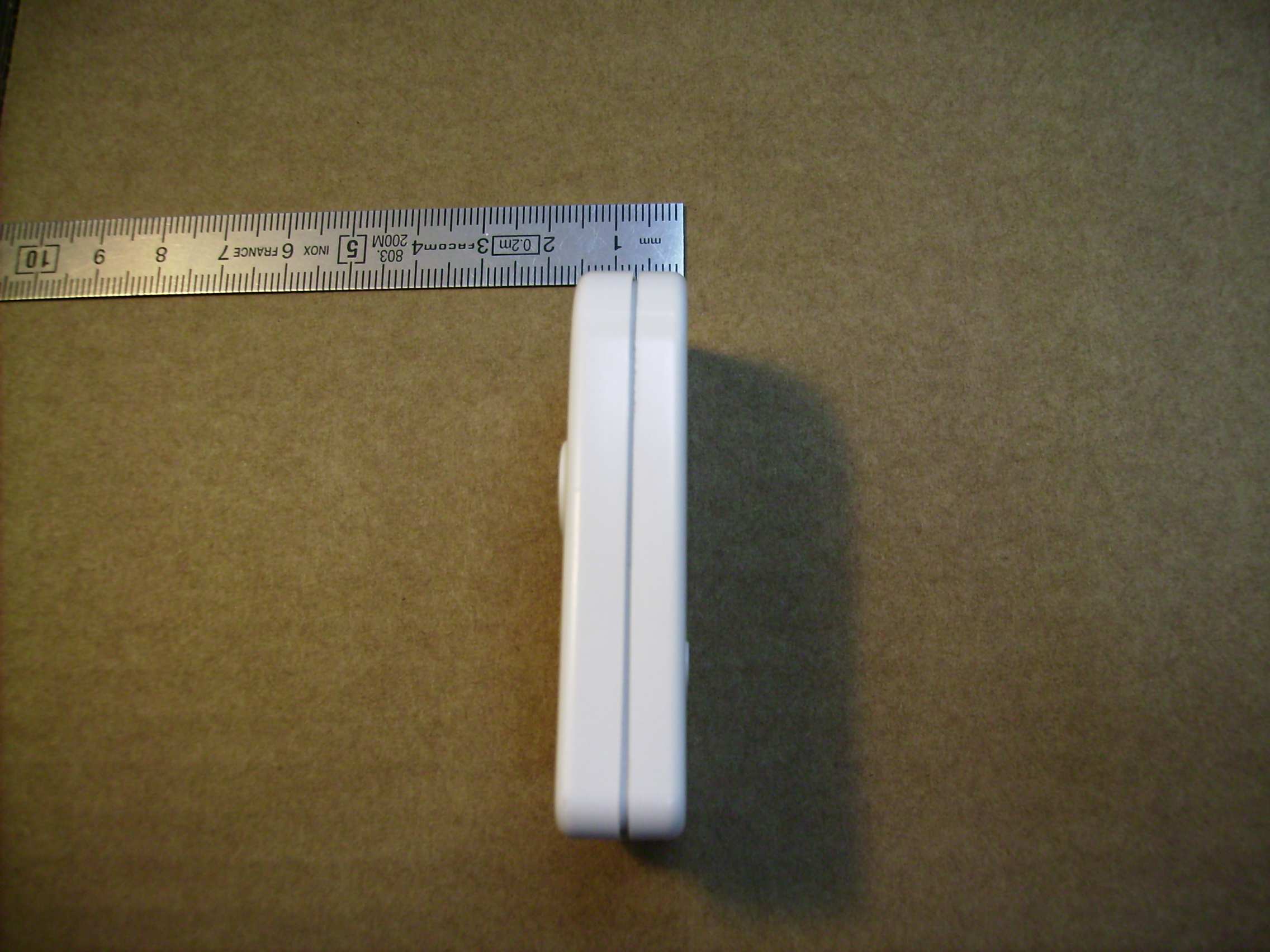

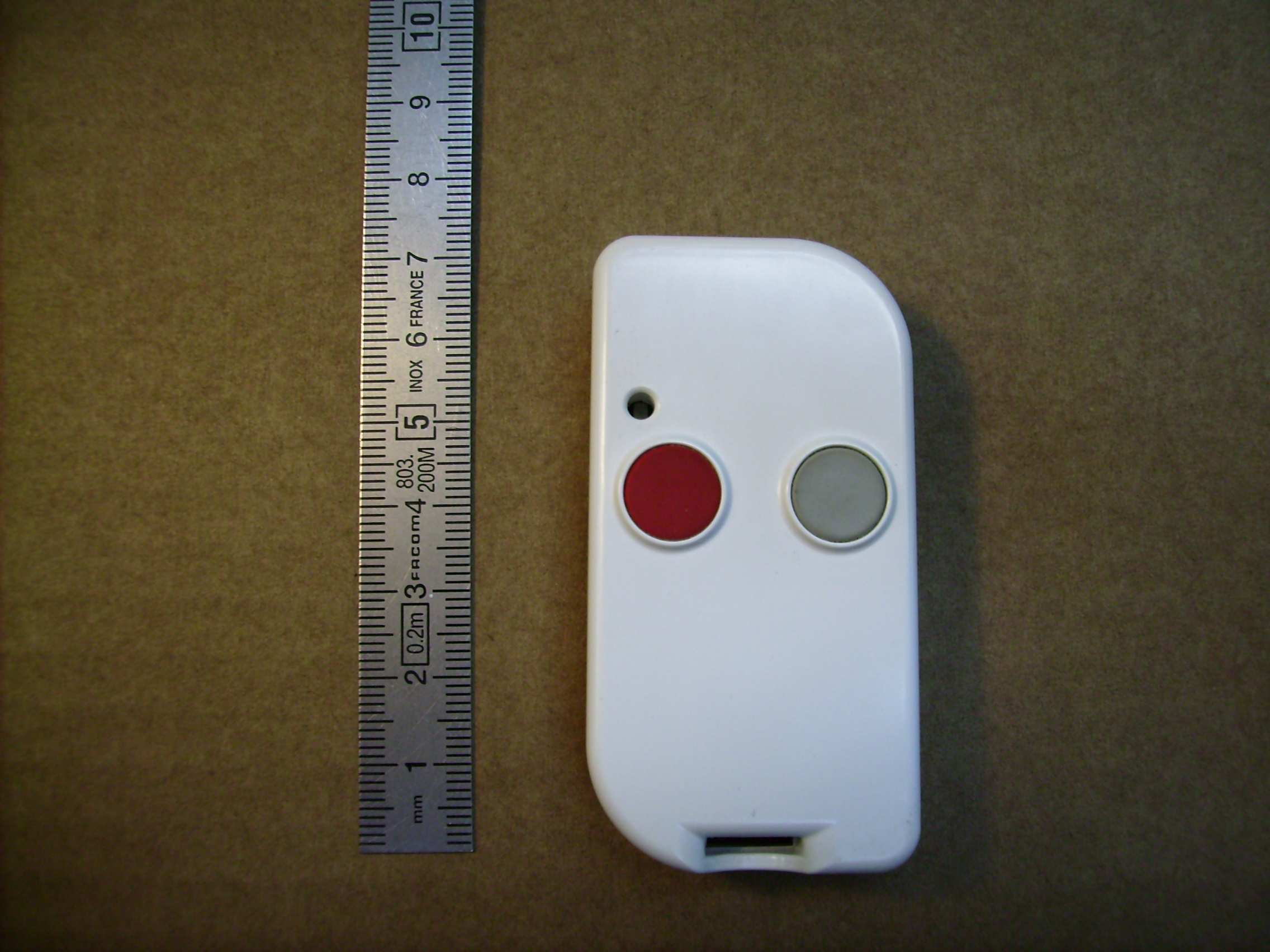

Réf document : (TEL007-M)ExtPho.doc Page 1/1 EXTERNAL VIEWS REMOTE CONTROL TEL007-M : FACE VIEW SIDE VIEW

FCC LABEL LOCATION INFORMATION REMOTE CONTROL TEL007-M Réf document : (TEL007-M)LabelLoc.doc Page 1/1

FCC LABEL SAMPLE FOR REMOTE CONTROL TEL007-US Réf document : (TEL007-M)LabelSmpl.doc Page 1/1

Réf document : (TEL007-M)IntPho.doc Page 1/2 INTERNAL VIEWS REMOTE CONTROL TEL007-M : Réf document : (TEL007-M)IntPho.doc Page 2/2

OPERATIONNAL DESCRIPTION REMOTE CONTROL TEL007-M Réf document : (TEL007-M)OpDes.doc Page 1/4 Transmitter: - Remote RF at 433.245Mhz - Using a Chipcon/Texas CC1150 - FM GFSK. - Burst duration: 3000 mS - Burst Length: 833 μS - Crystal Oscilator @26MHz +- 30ppm - Frequency synthesizer with 400Hz frequency resolution. - Transmitter antenna is an PCB antenna - Security decoding with a 16 Bit word and 8 Bit command word. - Battery operated 1 – DL2032 lithium 3V. - PCB with two signal layers with top and bottom ground plane. OPERATIONNAL DESCRIPTION REMOTE CONTROL TEL007-M Réf document : (TEL007-M)OpDes.doc Page 2/4 OPERATIONNAL DESCRIPTION REMOTE CONTROL TEL007-M Réf document : (TEL007-M)OpDes.doc Page 3/4 OPERATIONNAL DESCRIPTION REMOTE CONTROL TEL007-M Réf document : (TEL007-M)OpDes.doc Page 4/4

PART LIST REMOTE CONTROL TEL007-M Réf document : (TEL007-M)PartsLst.doc Page 1/1 Radio TX Part List Remote control part list Description Ref Capot télécommande Espio COUV-TEL Bouton souple gris BP1-TEL Bouton souple rouge BP2-TEL Carte mère télécommande CME-TEL-ESP Vis à tôle D2,9x9,5 VTD2,9x9,5 Pile lithium 3V PIL-CR2032 Socle télécommande Espio SOC-TEL Etiquette ET-TEL

SCHEMATICS FOR REMOTE CONTROL TEL007-M: Réf document : (TEL007-M)Schem.doc Page 1/1

R041-07-101068-1A - RG / CD RADIO TEST REPORT According to the standard(s): FCC part 15 (02/2006) Equipment under test: Remote control for Sensor Espio-pool alarm ref TEL-007-M FCC ID: UQJ - 070 Company: MG International Diffusion: Mr CHAUSSIN (Company: MG International) Number of pages: 16 including 3 annexes Ed. Date Modified page(s) Written by Name Visa Technical verification Name Visa Quality approval Name Visa 0 29-Mar-07 Creation Régis GONZALEZ Olivier HEYER Olivier HEYER Duplication of this report is only permitted for an integral photographic facsimile. It includes the number of pages referenced above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole production of the item tested. R041-07-101068-1A Ed.0 PAGE: 2 NAME OF THE EQUIPMENT UNDER TEST (E.U.T.) : Remote control for Sensor Espio-pool alarm ref TEL-007-M Serial number : None Part number : None Software Version : None MANUFACTURER'S NAME : MG International APPLICANT’S ADRESS: Company : MG International Adress : Zone Industrielle Athelia II Avenue de la Sariette 13600 LA CIOTAT FRANCE Person(s) present during the tests : Nobody Responsible : Mr CHAUSSIN DATE(S) OF TESTS : March, the 3 rd and the 5 th of 2007 TESTS LOCATION(S) : EMITECH Grand Sud laboratory in Vendargues (34) Open area test site in Salinelles (30) FCC Registration Number: 812719 TESTS SUPERVISOR(S) : None TESTS OPERATOR(S) : Régis GONZALEZ R041-07-101068-1A Ed.0 PAGE: 3 CONTENTS 1. INTRODUCTION................................................................................................................................2 2. REFERENCE DOCUMENT(S)...........................................................................................................2 3. EQUIPMENT UNDER TEST CONFIGURATION ...............................................................................2 4. EQUIPMENT CHARACTERISTIC .....................................................................................................2 5. EQUIPMENT UNDER TEST CONFIGURATION SCHEME ...............................................................2 6. SUMMARY OF TEST RESULTS .......................................................................................................2 7. RADIATED ELECTRIC FIELD MEASUREMENT..............................................................................2 ANNEX 1: PHOTOGRAPH(S) ...................................................................................................................9 ANNEX 2: EMISSION BANDWIDTH........................................................................................................13 ANNEX 3: MANUALLY OPERATED TRANSMISSION DURATION .......................................................15 R041-07-101068-1A Ed.0 PAGE: 4 1. INTRODUCTION This document submits the results of Radio tests performed on the equipment Remote control for Sensor Espio-pool alarm ref TEL-007-M (denominated hereafter E.U.T.: equipment under test) according to document(s) listed below. 2. REFERENCE DOCUMENT(S) FCC Part 15 (02/2006) Code of Federal Regulations Title 47 – Telecommunications Chapter 1 – Federal Communications Commision Part 15 – Radio frequency devices Subpart C – Intentional Radiators ANSI C 63.4 (03) American National Standard for Methods of measurement of Radio-Noise from low-voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 3. EQUIPMENT UNDER TEST CONFIGURATION Equipment under test (E.U.T.) general description : Remote control for detector of immersion type Sensor Espio for swimming-pool Equipment control procedure during immunity tests: N.A. emission test only Susceptibility criteria during a continuous disturbance: N.A. emission test only Susceptibility criteria during a transitory disturbance : N.A. emission test only Cycle and operating mode during emission tests : Permanent no modulated emission exepted for bandwidth measurement Equipment modifications applied during tests : No N.A.: Not applicable R041-07-101068-1A Ed.0 PAGE: 5 4. EQUIPMENT CHARACTERISTIC FCC ID: UQJ-070 ITU emission code: 42K0F1D Utilization: Remote control for Swimming-pool alarm system Antenna type: Integrated wire antenna Operating frequency: 433.245 MHz Number of channels: 1 Channel spacing: Not concerned Frequency generation: □ SAW Resonator □ Crystal ⌧Synthetizer Modulation: □Amplitude (pulsed modulated device) □ Digital ⌧ Frequency □ Phase Power source: 1 x CR2032 (3 V) 5. EQUIPMENT UNDER TEST CONFIGURATION SCHEME Equipment is set out on a wooden table at 0.8 m of the ground plane (see Photographs in annex 1). R041-07-101068-1A Ed.0 PAGE: 6 6. SUMMARY OF TEST RESULTS Tests designation or section Results satisfying? Comments 15.33 Frequency range of radiated measurement - Considered 15.35 Measurement detector functions and bandwidths - Considered 15.203 Antenna requirement YES Nota 1 15.205 Restricted bands of operation YES 15.209 Radiated emission limits, general requirements YES Considered 15.231 Periodic operation in the band 40.66 – 40.70 MHz and above 70 MHz a) Transmission requirements YES Nota 2 b) Radiated emission YES Nota 3 c) Occupied bandwidth YES Nota 4 d) Frequency tolerance N.A. E.U.T. does not transmit in the band 40.60 – 40.70 MHz e) Periodic alternate field strength measurement N.A. Requirements of a) is used N.P.: Not Performed. N.A.: Not Applicable. Sample submitted to the tests complies with the regulations of the standard FCC part 15 (02/2006) according to limits specified in this tests report. Nota 1: Internal antenna without connector Nota 2: Manually operated transmitter with a duration less than 5s (see Photograph(s) in annex 3). Nota 3: Calculation of field strength limit of fundamental (433.245 MHz): 41.6667 (F) – 7083.3333 = 10 968 μV/m = 80.8 dBμV/m Nota 4: The bandwidth of the emission at 20 dBc is 41.30kHz (see Graph(s) in annex 2), less than 0.25 % of the center frequency (1083 kHz) R041-07-101068-1A …
