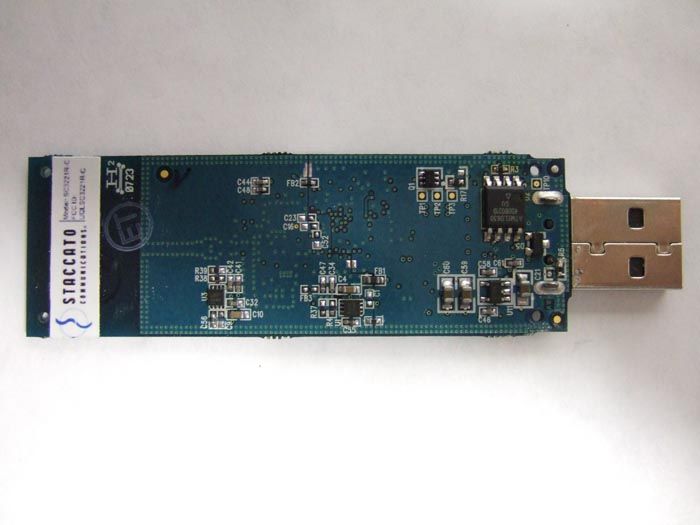

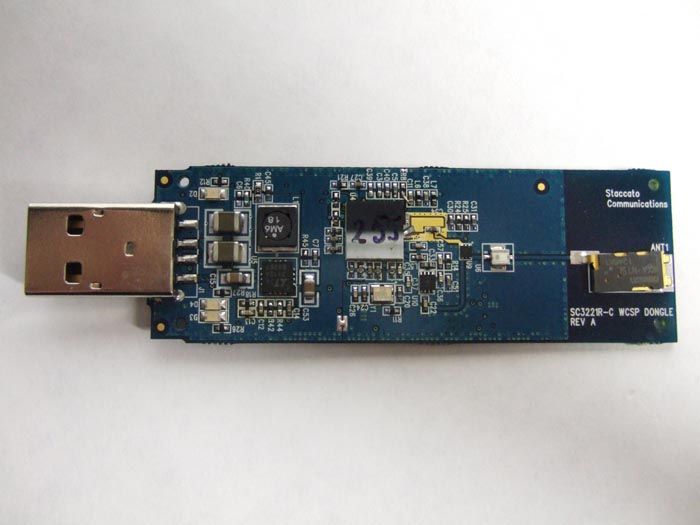

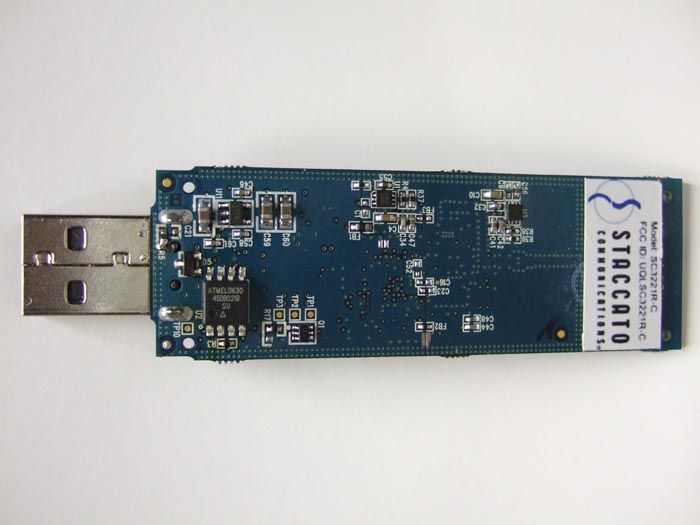

UQLSC3221R-CSC3221R-C Wireless WCSP HWA Dongle Module

SC3221R-C – WCSP HWA DONGLE User Guide ©2007 Staccato Communications, Inc. All rights reserved. Abstract: This guide functions as a user guide for the installation and operation of the SC3221R-C with regards to FCC certification testing C S ommunications taccato 6195 Lusk Blvd, Suite 200 San Diego, CA 92121 858-812-1000 www.staccatocommunications.com SC3221R-C User Manual Table of Contents 1. Legal..........................................................................................................................................................................................3 2. Regulatory Notices.....................................................................................................................................................................3 3. Introduction...............................................................................................................................................................................4 3.1. SC3221R-C Features..................................................................................................................................................................................4 3.2. System Requirements.................................................................................................................................................................................4 4. Installation.................................................................................................................................................................................4 4.1. Software Installation...................................................................................................................................................................................4 4.2. Hardware/Driver Installation...................................................................................................................................................................5 5. Operation..................................................................................................................................................................................8 6. Support......................................................................................................................................................................................8 ©2006 Staccato Communications, Inc. All rights reserved. Page 2 of 8 SC3221R-C User Manual 1. Legal © 2006 Staccato Communications. All rights reserved. Information provided in this document is provided in connection with Staccato products. All information contained in this document is subject to change without notice. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Staccato or third parties. Except as provided in Staccato’s Terms and Conditions of Sale for such products, Staccato assumes no liability whatsoever, and Staccato disclaims any express or implied warranty, relating to sale and/or use of Staccato products including liability or warranties relating for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Staccato’s products are not authorized for use in life-support or safety critical applications. Use in such applications is done at the sole discretion of the customer. Staccato will not warrant the use of its devices in such applications. While the information contained herein is believed to be accurate, such information is preliminary, and should not be relied upon for accuracy or completeness, and no representations or warranties of accuracy or completeness are made. THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. In no event shall Staccato be liable for damages arising directly or indirectly from any use of the information contained in this document. All trademarks listed in this document are the property of their respective holders. Contact your Staccato sales representative to obtain the latest specifications before placing your product order. Staccato Communications 6195 Lusk Boulevard, Suite 200 San Diego, CA 92121 Phone: 858.812.1000 Fax: 858.812.1001 www.staccatocommunications.com 2. Regulatory Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THIS DEVICE MUST BE INSTALLED IN A LOCATION THAT IS NOT ACCESSIBLE TO THE GENERAL PUBLIC. INSTALL THE DEVICE SO THAT THE ANTENNA IS MORE THAN 20 CM FROM UNSUSPECTING PERSONNEL. FAILURE TO INSTALL THIS DEVICE AS DESCRIBED WILL RESULT IN A FAILURE TO COMPLY WITH FCC RULES FOR RF EXPOSURE AND IS DISCOURAGED. ONLY ANTENNAS APPROVED WITH THE DEVICE MAY BE USED. THIS DEVICE MAY NOT BE CO-LOCATED WITH OTHER TRANSMITTERS WITHOUT FURTHER APPROVAL BY THE FCC. The device is compliant with 47 CFR 15.519(a)(1): “A UWB device operating under the provisions of this section shall transmit only when it is sending information to an associated receiver. The UWB intentional radiator shall cease transmission within 10 seconds unless it receives an acknowledgement from the associated receiver that its transmission is being received. An acknowledgement of reception must continue to be received by the UWB intentional radiator at least every 10 seconds or the UWB device must cease transmitting.” Note: Any intentional or unintentional modifications not expressly approved by Staccato Communications or the FCC will void the warranty of the device and the authority of the user to operate the device. ©2006 Staccato Communications, Inc. All rights reserved. Page 3 of 8 SC3221R-C User Manual 3. Introduction This document provides installation and operation instructions for the SC3221R-C Certified Wireless USB HWA Dongle. For testing, please follow …

Text truncated - open the document above for the full version.

0.90” 0.25”

0.90” 0.44”

SC3221R-C Theory of Operation SC3221R-C – Wireless WCSP HWA Dongle based upon Certified Wireless USB From inception, California headquartered Staccato Communications has dedicated itself to the UWB market by driving global standards activities, creating industry momentum, and engaging in cutting-edge technological development. Staccato™ is recognized for being the leader in single-chip, all CMOS complete solutions based on the WiMedia Common Radio Platform for Certified Wireless USB. Staccato’s 110nm highly-integrated digital CMOS silicon includes RF, Digital Baseband, Media Access Controller (MAC), Memory, 32-bit RISC Processor, Encryption Engine and various I/O including USB 2.0 Host, USB 2.0 Device and SDIO 1.1 Device. Staccato is enabling the personal computer, consumer electronic and mobile device industries with high-speed wireless personal area network (WPAN) solutions optimized for cost, power consumption and form-factor. The SC3221R-C product incorporates Staccato’s Ripcord™ SC3500P series silicon with pin-out for Certified Wireless USB Host Wire Adapter (HWA). This product is to be used with a Certified Wireless USB Device Wire Adapter (DWA) or native Device and enables the host system (such as notebooks) to access legacy USB devices (such as printers, hard-disk drivers, digital still cameras, and personal media players) wirelessly at data rates of up to 480Mbps, according to the specifications defined by the USB Implementers Forum. SC3221R-C is compliant with WiMedia PHY specification v1.1, and operates in the 3168-4752MHz spectrum. The SC3500P series silicon also supports Certified Wireless USB DWA products providing end-to-end wireless connectivity between the host system and legacy USB devices.. The spirit of wire adapters is to enable fast deployment of Certified Wireless USB by allowing minimal software/firmware modifications, primarily to the host PC. Staccato’s numerous reference design kits include working hardware samples, schematics, PCB Gerber layout files, bill-of-materials, design guides, production test guides, HWA and DWA Windows XP drivers and utilities, and a sample end user manual in order to accelerate time to market. The reference designs are supplemented by Staccato’s UWB University and Team Staccato Partner Program. UWB University offers a free online educational review of the most relevant industry topics for engineers and business executives in the Certified Wireless USB, Bluetooth 3.0 and IP-over-UWB arenas. The Team Staccato partner program provides customers with total solutions through alliances with industry leaders throughout the value chain, including suppliers of UWB components, software, test equipment and services, and design services. Staccato’s Ripcord SC3500P series silicon transmits WiMedia UWB signals that have instantaneous bandwidth (BW) greater than 500MHz or fractional occupied BW greater than 20 percent as defined by the FCC Report and Order for UWB Communications. Band Group 1 is divided into 3 individual bands, each 528MHz wide, with center frequencies of 3432MHz, 3960MHz and 4488MHz. Staccato’s silicon transmits either by band switching between the 3 bands or remaining stationary in each band, known as TFI or FFI respectively. Staccato’s silicon occupies approximately 1584MHz while band switching in TFI mode (528MHz instantaneously) and the average transmitted power is approximately -9.3dBm (or - 14dBm when stationary operating in FFI mode). FCC Part 15 regulation in Subpart F, Section 15.517 and 15.519 specifies maximum average Equivalent Iso-tropically Radiated Power (EIRP) of – 41.3dBm (53.9dBuV/m) measured using a resolution bandwidth of 1MHz. EIRP in dBm coverts to a field strength, in dBuV/m at 3 meters, by adding 95.2dB. One hundred twenty two modulated Orthogonal Frequency Division Multiplexed (OFDM) sub-carriers comprise the 528MHz wide signal of each band. Document No. E-AP-2007-0231 C ommunications taccato San Diego, CA 92121 858-812-1000 www.staccatocommunications.com S 6195 Lusk Blvd, Suite 200

Compliance report of WCSP-HWA UWB Module [Model: SC3221R-C] Customer: Staccato Communications Date: September 13, 2007 TDK Report: TTS-TR-T112-123 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Report A. Medina P. Carson/K. Yata All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK RF Systems Inc. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government 1. Executive Summary An EMC evaluation to determine compliance of the WCSP-HWA UWB Module model SC3221R-C with requirements of FCC 47 CFR Part 15, Subpart F Section 15.519 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that are currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the WCSP-HWA UWB Module model SC3221R-C. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.519(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.519(b) Yes Radiated Emissions 15.519(c), 15.209 Yes Radiated Emissions in GPS Bands 15.519(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.519(e) Yes Labelling Requirements 15.19/15.212 Yes Report prepared by Approved by Armando Medina Kunio Yata September 13, 2007 September 22, 2007 This document contains confidential information and cannot be disclosed outside of Staccato Communications or any affiliated company in whole or in part without the express written permission of TDK R&D Corporation. TTS-TR-T112-123 page 2 of 51 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) FCC Second R&O 07-56A1 Part 15 unlicensed modular transmitter approval 47 CFR 15.212 Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification for technical requirements for Handheld UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Ultra-Wideband single module transmitter (hand- held UWB Limit) Page 3 of 51 2.2. Related Submittal(s)/Grant(s) As required in FCC 07-56A1 and 47 CFR 15.212 a cover letter requesting modular approval is included in the application for equipment authorization. 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG FCC 47 CFR, Part 15, Subpart C 04/2007 Part 15.212 unlicensed Modular Transmitter Approval 2.4. Client Information APPLICANT Name: Staccato Communications Address: 6195 Lusk Blvd. Suite 200, San Diego, CA 92121 Contact Person: Siddharth Shetty MANUFACTURER Name: Staccato Communications Address: 6195 Lusk Blvd. Suite 200, San Diego, CA 92121 Contact Person: Siddharth Shetty Page 4 of 51 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Staccato Product Name WCSP-HWA UWB Module Model Name or Number SC3221R-C Serial Number 11 Type of Equipment Wireless USB Dongle Input Power Supply Type USB port Classification Ultra-Wideband single module transmitter (hand-held UWB Limit) Technical Power Supply Requirements Powered through USB port of host PC RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3100 MHz to 4800 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pu…

Text truncated - open the document above for the full version.
