UR830391924GHz Automotive Radar

Radar based Blind Spot Information System MBX Operating & Integration Manual Remarks: Certification Documentation Revision: 2.0 Date: 12/12/2011 Page: 1 of 29 VALEO-RADAR SYSTEMS, INC. Laiernstr. 12, D-74321 Bietigheim-Bissingen / Germany
+ 49 (+7142) 916 – 0
+ 49 (+7142) 916 – 4000 This document is the exclusive property of Valeo-Raytheon System, Inc. It cannot be communicated or divulged to anybody without a previous written authorization. Radar based Blind Spot Information System MBX Operating & Integration Manual Document number: 121112 Revision number: 2.1 Revision date: December 12, 2011 Contact: [email protected] Valeo Radar Systems, Inc. Valeo Radar Systems, Inc. 150 Stephenson Highway Laiernstr. 12 Troy, MI 48083 USA 74321 Bietigheim-Bissingen Tel:+1(248) 619-8300 GERMANY Tel: +49 (0) 7142 916 0 Radar based Blind Spot Information System MBX Operating & Integration Manual Remarks: Certification Documentation Revision: 2.0 Date: 12/12/2011 Page: 2 of 29 VALEO-RADAR SYSTEMS, INC. Laiernstr. 12, D-74321 Bietigheim-Bissingen / Germany
+ 49 (+7142) 916 – 0
+ 49 (+7142) 916 – 4000 This document is the exclusive property of Valeo-Raytheon System, Inc. It cannot be communicated or divulged to anybody without a previous written authorization. Document purpose This document provides the specifications to operate and integrate the Blind Spot Detection (BSD) MBX Sensors in a car Revision record Revision Date Remarks Author 1.0 10/10/2011 Creation E.Amiot 2.0 12/12/2011 Updated version H Mkinsi 2.1 09/07/2012 Manual requirements see §7 E.Amiot Radar based Blind Spot Information System MBX Operating & Integration Manual Remarks: Certification Documentation Revision: 2.0 Date: 12/12/2011 Page: 3 of 29 VALEO-RADAR SYSTEMS, INC. Laiernstr. 12, D-74321 Bietigheim-Bissingen / Germany
+ 49 (+7142) 916 – 0
+ 49 (+7142) 916 – 4000 This document is the exclusive property of Valeo-Raytheon System, Inc. It cannot be communicated or divulged to anybody without a previous written authorization. Acronyms BLIS Blind Spot Information System bps Bits per Second BSD Blind Spot Detection System BSM Blind Spot Monitoring BSZ Blind Spot Zone CAN Controller Area Network CTS Component Technical Specification ECU Electronic Control Unit EIRP Effective Isotropic Radiate Power EMC Electromagnetic Compatibility EMI Electromagnetic Interference f c Center frequency of the intentional emission FoV Field of View HMI Human machine interface IPM Instrument Pack Module or Driver Information Center LED Electroluminescent icons MBX Multi Beam Radar n.a. Not applicable OEM Original Equipment Manufacturer PWM Pulse Wawe Modulation RF Radio frequency rBLIS Radar based Blind Spot Information System SOD Side Obstacle Detection VRS Valeo-Radar Systems, Inc. Radar based Blind Spot Information System MBX Operating & Integration Manual Remarks: Certification Documentation Revision: 2.0 Date: 12/12/2011 Page: 4 of 29 VALEO-RADAR SYSTEMS, INC. Laiernstr. 12, D-74321 Bietigheim-Bissingen / Germany
+ 49 (+7142) 916 – 0
+ 49 (+7142) 916 – 4000 This document is the exclusive property of Valeo-Raytheon System, Inc. It cannot be communicated or divulged to anybody without a previous written authorization. Definitions BSD Sensor: MBx Sensor Host vehicle: the vehicle fitted with the BSD. Object vehicle: the vehicle the BSD is searching to. Vehicle right side: the side to the right of the driver. Vehicle left side: the left of the driver. Blind spot zone: a defined area close to the host vehicle where the presence of an object vehicle that meets certain defined criteria causes the BSD to generate a warning. Human machine interface: the manner in which the sensor is able to provide information to the driver as well as the means for the driver to send information (or commands) to the sensors. Field of view: the area located in front of the sensor that the radar is able to monitor (this area may be much larger than the area that the radar is required to be able to see in order to provide alerts). Inside alert zone: an object of interest is considered “inside” the alert zone if any part of it is within the inner tolerance lines. Outside alert zone: an object of interest is considered “outside” the alert zone if it is entirely outside the outer tolerance lines. System latency: the time delay between an event taking place to the time the response output to the event is seen, heard or felt by the driver. Update time: the time between two consecutives measurements of the whole FoV. Relative speed: the differential speed between the host and object vehicles. Radar based Blind Spot Information System MBX Operating & Integration Manual Remarks: Certification Documentation Revision: 2.0 Date: 12/12/2011 Page: 5 of 29 VALEO-RADAR SYSTEMS, INC. Laiernstr. 12, D-74321 Bietigheim-Bissingen / Germany
+ 49 (+7142) 916 – 0
+ 49 (+7142) 916 – 4000 This document is the exclusive property of Valeo-Raytheon System, Inc. It cannot be communicated or divulged to anybody without a previous written authorization. Part I Document scope 1. MBX principle The Multi Beam Radar (MBX) is a radar sensor module used to monitor the alert zone (or blind area) of a vehicle, i.e. by sensing the back sides of the vehicle and by reporting to the driver if an object of interest meeting certain criteria in that area is present, or not. A message is transmitted on the CAN bus within the vehicle to indicate detection of an object of interest within the alert zone. Automotive manufacturers use different terms to describe this function, e.g. Blind Spot Detection System (BSD), Blind Spot Monitoring (BSM), Side Obstacle Detection (SOD), or Blind Spot Information System (BLIS). Figure 1 shows how the MBR sensors are placed on the vehicle and how the beams cover the alert zones on each side. 1.1. System operation The Multi Beam Radar Sensor (MBX) modules are to be mounted on each side of a vehicle near the back, behind the left and right hand side of the bumper with their rad…

Text truncated - open the document above for the full version.

SHORT-TERM CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 10 July 2012 TO WHOM IT MAY CONCERN Pursuant to the recent upgrade to the Office of Engineering and Technology’s (OET) Equipment Authorization System on 6/15/04 (ref. DA 04 –1705), Valeo Radar Systems Inc. requests temporarily confidentiality for the following product: FCC ID Number Product Title/Model UR8303919 MBHL TypA For the product stated above, we request that the following information be held confidential: 1. External and Internal Photographs 2. Test Setup Photos 3. User Manual We request this confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device, which is planned for 10 th January 2013 If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: Eric Amiot Company: Valeo Radar Systems Inc. Address: Laiernstrasse 12 - 74321 Bietigheim-Bissingen Phone: +49 714 2916 1195 Email: [email protected]

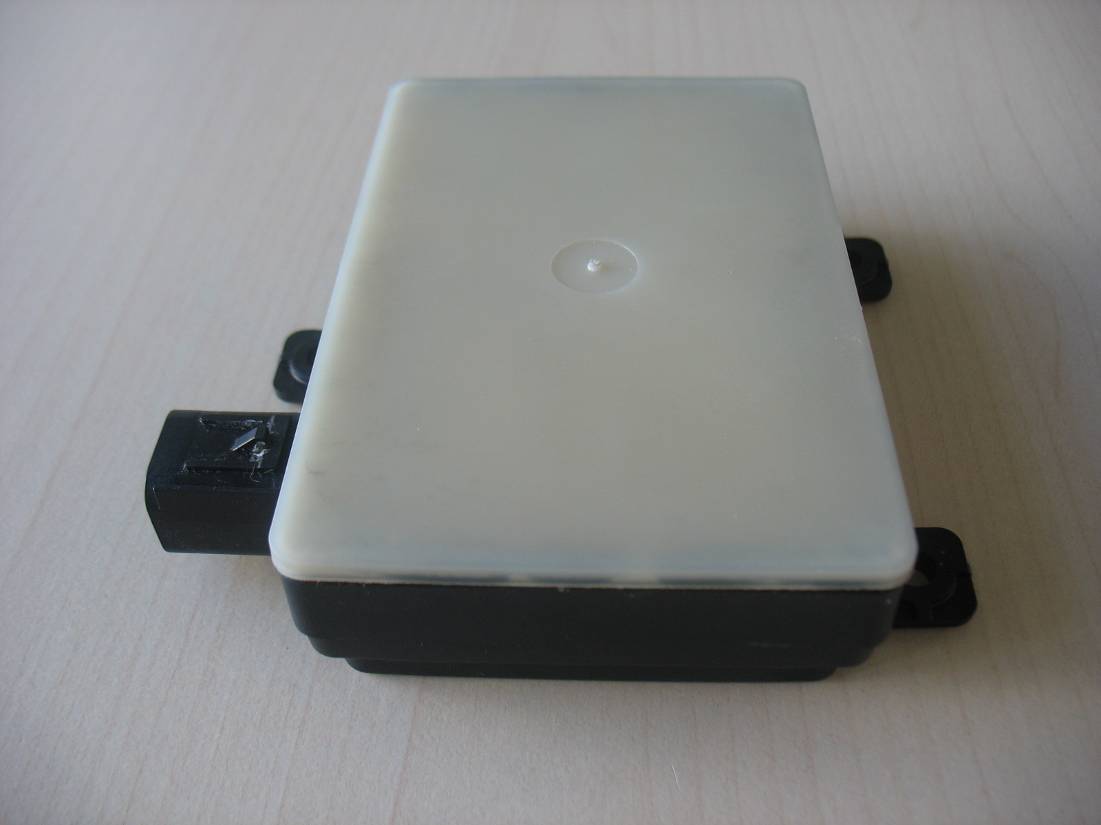

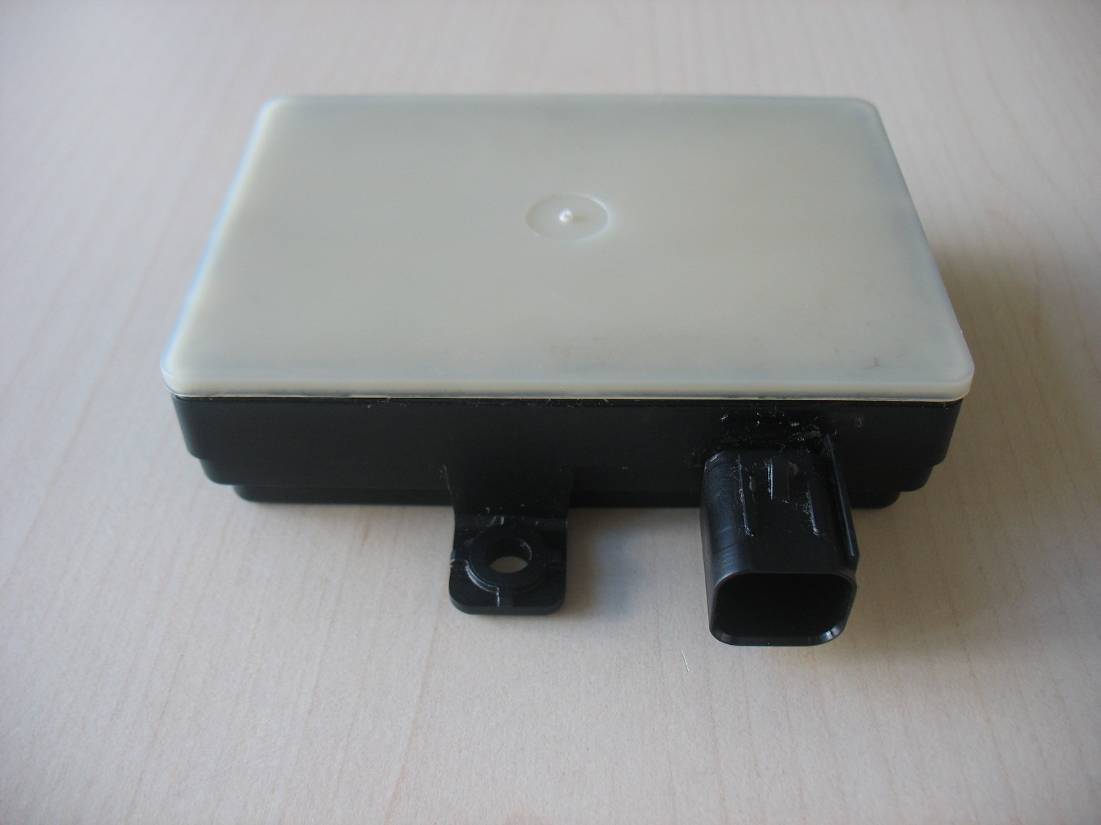

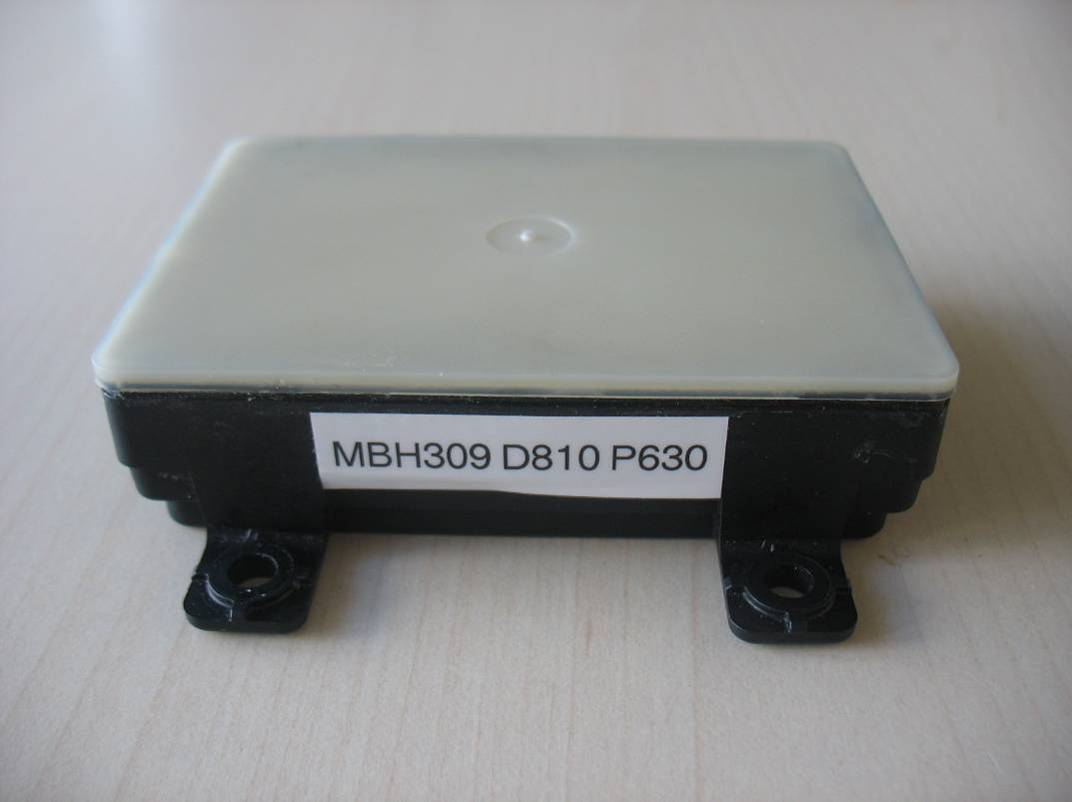

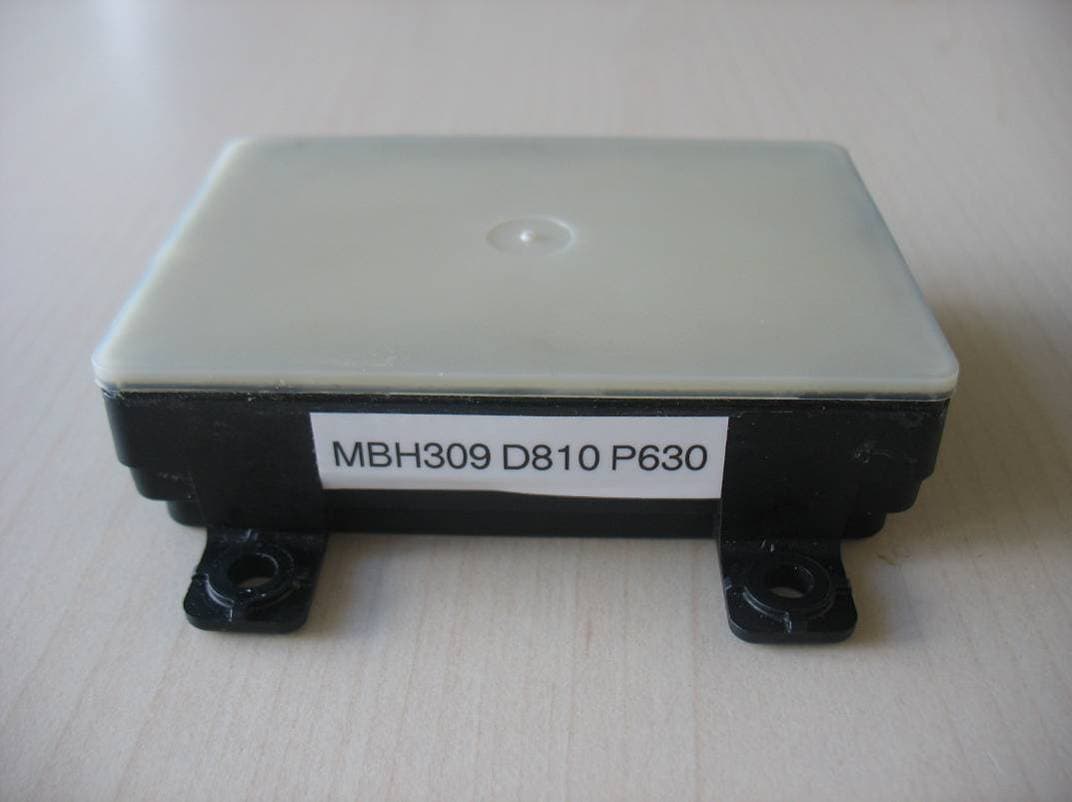

Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 35 of 46 Annex B External photographs of the EUT Photo No. 6: Photo No. 7: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 36 of 46 Photo No. 8: Photo No. 9: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 37 of 46 Photo No. 10: Photo No. 11:

Jun 12 Confidential –Property of Valeo Radar Systems, Inc. 11 MBHL Sensor Housing -Serial Identification Label example: Label: Sensor Identification Marking 202-LSA022 SN CCPPPPSYYDDDNNNN P/N XXX-XXXXXX-XXX ECU 30X.XXX MBHL TypA A1-A1111-AA Made in Germany, L47ZC 0682 FCC ID: UR8 303919 LOGO OEM Diameter ≥ 3 mm

Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 38 of 46 Annex C Internal photographs of the EUT Photo No. 12: Photo No. 13: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 39 of 46 Photo No. 14: Photo No. 15: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 40 of 46 Photo No. 16: Photo No. 17: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 41 of 46 Photo No. 18: Photo No. 19: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 42 of 46 Photo No. 20: Photo No. 21: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 43 of 46 Photo No. 22: Photo No. 23: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 44 of 46 Photo No. 24:

2012-07-26 Page 1 of 47 TEST REPORT Test report no.: 1-3132/11-03-06-B Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing la boratory (area of testing) is accredited according to DIN EN ISO/IEC 170 25 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the sc ope of testin g procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communications Valeo Schalter und Detektionssysteme GmbH Laiernstrasse 12 74321 Bietigheim-Bissingen / GERMANY Phone: +49 7142 916-0 Fax: +49 7142 916-4195 Contact: Eric Amiot e-mail: [email protected] Phone: +49 7142 916-1195 Manufacturer Valeo Schalter und Detektionssysteme GmbH Laiernstrasse 12 74321 Bietigheim-Bissingen / GERMANY Test standard/s FCC 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio Frequency Devices RSS-310 Spectrum Management and Telecommunications - Radio Standards Specification Licence-exempt Radio Apparatus (all frequency bands): Category II Equipment For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: 24 GHz Automotive Radar Model name: MBHL TypA Configuration: A1-A11111-AA FCC ID: UR8303919 Frequency: 24.05 - 24.25 GHz Antenna: integrated patch antenna Power Supply: 12.0 V DC via external power supply Temperature Range: -40 °C to +85 °C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: p.o. Tobias Wittenmeier Meheza Walla Karsten Geraldy Test report no.: 1-3132/11-03-06-B 2012-07-26 Page 2 of 47 1 Table of contents 1 Table of contents............................................................................................................................................2 2 General information .......................................................................................................................................3 2.1 Notes and disclaimer ..........................................................................................................................3 2.2 Application details...............................................................................................................................3 3 Test standard/s ...............................................................................................................................................3 4 Test environment............................................................................................................................................4 5 Test item ..........................................................................................................................................................4 6 Test laboratories sub-contracted .................................................................................................................4 7 Summary of measurement results ...............................................................................................................5 8 RF measurement testing ...............................................................................................................................6 8.1 Description of test setup ....................................................................................................................6 8.1.1 Radiated measurements.............................................................................................................6 8.1.2 Additional comments ..................................................................................................................7 9 Measurement results......................................................................................................................................8 9.1 Field strength of emissions (wanted signal) ....................................................................................8 9.2 Occupied bandwidth (99% bandwidth) ...........................................................................................14 9.3 Field strength of emissions (radiated spurious) ............................................................................17 10 Test equipment and ancillaries used for tests ...................................................................................31 Annex A Photographs of the test setup ......................................................................................................33 Annex B External photographs of the EUT.................................................................................................36 Annex C Internal photographs of the EUT ..................................................................................................39 Annex D Document history ..........................................................................................................................46 Annex E Further information........................................................................................................................46 Annex F Accreditation Certificate ...............................................................................................................47 Test report no.: 1-3132/11-03-06-B 2012-07-26 Page 3 of 47 2 General information 2.1 Notes and disclaimer The test results of this test report relate exclusively to the test item specified in this test report. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the tes t results with regard to other specimens or samples of the type of the equipment represented by the test item. The test repo…

Text truncated - open the document above for the full version.

2012-07-26 Page 1 of 47 TEST REPORT Test report no.: 1-3132/11-03-06-B Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing la boratory (area of testing) is accredited according to DIN EN ISO/IEC 170 25 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the sc ope of testin g procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communications Valeo Schalter und Detektionssysteme GmbH Laiernstrasse 12 74321 Bietigheim-Bissingen / GERMANY Phone: +49 7142 916-0 Fax: +49 7142 916-4195 Contact: Eric Amiot e-mail: [email protected] Phone: +49 7142 916-1195 Manufacturer Valeo Schalter und Detektionssysteme GmbH Laiernstrasse 12 74321 Bietigheim-Bissingen / GERMANY Test standard/s FCC 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio Frequency Devices RSS-310 Spectrum Management and Telecommunications - Radio Standards Specification Licence-exempt Radio Apparatus (all frequency bands): Category II Equipment For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: 24 GHz Automotive Radar Model name: MBHL TypA Configuration: A1-A11111-AA FCC ID: UR8303919 Frequency: 24.05 - 24.25 GHz Antenna: integrated patch antenna Power Supply: 12.0 V DC via external power supply Temperature Range: -40 °C to +85 °C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: p.o. Tobias Wittenmeier Meheza Walla Karsten Geraldy Test report no.: 1-3132/11-03-06-B 2012-07-26 Page 2 of 47 1 Table of contents 1 Table of contents............................................................................................................................................2 2 General information .......................................................................................................................................3 2.1 Notes and disclaimer ..........................................................................................................................3 2.2 Application details...............................................................................................................................3 3 Test standard/s ...............................................................................................................................................3 4 Test environment............................................................................................................................................4 5 Test item ..........................................................................................................................................................4 6 Test laboratories sub-contracted .................................................................................................................4 7 Summary of measurement results ...............................................................................................................5 8 RF measurement testing ...............................................................................................................................6 8.1 Description of test setup ....................................................................................................................6 8.1.1 Radiated measurements.............................................................................................................6 8.1.2 Additional comments ..................................................................................................................7 9 Measurement results......................................................................................................................................8 9.1 Field strength of emissions (wanted signal) ....................................................................................8 9.2 Occupied bandwidth (99% bandwidth) ...........................................................................................14 9.3 Field strength of emissions (radiated spurious) ............................................................................17 10 Test equipment and ancillaries used for tests ...................................................................................31 Annex A Photographs of the test setup ......................................................................................................33 Annex B External photographs of the EUT.................................................................................................36 Annex C Internal photographs of the EUT ..................................................................................................39 Annex D Document history ..........................................................................................................................46 Annex E Further information........................................................................................................................46 Annex F Accreditation Certificate ...............................................................................................................47 Test report no.: 1-3132/11-03-06-B 2012-07-26 Page 3 of 47 2 General information 2.1 Notes and disclaimer The test results of this test report relate exclusively to the test item specified in this test report. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the tes t results with regard to other specimens or samples of the type of the equipment represented by the test item. The test repo…

Text truncated - open the document above for the full version.

Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 32 of 46 Annex A Photographs of the test setup Photo No. 1: Photo No. 2: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 33 of 46 Photo No. 3: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 34 of 46 Photo No. 4: Photo No. 5:

Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 32 of 46 Annex A Photographs of the test setup Photo No. 1: Photo No. 2: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 33 of 46 Photo No. 3: Test report no.: 1-3132/11-03-06-A 2012-07-03 Page 34 of 46 Photo No. 4: Photo No. 5:
