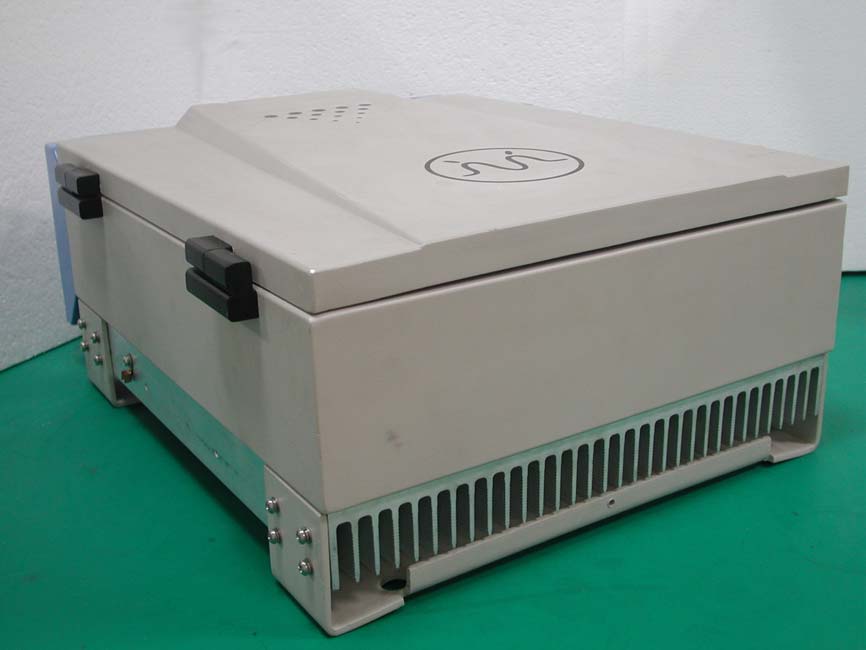

URFL800RDBS-ABooster / 800MHz Band-Selective Bi-Directional Amp

Dual-Band Selective Repeater User’s Manual Longent 2112 Duskywing Drive Raleigh, NC 27613 Office: 919.845.1007 Fax: 919.882.9551 Email: [email protected] www.longent.com Ve r. 0 2 Contents Contents ............................................................................................................................................2 1. Introduction...................................................................................................................................3 1.1. Product Features.................................................................................................................4 1.2. Front View..........................................................................................................................5 1.3. Bottom View ......................................................................................................................5 2. Specification .................................................................................................................................6 2.1. RF Specifications ...............................................................................................................6 2.2. Electrical Specifications.....................................................................................................6 2.3. Mechanical Specifications .................................................................................................6 2.4. Environmental Specifications ............................................................................................7 2.5. Monitor and Control...........................................................................................................7 3. Functional Description ..................................................................................................................8 3.2. Unit Descriptions .............................................................................................................9 4. Installation...................................................................................................................................10 4.1. Mounting..........................................................................................................................10 4.2. Connection .......................................................................................................................11 5. Operation and Maintenance ........................................................................................................12 5.1. WEB Interface..................................................................................................................12 5.1.1. Introduction...........................................................................................................12 5.1.2. Hardware and Software Requirements..................................................................12 5.1.3. Environment Configuration...................................................................................13 5.1.4. Basic Operation of WEB Interface........................................................................17 5.2. Keypad Interface..............................................................................................................23 Ve r. 0 3 1. Introduction Repeaters are used to fill out uncovered areas in cellular mobile systems, such as base station fringe areas, road tunnels, business and industrial buildings, etc. A repeater receives signals from a base station, amplifies and retransmits the signals to mobile stations. Also it receives, amplifies and retransmits signals in the opposite direction. Both directions are served simultaneously. To be able to receive and transmit signals in both directions, the repeater is connected to a donor antenna directed towards the base station and to a service antenna directed towards the area to be covered. Figure 1 Outdoor Application Figure 2 Indoor Application Ve r. 0 4 Longent dual-band selective repeaters with 2 adjustable bandwidths have filters that can be set to various bandwidths. This repeater type is suitable for the most carriers that need 2 band blocks support in 800 MHz cellular band. Figure 3 Longent Repeater 1.1. Product Features z Full Block A + A* or Block B + B* support z 2 programmable bandwidth, 0.5 MHz to 20 MHz for each z RF output power in user definable, 30 dBm max. z Web interface for monitoring and control z Integrated RF module Ve r. 0 5 1.2. Front View 1.3. Bottom View MSBSBS AC '5@ &217$&7 ,13<7 5☺'5@ &217$&7 2<73<7 32> (5 23(5 Ve r. 0 6 2. Specification 2.1. RF Specifications z Frequency Band 824 – 849 MHz, Uplink (Reverse Link) 869 – 894 MHz, Downlink (Forward Link) z Number of Bands 2 z Bandwidth 0.5 – 20 MHz, Programmable z Gain Adjustment Range 55 – 85 dB (1 dB Steps) z ALC > 30 dB z Absolute Group Delay < 10 μs (8 μs Typical) z Output Power +30 dBm, Total z Maximum Input Power +13 dBm (Non-destructive) z Out of Band Spurious Emission -30 dBm, max. z Selectivity < -20 dB @ +/-500 kHz out of band < -30 dB @ +/-700 kHz out of band < -50 dB @ +/-1 MHz out of band z Pass Band Ripple 6 dB (Typical 3 dB @ +/-1 MHz departure from the edge within the selected band) z Noise Figure at Max Gain 5 dB z VSWR < 1.5 : 1 2.2. Electrical Specifications z Power Supply Voltage (default) 115 V AC z Power Consumption, max 200 W z DC Output of PSU 27 V, 12 V 2.3. Mechanical Specifications z Dimensions (W×H×D) 410 mm × 520 mm × 234 mm z Weight 23 kg z RF Connector N-type female z Signal Connectors RJ45 Modular Jack DB25 female for 8 dry contact output DB9 female for 6 dry contact input Ve r. 0 7 2.4. Environmental Specifications z Temperature Range -25 to +55 °C z Humidity 95%, Relative z Casing Class IP53 2.5. Monitor and Control Monitor z Output Power z ALC Attenuation z DGC Attenuation z PA E n a b l e z PA temperature z VSWR z Band Setting z Used Gain Control z ALC level z DGC Attenuation z PA E n a b l e z Band Setting Alarm z PA faul…

Text truncated - open the document above for the full version.

Longent,LLC FCC ID.: URFL800RDBS-A 2112 Duskywing Drive Raleigh , NC27613 Tel : 919-845-1007 FAX: 919-845-1007 Federal Communications Commission Mar. 12 , 2007 Authorization and Evaluation Division ATTESTATION FCC ID: URFL800RDBS-A Product: 800 MHz Dual Band Selective Repeater Model: L800RDBS-A We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Mr. Rick Youngbar / Engineer Longent,LLC

RF_160, Issue 01 Declaration of Authorization We Name: Longent, LLC Address: 2112 Duskywing Drive Raleigh , NC 27613 City: .................................................................. . Country: ........................................................................... . Declare that: Name: Longent, LLC Address: 2112 Duskywing Drive Raleigh , NC 27613 City: .................................................................. . Country: ........................................................................... . is authorized to apply for Certification of the following product(s): Product description: CDMA 800 MHz Dual Band Selective Repeater ............... . Type designation: L800RDBS-A ........................ . Trademark: Longent........................... on our behalf. Date: ...... 2007/03/12 ............... ....... City: ...... Taipei ........................ .... Name: ...... Mr. Rick Youngbar ......... Signature:

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 22, 2007 RE: Longent, LLC FCC ID: URFL800RDBS-A I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Kindly provide an electronic block diagram for this device. What you have provided is some sort of an interconnect diagram. 2.) Why do I have a Part 15 DA-00-1407 modular approval letter? I am confused. 3.) Please review your Internal Photographs. It appears some views are missing. You are reminded that FCC wants top and bottom of all circuit boards with all RF shielding removed. The photos need to be clear and (ideally) one to a page. Please make them bigger. 4.) All Licensed transmitters need a Parts List. 5.) RF Exposure documents are missing. 6.) See Section 1.3 of your Test Report. Shouldn’t the diagram(s) provided resemble more what is provided in Section 2.2? 7.) Your uplink/downlink occupied BW plots for input and output should have a 30KHz RBW, not 100KHz. 8.) I cannot read the labeling for the connectors on this device on either the External Photos or inside the Manual. Please provide clearer external photos concentrating on the connectors. In addition, an additional photo of the top and bottom of this unit would be appreciated. 9.) FYI: Be careful – your Manual cannot contain information that is held Confidential elsewhere in the filing. 10.) Although not specifically required by the Rules, a graph of input power and resultant output power would be useful for both uplink and downlink sections. Please begin chart from -60dBm and increment in 10dB steps to maximum output power. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Longent,LLC FCC ID.: URFL800RDBS-A 2112 Duskywing Drive Raleigh , NC27613 Tel : 919-845-1007 FAX: 919-845-1007 Longent,LLC 2112 Duskywing Drive Raleigh , NC27613 Tel : 919-845-1007 Fax: 919-882-9551 Federal Communications Commission Mar. 12 , 2007 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics, Block Diagram,Parts list, Operational Description and Turn up procedure. The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Mr. Rick Youngbar / Engineer Longent,LLC

Longent,LLC FCC ID.: URFL800RDBS-A 2112 Duskywing Drive Raleigh , NC27613 Tel : 919-845-1007 FAX: 919-845-1007 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Model No: L800RDBS-A FCC ID: URFL800RDBS-A Trade name: Longent "This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference."

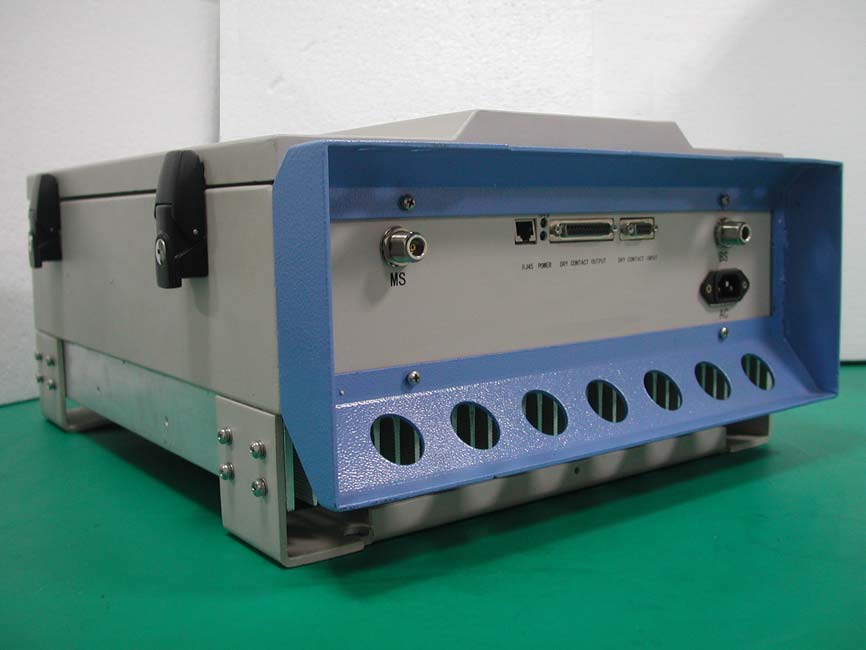

Ve r. 0 6 2. Specification 2.1. RF Specifications z Frequency Band 824 – 849 MHz, Uplink (Reverse Link) 869 – 894 MHz, Downlink (Forward Link) z Number of Bands 2 z Bandwidth 0.5 – 20 MHz, Programmable z Gain Adjustment Range 55 – 85 dB (1 dB Steps) z ALC > 30 dB z Absolute Group Delay < 10 μs (8 μs Typical) z Output Power +30 dBm, Total z Maximum Input Power +13 dBm (Non-destructive) z Out of Band Spurious Emission -30 dBm, max. z Selectivity < -20 dB @ +/-500 kHz out of band < -30 dB @ +/-700 kHz out of band < -50 dB @ +/-1 MHz out of band z Pass Band Ripple 6 dB (Typical 3 dB @ +/-1 MHz departure from the edge within the selected band) z Noise Figure at Max Gain 5 dB z VSWR < 1.5 : 1 2.2. Electrical Specifications z Power Supply Voltage (default) 115 V AC z Power Consumption, max 200 W z DC Output of PSU 27 V, 12 V 2.3. Mechanical Specifications z Dimensions (W×H×D) 410 mm × 520 mm × 234 mm z Weight 23 kg z RF Connector N-type female z Signal Connectors RJ45 Modular Jack DB25 female for 8 dry contact output DB9 female for 6 dry contact input Ve r. 0 7 2.4. Environmental Specifications z Temperature Range -25 to +55 °C z Humidity 95%, Relative z Casing Class IP53 2.5. Monitor and Control Monitor z Output Power z ALC Attenuation z DGC Attenuation z PA E n a b l e z PA temperature z VSWR z Band Setting z Used Gain Control z ALC level z DGC Attenuation z PA E n a b l e z Band Setting Alarm z PA fault z High Temperature z Overpower z Synthesizer Fault (unlock) z PSU (Power Supply Unit) fault z Self-oscillation z VSWR Alarm z Door Open Alarm z External Alarm 1 ~ 6

Report No.: 073L006-HPUSP04V01 Page: 1 of 29 Version:1.0 Test Report Product Name : 800MHz Dual Band Selective Repeater Model No : L800RDBS-A Applicant : Longent, LLC Address : 2112 Duskywing Drive Raleigh, NC 27613 Date of Receipt : 2007/02/26 Issued Date : 2007/03/15 Report No. : 073L006-HPUSP04V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government. Report No.: 073L006-HPUSP04V01 Page: 2 of 29 Version:1.0 Test Report Certification Issued Date: 2007/03/15 Report No.:073L006-HPUSP04V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government. Product Name : 800MHz Dual Band Selective Repeater Applicant : Longent, LLC Address : 2112 Duskywing Drive Raleigh, NC 27613 Manufacturer : Longent, LLC Model No. : L800RDBS-A Rated Voltage : AC 120V/60Hz Trade Name : Longent Measurement Standard : FCC CFR Title 47 Part2 22 Measurement Reference : TIA/EIA 603-A Test Result : Complied Documented By : (Engineering Adm. Assistant / Eva Huang) Tested By : (Senior Engineer / Shine Hsu) Approved By : (President / Gene Chang) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No.: 073L006-HPUSP04V01 Page: 3 of 29 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ........................................................................................................... 4 1.2. Operational Description............................................................................................... 5 1.3. Configuration of tested System .................................................................................. 6 1.4. EUT Setup Procedures ................................................................................................ 6 1.5. Test Facility ...................................................................................................................7 1.6. Type of Emission .......................................................................................................... 7 2. RF Power Output .......................................................................................................... 8 2.1. Test Equipment............................................................................................................. 8 2.2. Test Setup .....................................................................................................................8 2.3. Limits ............................................................................................................................. 9 2.4. Test Procedure.............................................................................................................. 9 2.5. Test Specification ......................................................................................................... 9 2.6. Test Result of RF Power Output................................................................................ 10 3. Occupied Bandwidth.................................................................................................. 12 3.1. Test Equipment........................................................................................................... 12 3.2. Test Setup ................................................................................................................... 12 3.3. Test Procedure............................................................................................................ 13 3.4. Test Specification ....................................................................................................... 13 3.5. Test Result of Occupied Bandwidth ......................................................................... 14 4. Spurious Emission At Antenna Terminals ............................................................... 16 4.1. Test Equipment........................................................................................................... 16 4.2. Setup ...........................................................................................................................16 4.3. Limits ........................................................................................................................... 17 4.4. Test Procedure............................................................................................................ 17 4.5. Test Specification ....................................................................................................... 17 4.6. Spurious Emission At Antenna Terminals ............................................................... 18 5. Spurious Emission ..................................................................................................... 25 5.1. Test Equipment........................................................................................................... 25 5.2. Test Setup ................................................................................................................... 25 5.3. Limits ........................................................................................................................... 26 5.4. Test Procedure............................................................................................................ 26 5.5. Test Specification ....................................................................................................... 26 5.6. Test Result of Spurious Emission ............................................................................ 27 6. EMI Reduction Method During Compliance Testing ....…

Text truncated - open the document above for the full version.

Report No.: 073L006-HPUSP04V01 Page: 18 of 29 Version:1.0 4.6. Spurious Emission At Antenna Terminals Product 800MHz Dual Band Selective Repeater Test Mode Spurious Emission At Antenna Terminals Date of Test 2007/03/06 Test Site CB4 Test Condition CDMA2000-EVDO (800MHz) Uplink Report No.: 073L006-HPUSP04V01 Page: 19 of 29 Version:1.0 Downlink Report No.: 073L006-HPUSP04V01 Page: 20 of 29 Version:1.0 Report No.: 073L006-HPUSP04V01 Page: 21 of 29 Version:1.0 Product 800MHz Dual Band Selective Repeater Test Mode Spurious Emission At Antenna Terminals Date of Test 2007/03/06 Test Site CB4 Test Condition CDMA2000-EVDO (800MHz) Uplink – Lower Band Edge Uplink – Upper Band Edge Report No.: 073L006-HPUSP04V01 Page: 22 of 29 Version:1.0 Downlink – Lower Band Edge Downlink – Upper Band Edge Report No.: 073L006-HPUSP04V01 Page: 23 of 29 Version:1.0 Product 800MHz Dual Band Selective Repeater Test Mode Spurious Emission At Antenna Terminals Date of Test 2007/03/06 Test Site CB4 Test Condition Intermodulation Characteristics Uplink – Lower Band Edge Uplink – Upper Band Edge Report No.: 073L006-HPUSP04V01 Page: 24 of 29 Version:1.0 Downlink – Lower Band Edge Downlink – Upper Band Edge Note: Inband and Out of band Intermodulation Report No.: 073L006-HPUSP04V01 Page: 25 of 29 Version:1.0 5. Spurious Emission 5.1. Test Equipment The following test equipments are used during the radiated emission test: Test Site Equipment ManufacturerModel No./Serial No. Last Cal. Test Receiver R & S ESCS 30 / 100122 Feb., 2007 Universal Radio Communication Tester R & S CMU200 / 104846 May, 2006 Spectrum Analyzer Advantest R3162 / 120300652 Feb., 2007 Pre-Amplifier QTK QTK-AMP-03 / 0003 May, 2006 Bilog Antenna SCHAFFNERCBL6112B / 2697 May, 2006 Horn Antenna ETS 3115 / 0005-6160 Jul., 2006 OATS 3 Pre-Amplifier QTK QTK-AMP-01 / 0001 Jul., 2006 Note: 1. All equipments that need to be calibrated are with calibration period of 1 year. 2. Mark “X” test instruments are used to measure the final test results. 5.2. Test Setup Field strength of spurious radiation. Report No.: 073L006-HPUSP04V01 Page: 26 of 29 Version:1.0 5.3. Limits Limit <-13dBm 43 + 10Log(P) down on the carrier where P is the power in Watts. 5.4. Test Procedure In accordance with Part 2.1051, the spurious emissions from the antenna terminal were measured. The transmitter output power was attenuated using a combination of filters and attenuators and the frequency spectrum investigated from 9kHz to 10GHz. The EUT was set to transmit on full power. The resolution and video bandwidth was set to 1MHz in accordance with Part 22.917. The spectrum analyzer detector was set to Max Hold. In addition, measurements were made up to the 10 th harmonic of the fundamental. The EUT is placed on a turn table which is 1.5 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to TIA/EIA 603-A on radiated measurement. 5.5. Test Specification According to Part 2.1051, 2.1053, 22.917(a). Report No.: 073L006-HPUSP04V01 Page: 27 of 29 Version:1.0 5.6. Test Result of Spurious Emission Product 800MHz Dual Band Selective Repeater Test Mode Spurious Emission Date of Test 2007/03/06 Test Site No.3 OATS Test Condition CDMA2000-EVDO (800MHz) Test Range 9KHz ~10GHz Frequency Reading Level Signal Generator Level Cable Loss Antenna Gain ERP Value Limit (MHz) (dBm) (dBm) (dB) (dBd) (dBm) (dBm) Horizontal Emissions 1670 -49.28 -50.01 1.41 9.8 -41.6235 -13 2510 -53.15 -51.56 1.56 10.6 -42.5209 -13 3350 -56.08 -54.66 2.01 12.3 -44.3766 -13 4180 -57.34 -53.35 2.74 12.6 -43.4928 -13 5018.4 -53.6 -44.15 2.64 12.7 -34.0946 -13 5854.8 -57.99 -49.31 2.36 13 -38.6775 -13 6691.2 -58.31 -48.56 3.16 12.1 -39.6204 -13 7527.6 -58.2 -44.30 3.3 11.5 -36.1063 -13 8360 -57.54 -43.67 3.16 11.5 -35.3316 -13 Vertical Emissions 1670 -42.22 -41.88 1.41 9.8 -33.4911 -13 2510 -56.05 -56.05 1.56 10.6 -47.0156 -13 3350 -55 -53.44 2.01 12.3 -43.153 -13 4180 -55.92 -51.96 2.74 12.6 -42.1009 -13 5018.4 -55.83 -47.49 2.64 12.7 -37.4323 -13 5854.8 -59.16 -51.84 2.36 13 -41.2023 -13 6691.2 -58.71 -48.94 3.16 12.1 -40.008 -13 7527.6 -57.4 -43.27 3.3 11.5 -35.0788 -13 8360 -57.87 -45 3.16 11.5 -36.66 -13 Note: 1. Receiver setting (Peak Detector) : RBW:1MHz; VBW:3MHz。 2. ERP Value = Signal Generator Level + Antenna Gain - Cable Loss Report No.: 073L006-HPUSP04V01 Page: 28 of 29 Version:1.0 6. EMI Reduction Method During Compliance Testing No modification was made during testing. Report No.: 073L006-HPUSP04V01 Page: 29 of 29 Version:1.0 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs

Test Mode ：CDMA2000 (800MHz) Description： Front View of Spurious Emission Test Test Mode ： CDMA2000 (800MHz) Description： Back View of Spurious Emission Test Test Mode ： CDMA2000 (800MHz) Description： Front View of Spurious Emission Test Test Mode ： CDMA2000 (800MHz) Description： Back View of Spurious Emission Test
