URZ-WF10011802.11b Wi-Fi Module

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 38 of 45 Appendix I: Manual Please refer to the following pages. 1007-00028 Revision0.3 WF-100-1-1 Specification Revision Date 11/14/2006 WF-100-1-12 CONTACT INFORMATION Company:HandEraInc. 2859 104 th Street Des Moines, IA 50322 Phone:(515)-252-7522 Fax:(515)-252-7525 Web:www.HandEra.com DOCUMENT MODIFICATION LOG Description of changesRev.Date Preliminary0.19/28/2006 Minor typos fixed0.29/29/2006 Agency Certifications added, removed preliminary & confidential status, and minor typos fixed 0.311/14/2006 Copyright © 2006HandEra, Inc. All rights reserved. No part of this documentation may be reproduced or transmitted in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without express written consent fromHandEra. Windows CE is a registered trademark of Microsoft. Palm OS® is a registered trademark of PalmTrademark Holding Company, LLC. HandErareserves the rightto revise this documentation andto make changes in content from time to time without obligation on the part ofHandErato provide notification of such revision or changes. HandEramakes no representations or warranties that the documentation is free of errors. The documentation is provided on an ‘as is’ basis. WF-100-1-13 1General Description................................................................................4 1.1Features........................................................................................................................4 2Electrical.................................................................................................5 2.1Block Diagram...............................................................................................................5 2.2Connector Pin out.........................................................................................................6 2.3DC Characteristics........................................................................................................6 2.4Interface Selection........................................................................................................7 2.5SPI Timing Diagram......................................................................................................7 2.6Host Schematic Example (SPI).....................................................................................8 2.7WLAN + Bluetooth Co-location.....................................................................................8 2.8Regulatory Approvals....................................................................................................8 2.9Performance.................................................................................................................9 3Mechanical...........................................................................................10 3.1Dimensions.................................................................................................................10 3.2Environmental.............................................................................................................11 4Software...............................................................................................12 4.1Platform Support.........................................................................................................12 4.1.1Intel PXA270.............................................................................................................12 4.1.2Freescale MX21.......................................................................................................12 4.1.3Samsung S3C2410..................................................................................................12 4.2Feature Matrix.............................................................................................................12 4.3Definitions...................................................................................................................12 4.3.1WEP.........................................................................................................................12 4.3.2WPA.........................................................................................................................12 4.3.3WP1..........................................................................................................................13 4.3.4WPA2.......................................................................................................................13 4.3.5CCX..........................................................................................................................14 5Appendix A: Agency Certifications.......................................................15 5.1United States (FCC):...................................................................................................15 5.1.1OEM Labeling Requirements...................................................................................15 5.1.2FCC Notices.............................................................................................................15 5.2Canada (IC).................................................................................................................16 5.2.1Labeling Requirements............................................................................................16 5.2.2RFI Statement..........................................................................................................16 5.3Sample Label..............................................................................................................17 WF-100-1-14 1General Description HandEra’sWF-100 802.11b embedded module is the world’s smallest fully type-approved module for use in embedded designs. It can be integrated into OE…

Text truncated - open the document above for the full version.

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 37 of 45 Appendix H: Block Diagram Please refer to the following page. WF-100-2-1 HandEra Confidential 5 2Electrical 2.1Block Diagram RF Transceiver Baseband/MAC PA VIN_HIO VDD VIN_BTIO VIN_BTIO SPI_INT SPI_MISO SPI_CLK SPI_MOSI BT_RXIND BT_WL BT_PRI BT_BT VDD BT_RXIND MODE0 MODE1 REGULATORS VIN_3V VIN_2V WIFI_ON V_PA VDD VCORE XTAL 44MHz ARM7TDMI-S PHY&HW MAC DMASCU ICUROM SRAMSDIO SPITimers AESSPIO UARTWEP Rx(I) A/D Rx(Q) A/D RSSI A/D Synth DC/DC RSSI 3-Wire Interface DAC DAC A n t e n n a S w i t c h Tx(I) Tx(Q) AGC EEPROM 1Kbit EE_CS- WIFI_CS- VIN_HIO Figure1-Block Diagram

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 32 of 45 Appendix C: Confidentiality Request Letter Please refer to the following page. November 9, 2006 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuantof 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to our disadvantage as in the market place. Schematics Technical Product Description Sincerely, Mark Kubovich President HandEra, Inc. 2859 104 th Street Des Moines, IA 50322

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 28, 2006 RE: FCC ID: URZ-WF10011_ATCB004259 Attention: Kathy Grzovic I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note the while the modular request letter states that the device has an internal antenna, the device also has what appear to be 2 antenna connectors. Please explain and please provide information on how these antenna ports are restricted in use. IF not restricted in use, please explain what antennae will be used and please provide data on the highest gain antenna expected to be used on these connectors. 2. FYI – Please note that the exhibit labeled “Operational Description” in the application is only a repeat of the general description found in the manual and is does not meet the requirements of 2.1033. For future reference, please provide operational descriptions that meet the requirements of 2.1033. Please also consider providing a more adequate and proper operational description for this project which is in line with the requirements of 2.1033 for 47CFR. Such operational descriptions should provide guidance on major operational characteristics of the device. 3. Please note that while the block diagram is listed as a confidential exhibit in the request for confidentiality, the same diagram is found in the manual. Please explain and justify why confidentiality has been requested for an exhibit that is found in public documentation for the product. 4. Please note that the test setup photos show that the device and its test fixture are on an unknown material. Please verify that the base of the test fixture on which this device lays is not a ground plane and/or is not a conductive material. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 31 of 45 Appendix B: Agency Authorization Letter Please refer to the following page. November 9, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that HandEra, Inc. authorizes Rhein Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or American Telecommunications Certification Body, Inc. We certify that we are notsubject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Mark Kubovich President HandEra, Inc. 2859 104 th Street Des Moines, IA 50322

November 19 th , 2006 Re: Modular Transmitter Approval To Whom It May Concern: The following is to satisfy the requirements ofDA00-1407 Part 15 Unlicensed Modular TX. 1.The modular transmitter musthave its own RF shielding The module is shielded to ensure that the end device does not require any additional shielding due to the emissions produced by the modular transmitter. 2.The modular transmitter must have buffered modulation/data inputs The module has buffered modulation/data inputs; see U2, U3, U4, U5, and U8 on schematic. 3.The modular transmitter must have its own power supply regulation The module has its own power supply regulation on-board allowing a single 3.3V (3.1V–3.6V) supply to powerit. See U1 on schematic. 4.The modular transmitter must comply with the antenna requirements of§ 15.203 and § 15.204(c) The module hasa permanently mounted surface mount antenna andaW.FL‘unique’ connectorfor anoptionalreceiveonly diversity antenna. The transmitter should only be used with the tested integral antenna or with an antenna that has less antenna gain. 5.The modular transmitter must be tested in a stand-alone configuration Module meets requirements the conducted emissions requirements of§ 15.207 as tested with CINCON Electronics, Inc. AC Adapter TR1505. 6.The modular transmitter must be labeled with its own FCC ID The module will have a label displaying its FCC ID and the supporting User’s Manual will contain a section regarding the requirement of a label on the outside of the end device stating “Contains FCC ID: URZ-WF10011” or equivalent. 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the moduleto explain any such requirements. Meets requirements of§ 15.247. 8.The modular transmitter must comply with any applicable RF exposure requirements. Meets applicable RF exposure requirements as defined by§ 15.247. Sincerely, Doug DeVries VP of Hardware Engineering HandEra, Inc. 2859 104 th Street Des Moines, IA 50322

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 28, 2006 RE: FCC ID: URZ-WF10011_ATCB004259 Attention: Kathy Grzovic I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1 Please note the while the modular request letter states that the device has an internal antenna, the device also has what appear to be 2 antenna connectors. Please explain and please provide information on how these antenna ports are restricted in use. IF not restricted in use, please explain what antennae will be used and please provide data on the highest gain antenna expected to be used on these connectors. Response: One of the antenna connectors will not be populated when produced, and the other is for a receive-only diversity antenna. The FCC and IC modular request letters have been revised, and uploaded with this response. 2 FYI – Please note that the exhibit labeled “Operational Description” in the application is only a repeat of the general description found in the manual and is does not meet the requirements of 2.1033. For future reference, please provide operational descriptions that meet the requirements of 2.1033. Please also consider providing a more adequate and proper operational description for this project which is in line with the requirements of 2.1033 for 47CFR. Such operational descriptions should provide guidance on major operational characteristics of the device. Response: Please refer to the revised operational description exhibit uploaded with this response. 3 Please note that while the block diagram is listed as a confidential exhibit in the request for confidentiality, the same diagram is found in the manual. Please explain and justify why confidentiality has been requested for an exhibit that is found in public documentation for the product. Response: Please refer to the revised confidentiality letter uploaded with this response; confidentiality is not requested for the block diagram. 4 Please note that the test setup photos show that the device and its test fixture are on an unknown material. Please verify that the base of the test fixture on which this device lays is not a ground plane and/or is not a conductive material. Response: The device and its test fixture are on a phenolic board; it is not conductive. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

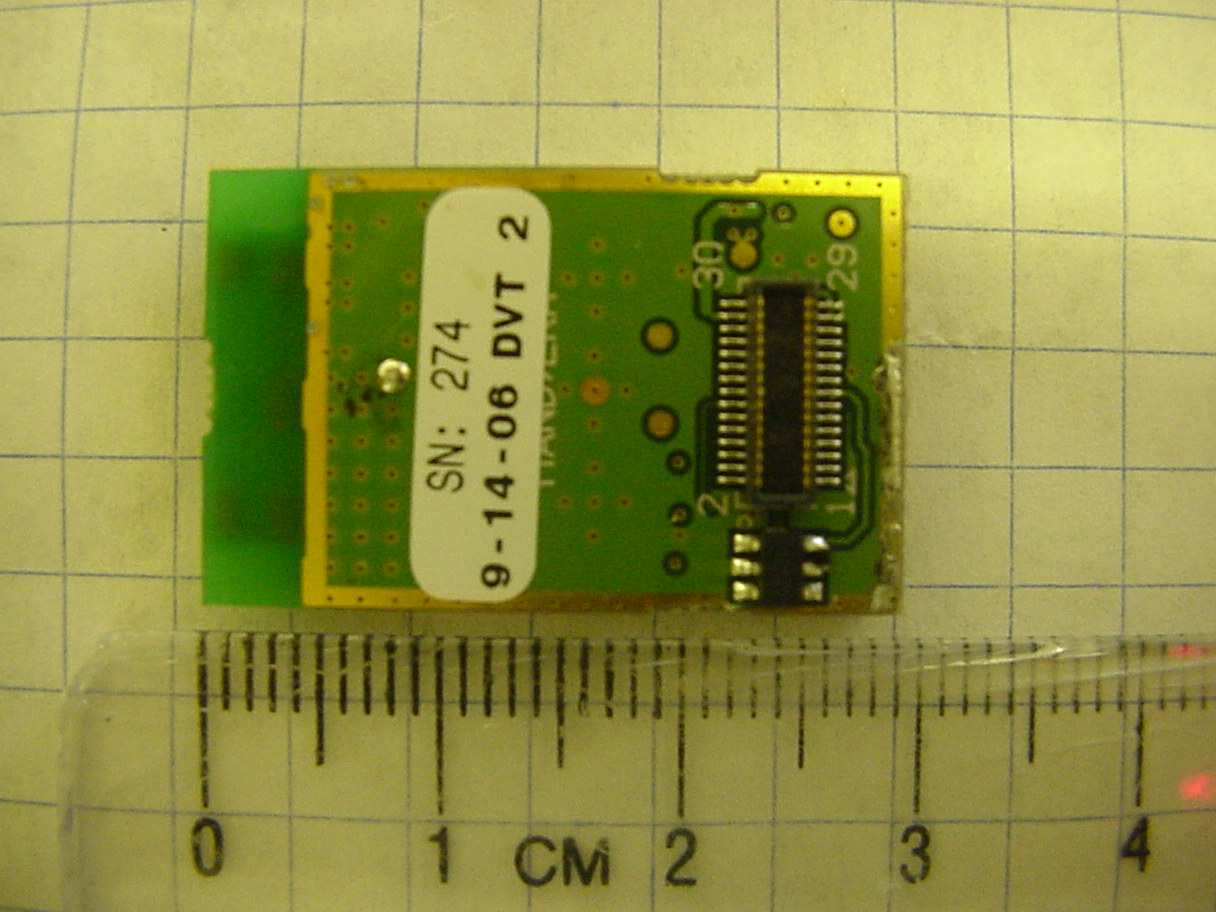

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 43 of 45 Appendix K: External Photographs Photograph 5: Top View with Shield Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 44 of 45 Photograph 6: Top View without Shield Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 45 of 45 Photograph 7: Bottom View

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 34 of 45 Appendix E: Label and Label Location Please refer to the following page for a sample of the ID label and location on the module, as well as page s from the manual that will instruct OEM’s on the proper way to label the end products. WF-100-1-116 Important:The RF module has been certified for remote and base radio applications. If the module will be used for portable applications, the device must undergo SAR testing. Note: This equipment hasbeen tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates,uses,and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferenceby one or more of the following measures: Re-orient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect equipment and receiver to outlets on different circuits, Consult the dealer or an experienced radio/TV technician for help. The use of shielded I/O cables is required when connecting this equipment to any and all peripheral or host devices. Failure to do so may violate FCC rules. Note: Changes or modifications not covered in this manual must be approved in writing by the manufacturer's Regulatory Engineering Department. Changes or modifications made without written approval may void the user's authority to operate this equipment. RF ExposureNote:Under normal operating conditions, the antenna is designed to maintain a separation distance of 20 cm from all persons.The EUT is mobile and fixed. 5.2Canada (IC) 5.2.1Labeling Requirements Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible label on the outside of the final product enclosure must display the following text: Contains Model WF100-1-1, IC: 6827A-WF10011 The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. B-Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts FCC test report or CISPR 22 test report for compliance with ICES-003. 5.2.2RFI Statement This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareilnumériquede la classe B respecte toutes 1esexigences du Réglement sur le matériel brouilleur du Canada. WF-100-1-117 5.3Sample Label Warning:The Original Equipment Manufacturer (OEM) must ensure that FCC labelingrequirements are met. This can be achieved by the following. Figure A-2 depicts a sample label to satisfy the requirements of both the FCC Part 15 and IC requirements. This label should be used when the endproduct is large enough to display the content of Fig. A-1 in a conspicuous location. Figure A-2.Large samplelabel forWF-100 802.11b Module (Your company name here) (Your model number) The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation. Contains Model WF-100-1-1 FCC ID: URZ-WF10011 IC: 6827A-WF10011 Figure A-3depicts a sample labeltosatisfy the requirements of boththe FCC Part 15 and IC requirements. This label should be used when the end product is too small for the full label. When this label arrangement is used, the contents of Fig. A-1 must be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. Figure A-3.Small samplelabel forWF-100 802.11b Module (Your company name here) (Your model number) Contains Model WF-100-1-1 FCC ID: URZ-WF10011 IC: 6827A-WF10011 Figure A-1.Required FCC Label for OEM products containing theWF-100 802.11bModule Contains FCC ID: URZ-WF10011 The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation.

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 34 of 45 Appendix E: Label and Label Location Please refer to the following page for a sample of the ID label and location on the module, as well as page s from the manual that will instruct OEM’s on the proper way to label the end products. WF-100-1-116 Important:The RF module has been certified for remote and base radio applications. If the module will be used for portable applications, the device must undergo SAR testing. Note: This equipment hasbeen tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates,uses,and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferenceby one or more of the following measures: Re-orient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect equipment and receiver to outlets on different circuits, Consult the dealer or an experienced radio/TV technician for help. The use of shielded I/O cables is required when connecting this equipment to any and all peripheral or host devices. Failure to do so may violate FCC rules. Note: Changes or modifications not covered in this manual must be approved in writing by the manufacturer's Regulatory Engineering Department. Changes or modifications made without written approval may void the user's authority to operate this equipment. RF ExposureNote:Under normal operating conditions, the antenna is designed to maintain a separation distance of 20 cm from all persons.The EUT is mobile and fixed. 5.2Canada (IC) 5.2.1Labeling Requirements Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible label on the outside of the final product enclosure must display the following text: Contains Model WF100-1-1, IC: 6827A-WF10011 The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. B-Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts FCC test report or CISPR 22 test report for compliance with ICES-003. 5.2.2RFI Statement This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareilnumériquede la classe B respecte toutes 1esexigences du Réglement sur le matériel brouilleur du Canada. WF-100-1-117 5.3Sample Label Warning:The Original Equipment Manufacturer (OEM) must ensure that FCC labelingrequirements are met. This can be achieved by the following. Figure A-2 depicts a sample label to satisfy the requirements of both the FCC Part 15 and IC requirements. This label should be used when the endproduct is large enough to display the content of Fig. A-1 in a conspicuous location. Figure A-2.Large samplelabel forWF-100 802.11b Module (Your company name here) (Your model number) The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation. Contains Model WF-100-1-1 FCC ID: URZ-WF10011 IC: 6827A-WF10011 Figure A-3depicts a sample labeltosatisfy the requirements of boththe FCC Part 15 and IC requirements. This label should be used when the end product is too small for the full label. When this label arrangement is used, the contents of Fig. A-1 must be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. Figure A-3.Small samplelabel forWF-100 802.11b Module (Your company name here) (Your model number) Contains Model WF-100-1-1 FCC ID: URZ-WF10011 IC: 6827A-WF10011 Figure A-1.Required FCC Label for OEM products containing theWF-100 802.11bModule Contains FCC ID: URZ-WF10011 The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation. Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 45 of 45 Photograph 7: Bottom View

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 43 of 45 Appendix K: External Photographs Photograph 5: Top View with Shield Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 44 of 45 Photograph 6: Top View without Shield Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 45 of 45 Photograph 7: Bottom View

Client: HandEra, Inc. Model: WF-100 Standards: FCC 15.247 & RSS-210 Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 FCC/IC ID: URZ-WF10011/6827A-WF10011 Herndon, VA 20170 http://www.rheintech.com Report #: 2006180 Page 30 of 45 Appendix A: FCC Part 1.1307, 1.1310, 2.1091, 2.1093: RF Exposure From FCC 1.1310 Table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/cm 2 . The electric field generated for a 1 mW/cm 2 exposure (S) is calculated as follows: )4/()( 2 dGPS×××=π where: S = Power density P = Transmitter conducted power in watts G = Numeric gain d = distance to radiation center Fundamental Operating Frequency: 2412 - 2462 MHz Maximum Measured Output Power: 0.089 Watts Antenna Gain = 4.4 dBi; Numeric Gain = 2.75 S = (89 X 2.75)/ (4 x Pi X 20 2 ) = 0.05 mW/cm 2 Under normal operating conditions, the antenna is designed to maintain a separation distance of 20 cm from all persons. The EUT is mobile and fixed. Calculated Power Density: Antenna Gain = 4.4 dBi Conducted Power (milli-Watt) = 89 Separation Distance = 20 cm FCC Power Density Limit Calculated Power Density at 20 cm Distance 1 mW/cm 2 0.05 mW/cm 2

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Certification Application Report FCC Part 15.247 & Industry Canada RSS-210 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 E-Mail: [email protected] Applicant: HandEra, Inc. Ph…
