USE500010125 kHz Proximity Reader

Ins-30045-US PROXIMITY marine reader 06/07/2007 Technical Support Technical help is available: Monday - Friday from 5am - 5pm PST / 8am - 8pm EST Other documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/ 1 800 672 [email protected] Fitting Fix the back plate to the wall with the stainlesss steel screws provided in the fitting kit. The small slot in the plate edge should be positioned at the bottom. Where the reader is to be fitted to a smooth surface, bulkhead, etc. a gasket is supplied to provide a weatherproof seal between the back plate and the mounting surface. (The reader has its own integral seal) Locate the reader in the keyhole slots provided in the back plate. Make sure that the locking pin is close to the slot in the edge of the back plate. Rotate the reader clockwise until the locking pin engages in the slot. To remove the reader, insert a small screwdriver into the cut out provided and use it to lift the locking pin. The reader can then be rotated anticlockwise to release it from the back plate. Red Brown Orange Green Yellow Blue Mauve Black/White Brown Yellow Reader 1 Orange Keypad 1 +12v 0v N.C. N.O. Com N.C. N.O. Com Alarm Output 0v Contact 0v Exit 0v Tamper PSU Rx Tx Relay 1 Relay 2 Exit Contact Tamper PSU OK 5v 12v Red Brown Orange Green Yellow Blue Mauve Black/White Brown Yellow Orange Reader 2 Keypad 2 Power Relay 1 Relay 2 Inputs Network CAT5 cable coding White/Green Green White/Orange Orange 1 2 3 4 Screen or spare cores from network cable Serial number 241821Test ID: 012345678901z-1440 3 2 4 8 9 8 0 0 0 0 0 4 Red Brown Orange Green Yellow Blue Mauve Exit Contact Black Card reader or keypad 12v 0v N.C. N.O. Com Bell Power Door relay Alarm witch 2 S Control unit Inputs White Labelled control units only provide 5v at the Red terminal. The red power wire for the reader should be connected directly to the 12v PCB supply terminal - as per diagram. Cable extensions Red 12v dc Brown Orange Green Yellow Blue Mauve Black/White Brown Yellow Reader 1 Orange Keypad 1 +12v 0v N.C. N.O. Com N.C. N.O. Com Alarm Output 0v Contact 0v Exit 0v Tamper PSU Rx Tx Relay 1 Relay 2 Exit Contact Tamper PSU OK 5v 12v Red Brown Orange Green Yellow Blue Mauve Black/White Brown Yellow Orange Reader 2 Keypad 2 Power Relay 1 Relay 2 Inputs Network CAT5 cable coding White/Green Green White/Orange Orange 1 2 3 4 Screen or spare cores from network cable CAUTION: for 12v d.c. readers only. Forcorrect connection of old 5v readers, refer to instructions. Serial number 241821Test ID: 012345678901z-1440 3 2 4 8 9 8 0 0 0 0 0 4 Red 12V Brown Orange Green Yellow Blue Mauve Exit Contact Black Card reader or keypad 12v 0v N.C. N.O. Com Bell Power Door relay Alarm witch 2 S Control unit Inputs CAUTION: For 12V d.c. readers only. For correct connection of old readers, refer to instructions. Readers can be extended using Belden CR9540 10-core overall screened cable. The maximum cable length between reader and control unit is 100 yards. Wiring 1 - Readers/Keypads not working . Software settings - Confirm that the settings of the reader or keypad are correct. . Connections - Check the wiring and integrity of reader/keypad terminal connections. . To confirm that an extended reader cable is not at fault, wire the reader direct into the reader port. If the reader works, this indicates a problem with the cable. . Supply voltage - confirm that the reader has sufficient voltage. . User token - Check that the user token used for testing the reader is operational. . Interference - Confirm whether the reader works when tested ‘in hand’ and not mounted on the wall. Ensure that readers are not mounted back to back or there is not interference from other RF devices. 2 - Readers / Keypads - Extending cable . Only Belden CR9538 /9540 can be used for cable extensions. CR9538 is 8 core for up to 25m, CR9540 10 core for 25-100m (maximum extension). When using CR9540, the two additional cores should be used to double up for power. 3 - Net2 - What to do if a user has no access . Check the reader LEDs when a card is shown: . No LEDs - the reader has no power. . No change in display - try the card on a known working readers. If there is still no response, replace the card. . Green LED flashing when a card is presented, check the Relay 1 LED to check activity and the wiring to the lock. . Red LED is flashing when a card is presented, check the validity of the user at the PC. . - Check user’s access level and ensure they have access by clicking on Current Validity. . - Check the ‘Valid Until’ date and confirm this has not expired. . Reinstate the ACU from the doors screen. Select the ACU’s you wish to reinstate and then click OK. 4 - Switch2 - Adding an additional card pack . You need to be in possession of the original enrolment card. Present the original enrolment card to the reader and the Amber LED will flash, Green & Red LEDs will be off, then present the Enrolment card from the new card pack; the reader will beep and all LEDS will be lit. The additional cards will now be valid. Repeat this with each reader and with any additional card packs. Any valid enrolment card can be used to add further packs. This is the same for enrolling function card packs onto a system. 5 - Switch2 - How to reset the controller . Disconnect the power and remove the wires from the Green and Mauve terminals . Insert a wire link between the Green and Mauve terminals . Reconnect the power (the unit will bleep 4 times) . Disconnect the power and remove the link wire, reconnect the Green and Mauve wires . Reconnect the power (the unit will bleep 3 times per second). The unit is ready to be enrolled. Here is the list of topics about this product that receive the most technical support enquiries. We list them here to help you speed up the installation and trouble shooting process. Frequently asked questions Readers mounted together between readers 300mm Mounted on metal surface Suitability Security sens…

Text truncated - open the document above for the full version.

RF_160, Issue 01 Declaration of Authorization We Name: Paxton Access Ltd Address: Paxton House, Home Farm Road City: Brighton, East Sussex, BN1 9HU Country: UK Declare that: Name: RFI Global Services Ltd. Address: Ewhurst Park, Ramsdell, City: Basingstoke, Hampshire RG26 5RQ Country: UK is authorized to apply for Certification of the following product: Product description: 125 kHz Proximity Readers Type designation: PROXIMITY Marine reader - 500-010-US Trademark: PROXIMITY on our behalf. Date: 4 th July 2007 City: Brighton Name: Brett Glass Signature:

1(1) Attention: Application Examiner Re: Request for confidentiality Applicant: Paxton Access Ltd FCC ID: USE500010 4 th July 2007 To whom it may concern, Permanent Confidentiality Request is hereby submitted by Paxton Access Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: 1. Schematics 2. Detailed Block diagrams 3. Detailed Operational/Functional Description 4. Parts Lists 5. Internal Photos Rationale for request for confidentiality of all items above. Paxton Access Ltd has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The device is permanently sealed or potted, and any attempt to open it would result in destruction of the device. Sincerely, Quality Manager Paxton Access Ltd

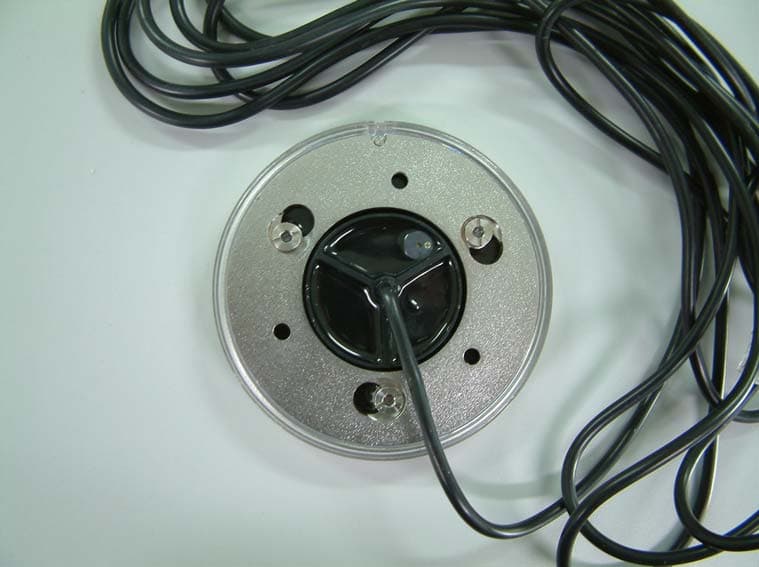

Front view Back view Exhibit 3: External Photographs Page 1 Back view showing backplate attached. Side view Exhibit 3: External Photographs Page 2







            ! ! "#"$"$ Serial number label: Marine Reader 20mm 27mm
   %   #""""& '' !#""""& () ' *" Exhibit 1: ID label - location info Page 1 Example of FCC ID label location Located on a cable tag, as the back of the reader is too obtrusive to locate a suitable label. Exhibit 1: ID label - location info Page 2

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Paxton Access Ltd Net2 Marine Reader and Architectural Reader To: FCC Part 15.207 and Part 15.209 Test Report Serial No: RFI/RPTE2/RP49228JD08A Supersedes Test Report Serial No: RFI/RPTE1/RP49228JD08A This Test Report Is Issued Under The Authority Of Michael Derby, Radio Performance Service Leader: Tested By: Petr Hajek pp Checked By: Michael Derby Report Copy No: PDF01 Issue Date: 25 July 2007 Test Dates: 13 June 2007 to 14 June 2007 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49228JD08A Page: 2 of 24 Issue Date: 25 July 2007 Test of: Paxton Access Ltd Net2 Marine Reader and Architectural Reader To: FCC Part 15.207 and Part 15.209 This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49228JD08A Page: 3 of 24 Issue Date: 25 July 2007 Test of: Paxton Access Ltd Net2 Marine Reader and Architectural Reader To: FCC Part 15.207 and Part 15.209 Table of Contents 1. Client Information............................................................................................................................ 4 2. Equipment Under Test (EUT)......................................................................................................... 5 3. Test Specification, Methods and Procedures............................................................................... 7 4. Deviations from the Test Specification......................................................................................... 7 5. Operation of the EUT During Testing............................................................................................ 8 6. Summary of Test Results............................................................................................................... 9 7. Measurements, Examinations and Derived Results.................................................................. 10 8. Measurement Uncertainty............................................................................................................ 17 9. Measurement Methods................................................................................................................. 18 Appendix 1. Test Equipment Used.................................................................................................. 21 Appendix 2. Test Configuration Drawings...................................................................................... 22 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49228JD08A Page: 4 of 24 Issue Date: 25 July 2007 Test of: Paxton Access Ltd Net2 Marine Reader and Architectural Reader To: FCC Part 15.207 and Part 15.209 1. Client Information Company Name: Paxton Access Ltd Address: Paxton House Home Farm Brighton BN1 9HU UK Contact Name: Mr B Glass RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49228JD08A Page: 5 of 24 Issue Date: 25 July 2007 Test of: Paxton Access Ltd Net2 Marine Reader and Architectural Reader To: FCC Part 15.207 and Part 15.209 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: Proximity Marine Reader Brand Name: Paxton Access Ltd Model Name or Number: 500-010 Serial Number: None Stated Hardware Version Number: z-mr10 Rev.4, ppc-marr Rev.C FCC ID: USE500010 Country of Manufacture: UK Date of Receipt: 13 June 2007 Description: Proximity Architectural Reader Brand Name: Paxton Access Ltd Model Name or Number: 360-864 Serial Number: None Stated Hardware Version Number: z-pa50 Rev.8, ppc-par Rev.F FCC ID: USE360864 Country of Manufacture: UK Date of Receipt: 13 June 2007 2.2. Description of EUT The equipment under test is a 125 kHz Access Control Reader. 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49228JD08A Page: 6 of 24 Issue Date: 25 July 2007 Test of: Paxton Access Ltd Net2 Marine Reader and Architectural Reader To: FCC Part 15.207 and Part 15.209 2.4. Additional Information Related to Testing Power Supply Requirement: DC Supply of 12 V Intended Operating Environment: Residential Commercial Light Industry Heavy Industry Equipment Category: Short Range Device Type of Unit: Base Station (Fixed Use) Transceiver Power Characteristics, Marine device: +0.6 dBμV/m (at 10 m) Power Characteristics, Architectural device: -5.6 dBμV/m (at 10 m) Transmit Frequency: 125 kHz Channel ID Channel Number Channel Frequency (kHz) Transmit Channel: Single - 125 Receive Frequency: 125 kHz Channel ID Channel Number Channel Frequency (kHz) Receive Channel: Single - 125 Highest Fundamental Frequency: 125 kHz Occupied Bandwidth, Marine device: 1.413 kHz Occupied Bandwidth, Architectural device: 1.513 kHz 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Net2 1 Door ACU with 2A PSU in plastic cabinet Brand Name: Paxton Access Model Name or Number: 411-501 Serial Number: None Stated Cable Length and Type: 5 m, Reader Signal Cable Connected to Port: ACU Reader Port to Reader RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE2/RP49228JD08A Page: 7 of 24 Issue Date: 25 July 2007 Test of: Paxton Access Ltd Net2 Marine Reader and Architectural Reader To: FCC Part 15.207 and Part 15.209 3. Test Specification, Methods and Procedures 3.1. Test Specifications Reference: FCC Part 15 Subpart B: 2006 (Sections 15.207 and 15.209). Title: Code of F…
