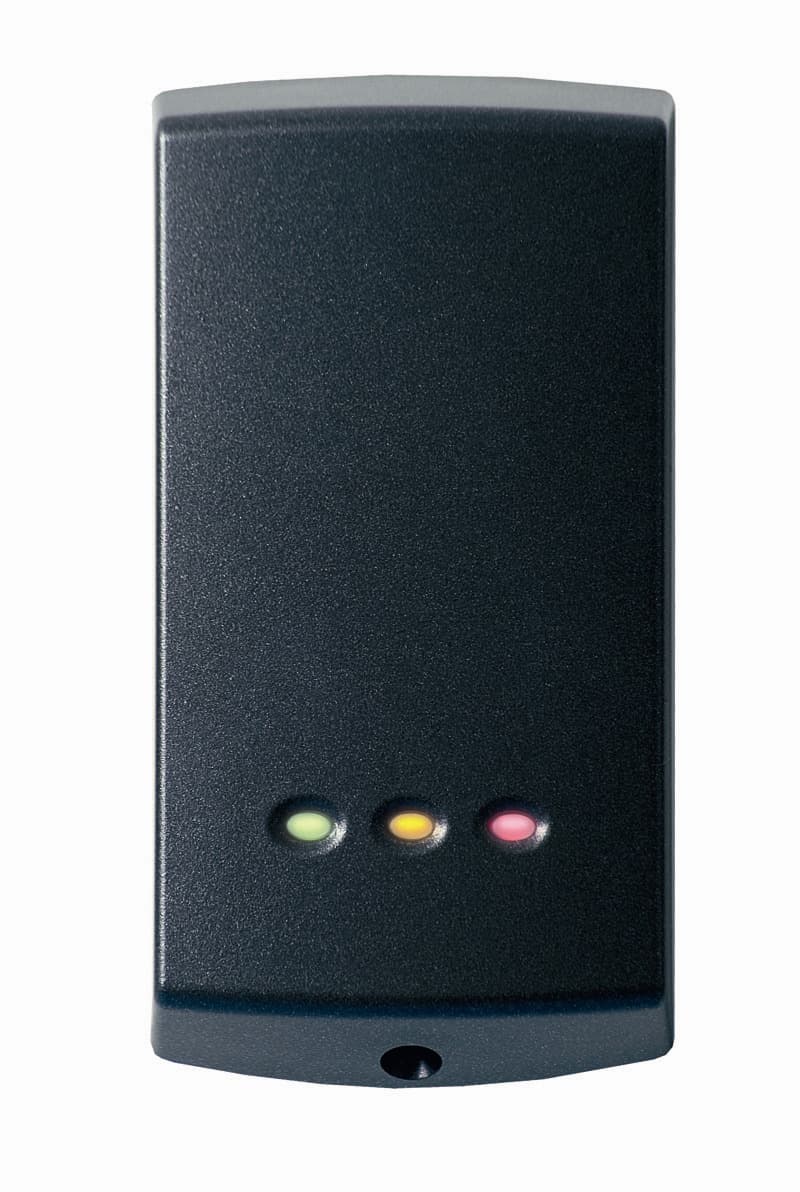

USEZ99MU10Proximity Mullion Reader

PAGE Ins-40015-US Mullion PROXIMITY reader - UL 05/20/200 Fitting This reader is designed to read EM400 tokens. It will provide Clock and Data output for Paxton (Net2 / Switch2). Technical Support Technical help is available: Monday - Friday from 02:00 AM - 8:00 PM (EST) Saturday from 04:00 AM - 08:00 AM (EST) [email protected] Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/ Paxton Readers mounted together between readers 12 inches Mounted on metal surface Suitability Security sensitive doors Wet environments PAGE2 Cable extensions Red 12v dc Brown Orange Green Yellow Blue Mauve Black/White Brown Yellow Reader 1 Orange Keypad 1 +12v 0v N.C. N.O. Com N.C. N.O. Com Alarm Output 0v Contact 0v Exit 0v Tamper PSU Rx Tx Relay 1 Relay 2 Exit Contact Tamper PSU OK 5v 12v Red Brown Orange Green Yellow Blue Mauve Black/White Brown Yellow Orange Reader 2 Keypad 2 Power Relay 1 Relay 2 Inputs Network CAT5 cable coding White/Green Green White/Orange Orange 1 2 3 4 Screen or spare cores from network cable CAUTION: for 12v d.c. readers only. Forcorrect connection of old 5v readers, refer to instructions. Serial number241821Test ID: 012345678901z-1440 3 2 4 8 9 8 0 0 0 0 0 4 x R Green White/Green 1 Screen or spare cores from network cable White/Orange 3 Orange 4 K 1 r e d a e R d a p y e 1 12V Alarm Output R l e a y 2 N.C. N.O. Com N.C. N.O. Com 0 V 0V Exit 0 V PSU 0V Contact Tamper R l e a y 1 V 2 1 V 5 K O T e p m a r t c a t n o C t i x E R l e a y 1 x T U S P Keypad2Reader 2 s t u p n I P e w o r R l e a y 2 C A n i d o c e l b a c 5 T g k r o w t e N +V out R ed LED Amber LED Green LED Data/D0 Clock/D1 Media Detect 0V out Data Load Clock t u o V + D E L d e R D E L r e b m A D E L n e e r G 0 D / a t a D 1 D / k c o l C t c e t e D a i d e M t u o V 0 a t a D d a o L k c o l C Net2 2 Wiring Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), local codes, and the authorities having jurisdiction. UseMax lengthType Reader00 yds0 core, shielded - Beldon 9540, Alpha 298C (22AWG) or equivalent Cable Specification NOTE: Where selected, any equivalent cabling / wire must be ‘ UL Listed ‘ Part numberDescription 353-0-USMullion PROXIMITY reader Options All interconnecting devices must be UL Listed. Net2 control unit Red 12V Brown Orange Green Yellow Blue Mauve Exit Contact Black Card re a d e r o r k e y p a d 12v 0v N.C. N.O. Com Bell Po we r Door rela y Alar m witch 2 S Control unit In p u t s CAUTION: For 12V d.c. readers only. For correct connection of old readers, refer to instructions. C a r d r e a d e r o r k e y p a d I n p u t s D o o r r e l a y Po w e r A l a r m Bell 2V 0 V N .C . N. O. COM CA U TIO N : Fo r 2Vd.c . readers o n l y. Fo r correct co n nection of old rea d er s , refe r to instructi o ns . Co n tac t Exi t Switch2 2V Red LED Amber LED Green LED Data/D0 Clock/D Media Detect 0V Switch2 control unit (not evaluated by UL) PAGE3 Unit installation / test Following the completed installation of this equipment, no further maintenance or testing is required. It is advisable to ensure that any third party backup power supplies or recovery procedures are checked regularly to ensure that the operation of the Paxton Access system is not compromised. Maintenance FCC Compliance This device complies with Part 5 of the FCC Rules. Operation is subject to the following two conditions: () this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. When choosing a location for the reader, ensure that it is at least 2 inches from other readers. This will include readers mounted on the other side of the same wall as the radio signal will cause interference and reduce the read range. The reader should not be used on metal surfaces as the reflected signal will also reduce the read range. Standard Unit - Drill a hole in the surface for the rear data cable. Secure the unit to the surface with three screws as per fitting diagram on page 1. Suitable screws and fixings are provided for fitting the unit to a wall. Ensure the data cable has free access at the rear. A choice of black and white covers are also provided. Hook the required cover over the top of the reader, press home at the bottom and secure with the single fixing screw. The reader will beep and all the LED’s should display after powering on the control unit. Presenting a user card to the reader will cause the LED’s to briefly change to a single Green or Red LED. Check the following FAQs section for assistance if any problems are encountered. OptionPart numberDescription MullionFitting Kit fk-0855 off - Cable clips 3 off - No6 x 3 /4in pozi round woodscrew - zinc 3 off - Wall plugs 22mm  off - 8mm x 3mm small pozi pan self tapping screw - zinc Fitting Kit PAGE 4 -35 °C ( -3 °F ) +66 °C ( + 5 °F ) WaterproofIPX7 0 feet 2V DC 30 mA 25 kHz 600 μs  3 / 4 inch4 inch 3 / 4 inch 3 inch2 inch 4 feet Voltage Clock and data bit period Carrier frequency Specifications Operating temperatures - all items Electrical Environment Dimensions Min Max Width Height Depth Current Cable length Read Range Token Keyfob Hands Free Token 1 - Readers/Keypads not working. Q- Software settings - Confirm that the settings of the reader or keypad are correct. Q- Connections - Check the wiring and integrity of the connectors. If possible, test this reader on the other port. Q- Extended cable - Belden 9540 should be used up to a maximum of 00yds. Twisted pair alarm cable should Q not be used. To confirm that an extended reader cable is not at fault, wire the reader directly to the port. Q- Supply voltage - Confirm that the voltage is within specification. (see table) Q- User token - Confirm that the user…

Text truncated - open the document above for the full version.

1(1) Declaration of Authorization: We Name: Paxton Access Ltd Address: Paxton House, Home Farm Road City: Brighton, East Sussex, BN1 9HU Country: UK Declare that: Name: RFI Global Services Ltd. Address: Pavilion A Ashwood Park, Ashwood Way Basingstoke, Hampshire RG23 8BG Is authorized to apply for Certification of the following product: FCC ID: USEZ99MU10 Product description: Proximity Mullion Reader Type Designation: 353-110-US On our behalf. This is to certify that Paxton Access Ltd authorises RFI Global Services Limited to act on our behalf for the application of the EUT to RFI Global Services Ltd. Telecommunication Certification Body Section 5301 Certification: We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. Date: 25 th May 2010 City: Brighton Name: Brett Glass Signature:

1(1) Application Examiner Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Re: Request for confidentiality 25 th May 2010 Applicant: Paxton Access Ltd FCC ID: USEZ99MU10 Model Number: 353-110-US To whom it may concern, Permanent Confidentiality Request is hereby submitted by Paxton Access Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Exhibit 5. Circuit Schematic, one file, three pages. Exhibit 4. Block diagram, one file, one page. Exhibit 12. Operational/Functional Description, one file, one page. Exhibit 13. Parts lists, one file, one page. Rationale for request for confidentiality of all items above. Paxton Access Ltd has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Quality Manager Paxton Access Ltd

Exhibit 3: External Photographs Front view – with cover on Front view – with cover off Bottom view Top view Side view Back view

Exhibit 1: Label location information Labels are located on the back of the reader. Paxton Access label artwork

Exhibit 9: Internal Photographs PCB Top PCB Bottom PCB in housing – unpotted PCB in housing with cable connected Reader housing/coil sub assembly

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Proximity Mullion Reader / z99-mu10 To: FCC Parts 15.207, 15.209 and 15.215: 2009 Test Report Serial No: RFI-RPT-RP77508JD01A_V2.0 Version 2.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: pp Checked By: Robert Graham Signature: Date of Issue: 26 May 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP77508JD01A_V2.0 VERSION 2.0 ISSUE DATE: 26 MAY 2010 Page 2 of 16 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP77508JD01A_V2.0 VERSION 2.0 ISSUE DATE: 26 MAY 2010 RFI Global Services Ltd Page 3 of 16 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 7 5. Measurements, Examinations and Derived Results .................................................................. 8 6. Measurement Uncertainty .......................................................................................................... 15 Appendix 1. Test Equipment Used ................................................................................................16 TEST REPORT SERIAL NO: RFI-RPT-RP77508JD01A_V2.0 VERSION 2.0 ISSUE DATE: 26 MAY 2010 Page 4 of 16 RFI Global Services Ltd 1. Customer Information Company Name: Paxton Ltd Address: Paxton House Home Farm Brighton Sussex BN1 9HU TEST REPORT SERIAL NO: RFI-RPT-RP77508JD01A_V2.0 VERSION 2.0 ISSUE DATE: 26 MAY 2010 RFI Global Services Ltd Page 5 of 16 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.207, 47CFR15.209 & 47CFR15.215 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 15 Subpart B (Radio Frequency Devices) ) - Sections 15.207, 15.209 & 15.215 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH, England Test Dates: 05 May 2010 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.207 Transmitter AC Conducted Spurious Emissions Part 15.209 Transmitter Radiated Spurious Emissions (Fundamental) Part 15.209 Transmitter Radiated Spurious Emissions Part 15.215(c) Transmitter 20 dB Bandwidth Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP77508JD01A_V2.0 VERSION 2.0 ISSUE DATE: 26 MAY 2010 Page 6 of 16 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Proximity Mullion Reader UL Model Name/Number: Proximity mullion reader / z99-mu10 Serial Number: None stated Hardware Version: z-5muu Rev. 2, ppc-5mu Rev. A Software Version: None FCC ID Number: USEZ99MU10 3.2. Description of EUT The equipment under test was a proximity reader for access control. It has functionality for reading tokens with 125 kHz carrier frequencies. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Tested Technology: RFID Modulation Type: Amplitude Modulation Transmit / Receive Frequency: 125 kHz 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Net2 1 door ACU with 2A PSU in metal cabinet Brand Name: Paxton Access Ltd Model Name or Number: 411-381 Serial Number: Not marked or stated TEST REPORT SERIAL NO: RFI-RPT-RP77508JD01A_V2.0 VERSION 2.0 ISSUE DATE: 26 MAY 2010 RFI Global Services Ltd Page 7 of 16 4. Operation and Monitoring of the EUT during Testing 4.1. Operating Modes The EUT was tested in the following operating mode(s): • Transceive mode • The reader has only one mode of operation as it is constantly transmitting and receiving when in operation. It does not have a dedicated ‘receive only’ mode. 4.2. Configuration and Peripherals The EUT was tested in the following configuration(s): • Connected to a Paxton Access Net2 1 door ACU with 2A PSU in metal cabinet. This provided power and data connection to the EUT. • AC conducted emissions were performed with the EUT connected to the ACU and the ACU connected to a 120 VAC 60 Hz supply through a LISN. TEST REPORT SERIAL NO: RFI-RPT-RP77508JD01A_V2.0 VERSION 2.0 ISSUE DATE: 26 MAY 2010 Page 8 of 16 RFI Global Services Ltd 5. Measurements, Examinations and Derived Results 5.1. General Comments Measurement uncertainties are evaluated in accordance with current best practice. Our reported expanded uncertainties are based on standard uncertainties, which are multiplied by an appropriat…
