USEZ99UV30Proximity Vandal Proof Reader

Ins-30092-US PROXIMITY vandal proof reader 02/02/2010 Technical Support Technical help is available: Monday - Friday from 12:00 AM - 5:00 PM (PST) Saturday from 1:00 AM - 5:00 AM (PST) 1.800.672.PAXT [email protected] Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/ Fitting Open hole - medium vandal resistance Blind hole - very high vandal resistance Cement plug - high vandal resistance Paxton Cable extensions Readers can be extended using Belden CR9540 10-core overall screened cable to a maximum of 100 yards. Wiring The reader port module is designed to convert the standard reader ports on Switch2 and Net2 controllers to accept one or two RJ45 connections. Pull off the screw terminal block from the reader port and simply replace it with this module. This module can be used to provide a connection point for the reader RJ45 plug. The terminals on the module are then wired color for color to the controller. Alternatively, the reader can be wired directly into the screw terminals of the control unit by first cutting off the RJ45 plug and stripping back the wires in the cable. Reader Port Module (325-030-US) This module may be purchased separately to speed up the installing and replacement of readers. Connection modules Further information on how to purchase Installer Tools is available at: http://paxton.info/841 Reader junction box (325-020-US) Connection to a control unit reader port 1 - Readers/Keypads not working. Q- Software settings - Confirm that the settings of the reader or keypad are correct. Q- Connections - Check the wiring and integrity of the connectors. If possible, test this reader on the other port. Q- Cable - Belden 9540 should be used to extend the reader cable (100yds maximum). Twisted pair alarm cable Q should not be used. To confirm that an extended reader cable is not at fault, wire the reader directly to the port. Q- Supply voltage - Confirm that the voltage is within specification. (see table) Q- User token - Confirm that the user token used for testing is OK by presenting it to a known working reader. Q- Interference - Confirm whether the reader works when tested ‘in hand’ and not mounted on the wall. Q Ensure PROXIMITY readers are not mounted back to back or that there is no interference from other RF devices. 2 - Readers / Keypads - Extending cable. QOnly Belden CR9538 / 9540 can be used for cable extensions. CR9538 8 core for up to 25yds, CR9540 10 core for Q25-100yds (maximum extension). With CR9540, the two additional cores should be used to double up the power. 3 - Net2. What to do if a user has no access - Check the reader LEDs when a card is shown. Q- No LEDs - the reader has no power. Q- No change in display - try the card on a known working reader. If there is still no response, replace the card. Q- Green LED flashing when a card is presented; check relay 1 LED to check for activity and also the lock wiring. Q- Red LED is flashing when a card is presented; check the validity of the user at the PC. Q Check user’s access level and ensure they should have access by clicking on Current Validity. Q Check the ‘Valid Until’ date and confirm this has not expired. Q- Reinstate the ACU from the doors screen. Select the ACU’s you wish to reinstate and then click OK. 4 - Switch2 - Adding an additional card pack. QYou need to be in possession of the original enrolment card. Present the original enrolment card to the reader and Qthe Amber LED will flash, Green & Red LEDs will be off, then present the Enrolment card from the new card pack; Qthe reader will beep and all LEDS will be lit. The additional cards will now be valid. Repeat this with each reader Qand with any additional card packs. Any valid enrolment card can be used to add further packs. This is the same Qfor enrolling function card packs onto a system. 5 - Switch2 - How to reset the controller. Q1. Disconnect the power and remove the wires from the Green and Mauve terminals Q2. Insert a wire link between the Green and Mauve terminals Q3. Reconnect the power (the unit will bleep 4 times) Q4. Disconnect the power and remove the link wire, reconnect the Green and Mauve wires Q5. Reconnect the power (the unit will bleep 3 times per second). The unit is ready to be enrolled. Here is the list of topics about this product that receive the most technical support inquiries. We list them here to help you speed up the installation and trouble shooting process. Technical Help Readers mounted together between readers 12 inches Mounted on metal surface Suitability Security sensitive doors Wet environments -20 °C (-4 °F) +55 °C (+131 °F) IPX7 5 yards 8V DC14V DC 100 mA 125 kHz 600 μs 3 /4 inch2 3 /8 inch 3 inch1 1 /2 inch Voltage Clock and data bit period Carrier frequency Specifications Operating temperatures - all items Electrical Environment Dimensions Min Max Current Cable length Read Range Token Keyfob Hands Free Token Waterproof Min Max This product is not suitable for retail sale. All warranties are invalid if this product is not installed by a competent person. Outdoor Use Diameter Depth Not Compatible FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

1(1) Declaration of Authorization: We Name: Paxton Access Ltd Address: Paxton House, Home Farm Road City: Brighton, East Sussex, BN1 9HU Country: UK Declare that: Name: RFI Global Services Ltd. Address: Pavilion A Ashwood Park, Ashwood Way Basingstoke, Hampshire RG23 8BG Is authorized to apply for Certification of the following product: FCC ID: USEZ99UV30 Product description: Proximity Vandal proof reader Type Designation: 568-855-US On our behalf. This is to certify that Paxton Access Ltd authorises RFI Global Services Limited to act on our behalf for the application of the EUT to RFI Global Services Ltd. Telecommunication Certification Body Section 5301 Certification: We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. Date: 11 th August 2010 City: Brighton Name: Brett Glass Signature:

1(1) Application Examiner Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Re: Request for confidentiality 11 th August 2010 Applicant: Paxton Access Ltd FCC ID: USEZ99UV30 Model Number: 568-855-US To whom it may concern, Permanent Confidentiality Request is hereby submitted by Paxton Access Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Exhibit 5. Circuit Schematic, one file, two pages. Exhibit 4. Block diagram, one file, one page. Exhibit 12. Operational/Functional Description, one file, two pages. Exhibit 13. Parts lists, one file, one page. Rationale for request for confidentiality of all items above. Paxton Access Ltd has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Paxton Access Ltd

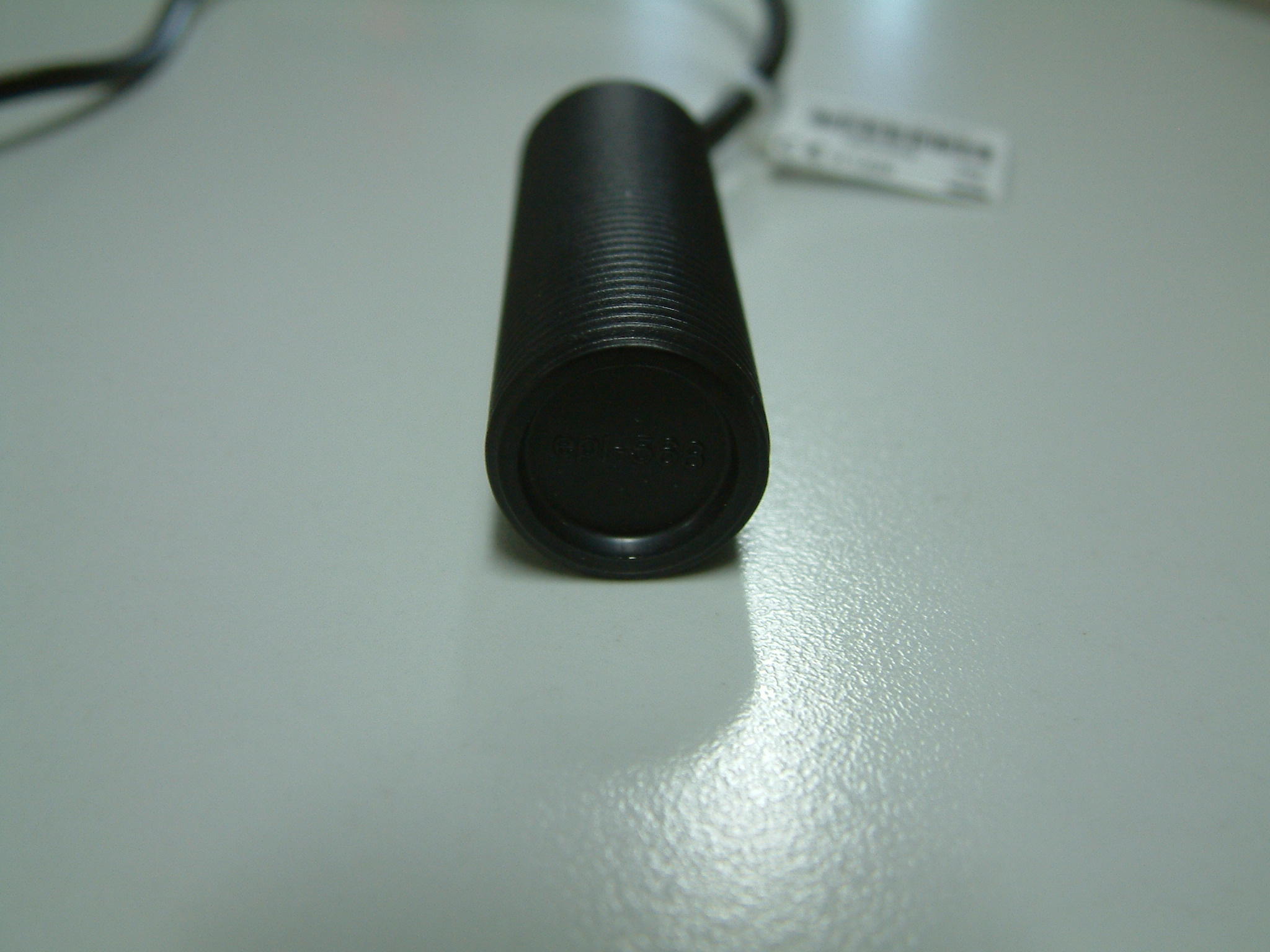

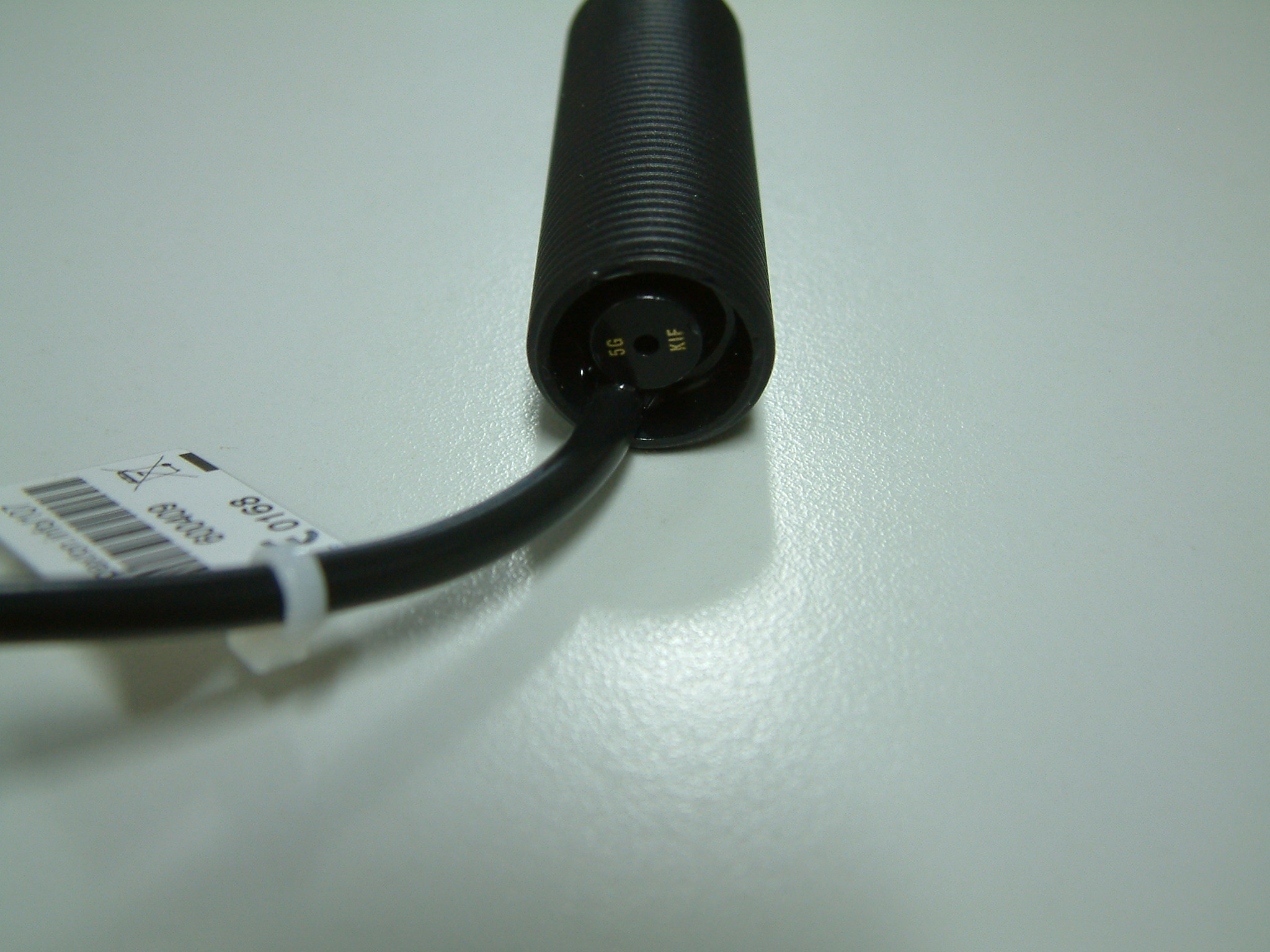

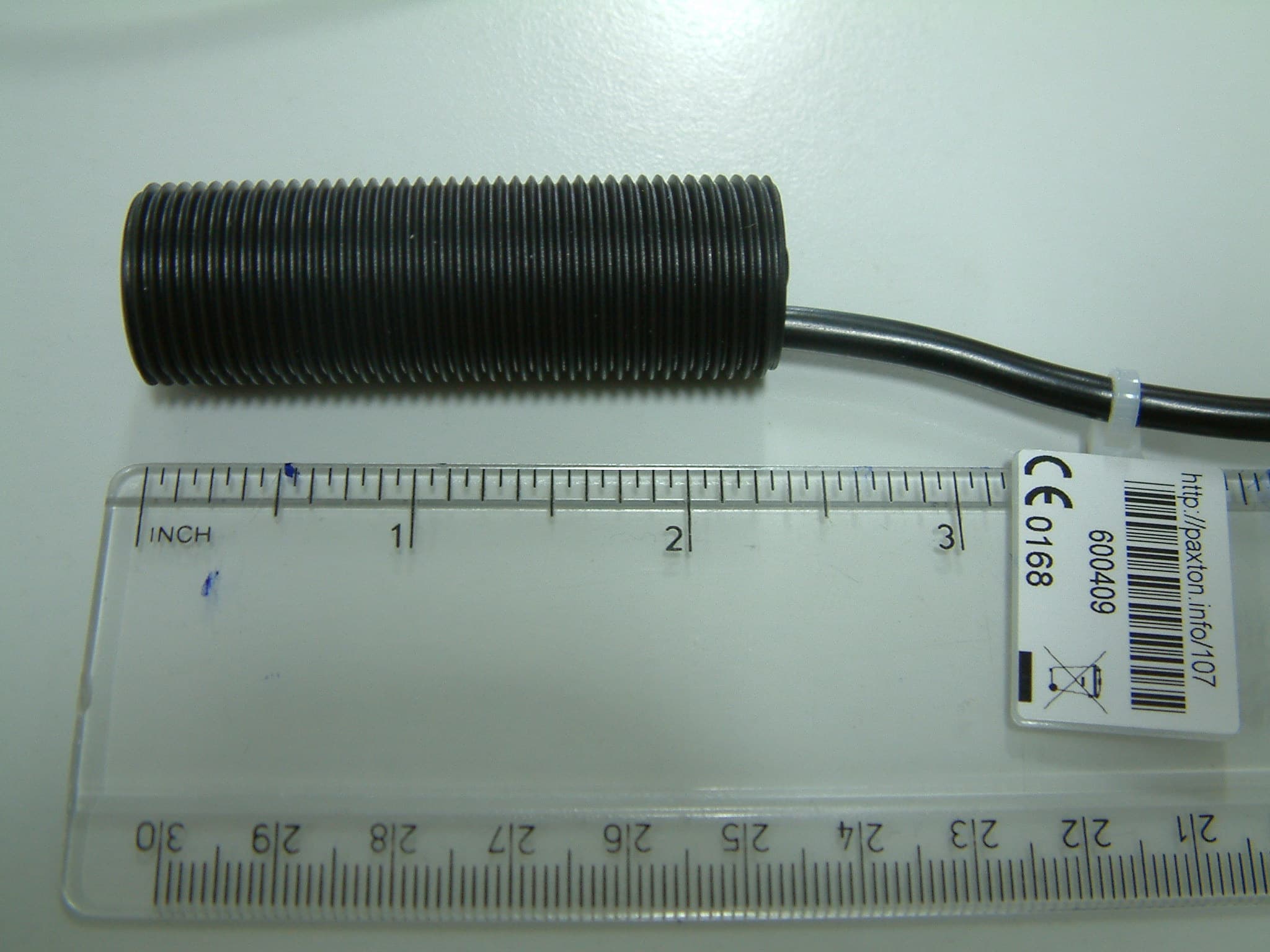

Exhibit 3: External Photographs Page 1 Side view Top view Exhibit 3: External Photographs Page 2 Bottom view

Example of FCC ID label location The label is attached to a cable tag due to the device being too small. FCC ID label Artwork

Page 1 Exhibit 9: Internal Photographs PCB Top PCB Bottom Page 2 PCB with attached cable, coil on ferrite, and housing. PCB in housing with cable connected

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: PROXIMITY Vandal Proof Reader To: FCC Part 15.207 and Part 15.209: 2009 Subpart B Test Report Serial No: RFI-RPT-RP78562JD01A This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 09 August 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP78562JD01A VERSION 1.0 ISSUE DATE: 09 AUGUST 2010 Page 2 of 15 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP78562JD01A VERSION 1.0 ISSUE DATE: 09 AUGUST 2010 RFI Global Services Ltd Page 3 of 15 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 7 5. Measurements, Examinations and Derived Results .................................................................. 8 6. Measurement Uncertainty .......................................................................................................... 14 Appendix 1. Test Equipment Used ................................................................................................15 TEST REPORT SERIAL NO: RFI-RPT-RP78562JD01A VERSION 1.0 ISSUE DATE: 09 AUGUST 2010 Page 4 of 15 RFI Global Services Ltd 1. Customer Information Company Name: Paxton Ltd Address: Paxton House Home Farm Brighton Sussex BN1 9HU United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP78562JD01A VERSION 1.0 ISSUE DATE: 09 AUGUST 2010 RFI Global Services Ltd Page 5 of 15 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 15 Subpart B (Radio Frequency Devices) - Sections 15.207 and 15.209 Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH, England Test Dates: 22 July 2010 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.207 Transmitter AC Conducted Spurious Emissions Part 15.209 Transmitter Fundamental Field Strength Part 15.209 Transmitter Radiated Spurious Emissions Part 2.1049 Transmitter 20 dB Bandwidth Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP78562JD01A VERSION 1.0 ISSUE DATE: 09 AUGUST 2010 Page 6 of 15 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Description: Proximity reader for access control Brand Name: PROXIMITY vandal proof reader Model Name or Number: 568-855-US Serial Number: None stated Hardware Version Number: z-vr30 rev 2, ppc-gvp rev B Software Version Number: None stated FCC ID Number: USEZ99UV30 3.2. Description of EUT The equipment under test was a vandal proof proximity reader. It has functionality for reading tokens and uses a simultaneous transmit and receive frequency of 125 kHz. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Tested Technology: Short Range Device Type of Equipment Transceiver Intended Operating Environment: Commercial / Light industry / Heavy industry Highest Internally Generated Clock or Oscillator Frequency: 16 MHz Channel Spacing: Single channel device Power Supply Requirement: Nominal 12 V DC Transmit Frequency Range: 125 kHz Receive Frequency Range: 125 kHz 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Net2 1 door ACU with 2A PSU cabinet Brand Name: Net2 1 door ACU with 2A PSU in plastic cabinet Model Name or Number: 411-501 Serial Number: None stated Cable Length and Type: None stated Connected to Port: Power / data TEST REPORT SERIAL NO: RFI-RPT-RP78562JD01A VERSION 1.0 ISSUE DATE: 09 AUGUST 2010 RFI Global Services Ltd Page 7 of 15 4. Operation and Monitoring of the EUT during Testing 4.1. Operating Modes The EUT was tested in the following operating mode(s): • Constantly transmitting. 4.2. Configuration and Peripherals The EUT was tested in the following configuration(s): • Connected to a Paxton Access Net2 1 door ACU with 2A PSU in plastic cabinet. This provided power and data connection to the EUT. • AC conducted emissions were performed with the EUT connected to the ACU and the ACU connected to a 120 VAC 60 Hz supply through a LISN. TEST REPORT SERIAL NO: RFI-RPT-RP78562JD01A VERSION 1.0 ISSUE DATE: 09 AUGUST 2010 Page 8 of 15 RFI Global Services Ltd 5. Measurements, Examinations and Derived Results 5.1. General Comments Measurement uncertainties are evaluated in accordance with current best practice. Our reported expanded uncertainties are based on standard uncertainties, which are multiplied by an appropriate coverage factor to p…
