UT650289BA8800DLDownlink Booster Amplifier

Airorlite Communications, Inc.

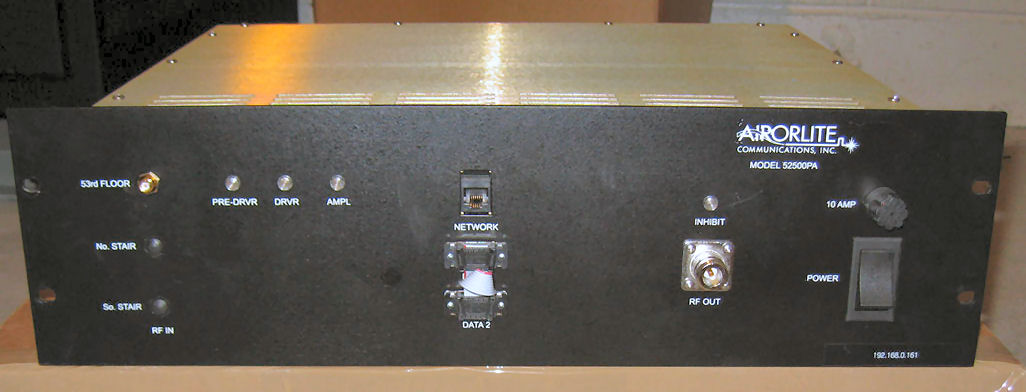

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Mar 14, 2007
Application Purpose: Original Equipment
Date of Application: Feb 27, 2007
Equipment Note: Downlink Booster Amplifier
Frequency Range: 866.21250000 - 868.91250000
Company: Airorlite Communications, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

50289‐BA‐8‐PA ‐1‐ 8 Channel 800MHz Bi‐Directional Booster Amplifier Model 50289‐BA‐8‐PA Operations and Installation Instruction Manual AIRORLITE UNCONDITIONALLY GUARANTEES THE MERCHANDISE PROVIDED AGAINST DEFECTS OF ANY KIND INCLUDING, WITHOUT LIMITATION, DEFECTS IN OPERATION, DESIGN, MATERIALS, AND WORKMANSHIP FOR TWO YEARS FROM THE DATE OF DELIVERY. AIRORLITE IS NOT RESPONSIBLE FOR ANY EQUIPMENT REPAIRED OR ALTERED BY PERSONS NOT AUTHORIZED BY AIRORLITE OR NOT IN ACCORDANCE WITH INSTRUCTIONS FURNISHED BY AIRORLITE. AIRORLITE. IS NOT RESPONSIBLE FOR EQUIPMENT RENDERED DEFECTIVE AS A RESULT OF MISUSE, IMPROPER REPAIR, OR ABNORMAL CONDITIONS OF OPERATION, NOR DOES AIRORLITE ASSUME ANY LIABILITY FOR ANY CONSEQUENTIAL DAMAGE CAUSED BY SUCH EQUIPMENT. SERVICE CONTRACTS OR CUSTOMER ASSISTANCE AGREEMENTS ARE AVAILABLE FOR AIRORLITE PRODUCTS THAT REQUIRE MAINTENANCE AND/OR REPAIR. AIRORLITE ALSO HAS SERVICE AND CONSULTATION CONTRACTS FOR ENTIRE SYSTEM CONFIGURATIONS. 50289‐BA‐8‐PA ‐2‐ SYSTEM SPECIFICATIONS Description SPECIFICATIONS Frequency Range 819‐824 MHz & 864‐869 MHz Outbound Signal ‐ Uplink (# of channels=8) 821.2150 MHz 821.8125 MHz (Uplink channel cards can be programmed to these frequencies only) 822.3750 MHz 822.8750 MHz 823.0125 MHz 823.5500 MHz 823.6000 MHz 823.9125 MHz Inbound Signal ‐ Downlink (# of channels=8) 866.2125 MHz 866.8125 MHz (Downlink channel cards can be programmed to these frequencies only) 867.3750 MHz 867.8750 MHz 868.0125 MHz 868.5500 MHz 868.6000 MHz 868.9125 MHz Channel Bandwidth (Uplink/Downlink) 25 kHz Nominal Channel Spacing 25 KHz RF Frequency Accuracy Tracks input signal exactly Adjacent Channel Selectivity 70 dB @ ± 17.5 kHz Fc RF Output Power (Downlink) ~25 dBm/carrier, minimum RF Output Power (Uplink) ~26 dBm/carrier, minimum Variation of Output Power w/Input Level +0, ‐1.0 dB in either direction Maximum Passband Ripple Across Full Band 2 dB Maximum Passband Ripple Across any 100 kHz segment 0.1 dB Amplifier Input Ports (no damage) 0 dBm Propagation Delay 32 microseconds, maximum Intermodulation/Crossmodulation Distortion at Full Output Power ‐60 dBc Channel to Channel Isolation ‐70 dBm Minimum High Band Signal to produce +25 dBm output to Radiating Antenna Cable ‐90 dBm Minimum Low Band Signal to produce full output ‐90 dBm AGC Control Range (Uplink & Downlink) +80 dB Duty Cycle Continuous RF Spurious Output, less than 800 MHz, but greater than 1000 MHz ‐60 dBc, Maximum RF Spurious Output for frequencies ranging from 800 ‐ 1000 MHz ‐85 dBc, Maximum Operating Temperature Range ‐20°C to +60°C System Noise Figure < 9 dB Input/Output Impedance 50 Ohms, nominal Input/Output VSWR 1.35:1, worst case Input/Output Connectors Type “N” Female Input Power 95‐132 VAC, 45‐64 Hz Amplifiers are unconditionally stable under all operating conditions Alarm Loss of Power Supply, DC Change in current draw of +/‐ 20% for each internal amplifier 50289‐BA‐8‐PA ‐3‐ Connection Chart BASIC CONNECTION DIAGRAM 50289‐BA‐8‐PA ‐4‐ BASIC CONNECTION DIAGRAM KEY ID Item 1 Item 2 W1 Downlink Power Amp Output Downlink Radiator W5 Duplexer Antenna Port "Off the Air" Antenna W6 Duplexer Downlink Downlink 8 Way Splitter W7 Duplexer Uplink Uplink Power Amplifier Output W9 Uplink 8 Way Splitter Uplink Radiator W10 Uplink 8 Way Combiner Uplink Power Amplifier Input W14 Downlink 8 Way Combiner Downlink Power Amplifier Input The Basic Connection Diagram shown above, is the proper way the BDA should be connected and once up and running, require minimal to none manual configuration. Connections between cabinets are made through N‐Bulkhead connectors located on the top of each cabinet. All programming and adjusting is done through the software and this manual primarily deals with this topic. The computer running the software is connected via an RS232 serial cable to each channel card in the manner shown below. 50289‐BA‐8‐PA ‐5‐ MAIN SCREEN Below is the main working screen used to configure the channel card settings. The primary fields addressed are: • Communication Connection • Time Out Timer • Mode Setting • Key On Delay • Key Off Delay • Attenuation • Setting a Frequency 50289‐BA‐8‐PA ‐6‐ COMMUNICATION CONNECTION This software automatically checks the condition of its communication with the intended channel. Each message is acknowledged and displayed in the message box at the bottom of the screen. If the software does not receive a response from the channel, a warning message is displayed, “NO RESPONSE FROM UNIT”. 50289‐BA‐8‐PA ‐7‐ TIME OUT DURATION The time‐out duration is how long a channel can be held open (keyed on) for a retransmission. An inadvertent or intentional “key and hold” action without any voice communication will not disable the channel because of this feature. The time‐out duration can be up set from 1 second to 99 seconds 1 second intervals. The time‐out duration can be disabled by setting it to 00, when disabled, the channel will key continuously with the presence of a received signal. SETTING A TIME‐OUT TIME To set a time‐out time, click on the text box “Time Out Timer” and enter the desired time‐out time up to 99 seconds then click “Send Button” next to the box. To verify the setting, click on the “Read Button” and the display will be updated with the channel setting. 50289‐BA‐8‐PA ‐8‐ MODE SETTING The channel mode may be set to either INHIBIT, CONTINUOUS, CARRIER DETECT or optional TONE DETECT. In the Inhibit mode, the channel is off and will not key on. In the continuous mode, CW, the channel is always keyed and continuously transmitting. In the carrier detect mode, CD, the channel is keyed only when the incoming signal strength is above the factory set threshold level. Normal operation will be in CD mode; continuous mode is normally used for testing. CHANGING THE MODE To change the Mode, click the desired function box on Mode Selection on the main screen. Then click “Send Button” next to the box. To verify the setting, click on the “Read Button” and the display will be upd…
