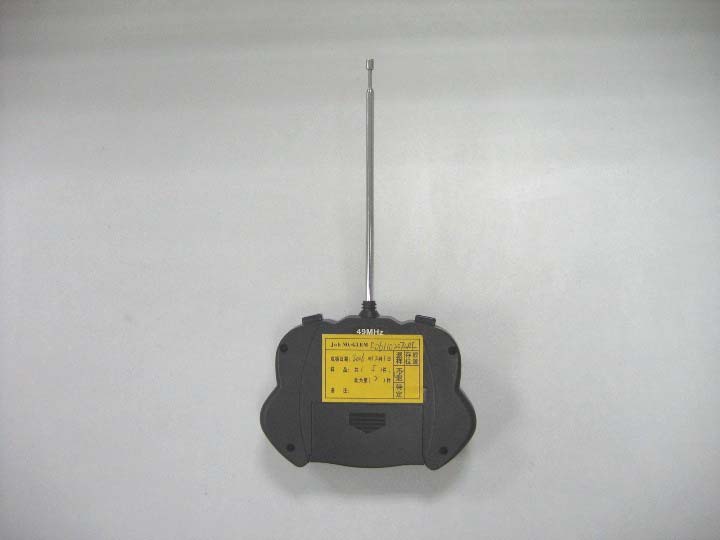

UT752691613301R/C Vehicle Series

FCC ID：UT752691613301 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2) this device mustaccept any interference received, including interference that may cause undesired operation.

Report No.: GLEMR061102072RFI Page: 1 of 9 FCC ID: UT752691613301 Authorized Signature: Jerry Chen Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : GLEMR061102072RF Applicant: EMIRIMAGE CORPORATION FCC ID: UT752691613301 Fundamental Frequency : 49.860MHz Equipment Under Test (EUT): Name: R/C VEHICLE SERIES Model No.: TOU4400M, TOU13888, TOU13889, TOU3231, TOU8631, TOU5890A♣ ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. Standards: FCC PART 15, SUBPART C : 2006 Section 15.235 Date of Receipt: 29 November 2006 Date of Test: 29 November and 04 December 2006 Date of Issue: 11 December 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: UT752691613301 Report No.: GLEMR061102072RFI Page: 2 of 9 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2006 Section 15.235 PASS Occupied Bandwidth FCC PART 15 :2006 Section 15.235 PASS Remark: Model No.: TOU4400M, TOU13888, TOU13889, TOU3231, TOU8631, TOU5890A The actual tested model is TOU4400M, since the electrical circuit design, PCB layout, component used and internal wiring are identical for the above models, only the outer decoration is different. FCC ID: UT752691613301 Report No.: GLEMR061102072RFI Page: 3 of 9 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY ....................................................................................................................................... 2 3 CONTENTS ................................................................................................................................................ 3 4 GENERAL INFORMATION........................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................... 4 4.2 DETAILS OF E.U.T. ............................................................................................................................... 4 4.3 DESCRIPTION OF SUPPORT UNITS......................................................................................................... 4 4.4 TEST LOCATION.................................................................................................................................... 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................... 4 4.6 TEST FACILITY...................................................................................................................................... 5 5 TEST RESULTS ......................................................................................................................................... 6 5.1 TEST INSTRUMENTS.............................................................................................................................. 6 5.2 E.U.T. OPERATION...............................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA............................................................................................ 7 5.3.1 Radiated Emissions ....................................................................................................................... 7 5.3.2 Occupied Bandwidth...................................................................................................................... 9 FCC ID: UT752691613301 Report No.: GLEMR061102072RFI Page: 4 of 9 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant Name: EMIRIMAGE CORPORATION Applicant Address: 5269 N. W. 161 Street, Miami, FL, 33014 USA 4.2 Details of E.U.T. Name: R/C VEHICLE SERIES Model No.: TOU4400M, TOU13888, TOU13889, TOU3231, TOU8631, TOU5890A♣ Power Supply: 9V DC (1 x ‘6F 22’ Size Battery) Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an independent unit: a 49MHz radio transmitter. 4.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory, No.198 Kezhu Road…
