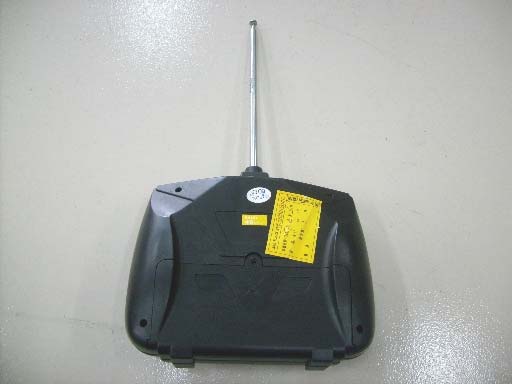

UT7ULTIMASS149R/C Tpys Series (Controller)

49MHZ Model No.: TOU11459 Tested To Comply with FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, Including interference that may cause undesired operation. FCC ID：UT7ULTIMASS149 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference and (2) this device mustaccept any interference received, including interference that may cause undesired operation.

Report No.: GLEMR070401141RFT Page : 1 of 9 FCC ID : UT7ULTIMASS149 Authorized Signature: Stephen Guo Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the ne w system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to th e sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 * In the configuration tested, the EUT complied with the standards specified above. TEST REPORT Application No. : GLEMR070401141RF Applicant: EMIRIMAGE CORPORATION FCC ID: UT7ULTIMASS149 Fundamental Frequency : 49.860MHz Equipment Under Test (EUT): Name: R/C TOYS SERIES Model No.: TOU11459,TOU15401, TOU14789, TOU12741, TOU12742, TOU333I, TOU3425, TOU15395, TOU7117, TOU9609♣ ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. Standards: FCC PART 15, SUBPART C : 2006 Section 15.235 Date of Receipt: 26 April 2007 Date of Test: 26 April and 29 May 2007 Date of Issue: 30 May 2007 Test Result : PASS * FCC ID.: UT7ULTIMASS149 Report No.: GLEMR070401141RFT Page : 2 of 9 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2006 Section 15.235 PASS * Occupied Bandwidth FCC PART 15 :2006 Section 15.235 PASS Remark: Model No.:TOU11459,TOU15401,TOU14789,TOU12741,TOU12742, TOU3331, TOU3425, TOU15395, TOU7117, TOU9609 According to the confirmation from the applicant,only the model TOU11459 was test, since the electrical circuit design, PCB layout, component used and internal wiring are identical for the above models, only the outer decoration ,color and models munbers are different. * The EUT pass radiated emission test after modification carried out as below: 1. Add two capacitors for the Transmit circuit as the following figure shown. 2. Replace the resistor R8 with a new one which resistance is 470ohm. 3. Replace the inductor L1 with new ones which inductance is 1.0uH. 4. Replace the L2 with new one which inductance is 8.2uH. FCC ID.: UT7ULTIMASS149 Report No.: GLEMR070401141RFT Page : 3 of 9 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY ....................................................................................................................................... 2 3 CONTENTS ................................................................................................................................................ 3 4 GENERAL INFORMATION........................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................... 4 4.2 DETAILS OF E.U.T. ............................................................................................................................... 4 4.3 DESCRIPTION OF SUPPORT UNITS......................................................................................................... 4 4.4 TEST LOCATION.................................................................................................................................... 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................... 4 4.6 TEST FACILITY...................................................................................................................................... 5 5 TEST RESULTS ......................................................................................................................................... 6 5.1 TEST INSTRUMENTS.............................................................................................................................. 6 5.2 E.U.T. OPERATION...............................................................................................................................7 5.3 TEST PROCEDURE & MEASUREMENT DATA............................................................................................ 7 5.3.1 Radiated Emissions ....................................................................................................................... 7 5.3.2 Occupied Bandwidth...................................................................................................................... 9 FCC ID.: UT7ULTIMASS149 Report No.: GLEMR070401141RFT Page : 4 of 9 SGS-CSTC Standards Technical S…
