UTBHLC830WWEB CAMERA

*** USER’S MANUAL *** FCC ID : UTBHLC830W The Federal Communication Commission Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: - -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced Radio/TV technician for help. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERECE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. 1/24 User Manual v.1.2 HLC-830W 2/24 Content I. PREFACE ....................................................................................................................................... 3 II. PRODUCT SPECIFICATIONS ....................................................................................................... 3 III. PRODUCT INSTALLATION....................................................................................................... 5 A. HARDWARE INSTALLATION............................................................................................................. 5 B. IP ASSIGNMENT............................................................................................................................ 5 C. INSTALL ACTIVEX CONTROL: .......................................................................................................... 7 IV. LIVE VIDEO ............................................................................................................................... 9 V. HLC-83 CONFIGURATION ...........................................................................................................11 A. SYSTEM......................................................................................................................................11 B. NETWORK.................................................................................................................................. 14 C. MULTIMEDIA...............................................................................................................................16 D. EVENT....................................................................................................................................... 19 VI. NETWORK CONFIGURATION................................................................................................ 22 VII. PACKAGE CONTENTS........................................................................................................... 24 3/24 I. Preface HLC-83 is a CMOS IP camera. It builds in web server. User views real-time video via IE browser. HLC-83 supports MPEG-4 video compression which provides smooth and high quality video. The video can be stored in the SD card, and can be playback remotely. HLC-83 is an easy-to-use IP camera which is designed for home security application. II. Product Specifications z MPEG4 compression z Supports SD card for local recording z Wireless network connectionOptional z 2-way audio z Online firmware upgrade z Real-time video recording z Compatible with Microsoft Windows Media Player 4/24 Hardware CPU ARM 9 ,32 bit RISC RAM 64MB ROM 8MB Image sensor 1/4” CMOS Microphone Built-in Network Ethernet 10/ 100 Base-T Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP Wireless (Optional) Wireless 802.11b/g WEP 64/ 128 bit System Video Resolution 640x480, 320x240, 160x120 Video adjust Brightness, Contrast, Saturation, Hue Image snapshot Yes Full screen monitoring Yes Compression format MPEG-4 Video bitrate adjust CBR, VBR Motion Detection Yes, 3 different areas Triggered action Mail, FTP, Save to SD card Pre/ Post alarm Yes, configurable Security Password protection Firmware upgrade HTTP mode, can be upgraded remotely Simultaneous connection Up to 10 Audio Yes, 2-way SD card management Recording trigger Motion Detection, Network break down Video format AVI Video playback Yes Delete files Yes Web browsing requirement OS Windows 2000, XP, 2003 Internet browser Microsoft IE 6.0 or above 5/24 III. Product Installation A. Hardware Installation i. Connect power adaptor ii. Connect ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for HLC-83”. B. IP Assignment i. Use the software, “IP Installer” to assign the IP address of HLC-83. The software is in the attached software CD. ii. There are two languages for the IP installer a. IPInstallerCht.exe: Chinese version b. IPInstallerEng.exe: English version iii. There are 3 kinds of IP configuration. a. Fixed IP (Public IP or Virtual IP) b. DHCP (Dynamic IP) 6/24 c. Dial-up (PPPoE) iv…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A SOC FIC8120 CMOS MINI PCI POWER PHY+RJ45 FLASH SDRAM SENSOR

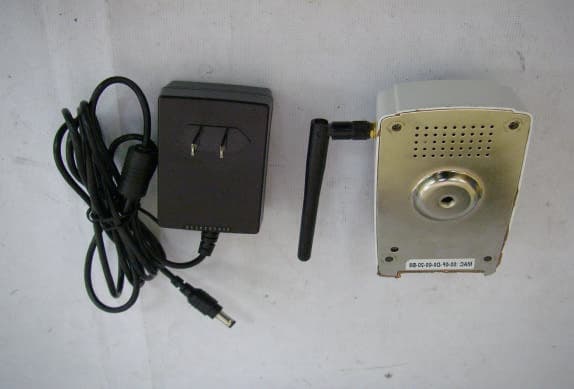

FCC ID: UTBHLC830W REPORT NO. :E950418 Page 28 of 32 NVLAP LAB CODE: 200097-0- PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 19. EUT External Photos PHOTO. 1. EUT FRONT VIEW PHOTO. 2. EUT REAR VIEW

FCC ID : UTBHLC830W REPORT NO. : E950418 PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 EUT LABEL

FCC ID: UTBHLC830W REPORT NO. :E950418 Page 26 of 32 NVLAP LAB CODE: 200097-0- PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 17. FCC ID Label Sample The sample label shown below shall be permanently affixed at a conspicuous location on the device, instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practicable, only the trade name, model number, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). EUT Label Made in Taiwan 83VPCA1A1 895050501 25mm 32mm WEB CAMERA MODEL: HLC-830W POWER: DC 5V S/N:005VPH83V680034 FCC ID : UTBHLC830W

FCC ID: UTBHLC830W REPORT NO. :E950418 Page 29 of 32 NVLAP LAB CODE: 200097-0- PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 20. EUT Internal Photos PHOTO. 3. EUT INSIDE VIEW PHOTO. 4. EUT COMPONENT SIDE VIEW FCC ID: UTBHLC830W REPORT NO. :E950418 Page 30 of 32 NVLAP LAB CODE: 200097-0- PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 PHOTO. 5. EUT SOLDERING SIDE VIEW PHOTO. 6. EUT COMPONENT SIDE VIEW FCC ID: UTBHLC830W REPORT NO. :E950418 Page 31 of 32 NVLAP LAB CODE: 200097-0- PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 PHOTO. 7. EUT COMPONENT SIDE VIEW PHOTO. 8. EUT SOLDERING SIDE VIEW FCC ID: UTBHLC830W REPORT NO. :E950418 Page 32 of 32 NVLAP LAB CODE: 200097-0- PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 PHOTO. 9. EUT COMPONENT SIDE VIEW PHOTO. 10. EUT SOLDERING SIDE VIEW

Operating Principle Explanation FCC ID: UTBHLC830W 1. Input power source through the AC Adapter to EUT and the interior produced 5V, 3.3V, 1.8V to the entire system. 2. Chip carries out the following function by SOC FIC8120 A. SDRAM---- The memory body for the FIC8120 to run the operations or storing data temporarily when operating. B. the FLASH---- The function of Flash memory is storing formula and advance value of the system, which providing for FIC8120 to use. C. MINI PCI---- When transferring and receiving network signals, the chip FIC8120 used wireless card as the connection interface. D.PHY+RJ45---- When transferring and receiving network signals, the chip FIC8120 used PHY+RJ45 as the connection interface. E. COMS SENSOR----CMOS sending the measured images to FIC8120 for processing.

FCC ID: UTBHLC830WREPORT NO. :E950418 Page 1 of 32 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- FCC ID TEST REPORT According to FCC Part 15 Subpart C, Intentional Radiators EUT TypeWEB CAMERA Transmitter (TX)1) Model No.: HLC-830W 2) FCC ID: UTBHLC830W Applicant Name: HUNT ELECTRONIC CO., LTD. Address See the General Information for details. Test Date : 2006/9/12Issued Date :JAN. 03, 2007 Test Engineer : JASON KUNGNVLAP Signature : M. Y. Tsui / Director ΘThe test report shall not be reproduced except in full, without the written approval of the “PEP” ΘThe report must not be used by the client to claim product endorsement by NVLAP or any agency of the United States government. ΘThis report is applicable only for EUT Model which described in page 4 . ΘThe testing result in this report are traceable to national or international standard . PEP TESTING LABORATORY NO. 8, Huzi, Hubei Village, Linkou Shiang, Taipei Hsien, Taiwan 244, R. O. C. TEL : 886-2-26021042FAX : 886-2-26021045 FCC ID: UTBHLC830WREPORT NO. :E950418 Page 2 of 32 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- Table of Contents 1.GENERAL INFORMATION3 2.PRODUCT INFORMATION4 3.EUT DESCRIPTION AND TEST METHODS5 4.MODIFICATION(S)6 5.TEST SOFTWARE USED6 6.SUPPORT EQUIPMENT USED7 7.DESCRIPTION FIELD STRENGTH OF FUNDAMENTAL AND9 HARMONICS TEST 8.DESCRIPTION OF CONDUCTED EMISSIONS TEST11 9.DESCRIPTION OF RADIATED EMISSIONS TEST12 10.FIELD STRENGTH OF FUNDAMENTAL AND HARMONICS TEST15 SETUP PHOTOS 11.FIELD STRENGTH OF FUNDAMENTAL AND HARMONICS TEST DATA16 12.CONDUCTED EMISSIONS TEST SETUP PHOTOS19 13.CONDUCTED EMISSIONS TEST DATA20 14.RADIATED EMISSIONS TEST SETUP PHOTOS22 15.RADIATED EMISSIONS TEST DATA23 16.LIST OF MEASURED INSTRUMENTS25 17.FCC ID LABEL SAMPLE26 18.INFORMATION TO THE USER27 19.EUT EXTERNAL PHOTOS28 20.EUT INTERNAL PHOTOS29 FCC ID: UTBHLC830WREPORT NO. :E950418 Page 3 of 32 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 1. General Information Measurement of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 2 and 15. Applicant Name/Address:HUNT ELECTRONIC CO., LTD. 6F., NO. 57-59, JIUN HSIEN RD., CHI TU DISTRICT, KEELUNG 20656, TAIWAN, R. O. C. Contact Person:HARRY YEH / ENGINEER Phone No.:886-2-86927999Fax No.:886-2-86926778 Manufacturer Name/Address:HUNT ELECTRONIC CO., LTD. 6F., NO. 57-59, JIUN HSIEN RD., CHI TU DISTRICT, KEELUNG 20656, TAIWAN, R. O. C. — Regulation:FCC Part 2 and 15 — Limitation:Part 15, Section 15.249, 15.207 and 15.209 — Test Procedure:ANSI C63.4-2003 — Place of Test:PEP Testing Laboratory NO. 8, Huzi, Hubei Village, Linkou Shiang, Taipei Hsien, Taiwan 244, R. O. C. TEL : 886-2-26021042FAX : 886-2-26021045 FCC ID: UTBHLC830WREPORT NO. :E950418 Page 4 of 32 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 2. Product Information a.EUT Type:WEB CAMERA b.Transmitter Model:HLC-830 c.TX FCC ID:UTBHLC830W d.TX Channel No.1-11 e.TX Working Freq. :2.412 –2.462 GHz f.TX ModulationCCK, DSSS g.TX Crystal / Osc.32.768 KHz, 22.184 MHz, 30 MHz, 40 MHz h.TX Port(s)Lan Port * 1, Phone Jack * 1, SD Interface Slot * 1 i.TX Transmitting PowerAdapter----- ManufacturerMEAN WELL Model No: ES18U05-050 Input : AC 100-240 50/60Hz 0.5A Output : DC 5V 3A k.TX CaseABS l.EUT Condition :ϭPrototypeEngineeringʳ ʳʳʳʳProduction m.EUT Received Date :SEP.12,2006 n.Date(s) of performance of test: SEP. 12, 2006 – DEC. 05, 2006 FCC ID: UTBHLC830WREPORT NO. :E950418 Page 5 of 32 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 3. EUT Description and Test Methods The Equipment under test (EUT) is WEB CAMERA model HLC-830W. The EUT serves function ofreal-time video recording over Internet by wireless or Ethernet network connection. The EUT supports SD card as storage medium for local video recording. The working frequency for wireless connection is 2412-2462MHz. Power adaptor supplies EUT 5Vdc from ac mains. For more detail information about the EUT,please refer to the user’s manual. Setup Method: According to the major function designed, the EUT configuration was set up by the following steps: (A) Connect EUT RJ-45 port to PC LAN port. (B) Insert SD memory card into SD slot. (C) Install data cable on EUT audio jack. All connections of corresponding peripheral devices to PC I/O ports and EUT were set to proceed with test. The test was carried out on EUT operational condition. The worst-case test result was recorded and provided in this report. FCC ID: UTBHLC830WREPORT NO. :E950418 Page 6 of 32 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 4. Modification(s): The applicant has been notified and agrees to incorporate the following modification(s) into all production units, please refer to the attached pages in this report. (1) Spray enclosure with conductive coat. (2) Replace RS10, RS13, RS14 and RS17 with 22 ohm resistors; replace RS11 and RS23 with 33 ohm resistor. (3) Replace C5, C6, C7, C8 and C9 with 47pF capacitors . (4) Mount one suppression core on adaptor power cord. 5. Test Software Used Web browser was used to monitor image recorded from EUT. FCC ID: UTBHLC830WREPORT NO. :E950418 Page 7 of 32 PEPTesting Laboratory 12-…

Text truncated - open the document above for the full version.

FCC ID: UTBHLC830W REPORT NO. :E950418 Page 15 of 32 PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 10. Field Strength of Fundamental and Harmonics Test Setup Photos < FRONT VIEW > FCC ID: UTBHLC830W REPORT NO. :E950418 Page 22 of 32 NVLAP LAB CODE: 200097-0- PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 14. Radiated Emissions Test Setup Photos < FRONT VIEW > < REAR VIEW >
