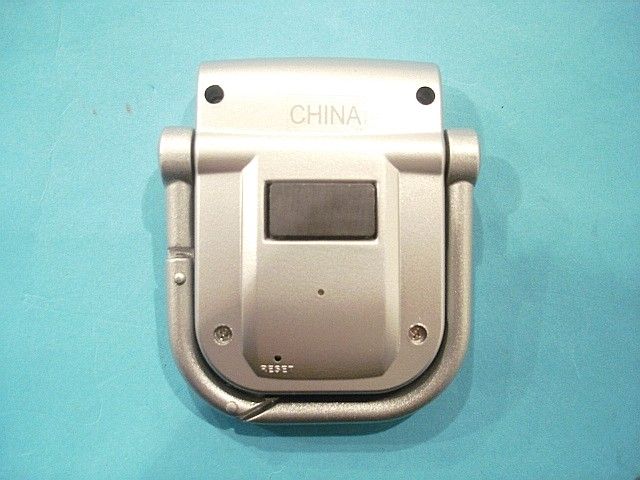

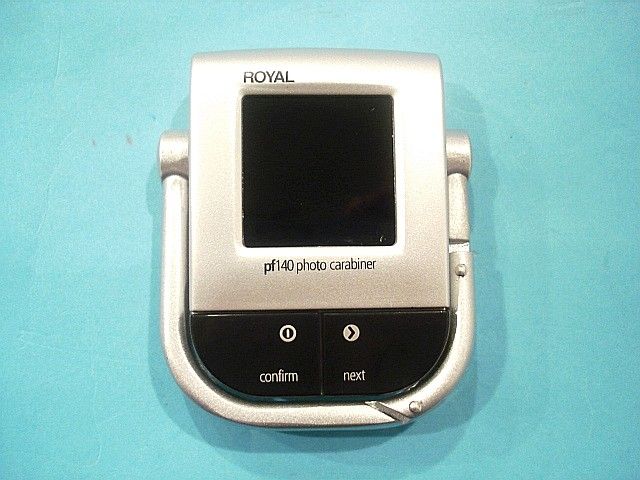

UTF-DPV140DIGITAL PHOTO FRAME

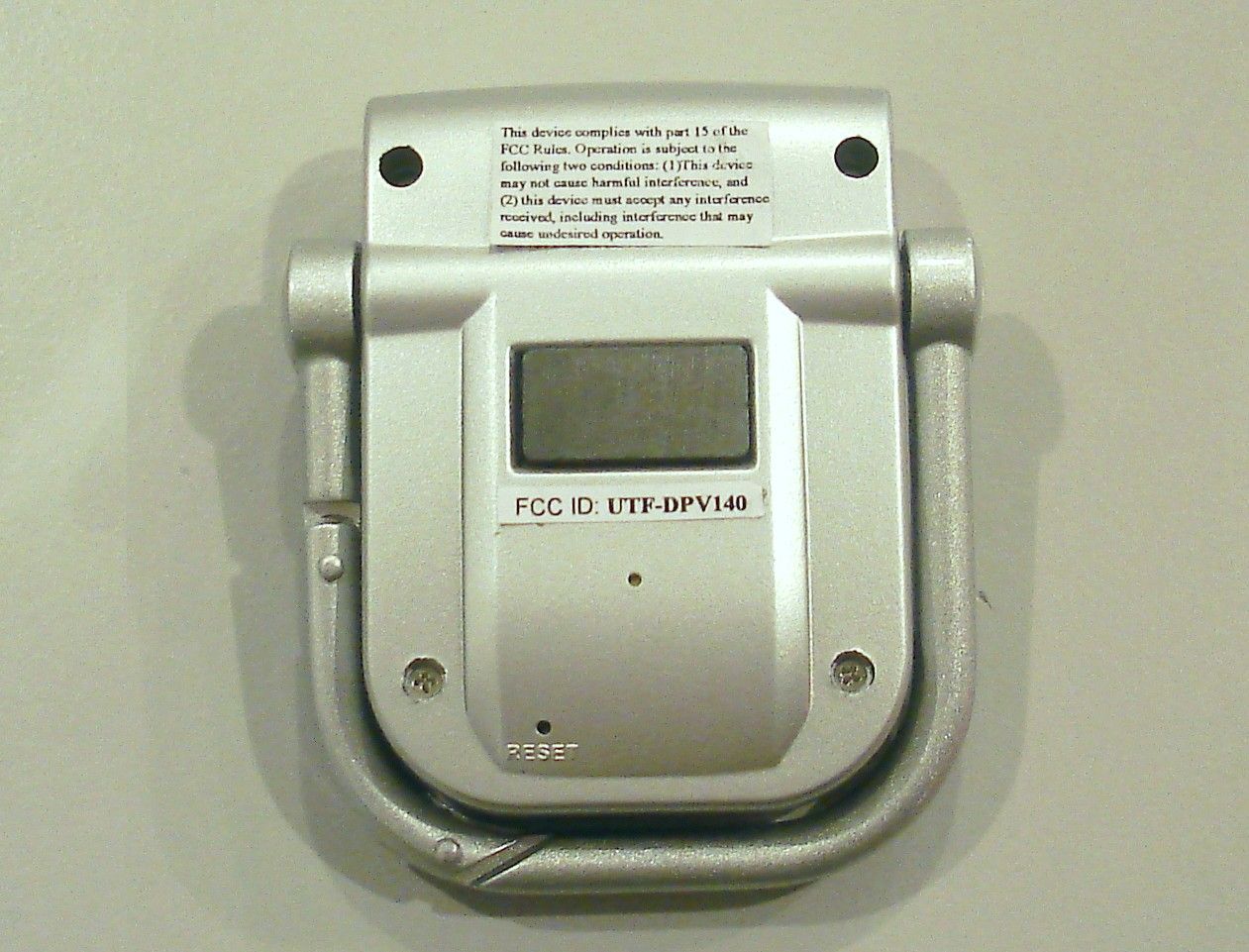

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Shielded cables must be used with this unit to ensure compliance with the Class FCC limits.

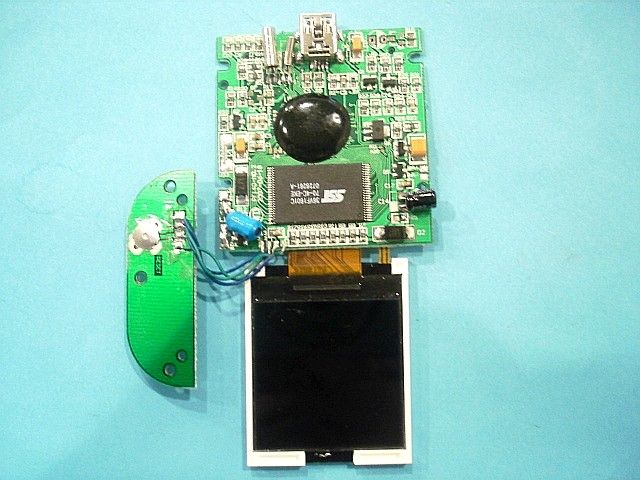

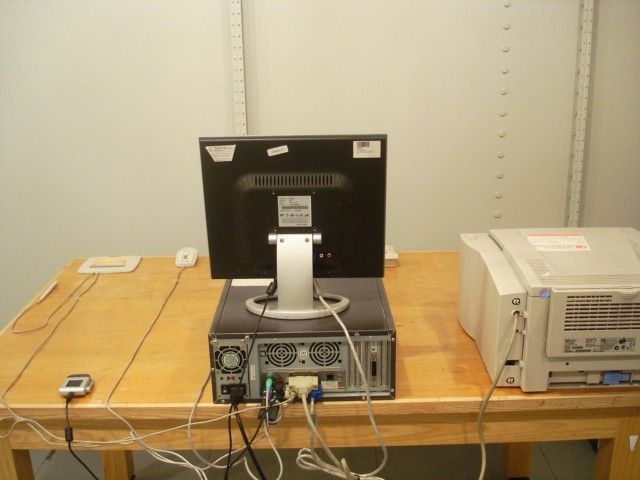

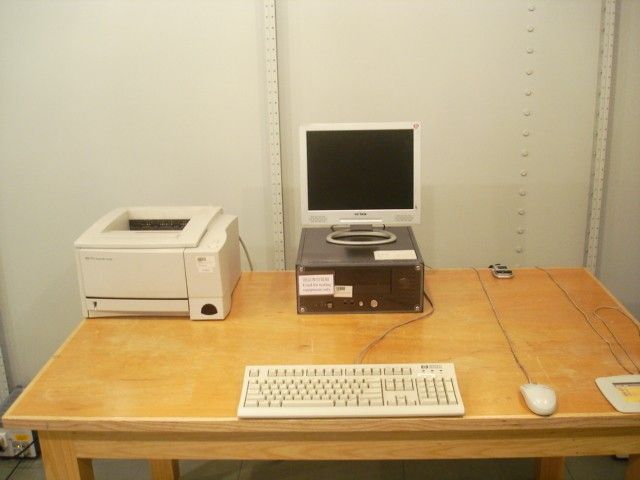

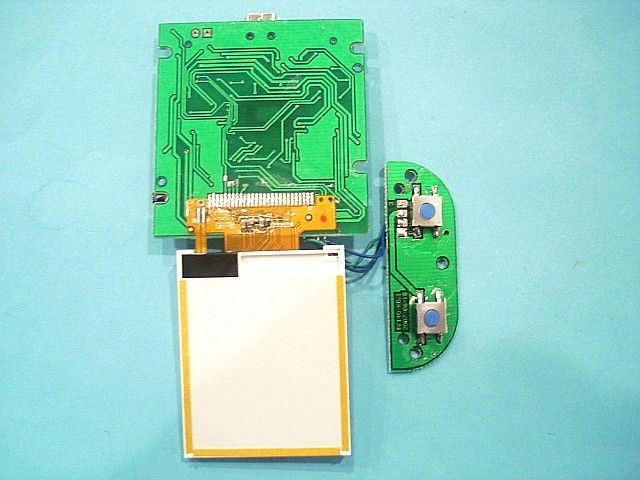

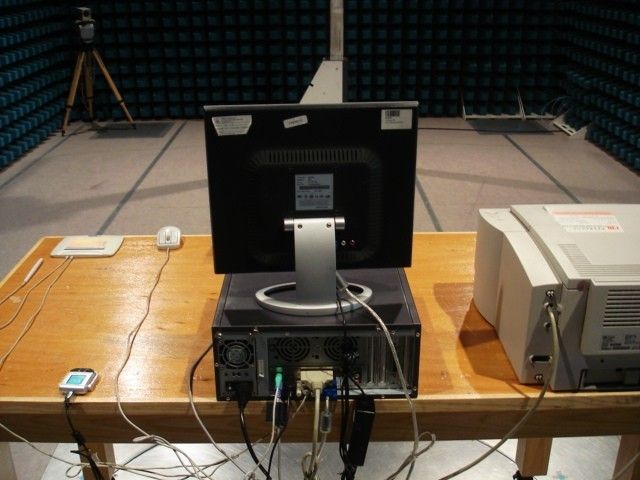

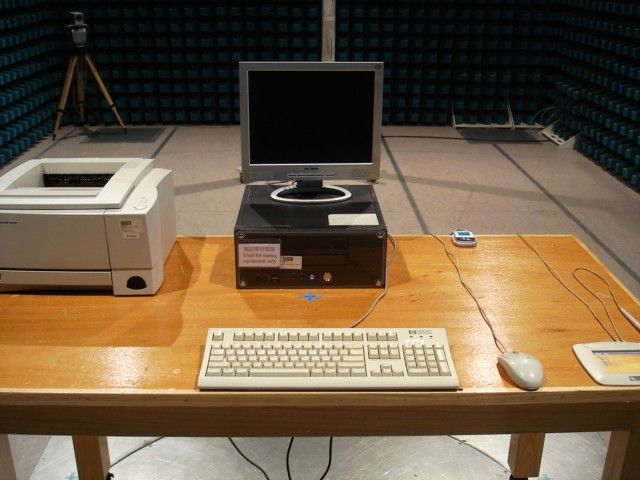

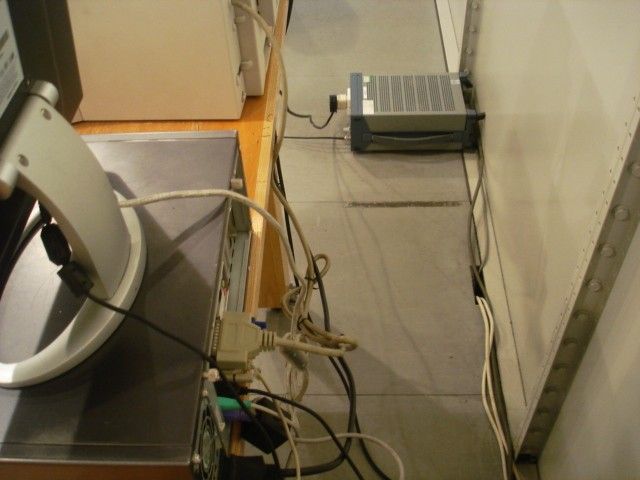

Operation description The equipment under test (EUT) is capable to display photo download from personal computer and power by a built-in rechargeable Lithium battery at DC 3.7V. The brief circuit description is listed as follows: - IC U1 ST2203 (4MHz for fast clock and 32.768kHz for slow clock) and associated circuit act as USB connection and data processing. - IC U2 SST39VF1681 and associated circuit act as data storage. - IC U3 XC6202 and associated circuit act as Low Drop Out voltage regulator.

TEST REPORT Report No. : AJ028382-001 Date : 2007 October 11 Page 1 of 12 FCC ID: UTF-DPV140 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ221028(4) Applicant : UNICORN MANUFACTURING LTD. RM 2105, H.K. WORSTED MILLS IND. BUILDING, 31-39 WO TONG TSUI STREET, KWAI CHUNG, N.T., HONG KONG Sample Description : One(1) submitted sample(s) stated to be Model Name : Digital Photo Frame Model No. : DPV140 Rating : USB 5V for charging battery 1 x DC 3.7V rechargeable battery No. of submitted sample : Two (2) set(s) *** Date Received : 2007 September 19 Test Period : 2007 September 19 ñ 2007 October 05 Test Requested : FCC Part 15 Certification Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 12. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ028382-001 Date : 2007 October 11 Page 2 of 12 FCC ID: UTF-DPV140 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Related Submittal Grants .............................................................................................................3 1.3 Location of the Test Site ..............................................................................................................4 1.4 List of Measuring Equipment.......................................................................................................5 1.5 List of Support Equipment ...........................................................................................................6 2 Description of the radiated emission test .............................................................................................7 2.1 Test Procedure..............................................................................................................................7 2.2 Test Result....................................................................................................................................7 2.3 Radiated Emission Measurement Data ........................................................................................8 3 Description of the Line-conducted Test.............................................................................................10 3.1 Test Procedure............................................................................................................................10 3.2 Test Result..................................................................................................................................10 3.3 Graph and Table of Conducted Emission Measurement Data ...................................................10 4 Photograph .........................................................................................................................................11 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ....................11 4.2 Photographs of the External and Internal Configurations of the EUT.......................................11 5 Supplementary Document ..................................................................................................................11 6 Appendices.........................................................................................................................................12 TEST REPORT Report No. : AJ028382-001 Date : 2007 October 11 Page 3 of 12 FCC ID: UTF-DPV140 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a digital photo frame for displaying photos downloaded from personal computer. It operates at 4MHz (for fast clock and 32.768kHz for slow clock) and the oscillation of MCU is generated by 2 crystals. The EUT is power by a built-in DC3.7V rechargeable Lithium battery. This digital photo frame has three features: 1. Photo frame (which supports .JPEG and .BMP files) 2. Mass photo storage through USB1.1 interface for uploading and downloading files 3. Clock with alarm The brief circuit description is listed as follows: - IC U1 and its associated circuits act as USB connection and data processing. - IC U2 and its associated circuit act as data storage. - IC U3 and its associated circuit act as Low Drop Out voltage regulator. A brief circuit description is saved with filename: OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a computer peripheral product. TEST REPORT Report No. : AJ028382-001 Date : 2007 October 11 Page 4 of 12 FCC ID: UTF-DPV140 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Developm…
