UTOMP1045RWireless Remote

INSTRUCTION MANUAL The device function described as below: RF wireless remote controller function will operate ipod by FM switch or adjusting FM frequency. Operation description: 1. During the period, “FUN” key on the remote controller could close FM; or FM frequency could be adjusted by “UP/DOWN” key.The show mode will be exited after FM isn’t operated for ten seconds. 2. After exitting the show mode, We could control the function of ipod by operating remote controller: play/pause, volume+, volume-, skip>>, skip<<. Pressing “FUN” key on the remote controller, FM switch will be controlled ; Pressing “UP/DOWN” key on the remote controller, FM frequency will be adjusted ; Pressing “Play/pause” key, it will be continued or stoped temporarily. Pressing “volume+/volume” key,the volume will be turned up or down; Pressing “skip>>/skip<<” key, it will be entered the next or last. Wa r n i n g : Do not use or store in dusty, dirty areas. Do not use the device near water. Clean only with dry cloth. Do not attempt to open the equipment. Non-expert handling of the device may damage the system. Do not chang or modification. It is not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

t- {} .= (LE =9 EAL E F IE o E IJJ E (f lrJ F o L

EUT EXTERIOR PHOTO Applicant: ESI CASES AND ACCESSORIES FCC ID: UTOMP1045R

Applicant: ESI CASES AND ACCESSORIES FCC ID: UTOMP1045R FCC ID: UTOMP1045R This device complies with part 15 the FCC rules. Operation is subject to the following two condition: (1). This device may not case harmful interference, (2).This device must accept any interference received, including interference that may cause undesired operation Proposed Label Location On EUT EUT Bottom View/Proposed FCC ID LABEL location

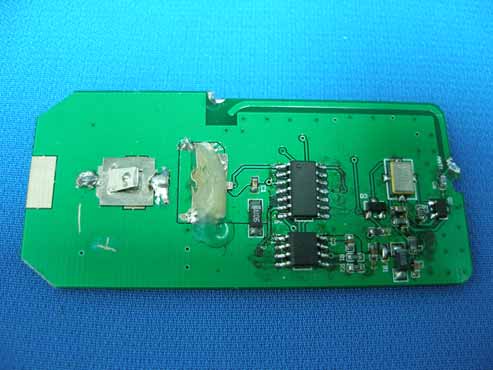

EUT INSIDE PHOTO Applicant: ESI CASES AND ACCESSORIES FCC ID: UTOMP1045R

Applicant: ESI CASES AND ACCESSORIES FCC ID: UTOMP1045R Working principle RF Remote MP1045R consists of five parts as below: 1. AMP Transmitter: Consists of triode Q2: 2SC3356, Q3: 8050 and appendix components, it can amplify all signals from CPU. 2. CPU Consists of IC LW3883 and appendix components, it can detect and decode key information. 3. MEMORY: Consists of IC AT24C01 and appendix components. 4. Power: Li-ion battery to provide stable power to CPU. 5. Key: Consists of VOLPREVPLAY, etc key for inputing any information.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA 7 ON/OFF 4VOL- 5 PLAY PB5 1 PB6 2 PB7 3 VDD 4 PA6 5 PA7 6 PA0 7 PA3 8 PA4 9 PA5 10 VSS 11 PB0 12 PB1 13 PB2 14 Q1 LW3883 3 VOL+ 1PREV 2 NEXT 8 DOWN 6 UP A0 1 A1 2 A2 3 VSS 4 DATA 5 CLK 6 ORG 7 VDD 8 U1 AT24C01 C20.1 3V C4 12P EC210U R44.7K---10K R356K SAW1 433.92M Q22SC3356(NEC)C61.2 C5104 FB130ohm 120M Q38050(7Y) L122nH L222nH ANT1 3V C10.1 R156K 3V R256K 3V EC110U BT1BATTERY C30.1

Note: This report shall not be reproduced except in full, without the written approval of Sintek Laboratory Co.,Ltd. This document may be altered or revised by Sintek Laboratory Co.,Ltd. personnel only, and shall be noted in the revision section of the document. Page 1 of 23 FCC 47 CFR PART 15 SUBPART C TEST REPORT For ESI CASES AND ACCESSORIES Wireleless Remote Model: MP1045R Trade Name: MUSIC GEAR Prepared for ESI CASES AND ACCESSORIES 240 MADISON AVE 11 FLOOR NEW YORK NY 10016 Prepared by SINTEK LABORATORY CO., LTD. No. 7, Xinshidai Industrial, Guantian Village, Shiyan Town, Bao`an District, Shenzhen,Guangdong, P.R.C. TEL: 86-755-27604866 FAX: 86-755-27608359 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS....................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES ..................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT....................................................................................................9 6.2 SUPPORT EQUIPMENT ............................................................................................................9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 BANDWIDTH OF EMISSION......................................................................................................10 7.2 POWERLINE CONDUCTED EMISSIONS..........................................................................................19 7.3 TRANSMISSIN TIME.....................................................................................................................22 8. APPENDIX 1 PHOTOGRPHS OF TEST SETUP ................................................................... 23 Page 3 1. TEST RESULT CERTIFICATION Applicant: ESI CASES AND ACCESSORIES 240 MADISON AVE 11 FLOOR NEW YORK NY 10016 Equipment Under Test: Wireless Remote Tra de Na me : MUSIC GEAR Model: MP1045R Date of Test: Nov 24 ~ Dec15, 2006 Report No. : ST0611022 FCC ID : UTOMP1045R APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by SINTEK laboratory co., ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Page 4 2. EUT DESCRIPTION Product Wireless Remote Tra de Name MUSIC GEAR Model Number MP1045R Model Discrepancy N/A Power Supply DC 3V by Battery Frequency Range 433 MHz Number of Channels 1 Channels Antenna Specification N/A Note: This submittal(s) (test report) is intended for FCC ID: UTOMP1045R filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.231. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.231 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4: 2001, Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m to 4m to find out the highest emission. And also…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO Applicant: ESI CASES AND ACCESSORIES FCC ID: UTOMP1045R RADIATED EMISSION TEST
