UTTAD407Wireless Speaker

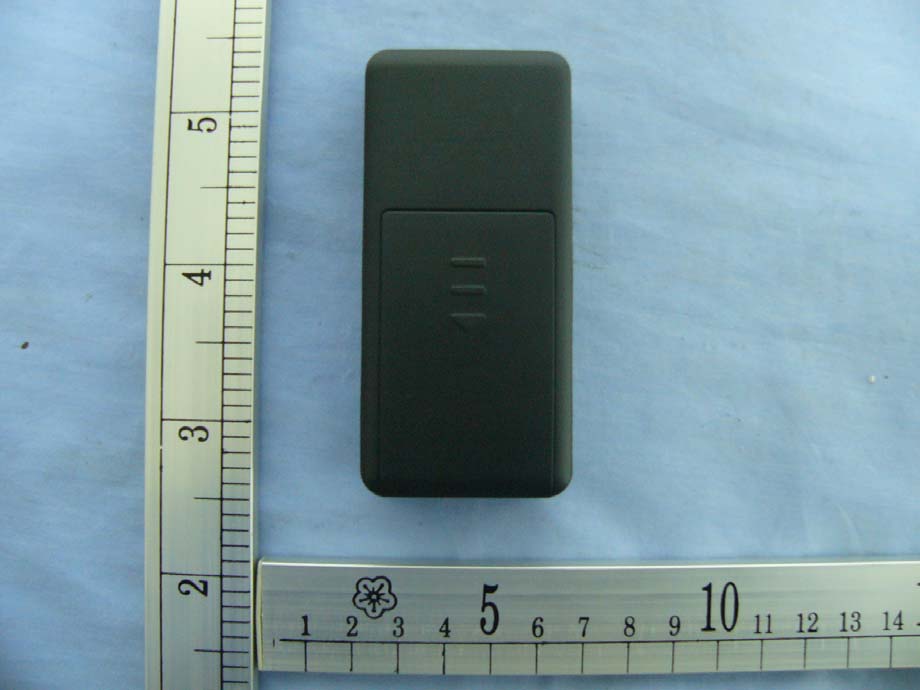

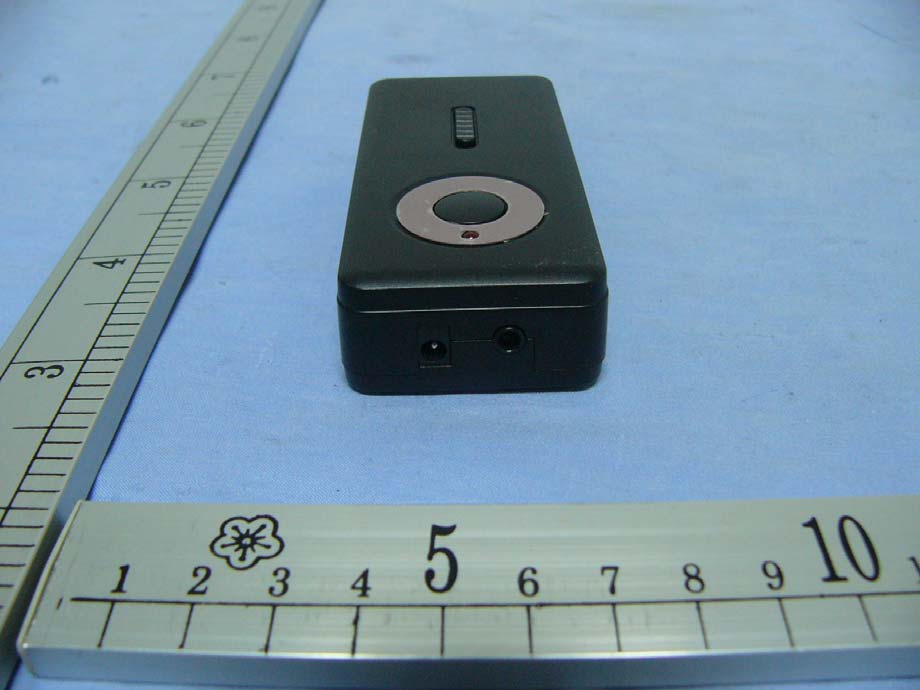

Garden Speaker Operating Instruction (for FCC approval process) 12/02/06 Power Unit Battery Installation 1.Please shut the power, Then unscrew the top cap from ‘close’ to ‘open’. 2.Insert 5 ‘AA’ batteries, Follow the polarity indications inside the compartment and be sure to install batteries as indicated. 3.Screw the top cap from clockwise till the indicators in one level. Operating the Unit NOTE: The unit can be operated either with the control buttons located on the top of the power unit or with the remote control. 1.According to the indications to match the channel and the sound channel. 2.Cut into the garden soil from tip, and keep stable. 3.Press on/off power button on the top of the unit upon, the indicator light will be on. After doing above all, the unit can work on finely Transmitter Battery Installation. 1,Open the battery door on the back of unit. 2.Insert 3’AAA’ batteries, follow the polarity indications inside the compartment and make sure to install the batteries as indicated. 3.Close the battery door as the same before. Transmitter Synchronization 1.The frequency between main unit and transmitter has been synchronized at the factory. However, if the transmitter does not work properly, please perform the following: 2. Install fresh batteries in the transmitter and power unit. 3. Press the Power button on the main unit so it is ON. The LED indicator will light. 4. Slide the up & down button to CH1 on top of the transmitter unit when keep the button CH1 as the indication on the top of operation pan covered by the top cap. And CH2 on the transmitter unit should match the CH2 on the master unit. 5. This procedure should synchronize the transmitter and the power unit. NOTE: Please turn off the power when finish the musical performance on the master unit. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk ABBA ELECTRONICS CO. LTD, FCC ID: UTTAD407, Assessment NO.: AN07T6720, Notice#2 Inbox Reply from "[email protected]" <[email protected]> hide details Apr 16 (2 days ago) to [email protected], [email protected] cc [email protected] date Apr 16, 2007 10:39 PM subject ABBA ELECTRONICS CO. LTD, FCC ID: UTTAD407, Assessment NO.: AN07T6720, Notice#2 Dear Eric, Sorry, but I left one item out of the first notice. I will repeat all items again. Please disregard Notice#1. As always, if I can answer questions, please email 1. Radiated field strength measurement results according to 15.249(a) for the fundamental operation frequency were not included in the report. Please provide a revised report. 2. Please provide a theory of operation exhibit. 3. Please describe the input (audio) signal that was supplied to the EUT during the tests. Best regards, Tim Dwyer CCS TCB Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward Invite [email protected] to Gmail Reply from "[email protected]" <[email protected]> hide details Apr 16 (2 days ago) to [email protected] date Apr 16, 2007 10:39 PM subject Delivery Status Notification (Failure) mailed-by ruebert.ieee.org This is an automatically generated Delivery Status Notification. Delivery to the following recipients failed. [email protected] Final-Recipient: rfc822;[email protected] Action: failed Status: 5.4.0 ---------- Forwarded message ---------- From: <[email protected]> To: <[email protected]>, <[email protected].> Date: Mon, 16 Apr 2007 19:39:24 -0700 Subject: ABBA ELECTRONICS CO. LTD, FCC ID: UTTAD407, Assessment NO.: AN07T6720, Notice#2 Dear Eric, Sorry, but I left one item out of the first notice. I will repeat all items again. Please disregard Notice#1. As always, if I can answer questions, please email http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk (1 of 3)4/18/2007 3:18:51 PM http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk 1. Radiated field strength measurement results according to 15.249(a) for the fundamental operation frequency were not included in the report. Please provide a revised report. 2. Please provide a theory of operation exhibit. 3. Please describe the input (audio) signal that was supplied to the EUT during the tests. Best regards, Tim Dwyer CCS TCB Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward Invite [email protected] to Gmail Reply from Tim Dwyer <[email protected]> hide details Apr 16 (2 days ago) to [email protected] date Apr 16, 2007 10:39 PM subject Fwd: ABBA ELECTRONICS CO. LTD, FCC ID: UTTAD407, Assessment NO.: AN07T6720, Notice#2 mailed-by gmail.com - Show quoted text - Reply Forward Reply "eric.wong" to tim.dwyer, aven.zhou, tim.dwyer show details 3:27 am (11 hours ago) .. Tim.. .. : ) <[email protected]> 2007/04/17 10:39 AM <[email protected]>, <[email protected]> <[email protected]> ABBA ELECTRONICS CO. LTD, FCC ID: UTTAD407, Assessment NO.: AN07T6720, Notice#2 Dear Eric, Sorry, but I left one item out of the first notice. I will repeat all items again. Please disregard Notice#1. As always, if I can answer questions, please email 1. Radiated field strength measurement results according to 15.249(a) for the fundamental operation frequency were not included in the report. Please provide a revised report. (AVEN: Please find the updates on the report just attached in this mail.) http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk (2 of 3)4/18/2007 3:18:51 PM http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk 2. Please provide a theory of operation exhibit. (AVEN: Please find the exhibit <theory of operation> just attached in this mail.) 3. Please describe the input (audio) signal that was supplied to the EUT during the tests. (AVEN: We have used 3 types of audio signal: 1kHz tone, selected ROCK and SOFT music into our pretest and the worst case is found and reported with 1kHz tone. FYI..) - Show quoted text - 2 attachments — Download all attachments (AD-407)OpDesc.pdf 32K View as HTML Download SZ070319B04-RP_0417.pdf 400K View as HTML Download http://mail.google.com/mail/?view=page&name=gp&ver=sh3fib53pgpk (3 of 3)4/18/2007 3:18:51 PM

LABEL LOCATION

Compliance Certification Services (Shenzhen) Inc. Report No: SZ070319B04-RP FCC ID: UTTAD407 Date of Issue: April 16, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 25 Rev. 00 FCC 47 CFR PART 15 Subpart C TEST REPORT For Wireless Speaker Model Number: AD-407 Trade Name: N/A Prepared for ABBA ELECTRONICS CO., LTD FLAT C, 4 TH FLOOR, BLOCK 1, CAMELPAINT BUILDING, 62 HOI YUEN ROAD, KWUN TONG, KOWLOON, HONG KONG Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ070319B04-RP FCC ID: UTTAD407 Date of Issue: April 16, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................................ 3 2. EUT DESCRIPTION...................................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................................... 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION................................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES 8 5.2 EQUIPMENT................................................................................................................................. 8 6. SETUP OF EQUIPMENT UNDER TEST ..................................................................................................... 9 6.1 SETUP CONFIGURATION OF EUT.................................................................................................. 9 6.2 SUPPORT EQUIPMENT .......................................................................................................... 9 7. FCC PART 15.249 REQUIREMENTS ........................................................................................................ 10 7.1 BAND EDGES MEASUREMENT ......................................................................................... 10 7.2 SPURIOUS EMISSION .......................................................................................................... 15 7.3 POWERLINE CONDUCTED EMISSIONS ........................................................................... 22 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................................................24 Compliance Certification Services (Shenzhen) Inc. Report No: SZ070319B04-RP FCC ID: UTTAD407 Date of Issue: April 16, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: ABBA ELECTRONICS CO., LTD FLAT C, 4TH FLOOR, BLOCK 1, CAMELPAINT BUILDING, 62 HOI YUEN ROAD, KWUN TONG, KOWLOON, HONG KONG Equipment Under Test: Wireless Speaker Trade Name: N/A Model: AD-407 Date of Test: March 19-April 13, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Tested By: Maya Ding Reviewed By: Clinton Kao/ Manager Eric Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ070319B04-RP FCC ID: UTTAD407 Date of Issue: April 16, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless Speaker Trade Name N/A Model Number AD-407 Model Discrepancy N/A Power Supply TX: DC4.5V supplied by the adaptor (or the battery) Adaptor Manufacturer/Model No. GUAN DE KE JI/KA22D045030024C AC input: AC220V, 50Hz, 25mA, DC output: DC4.5V, 300 mA DC output cable: Un-shielded, 1.80m Frequency Range 914MHz - 915MHz Antenna Gain 3 dBi Antenna Designation PCB Antenna Remark: This submittal(s) (test report) is intended for FCC ID: UTTAD-407 filing to comply with Section 15.207, 15.209, 15.249 (FCC Part 15, Subpart C Rules.) Compliance Certification Services (Shenzhen) Inc. Report No: SZ070319B04-RP FCC ID: UTTAD407 Date of Issue: April 16, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY The tests docum…

Text truncated - open the document above for the full version.

Compliance Certification Services (Shenzhen) Inc. Reference No.:SZ060824B05-RP Report No: SZ060918B03-RP FCC ID: UDWE-CMKIT002 Date of Issue: September 28, 2006 Page 24 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services (Shenzhen) Inc. Reference No.:SZ060824B05-RP Report No: SZ060918B03-RP FCC ID: UDWE-CMKIT002 Date of Issue: September 28, 2006 Page 25 Rev. 00 RADIATED EMISSION TEST
