Cylindrical RF Lock SV1C State of: December 2006 SV1C Cylindrical RF Lock Page 2 1.0 Important Information .................................................................... 3 2.0 Operation......................................................................................... 4 2.1 General Information ............................................................................ 4 2.2 Opening and Locking From Outside.................................................. 4 2.3 Opening and Locking From Inside..................................................... 5 3.0 Additional Functions...................................................................... 5 3.1 OMRON................................................................................................. 5 3.2 Extending the Unlock Time ................................................................ 5 3.3 Logging Unauthorized Access Attempts .......................................... 5 3.4 No Acoustic Programmer Acknowledge ........................................... 5 4.0 Battery Warnings............................................................................ 6 4.1 RF Lock ................................................................................................ 6 4.2 Transponder ........................................................................................ 7 5.0 Battery Replacement...................................................................... 7 6.0 Installation Instructions................................................................. 8 6.1 General Information ............................................................................ 8 6.2 Unpack Pack ........................................................................................ 9 6.3 Mark Door........................................................................................... 10 6.4 Drill Door ............................................................................................ 11 Install Latch Unit .......................................................................................... 12 Install Lock ................................................................................................... 13 6.5 Install Outside Components ............................................................. 13 6.5 Install Outside Components ............................................................. 14 Install Inside Components .......................................................................... 15 C. Strike Installation (Wood Frame Only)............................................. 16 6.6 Troubleshooting ................................................................................ 17 6.7 Programming the RF Lock................................................................ 17 6.8 Perform Function Test ...................................................................... 17 7.0 Data Sheet ..................................................................................... 18 SV1C Cylindrical RF Lock Page 3 Important Information Safety remark: Caution! – Incorrect handling of the batteries and storage batteries used in this product can result in the risk of fire or burns. Do not charge, open or burn these batteries or heat them to more than 100 °C (212 °F). Installation of a SimonsVoss RF Lock requires knowledge in the areas of door mechanics, door certifications, installation of electronics and the use of the SimonsVoss software. For this reason, only trained and authorized personnel should install the unit. Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Interference Statement (Part 15.105 (b)) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Industry Canada Statement per Section 4.0 of RSP-100 The term "IC:" before the certification / registration number only signifies that the Industry Canada technical specifications were met. Section 7.1.5 of RSS-GEN Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. SimonsVoss Technologies Inc. will not accept any liability for damages caused by incorrect installation. SV1C Cylindrical RF Lock Page 4 An incorrectly installed RF Lock may block the access through a door. SimonsVoss Inc. is not liable for the consequences of incorrect installation, such as blocked access to injured or endangered persons, property damage or other damages. If you will be storing the RF Lock for more than one week, remov…

Text truncated - open the document above for the full version.

10125 South 52 nd Street Franklin WI 53132 Toll Free: 866.785.6259 Phone: 414.421.2481 FAX: 414.421.2496 www.simons-voss.us Date: December 7, 2006 Time: 11:36 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Warren Simonsen Phone: 414-855-1076 VP Marketing and Operations Fax: 414-421-2496 Applicant: SimonsVoss Technologies, Inc. E-Mail: [email protected] ____________________________________________________________________________________ Subject: Request for Non disclosure for FCC ID: UUC-01. To Whom It May Concern: Pursuant to 47 CFR Section 0.459, SimonsVoss Technologies, Inc. hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # UUC-01 a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors and those seeking to compromise the security of the system under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors and may assist those seeking to compromise the security of the system. SimonsVoss Technologies, Inc understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before, during and after the date of the grant. Sincerely yours, By: Warren Simonsen Title: VP Marketing and Operations SimonsVoss Technologies, Inc.

"Teresa White" <[email protected]> 01/04/2007 03:43 PM To Yunus Faziloglu/USA/VERITAS@VERITAS cc "Abtin Spantman" <[email protected]> bcc Subject FW: CS02363, 64, 65, 66 SimonsVoss TCB Questions Hi Yunus, Here are the responses to the SimonsVoss filings. Please see Abtin’s comments below, as well as the attached revised documents. Thank you. Regards, Teresa White Document Coordinator LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012 « Direct: 262.421.4991 « Main: 262.375.4400 ¬ Fax: 262.364.2649 | Email: twhite @lsr.com Visit us on the web: www.lsr.com Notice: This message and any included attachments are intended only for the use of the addressee, and may contain information that is privileged or confidential. If you are not the intended recipient, you are hereby notified that any review, copying or distribution of this communication is strictly prohibited. If you have received this e-mail in error, please destroy the original message and any copies or printouts hereof. Any views or opinions presented are solely those of the author of this e-mail, and do not necessarily represent those of LS Research, LLC, unless otherwise specifically stated. From: Abtin Spantman Sent: Thursday, January 04, 2007 11:08 AM To: Teresa White Subject: FW: CS02363, 64, 65, 66 SimonsVoss TCB Questions Importance: High Greetings Teresa: The following is the response to the TCB requests for clarification on the SimonsVoss projects. Would you kindly forward the content to Curtis-Straus to address the clarification issues. Response to issue #1: Thank you for the correction. The reports are all updated with the correction and re-submitted with a new revision number (v2): SimonsVoss 306549-TR-v2 TN-4 Door Handle.doc SimonsVoss 306550-TR-v2 Entry Transponders.doc SimonsVoss 306551-TR-v2 Smart Relay.doc SimonsVoss 306552-TR-v2 Smart CD Configuration Tool.doc Response to issue #2: The specifications listed in the “Receiver Functionality” sections of the theory or operations documents lists acceptable frequencies of 25 kHz +/-3 kHz to account for unit-to-unit as well as production variations. Please let me know if this explanation is sufficient, or if I need to pursue this matter to meet a certain condition. Response to issue #3: The information on the FCC identifier: RFR-BRSI2 issued to “Stollmann E+V GmbH” is added to the report: “SimonsVoss 306552-TR-v2 Smart CD Configuration Tool.doc” and included as attachments to this e-mail for your convenience in review: “2-4266-01-03 _06 FCC 15-247.pdf” “BlueMod+P2 _HW_reference_V1_5.pdf” “RFR-BRSI2 _FCC_Grant.pdf” Please let me know if I can be of further service. Best regards, Abtin Spantman RF / EMC Engineer LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012 U.S.A. Direct: 262.421.4992 Main: 262.375.4400 Fax: 262.364.2649 Email: ASPANTMAN @LSR.COM Visit us on the web: www .lsr.com Notice: This message and any included attachments are intended only for the use of the addressee, and may contain information that is privileged or confidential. If you are not the intended recipient, you are hereby notified that any review, copying or distribution of this communication is strictly prohibited. If you have received this e-mail in error, please destroy the original message and any copies or printouts hereof. Any views or opinions presented are solely those of the author of this e-mail, and do not necessarily represent those of L. S. Research, LLC, unless otherwise specifically stated. From: [email protected] [mailto:[email protected]] Sent: Thursday, December 28, 2006 11:34 AM To: Jim Blaha Cc: Abtin Spantman; Teresa White Subject: CS02363, 64, 65, 66 SimonsVoss TCB Questions Hi Jim, Please address the following issues for these applications, 1. The fundamental limit in all 4 reports are shown as 129.1dBuV/m at 1m for 25kHz. It appears the limit should be 20log(2400/25)+40log(300/1)=138.7dBuV/m. Please clarify. 2. Also in all reports, fundamental frequency is not at 25kHz according to the plots. This is different than what is described in operational descriptions of the devices. As an example, in "TN-4 Door Handle" report, fundamental is at around 24kHz, which is about 4% shifted. Please clarify the reason for these differences. 3. A certified Bluetooth module is mentioned for "Smart CD Configuration Tool". Please provide the FCC ID for that module. Best Regards, Yunus Faziloglu Curtis-Straus LLC Bureau Veritas

10125 South 52 nd Street Franklin WI 53132 Toll Free: 866.785.6259 Phone: 414.421.2481 FAX: 414.421.2496 www.simons-voss.us Date: December 7, 2006 Time: 08:30 To: FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21045-0429 From: Warren Simonsen Phone: 414-855-1076 VP Marketing and Operations Fax: 414-421-2496 Applicant: SimonsVoss Technologies, inc. E-Mail: [email protected] ____________________________________________________________________________________ Dear Ladies and/or Gentlemen: I appoint Kenneth L. Boston, James Blaha and Teresa White of LS Research, LLC, to act as an agent in the preparation of applications under Part 15 of the rules and regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. The following statement is required by the Federal Communications Commission: By checking Yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that included FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership, or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. ___X___Yes _______No By: Warren Simonsen Title: VP Marketing and Operations SimonsVoss Technologies, Inc.

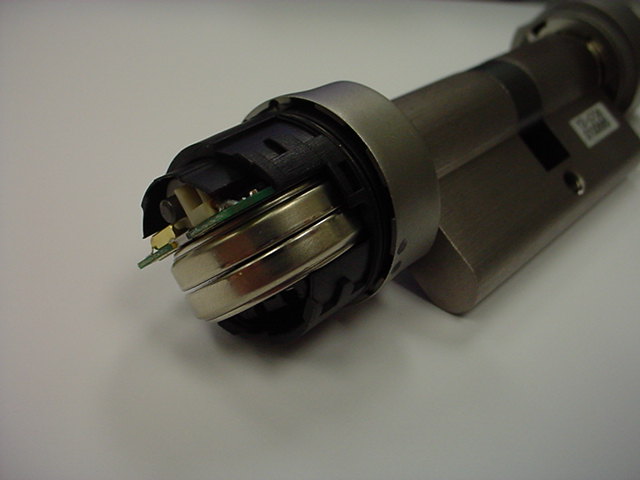

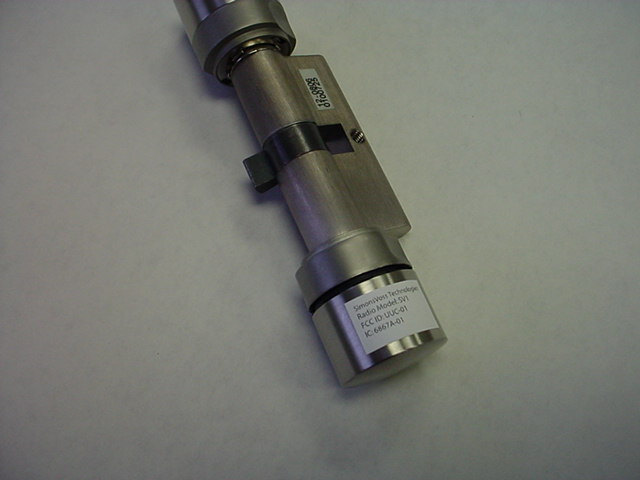

SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo One – External View Showing Cylindrical Lock Mechanism Also shows FCC ID Label Attached SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Two – External Close-Up of FCC ID Label SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Three – External End Cap Removed, Showing Battery and Access to PCB RF Section SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Four – External Batteries Removed, Exposing PCB SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Four – External PCB Assembly Removed from Cylindrical Housing

SimonsVoss Technologies Part : FCC ID: UUC-01 FCC Label-Lock Material: 8 pt White Card Stock with Permanent Adhesive 1.2 mL clear polypropylene with Permanent Adhesive Shown actual size .50” .875”

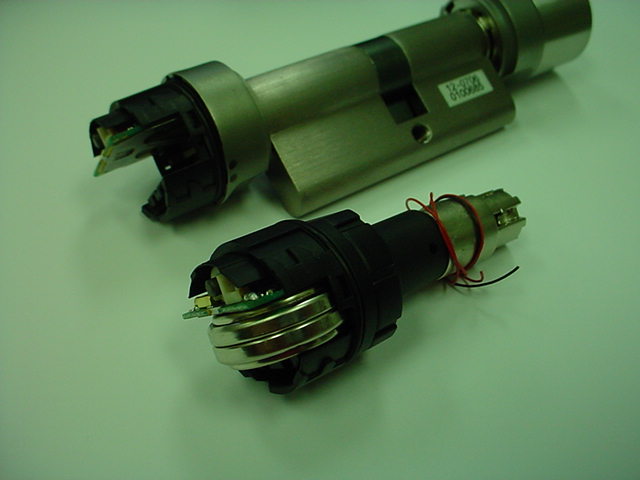

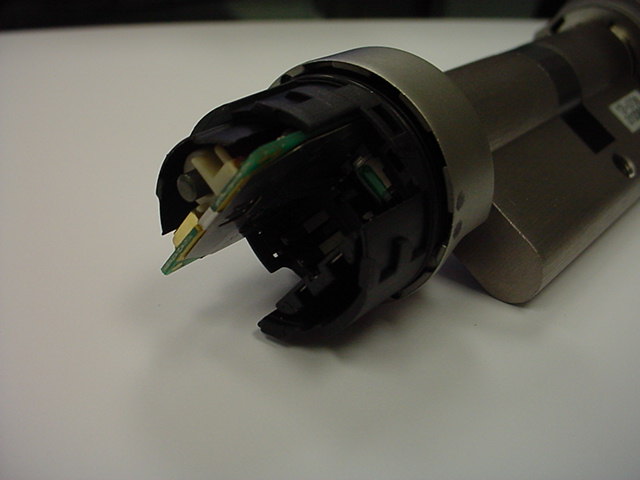

SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo One – Internal Open for Inspection SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Two – Internal SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Three – Internal SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Four – Internal SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Five – Internal SimonsVoss TN4 Door Handle FCC ID#: UUC-01 Photo Six – Internal

LS Research, LLC W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com LS Research, LLC Prepared For: SimonsVoss Template: 15.209-TR- v0 (2006-12-01) Report #: 306549-TR-TCB v2 Customer FCC ID #: UUC-01 Page 1 of 28 ------------------------------------------------------------------------------------------------------------------------- ENGINEERING TEST REPORT # 306549-TR-TCB v2 Compliance Testing of: TN-4 Door Handle Transceiver Test Date(s): November 28 TH , 2006 Prepared For: SimonsVoss Technologies, Incorporated 10125 South 52 ND Street Franklin, WI 53132 U.S.A. In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.209, and 15.109 General Operating Requirements for Low-Power License-Exempt Transceivers This Test Report is issued under the Authority of: Brian E. Petted, VP of Engineering Signature: Date: December 5, 2006 Test Report Prepared by: Teresa A. White, Document Coordinator Signature: Date: December 5, 2006 Tested by: Abtin Spantman, EMC Engineer Signature: Date: December 5, 2006 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: SimonsVoss Model #: SV1 LS Research, LLC EUT: TN-4 Door Handle Receiver Serial #: Engineering Units Template: 15.209 - v0 (2006-11-27) Report #:306549-TR-TCB-v2 Customer FCC ID #: UUC-01 Page 2 of 28 TABLE OF CONTENTS (page 1 of 2) EXHIBIT 1. INTRODUCTION 4 1.1 Scope 4 1.2 Normative References 4 1.3 LS Research, LLC Test Facility 5 1.4 Location of Testing 5 1.5 Test Equipment Utilized 5 EXHIBIT 2. PERFORMANCE ASSESSMENT 6 2.1 Client Information 6 2.2 Equipment Under Test (EUT) Information 6 2.3 Associated Antenna Description 6 2.4 EUT’s Technical Specifications 7 2.5 Product Description 8-9 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 10 3.1 Climate Test Conditions 10 3.2 Applicability & Summary of EMC Emission Test Results 10 3.3 Modifications Incorporated in the EUT for Compliance Purposes 10 3.4 Deviations & Exclusions from Test Specifications 10 EXHIBIT 4. DECLARATION OF CONFORMITY 11 EXHIBIT 5. RADIATED EMISSIONS TEST 12 5.1 Test Setup 12 5.2 Test Procedure 12 5.3 Test Equipment Utilized 13 5.4 Test Results 13 5.5 Calculation of Radiated Emission Measurements 14-15 5.6 Radiated Emissions Test Data Chart 16 5.7 Test Setup Photo(s)-Radiated Emissions Test 17-18 5.8 Screen Captures-Radiated Emissions Testing 19-22 EXHIBIT 6. CONDUCTED EMISSIONS TEST, AC POWER LINE: 15.207 23 EXHIBIT 7. OCCUPIED BANDWIDTH 24 7.1 Limits 24 7.2 Method of Measurements 24 7.3 Test Equipment List 24 7.4 Screen Captures – Occupied Bandwidth 25 Prepared For: SimonsVoss Model #: SV1 LS Research, LLC EUT: TN-4 Door Handle Receiver Serial #: Engineering Units Template: 15.209 - v0 (2006-11-27) Report #:306549-TR-TCB-v2 Customer FCC ID #: UUC-01 Page 3 of 28 TABLE OF CONTENTS (Page 2 of 2) EXHIBIT 8 FREQUENCY & POWER STABILITY OVER VOLTAGE & TEMPERATURE VARIATIONS 26 APPENDIX A TEST EQUIPMENT LIST 27 APPENDIX B ANTENNA SPECIFICATION(S) 28 LSC Revision Control Date Revision # Revised By 2006-11-27 0.0 TW/AS Prepared For: SimonsVoss Model #: SV1 LS Research, LLC EUT: TN-4 Door Handle Receiver Serial #: Engineering Units Template: 15.209 - v0 (2006-11-27) Report #:306549-TR-TCB-v2 Customer FCC ID #: UUC-01 Page 4 of 28 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.209 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for Low-Power License-Exempt Transmitters. References: FCC Part 15, Subpart B, Section 15.109 Title: Telecommunication – Code of Federal Regulations, CFR 47, Part 15 Purpose of Test: To gain FCC Certification Authorization for a Digital Device or a Non-Intentional Radiator. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification: • Commercial, Industrial or Business • Residential 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2005 Code of Federal Regulations - Telecommunications ANSI C63.4 2004 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2003 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. Prepared For: SimonsVoss Model #: SV1 LS Research, LLC EUT: TN-4 Door Handle Receiver Serial #: Engineering Units Template: 15.209 - v0 (2006-11-27) Report #:306549-TR-TCB-v2 Customer FCC ID #: UUC-01 Page 5 of 28 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to conform to ISO/IEC 17025, 2005 “General Requirements for the Competence of Calibration and Testing Laboratories”. LS Research, LLC’s scope of accreditation includes all test methods listed herein, unless otherwise noted. A copy of the accreditation may be accessed on our web site: www.lsr.com . Accreditation status can be verified at A2LA’s web site: www.a2la2.net . 1.4 LOCATION OF TESTING All testing was performed at LS Research, LLC, W66 N220 Commerce Court, Cedarburg, Wisconsin, 53012 USA, utilizing the facilities listed below, unless otherwise noted. List of Facilities Located at LS Research, LLC: • Compact Chamber • Semi-Anechoic Chamber • Open Area Test Site (OATS) 1.5 TEST EQUIPMENT UTILIZED A complete list of equipment utilized in testing is provided in Appendix A of this test report. Calibration dates are in…

Text truncated - open the document above for the full version.

Test Setup Photos Company: SimonsVoss FCC ID #: UUC-01 Page 1 of 2 Test Setup Photo(s) – Radiated Emissions Test Vertical Orientation Horizontal Orientation Test Setup Photos Company: SimonsVoss FCC ID #: UUC-01 Page 2 of 2 EUT on Test Pedestal
