UUIMS-4362TPMSTire Pressure Monitoring System(TPMS)

5. Press and hold the key for 2 seconds and the Display Monitor Units will start blinking. Initially it will show PSI blinking and you can use the and keys to select the desired Display Monitor Units. 6. After setting the Display Monitor Units, press the key once to enter the limits setting mode. In this mode, first the front tire LCD of the motorcycle icon and the front tire data will blink and user can set the front tire threshold. Use the and keys to select the desired value for the front tire.

Measurement Limited -- - - - Block A, 19/F, Prince Industrial Building, 106 King Fuk Street, San Po Kong, Kowloon. H. K TEL: (852) 2322 8262 FAX: (852) 2352 3557 AGENCY AUTHORIZATION LETTER FCC ID: UUIMS-4362TPMS Date: 13- Apr -201 0 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd Audix of Shenzhen to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don't hesitate to contact us. Thank you. Carl Zhu ARD Manager Measurement(china)LTD. Tel: 86 755 2699-931 5 Fax: 86 755 2699-9304 Web site: www. Measurement.com E-mail: [email protected]

Measurement Limited Block A, 19/F, Prince Industrial Building, 106 King Fuk Street, San Po Kong, Kowloon. H. K TEL: (852) 2322 8262 FAX: (852) 2352 3557 Date: 13-Apr -201 0 Federal Communications Commission Authorization and Evaluation Division FCC ID: UUIMS-4362TPMS Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Carl Zhu ARD Manager Measurement(china)LTD. Tel: 86 755 2699-9315 Fax: 86 755 2699-9304 Web site: www. Measurement.com E-mail: [email protected]

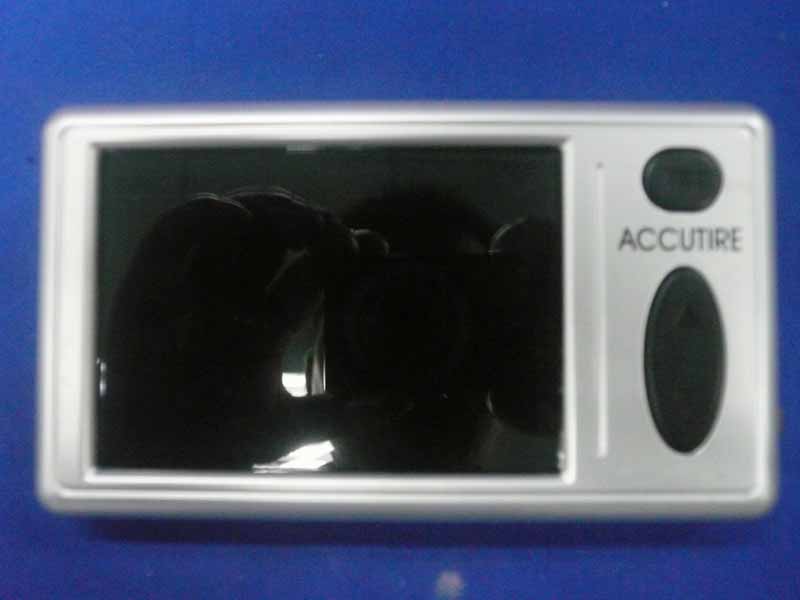

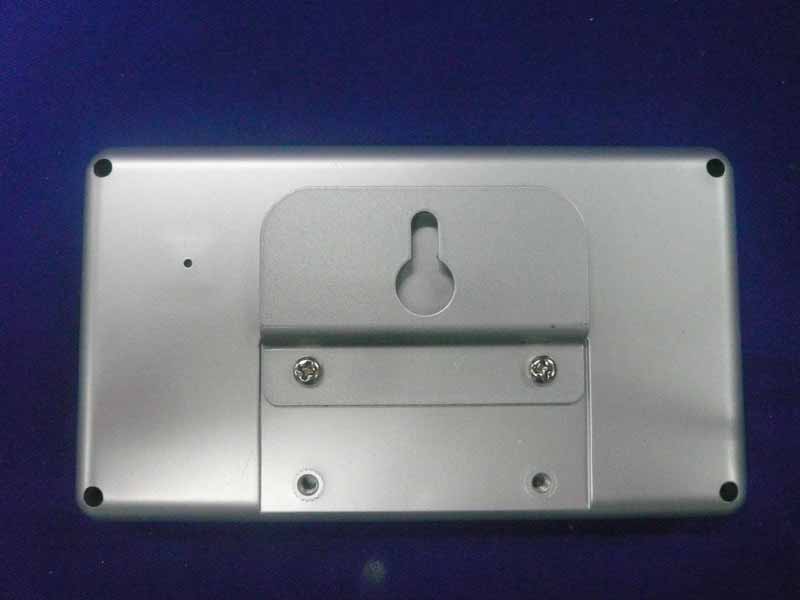

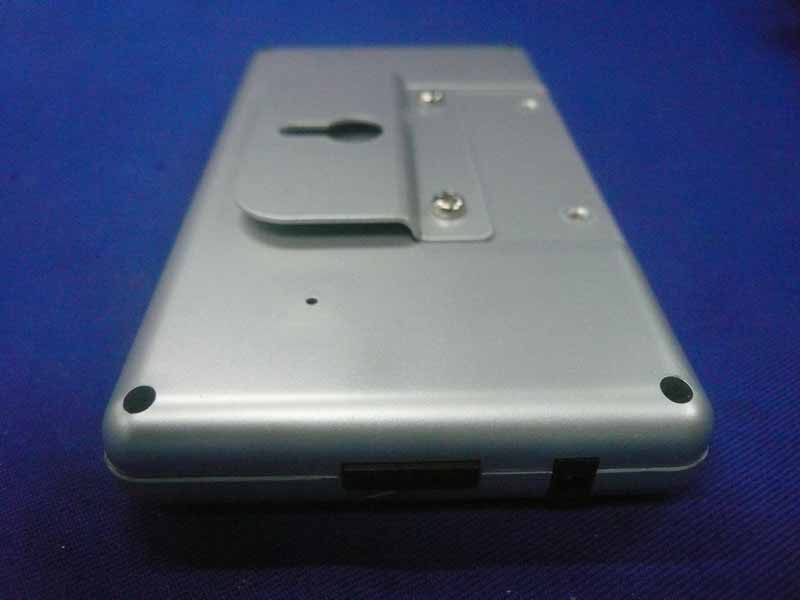

FCC ID:UUIMS-4362TPMS page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 7-1 7. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:UUIMS-4362TPMS page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 7-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

FCC ID:UUIMS-4362TPMS page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 7-3 Figure 5 Inside of the EUT Figure 6 Inside of the EUT FCC ID:UUIMS-4362TPMS page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 7-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT FCC ID:UUIMS-4362TPMS page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 7-5 Figure 9 Inside of the EUT Figure 10 Inside of the EUT FCC ID:UUIMS-4362TPMS page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 7-6 Figure 11 Inside of the EUT Figure 12 Inside of the EUT FCC ID:UUIMS-4362TPMS page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 7-7 Figure 13 Inside of the EUT Figure 14 Inside of the EUT FCC ID:UUIMS-4362TPMS page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 7-8 Figure 15 Power Adapter

FCC ID:UUIMS-4362TPMS Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 APPLICATION FOR CERTIFICATION On Behalf of Measurement Ltd. Tire Pressure Measuring System (TPMS) Model Number: MS-4362 FCC ID: UUIMS-4362TPMS Prepared for : Measurement Ltd. Block A, 19/F, Prince Industrial Building, 106 King Fuk Street, San Po Kong, Kowloon, H.K Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10071 Date of Test ： Apr.02~07, 2010 Date of Report ： Apr.09, 2010 FCC ID:UUIMS-4362TPMS Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .................................................................. 1-1 1.1. Description of Standards and Results.............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test Facility....................................................................................................................................2-2 2.3. Test Uncertainty (95% confidence levels, k=2) .............................................................................2-2 3. POWER LINE CONDUCTED EMISSION TEST................................................................ 3-1 3.1. Test Equipments.............................................................................................................................3-1 3.2. Block Diagram of Test Setup .........................................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ................................................................................3-1 3.4. Configuration of EUT on Test .......................................................................................................3-2 3.5. Operating Condition of EUT..........................................................................................................3-2 3.6. Test Procedure................................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results...............................................................................3-2 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit Standard: FCC 15.209 ...........................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-2 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-3 5. DEVIATION TO TEST SPECIFICATIONS ........................................................................ 5-1 6. PHOTOGRAPH OF TEST...................................................................................................... 6-1 6.1. Photos of Power Line Conducted Emission Test ...........................................................................6-1 6.2. Photos of Radiated Emission Test (In Anechoic Chamber) ...........................................................6-2 7. PHOTOGRAPH OF EUT........................................................................................................ 7-1 FCC ID:UUIMS-4362TPMS Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Limits Results Power Line Conducted Emission Test FCC Part 15: 2008 ANSI C63.4: 2003 Class B PASS Radiated Emission Test FCC Part 15: 2008 ANSI C63.4: 2003 Class B PASS FCC ID:UUIMS-4362TPMS Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Product name : Tire Pressure Measuring System (TPMS) Model Number : MS-4362 FCC ID : UUIMS-4362TPMS Receive frequency : 433.92MHz Applicant : Measurement Ltd. Block A,19/F, Prince Industrial Building, 106 King Fuk Street, San Po Kong, Kowloon, H.K Power Adapter : Manufacturer: HON-KWANG M/N: D9300CEC Cable: Unshielded, Undetachable, 1.8m Date of Test : Apr.02~07, 2010 Date of Receipt : Apr.01, 2010 Sample Type : Prototype production FCC ID:UUIMS-4362TPMS Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 2-2 2.2. Test Facility Site Description Name of Firm : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China 3m Anechoic Chamber : Mar. 31, 2009 File on Federal Communication Commission Registration Number: 90454 3m & 10m Anechoic Chamber : Dec. 30, 2009 File on Federal Communication Commission Registration Number: 794232 EMC Lab. : Accredited by DATech, German Registration Number: DAT-P-091/99-01 Feb. 02, 2009 Accr…

Text truncated - open the document above for the full version.

FCC ID:UUIMS-4362TPMS Page 6-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 6. PHOTOGRAPH OF TEST 6.1. Photos of Power Line Conducted Emission Test FCC ID:UUIMS-4362TPMS Page 6-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 6.2. Photos of Radiated Emission Test (In Anechoic Chamber) 30~1000MHz FCC ID:UUIMS-4362TPMS Page 6-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10071 Above 1000MHz
