UUIMS-5321CMPCar Music Player

A .Features 1、 Music supported in MP3/WMA formats, FM transmission 2、 7 frequency bands supported: 106.7、106.9、107.1、107.3、 107.5、107.7、107.9 3、 Line In/Out interface for earphone and audio frequency devices such as CD, VCD, DVD, MP3, computer. 4、 Can be used as U drive for file storage. B. User Instructions 1、Download music in MP3/WMA formats from your computer to the Car Music Player using the USB cable attached. 2、Insert the Car Music Player in the cigarette adaptor when the electricity system in your car is turned on. 3、Select the transmision frequency for the Car Music Player based on the local usage of frequency and set the requency for the Car Music Player as selected. 4、Turn on the radio in your car and set the reception frequency as selected. The Car Music Player is now ready to play. 5、Adjust the volume to your desired level. 6、Push “<<” or “>>”to select the music you wish to play. F. Notes 1、 Music formats of MP3/WMA only. 2、 12V car power supply. 24V can be supplied upon request. 3、 Do not let Car Music Player sit idle for long term in cigarette adaptor and keep your Car Music Player in safe storage. 4、 Switch to a different frequency if you get too much interference static noise 5、 Press and hold down PLAY/PAUSE key, system records the current requency being used and music being played and then shuts down automatically. 6、 Music damaged or virus affected will not play properly and should be deleted or virus cleared. 7、 Please refer to the User Manual for what else not specified herein.

A .Features 1、 Music supported in MP3/WMA formats, FM transmission 2、 7 frequency bands supported: 106.7、106.9、107.1、107.3、 107.5、107.7、107.9 3、 Line In/Out interface for earphone and audio frequency devices such as CD, VCD, DVD, MP3, computer. 4、 Can be used as U drive for file storage. B. User Instructions 1、Download music in MP3/WMA formats from your computer to the Car Music Player using the USB cable attached. 2、Insert the Car Music Player in the cigarette adaptor when the electricity system in your car is turned on. 3、Select the transmision frequency for the Car Music Player based on the local usage of frequency and set the requency for the Car Music Player as selected. 4、Turn on the radio in your car and set the reception frequency as selected. The Car Music Player is now ready to play. 5、Adjust the volume to your desired level. 6、Push “<<” or “>>”to select the music you wish to play. F. Notes 1、 Music formats of MP3/WMA only. 2、 12V car power supply. 24V can be supplied upon request. 3、 Do not let Car Music Player sit idle for long term in cigarette adaptor and keep your Car Music Player in safe storage. 4、 Switch to a different frequency if you get too much interference static noise 5、 Press and hold down PLAY/PAUSE key, system records the current requency being used and music being played and then shuts down automatically. 6、 Music damaged or virus affected will not play properly and should be deleted or virus cleared. 7、 Please refer to the User Manual for what else not specified herein.

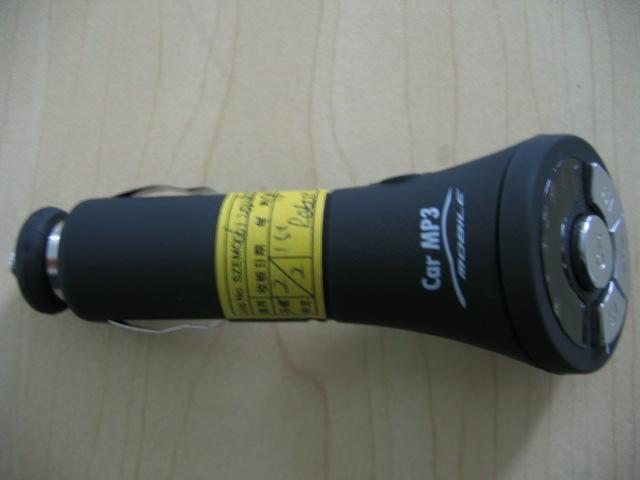

David Waitt From: Generic Office of Engineering Technology [[email protected]] Sent: Monday, March 12, 2007 12:15 PM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 380447) 3/12/2007 Inquiry: Gentlemen, I have a 15.239 “Permit But Ask” application I am processing. (ATCB4625) Product description / Operation: MP3 Player with flash memory. MP3s are downloaded to the device from a computer via a USB port. The device is then plugged into a cigarette lighter in a vehicle and then transmits the audio to a FM receiver on a selectable channel between 106.7 and 107.9 MHz. (see attached photos) Installation: The device is plugged into the vehicle cigarette lighter Test procedure: Unit was tested in a chamber using an audio (music) MP3 file that produced the widest possible BW (Verified by lab) Tuning Range: The lab has verified that the device will NOT tune outside of the range 88 - 108MHz Bandwidth: The lab has verified that they device was tested with the maximum audio input level to produce the widest possible BW Looking forward to your reply, David Response: Greetings, The data is quasi peak measurements indicate that the radiated emissions are 58 dBuv. The limit is 48 dBuv. The tables indicate that the device radiated emissions are below the limit. I would like to see an average measurement graph that shows that this device is below the limit instead of a table indicating that it is below the limit as proof. When this is done, I would like it placed in the test report as an appendix. Thanks, Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 3/12/2007

FCC Home | Search | Updates | E-Filing | Initiatives | For Consumers | Find People Office of Engineering and Technology FCC > FCC E-filing > Inquiry System Home Page > Inquiry Confirmation FCC Site Map OET Home Page Site Options Knowledge DataBase Search Detail Criteria Search Submit An Inquiry Reply to an Inquiry Response Category List FAQ Search View Instructions Related Sites Equipment Authorization System (EAS) Telecommunications Certification Bodies (TCB) Your inquiry has been submitted to the Laboratory Division of the FCC Office of Engineering and Technology. You will receive a response within two business days. Please be sure to retain the inquiry tracking number displayed for future reference and questions concerning the status of this inquiry. Inquiry Tracking Number: 380447 Date of Submission: Subject: PERMIT BUT ASK application Question:Gentlemen, I have a 15.239 “Permit But Ask” application I am processing. (ATCB4625) Product description / Operation: MP3 Player with flash memory. MP3s are downloaded to the device from a computer via a USB port. The device is then plugged into a cigarette lighter in a vehicle and then transmits the audio to a FM receiver on a selectable channel between 106.7 and 107.9 MHz. (see attached photos) Installation: The device is plugged into the vehicle cigarette lighter Test procedure: Unit was tested in a chamber using an audio (music) MP3 file that produced the widest possible BW (Verified by lab) Tuning Range: The lab has verified that the device will NOT tune outside of the range 88 - 108MHz Bandwidth: The lab has verified that they device was tested with the maximum audio input level to produce the widest possible BW Looking forward to your reply, David Subject: PERMIT BUT ASK application Question: ---Reply from Customer on 03/12/2007--- KDB Inquiry: 380447 Gentlemen, I received your reply Re this PBA application. The PEAK, AVG and QP radiated emissions data shown in the report is BELOW the AVG limit. However your reply (copied below) indicates an emission level ABOVE the limit. ( as high as 58 dBuV). FCC REPLY: “The data is quasi peak measurements indicate that the radiated emissions are 58 dBuv. The limit is 48 dBuv. The tables indicate that the device radiated emissions are below the limit. I would like to see an average measurement graph that shows that this device is below the limit instead of a table indicating that it is below the limit as proof. When this is done, I would like it placed in the test report as an appendix.” Are you referring to the BW plots when referencing that 58dBuV level? If so, please keep in mind that the BW is a measurement of the BW and not necessarily performed in a test setup that would be appropriate for a radiated emissions measurement (Ex: measured on a bench with a near field probe), as such, it does not seem it should be evaluated against radiated emissions criteria. There appears to be nothing in the radiated emissions section of the report that would indicate a failing result. Please clarify your above reply. Thanks David Subject: PERMIT BUT ASK application Question: ---Reply from Customer on 03/17/2007--- The lab has provided plots fo the radiated emissions at the end fo the attached test report. Please note the use of a AVG detector and the maximum measured level of 44.26 dBuV. PLMK ASAP if this is OK TO GRANT. - Thanks Guys , David Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act

David Waitt From: Generic Office of Engineering Technology [[email protected]] Sent: Tuesday, March 20, 2007 7:23 AM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 380447) 3/20/2007 Inquiry: ---Reply from Customer on 03/17/2007--- The lab has provided plots fo the radiated emissions at the end fo the attached test report. Please note the use of a AVG detector and the maximum measured level of 44.26 dBuV. PLMK ASAP if this is OK TO GRANT. - Thanks Guys , David Response: It looks good. Thanks! Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

David Waitt From: Generic Office of Engineering Technology [[email protected]] Sent: Monday, March 12, 2007 12:15 PM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 380447) 3/12/2007 Inquiry: Gentlemen, I have a 15.239 “Permit But Ask” application I am processing. (ATCB4625) Product description / Operation: MP3 Player with flash memory. MP3s are downloaded to the device from a computer via a USB port. The device is then plugged into a cigarette lighter in a vehicle and then transmits the audio to a FM receiver on a selectable channel between 106.7 and 107.9 MHz. (see attached photos) Installation: The device is plugged into the vehicle cigarette lighter Test procedure: Unit was tested in a chamber using an audio (music) MP3 file that produced the widest possible BW (Verified by lab) Tuning Range: The lab has verified that the device will NOT tune outside of the range 88 - 108MHz Bandwidth: The lab has verified that they device was tested with the maximum audio input level to produce the widest possible BW Looking forward to your reply, David Response: Greetings, The data is quasi peak measurements indicate that the radiated emissions are 58 dBuv. The limit is 48 dBuv. The tables indicate that the device radiated emissions are below the limit. I would like to see an average measurement graph that shows that this device is below the limit instead of a table indicating that it is below the limit as proof. When this is done, I would like it placed in the test report as an appendix. Thanks, Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 3/12/2007

FCC Home | Search | Updates | E-Filing | Initiatives | For Consumers | Find People Office of Engineering and Technology FCC > FCC E-filing > Inquiry System Home Page > Inquiry Confirmation FCC Site Map OET Home Page Site Options Knowledge DataBase Search Detail Criteria Search Submit An Inquiry Reply to an Inquiry Response Category List FAQ Search View Instructions Related Sites Equipment Authorization System (EAS) Telecommunications Certification Bodies (TCB) Your inquiry has been submitted to the Laboratory Division of the FCC Office of Engineering and Technology. You will receive a response within two business days. Please be sure to retain the inquiry tracking number displayed for future reference and questions concerning the status of this inquiry. Inquiry Tracking Number: 380447 Date of Submission: Subject: PERMIT BUT ASK application Question:Gentlemen, I have a 15.239 “Permit But Ask” application I am processing. (ATCB4625) Product description / Operation: MP3 Player with flash memory. MP3s are downloaded to the device from a computer via a USB port. The device is then plugged into a cigarette lighter in a vehicle and then transmits the audio to a FM receiver on a selectable channel between 106.7 and 107.9 MHz. (see attached photos) Installation: The device is plugged into the vehicle cigarette lighter Test procedure: Unit was tested in a chamber using an audio (music) MP3 file that produced the widest possible BW (Verified by lab) Tuning Range: The lab has verified that the device will NOT tune outside of the range 88 - 108MHz Bandwidth: The lab has verified that they device was tested with the maximum audio input level to produce the widest possible BW Looking forward to your reply, David Subject: PERMIT BUT ASK application Question: ---Reply from Customer on 03/12/2007--- KDB Inquiry: 380447 Gentlemen, I received your reply Re this PBA application. The PEAK, AVG and QP radiated emissions data shown in the report is BELOW the AVG limit. However your reply (copied below) indicates an emission level ABOVE the limit. ( as high as 58 dBuV). FCC REPLY: “The data is quasi peak measurements indicate that the radiated emissions are 58 dBuv. The limit is 48 dBuv. The tables indicate that the device radiated emissions are below the limit. I would like to see an average measurement graph that shows that this device is below the limit instead of a table indicating that it is below the limit as proof. When this is done, I would like it placed in the test report as an appendix.” Are you referring to the BW plots when referencing that 58dBuV level? If so, please keep in mind that the BW is a measurement of the BW and not necessarily performed in a test setup that would be appropriate for a radiated emissions measurement (Ex: measured on a bench with a near field probe), as such, it does not seem it should be evaluated against radiated emissions criteria. There appears to be nothing in the radiated emissions section of the report that would indicate a failing result. Please clarify your above reply. Thanks David Subject: PERMIT BUT ASK application Question: ---Reply from Customer on 03/17/2007--- The lab has provided plots fo the radiated emissions at the end fo the attached test report. Please note the use of a AVG detector and the maximum measured level of 44.26 dBuV. PLMK ASAP if this is OK TO GRANT. - Thanks Guys , David Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act

David Waitt From: Generic Office of Engineering Technology [[email protected]] Sent: Tuesday, March 20, 2007 7:23 AM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 380447) 3/20/2007 Inquiry: ---Reply from Customer on 03/17/2007--- The lab has provided plots fo the radiated emissions at the end fo the attached test report. Please note the use of a AVG detector and the maximum measured level of 44.26 dBuV. PLMK ASAP if this is OK TO GRANT. - Thanks Guys , David Response: It looks good. Thanks! Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

Report No.: SZEMO061202482ITF Page: 1 of 18 FCC ID: UUIMS-5321CMP Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : SZEMO061202482IT Applicant: Measurement Ltd FCC ID: UUIMS-5321CMP Fundamental Carrier Frequency : 88 MHz to 108MHz Equipment Under Test (EUT): Name: Car music Player Model: MS-5321 Standards: FCC PART 15.239: 2006 Please refer to section 2 for further details. Date of Receipt: 05 December 2006 Date of Test: 11 December 2006 to 05 February 2007 Date of Issue: 06 February 2007 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061202482ITF Page: 2 of 18 FCC ID: UUIMS-5321CMP 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission FCC PART 15 :2006 Section 15.239 PASS* Occupied Bandwidth FCC PART 15 :2006 Section 15.239 PASS * The EUT passed the Radiated Emission test after modification. 1. Changed the C15 to 10pF for Tx. 2. Changed the L2 to 2.2μH for Tx SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061202482ITF Page: 3 of 18 FCC ID: UUIMS-5321CMP 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION....................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...................................................................................................................4 4.3 DESCRIPTION OF THE TRANSMITTER AND SUPPORT UNITS............................................................................4 4.4 STANDARDS APPLICABLE FOR TESTING...........................................................................................................4 4.5 TEST LOCATION................................................................................................................................................4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 4.7 TEST FACILITY..................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 5.1 E.U.T. OPERATION...........................................................................................................................................6 5.2 TEST INSTRUMENTS..........................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................7 5.3.1 Radiated Emissions...................................................................................................................................7 5.3.2 Occupied Bandwidth................................................................................................................................12 (2). FOR MIDDLE CHANNEL:107.3MHZ..............................................................................................................17-18 SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061202482ITF Page: 4 of 18 FCC ID: UUIMS-5321CMP 4 General Information 4.1 Client Information Applicant Name: Measurement Ltd Applicant Address: Block A, 19/F., Prince Industrial Building, 106 King Fuk Street, San Po Kong, Kowloon, H.K. 4.2 General Description of E.U.T. Product Name: Car music Player Model: MS-5321 Power Supply: 12VDC Power Cord: NA 4.3 Description of the Transmitter and Support Units The EUT was tested as a single unit. The transmitter have7channels between the 106.7MHz & 107.9MHz with 200KHz channel spacing can be in exchange for choice manually by software setup.The EUT used a permanently connected antenna printed at the PCB, the gain of the antenna is 0dBi. About the installation and …

Text truncated - open the document above for the full version.

Report No.: SZEMO061202482ITF Page: 1 of 18 FCC ID: UUIMS-5321CMP Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : SZEMO061202482IT Applicant: Measurement Ltd FCC ID: UUIMS-5321CMP Fundamental Carrier Frequency : 88 MHz to 108MHz Equipment Under Test (EUT): Name: Car music Player Model: MS-5321 Standards: FCC PART 15.239: 2006 Please refer to section 2 for further details. Date of Receipt: 05 December 2006 Date of Test: 11 December 2006 to 05 February 2007 Date of Issue: 06 February 2007 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061202482ITF Page: 2 of 18 FCC ID: UUIMS-5321CMP 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission FCC PART 15 :2006 Section 15.239 PASS* Occupied Bandwidth FCC PART 15 :2006 Section 15.239 PASS * The EUT passed the Radiated Emission test after modification. 1. Changed the C15 to 10pF for Tx. 2. Changed the L2 to 2.2μH for Tx SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061202482ITF Page: 3 of 18 FCC ID: UUIMS-5321CMP 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION....................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...................................................................................................................4 4.3 DESCRIPTION OF THE TRANSMITTER AND SUPPORT UNITS............................................................................4 4.4 STANDARDS APPLICABLE FOR TESTING...........................................................................................................4 4.5 TEST LOCATION................................................................................................................................................4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 4.7 TEST FACILITY..................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 5.1 E.U.T. OPERATION...........................................................................................................................................6 5.2 TEST INSTRUMENTS..........................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................7 5.3.1 Radiated Emissions...................................................................................................................................7 5.3.2 Occupied Bandwidth................................................................................................................................12 (2). FOR MIDDLE CHANNEL:107.3MHZ..............................................................................................................17-18 SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061202482ITF Page: 4 of 18 FCC ID: UUIMS-5321CMP 4 General Information 4.1 Client Information Applicant Name: Measurement Ltd Applicant Address: Block A, 19/F., Prince Industrial Building, 106 King Fuk Street, San Po Kong, Kowloon, H.K. 4.2 General Description of E.U.T. Product Name: Car music Player Model: MS-5321 Power Supply: 12VDC Power Cord: NA 4.3 Description of the Transmitter and Support Units The EUT was tested as a single unit. The transmitter have7channels between the 106.7MHz & 107.9MHz with 200KHz channel spacing can be in exchange for choice manually by software setup.The EUT used a permanently connected antenna printed at the PCB, the gain of the antenna is 0dBi. About the installation and …
