UV59530-RX49-HKRC Car

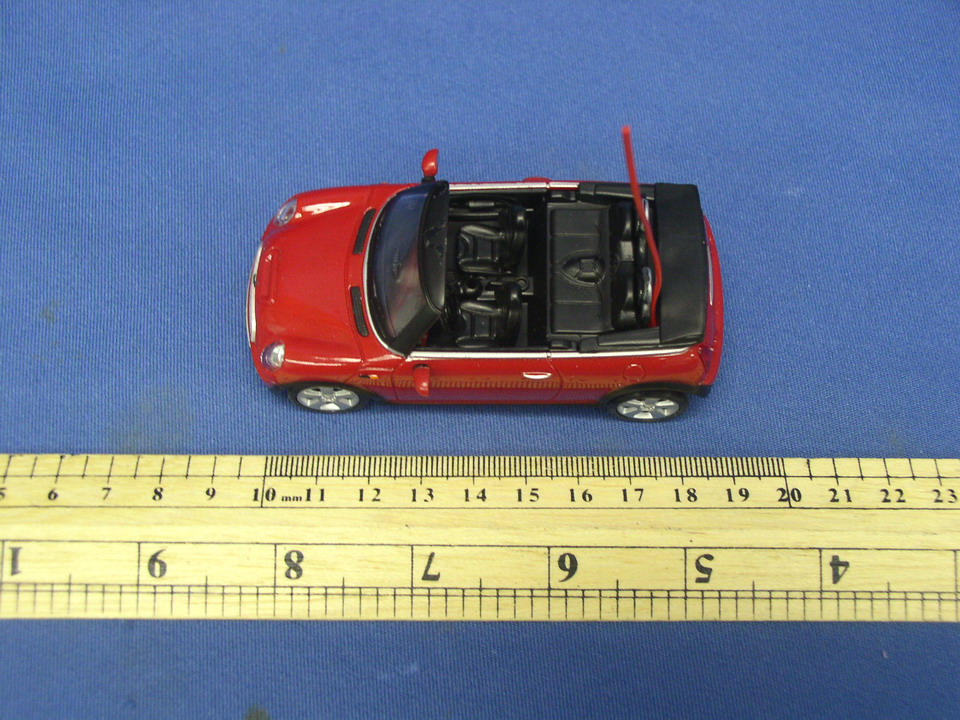

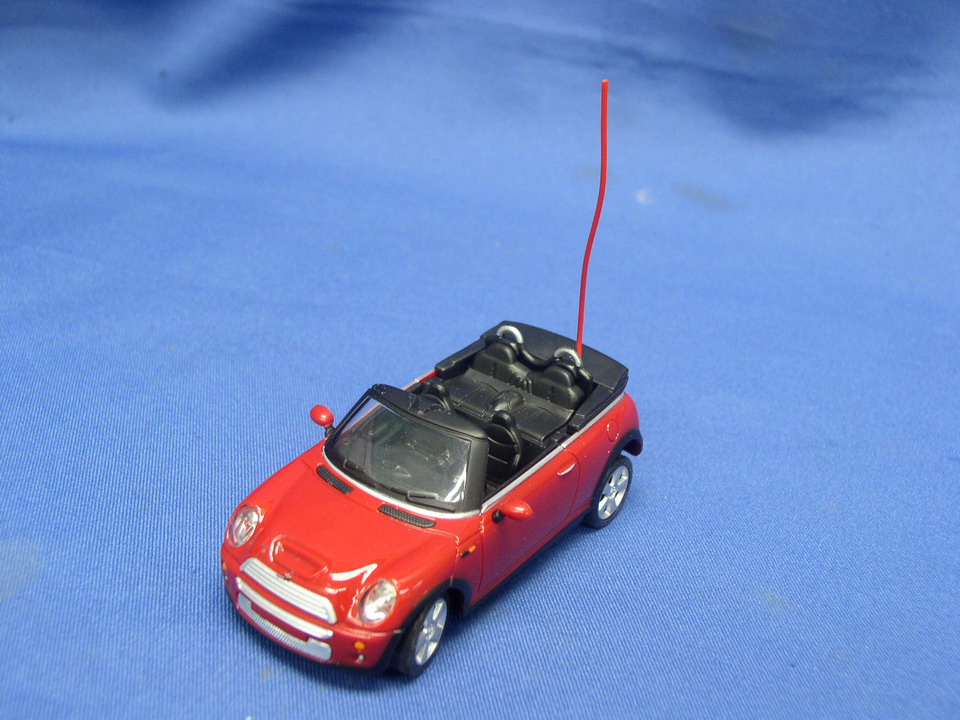

FCC ID: UV59530-RX49-HK Ophoto1 Ophoto2 FCC ID: UV59530-RX49-HK Ophoto3 Ophoto4

FCC ID: UV59530-RX49-HK Technical Description : The brief circuit description is listed as follows : - Q1 and associated circuit act as 49.860 MHz Super-regenerative Receiver. - U1 GE-RX2C acts as Decoder. - Q2 to Q4, Q8 to Q10 and associated circuit act as Motor Driver. - Q6, Q7, Q11, Q12 and associated circuit act as Steering Driver. Antenna Used : An integral antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : UV59530-RX49-HK Excalibur Electronics, Inc. Application For Certification (FCC ID: UV59530-RX49-HK) Superregenerative Receiver Sample Description : 1:43 Scale Mini Cooper S Convertible R/C Car Model : 9530R Additional Model : 9530B, 9530Y, 9530G HK08020055-1 BH/at March 12, 2008 INTERTEK TESTING SERVICES FCC ID: UV59530-RX49-HK i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: UV59530-RX49-HK ii MEASUREMENT/TECHNICAL REPORT Excalibur Electronics, Inc. - MODEL: 9530R FCC ID: UV59530-RX49-HK March 12, 2008 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator Report prepared by: Ho Wai Kin, Ben Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: UV59530-RX49-HK iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology ................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification ........................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................... 5 2.3 Support Equipment List and Description................................................................ 5 2.4 Equipment Modification......................................................................................... 6 2.5 Measurement Uncertainty ..................................................................................... 6 2.6 Support Equipment List and Descripition .............................................................. 6 3.0 Emission Results ..................................................................................................... 8 3.1 Field Strength Calculation ..................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................... 10 3.3 Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ........................................................................................ 14 5.0 Product Labelling ................................................................................................... 16 6.0 Technical Specifications ........................................................................................ 18 7.0 Instruction Manual ................................................................................................. 20 8.0 Miscellaneous Information .................................................................................... 22 8.1 Stabilization Waveform........................................................................................ 23 8.2 Emissions Test Procedures................................................................................. 24 INTERTEK TESTING SERVICES FCC ID: UV59530-RX49-HK iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Cover Letter Letter of Agency letter.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: UV59530-RX49-HK 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: UV59530-RX49-HK 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC Car operating at 49.860 MHz. The EUT is powered by a 2.4V internal battery. The EUT has an ON/OFF switch and a charge socket. The EUT can be controlled to move forward with light up the headlights, move backward, turning left and right directions. The internal battery of the RC Car can be charged by the corresponding charger which is powered by four AA batteries. The Model: 9530B, 9530Y and 9530G are the same as the tested Model: Test Model in hardware and software aspect. The models are difference in color and model …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
