UWRQGS300181406Ultrasonic sensor system with OSD

1 Principle of system working 2 Components NO. Name Quantity 1 GUI BOX 1 2 MOMENTARY SWITCH 1 3 FRONT SYSTEM CABLE(2M) 1 4 REAR SYSTEM CABLE(7M) 1 5 VIDEO CABLE(2M) 1 6 VIDEO CABLE(7M) 1 7 FS BUZZER CABLE(3M) 1 3 Specification NO. Item Parameter 1 Operation Voltage DC 9.6V--16V 2 Current consumption MAX300mA 3 Operation temperature -30°C----+80°C 4 Storage temperature -40°C---+85°C 5 TV system NTSC 6 To n e Vo l u m e Hi: 85d B Low:80 d B (30cm/12V) 7 Tone frequency 1000 ± 200HZ 4 System function 4.1 Activation: 4.1.1. System will stand-by after car engine is started, 4.1.2. Shift to Reverse gear position, both reverse sensors and front sensors start to work, Monitor shows image from camera 1. When shifted to other gears, all sensors and camera 1 are deactivated. 4.1.3. Press momentary switch to manually turn on front sensors and camera 2, OSD unit deliver 12V signal from output wire. Press the switch again to turn off front sensors and camera 2. 4.1.4. Reverse gear and switch trigger OSD unit separately, but reverse gear has higher priority. 4.2 Screen Display: 4.2.1. When vehicle is shifted to reverse gear, monitor will show camera image and GUI visual effect (on top left); if camera is not connected, Monitor will show black background and display GUI visual effect in he center. GUI doesn't function in "D" or "N" gear. 4.2.2. For 2-sensor operation mode, sensors are supposed to be connected to port CL/CR on FS unit, GUI will display two central sensors' pattern. GUI doesn't support 3-sensor mode. 4.3 Sensor-diagnosis Once activated, GUI-OSD unit starts its diagnosis for sensor: 1. each beep stands for one defective sensor. 2. low pitch sound is for front sensors; while high pitch sound is for rear sensors; 3. when both front and rear sensors are connected, front sensor diagnosis is conducted first. 4. Note: if sensors only connects to CL/CR ports, FS unit will view this situation as 2-sensor operation mode and won't deliver defective warning beeps. 4.4 Detection Sections There will be at most six curves showed on the screen, their section is 180-150-120-90-60-40-00 (in cm), . When an object is detected, system will deliver alarming sound as well as graphic warning by showing the curves on the screen. Sound alarm： - As obstacle gets closer, system delivers higher frequency alarms, the beep becomes solid sound when it get closer than 60cm. - Low pitch for front sensors, high pitch for rear sensors. 4.5 Switch Function Switch 1: Up: 4 sensors detect. Down: 3 sensors detect. Switch 2: Up: fit size 16:9 monitor. Down : fit size 4:3 monitor. 4.6 Detection Range Selection (switch on sensor control unit) 4.7 3/4-sensor Mode Selection (switch on sensor control unit) When Switch 2 is "UP", FS is in 4-sensor mode, please refer to 4.6 for detection pattern. When Switch 2 is "down", FS is in 3-sensor mode, sensors should be connected to port R, CR, L. Detection range is: 60-120-180 (switch 1 is "UP") or 60-120-150 (switch 1 is "DOWN") . This device complies with part 18 of the FCC Rules. This equipment has been tested and found to comply with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product. NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.”

Q Global Solutions (Xiamen) Electronics Corp. Authority to Act as Aeent Date,:2014/4122 American Certification BodY, Inc. 6731 Whittier Avenue suite c110 McLean, V A 22101 To Whom It May Concern: hnica is authorized to act on our behalf, rrtil "th.r*ir. notified, for applications to American certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefils, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 19gt, zt u.s.c. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the applicition |s subject to denial of federal benefits, that includes FCC benefits' Thankyou, '. " . Agency Agreement Expiration Date: (Typically 8 - 12 months) I l. Xn Sner'4 U (Sigrr6ture') j&nast- --Jiqlhessll (Print name) By: Title: On behalf of: Telephone:' +86-5n-5790339 t *,t"- *** ,r' "*licant contact given for appli*ant on the FCC site, cr by the authorized agent if atr appropriate authnrized agent letier has been provirled. l,etreii shoulci be piacecl .crn appropriate letter:head' (CompanyName) 022311 -6

Request for ConfidentialitY Date:201414122 Subject: Confrdentiality Request for: FCC ID : UWRQGS3OO181406 pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. I Short Term ! Permanent* Exhibit Block Diagrams External Photos Internal Photos Operation DescriptiorVTheory of Operation Parts List & Placement/BOM Tune-Up Procedure Schematics Test Setup Photos IJser's Manual *Note: (Insed Explanation as Necessarv) e Global Solutions (Xiamen) Electronics Corp.. has spent substantial effort in developing this product and it is "". "f th. frit of it, nna in i"o"rtry. l{aving the subject information easily available to "competition" would negate the advantage they have achieved uy developlng this product. Not protecting the details ofthe design will result in financial hardship. ,i Permanent ConfidentialitY: The applicant requests the exhibits,listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public' Short-Term Confi dentialitY: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a pe.ioi of Gpiqify "rrrb"t of d.ys )3- days from the date of the Grant of Equipment Authorizationundp.io,@ematurereleaseofsensitiveinformationpriortomarketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information ..guiding the product or the pioduct is made available to the public, ACB will then release the documents listed above foi public disclosure pursuant to FCC Public Notice DA 04-1705' NOTE for Industry Canada Applications: The applicant understands that until such time that lC distinguishes between Shorl Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC' Type of ConfidentialitY Requested ! Short Term [lPermanent I Short Term I Short Term ! Permanent*' I Short Term I Permanent I Short Term I Permanent ! Short term I Permanent ! Short Term [lPermanent ! Short Term Sincerely, By: Xn sha'l Li (Signatlre/Title') Xinsheng LilManager (Print name) , - .1-i" **rU* n.-**) require further justitication before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Furtherjustification should be added to the note above. One such example for a potted device would be: "The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable ;;;i;;;.riJ "i-"irwl See photograpns exniuits that outline the device before and after potting'" a r -1--,- l---l ^^.^Cl^-+:^l:+ for complete ' - Please refer to details. 4 - Mi,rst be signeel Lry applir:anr coriiacl pgiven t"oi"applieaur on lhe FCC' si1e. or by {he authorizerl agent it-an appropriate authofized agent lettei has b,:en p..tt;,1*r1. Li:tlef$ shtluld be placxl an appropriat* letterhijail' 022311 - 6

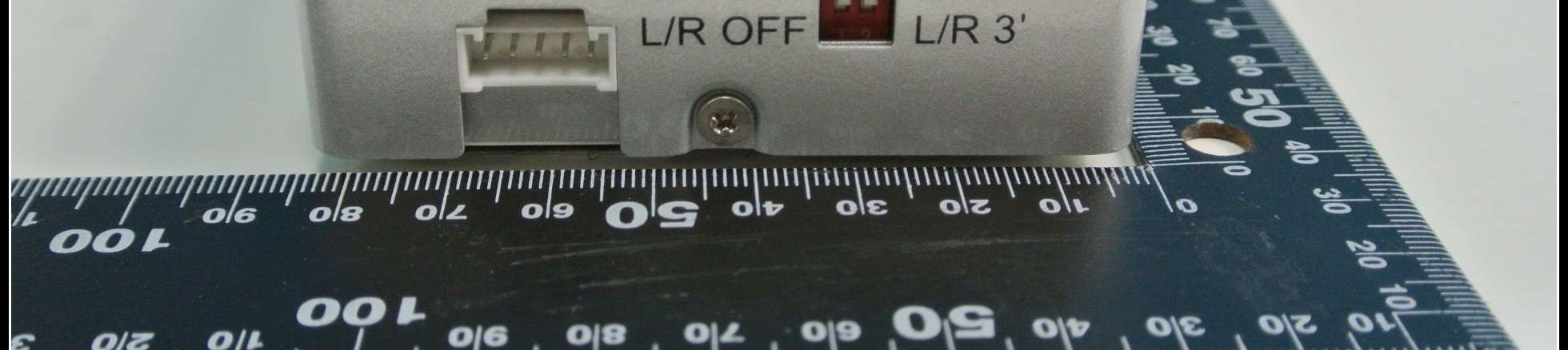

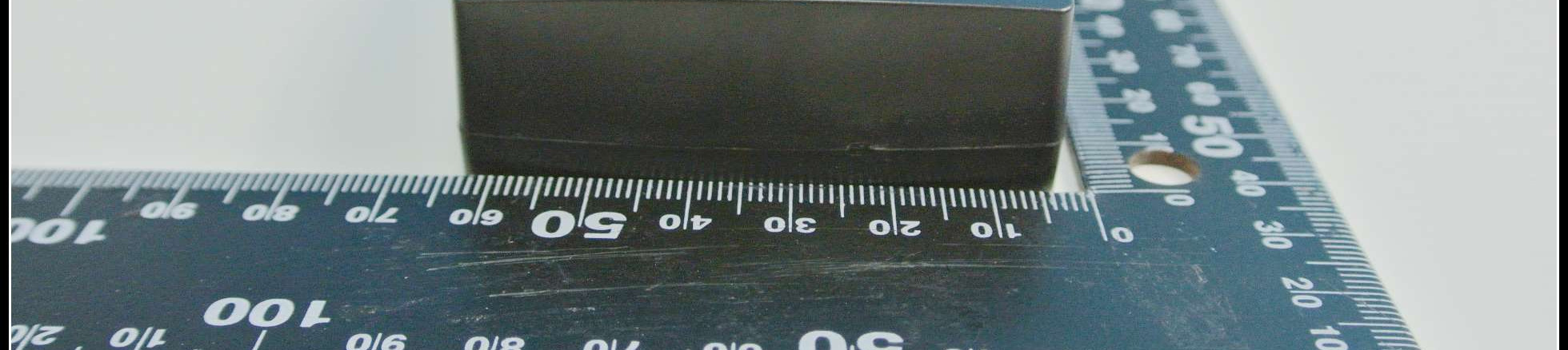

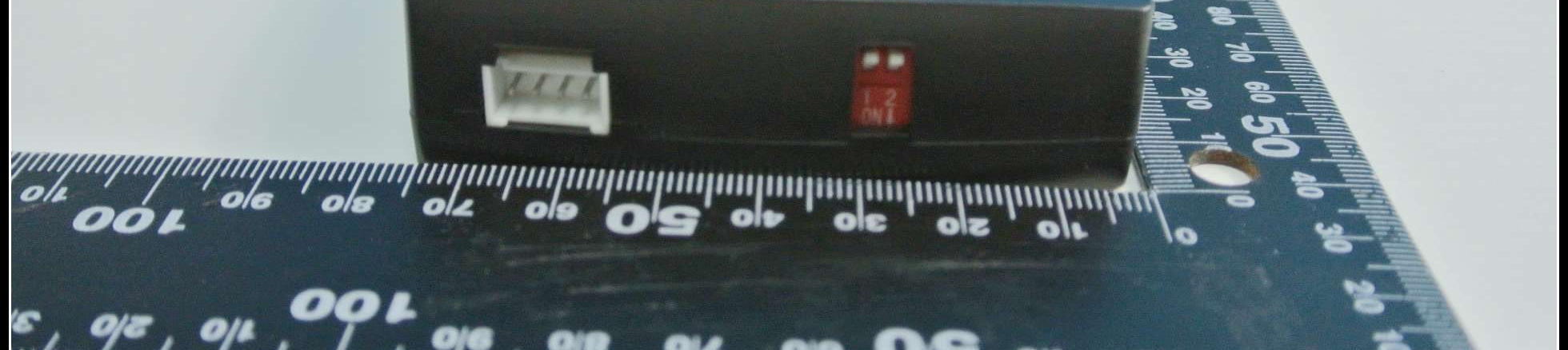

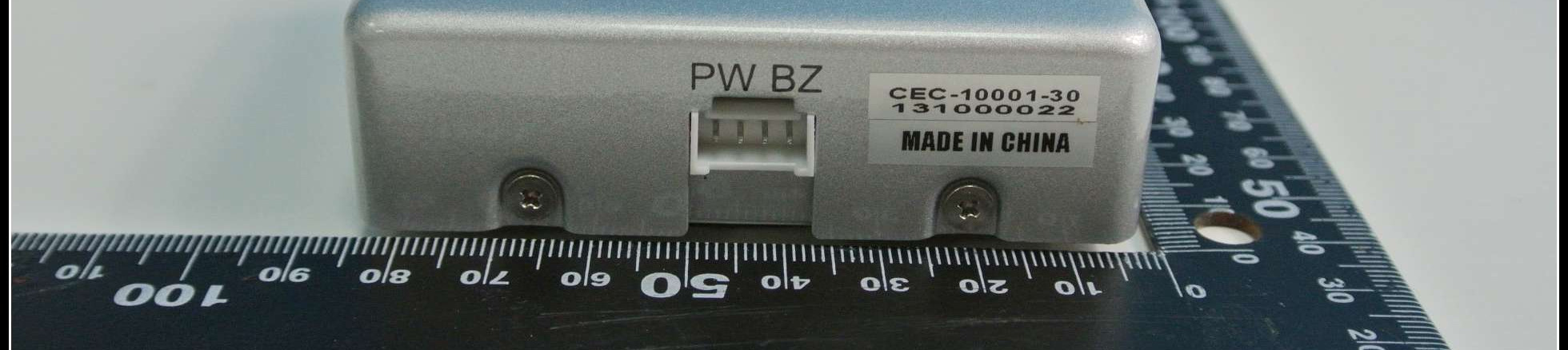

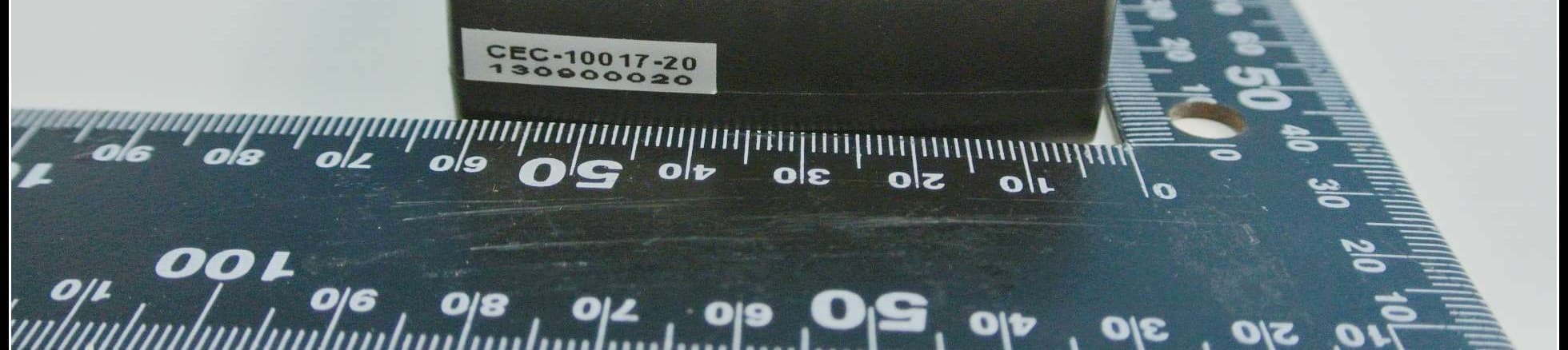

External Photo
