UXI-CE-F1000BLUETOOTH STEREO HEADSET

BLUETOOTH STEREO HEADSET iSkin CE-F1000 USER GUIDE TABLE OF CONTENTS 1. Introduction 2. Package Contents 3. Features 4. Charging 5. Pairing with Bluetooth Devices 6. Re-connecting with the paired device 7. Headset Controls 8. What the lights mean 9. Product Specification 10. Troubleshooting 11. Warning 12. Warranty 13. Need more help? 1. Introduction Thank you for choosing the iSkin CE-F1000 Bluetooth Stereo Headset with Bluetooth technology. iSkin CE-F1000 Bluetooth Stereo Headset makes connectivity invisible and reliable, besides will provide you with wireless control over many of today’s audio and mobile devices. What is Bluetooth? Bluetooth wireless technology is a short-range communications technology intended to replace the cables connecting portable and/or fixed devices while maintaining high levels of security. It is designed to communicate data/voice within short-range distance of 10m to 100m. Bluetooth technology has achieved global acceptance such that any Bluetooth enabled device, almost everywhere in the world, can connect to other Bluetooth enabled devices in proximity. A fundamental Bluetooth wireless technology strength is the ability to simultaneously handle both data and voice transmissions. This enables users to enjoy variety of innovative solutions such as a hands-free headset for voice calls, printing and fax capabilities, and synchronizing PDA, laptop, and mobile phone applications to name a few. 2. Package Contents iSkin CE-F1000 Stereo Headset USB Charging cable User Manual 3. Feature 4. Charging iSkin CE-F1000 Stereo Headset uses the rechargeable Lithium-Polymer battery. Make sure your iSkin CE-F1000 is fully charged for two hours before you start using. How to charge; 1) Plug the USB cable into the USB port on your computer. 2) The LED indicator is red when charging the headset. 3) The LED indicator turns blue when the battery is fully charged. 4) Remove the battery charger from the headset. 5. Paring with Bluetooth Devices Before you can use your headset with a Bluetooth enabled product, you must pair it with that product. How to pair; CE-F1000_□□□ 1 2 CE-F1000_□□□ 1 6. Re-connecting with a paired device Although you disconnect your headset from the paired device, you don’t need to re-pair with the same device that was already paired before in order to reconnect your headset to that device. You can only turn the power-switch on and wait for a couple of seconds to reconnect your headset to that device. 7. Headset Control Key Definition Action Key Press Time Sound Effect Power On Slide S/W OnDon’t care Start-Up Sound Pairing Mode - Enter Very Long Warning signal Pairing Mode - Exit MFB Short Tick Sound Reconnect MFB Short or Long No Sound Battery Check +/- & << >> Pressed No Sound Play/Pause MFB Short No Sound Play stop MFB Long No Sound Backward Search << Short No Sound Forward Search >> Short No Sound Volume Up Short Volume-up (Repeat) + Continuous No Sound Volume-down Short Volume-down (Repeat) _ Continuous No Sound Accept Call MFB Short No Sound Mic Mute On/Off << or >> Short No Sound Voice Dial MFB Short No Sound Call Transfer MFB Long No Sound Reject Call MFB Long No Sound Hang Up Call MFB Short No Sound Last Call MFB Long No Sound Cancel Call MFB Short No Sound * Short key : 0.5~2 seconds, Long key : 2~5 seconds, Very long key : Over 5 seconds *MFB : Multi Function Button 8. What the lights mean LED-White LED-Blue Action Status ON Time (sec) OFF Time (sec) Status ON Time (sec) OFF Time (sec) Note Pairing Blink Mode 1 0.2 0.2 Blink Mode 1 0.2 0.2 A2DP Streaming Blink Mode 1 0.05 2.0 Off 0.05 Waiting Connection Blink Mode 2 0.05 1.0 Off 0.05 Ring Blink Mode 3 0.05 1.0 Off Active Call Blink Mode 1 0.05 2.0 Off Charging Off On Full charged On Off Very Low Off Blink Mode 1 0.2 0.2 Low Off On Normal On Off Battery Check Mode Full On Off * Blink Mode 1 : On - Off - On - Off ... Blink Mode 2 : On1 - Off1 - On1 - Off2 ... Blink Mode 3 : On1 - Off1 - 17 times - Off2 - On1 ... 9. Products Specification Bluetooth Version Version 2.0, Class II Bluetooth Support Profile A2DP, AVRCP, HSP, HFP RF Frequency 2,4GHz / 79 Channel / AFH Coverage Range* Bluetooth standard 33 feet (10 meters) Music Playback Time* Up to 8 hours (The maximum playback time depends on the usage frequency and environmental factors. A long distance wireless connection and high volume level will increase the power consumption and may decrease the playback time.) Talk Time* Up to 10 hours Standby Time* Approximately 300 hours Charging Time Approximately 2.5 hours Charging Methods Mini USB cable, DC Adapter(5V, 300mA) Battery 290mAh, Lithium-Poymer Headset Speaker Diameter: < 15mm Frequency Response: 20Hz ~ 20KHz SPL (Sound Pressure Level): 93dB @ 1KHz Impedance: 16 @ 1V, 1KHz Power Rating: 5mW (Maximum) Mic. Typical : ECM unit (110dB) S/N Ratio Up to 58dB Size and Weight 45.5(W) x 23.5(L) x 11.8(H) , About 35g Supports Bluetooth Hands-Free and Headset Profiles (HFP/HSP), Advanced Audio Distribution Profile (A2DP), and Audio/Video Remote Control Profile (AVRCP) *Performance may vary by device. 10. Troubleshooting 1) If you hear crackling noises, - Bluetooth is a radio technology, which means it is sensitive to objects between the headset and the connected device. It is designed for the headset and the connected device to be used within 100 meters (33 feet) of each other, with no major object in the way. 2) If you have no light on the indicator LED, - Please make sure if the headset is switched on or you also check the battery if it is too low for power on. 3) If you have pairing problems, - You may have deleted the pairing connection in you Bluetooth mobile phone, MP3, and other Audio devices. Please follow the pairing instruction in section 5. 4) If you can not hear anything, - Please increase the volume in the headset, and ensure that the headset is paired to a device that is playing. 5) If you are facing the other problems, - Please contact with the seller. 11. Warning Use of a headset that covers bot…

Text truncated - open the document above for the full version.

2225 Sheppard Ave. East,Suite#1203 Toronto, Ontario M2J 5C2 CANADA January 11, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : iSkin Inc. FCC ID : UXI-CE-F1000 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [UXI-CE-F1000] SCH.pdf), Parts list(File name: [UXI-CE-F1000]PL.pdf), Block diagram (File name: [UXI-CE-F1000]BLK.pdf) and Operational description (File name: [UXI-CE-F1000]Op Description.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Rishi Persaud VP Corporate Affairs iSkin Inc.

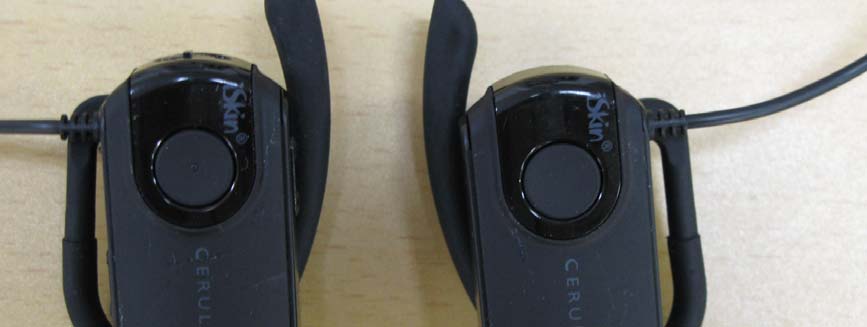

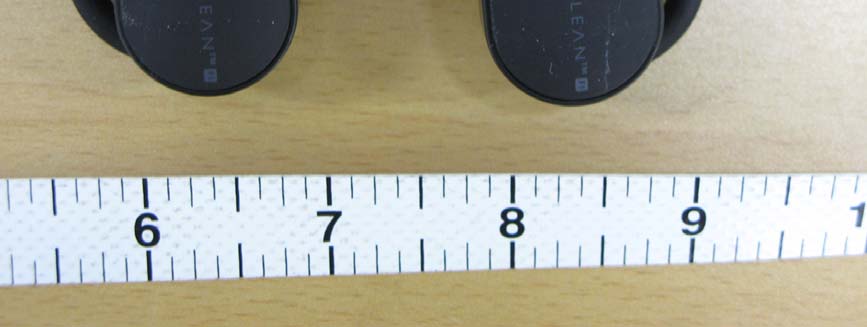

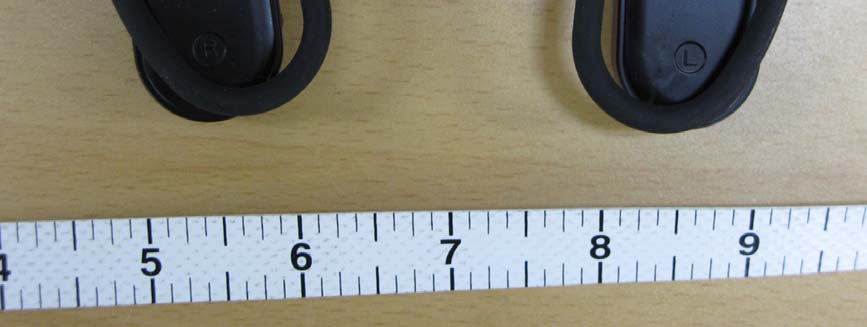

Model No.: CE-F1000 FCC ID: UXI-CE-F1000 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 3 Model No.: CE-F1000 FCC ID: UXI-CE-F1000 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 3 Model No.: CE-F1000 FCC ID: UXI-CE-F1000 Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 3

Model No.: CE-F1000 FCC ID: UXI-CE-F1000 Copyright Ⓒ 2007, LTA Co., Ltd. SAMPLE LABEL & LOCATION Label iSkin Inc. M/N: CE-F1000 FCC ID:UXI-CE-F1000

Model No.: CE-F1000 FCC ID: UXI-CE-F1000 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 2 Model No.: CE-F1000 FCC ID: UXI-CE-F1000 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 2

Ref. No.: LR500190701F Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 32 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: January 09 ~ 17, 2007 Test Report S/N: LR500190701F Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Bluetooth Stereo Headset Manufacturer : DIOSTECH Co., Ltd. Model name : CE-F1000 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 1.837mW - Conducted Data of issue : January 19, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 UXI-CE-F1000 iSkin Inc. Ref. No.: LR500190701F Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND - EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 11 13 15 17 26 28 31 Ref. No.: LR500190701F Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 32 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500190701F Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 32 2. Information’s about test item 2-1 Client Company name : iSkin Inc. Address : 2225 Sheppard Ave. East,Suite#1203 Toronto, Ontario M2J 5C2 CANADA Tel / Fax : +1-416-924-9607/ +1-416-924-7731 2-2 Manufacturer Company name : DIOSTECH Co., Ltd. Address : Room 1020 777 Zhaojia Bang Road, Shanghai, China 2-3 Equipment Under Test (EUT) Trade name : Bluetooth Stereo Headset FCC ID : UXI-CE-F1000 Model name : CE-F1000 Serial number : Identical prototype Date of receipt : December 28, 2006 EUT condition : Pre-production, not damaged Antenna type : Chip antenna Max. Gain 1.16dBi Frequency Range : 2402 ~ 2480MHz RF output power Range : -6dBm~+4dBm (Class 2) Number of channels : 79 Duty Cycle : 78.3% Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 3.7V (Li-Polymer Rechargeable) (Recharging – by USB Cable) 2-4 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - Ref. No.: LR500190701F Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 32 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies ≥ 15 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500190701F Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 32 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channels) RBW…

Text truncated - open the document above for the full version.

Model No.: CE-F1000 FCC ID: UXI-CE-F1000 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 2 Radiated Emission Model No.: CE-F1000 FCC ID: UXI-CE-F1000 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 2 Conducted Emission
