UXI-CE-RX1000BLUETOOTH STEREO RECEIVER/ TRANSCEIVER

BLUETOOTH RECEIVER (RX) FOR IPOD DOCKING SPEAKER iSkin CE-RX1000 USER GUIDE 1. Introduction Bluetooth wireless technology is a short-range communications technology intended to replace the cables connecting portable and/or fixed devices while maintaining high levels of security. It is designed to communicate data/voice within short-range distance of 10m to 100m. Bluetooth technology has achieved global acceptance such that any Bluetooth enabled device, almost everywhere in the world, can connect to other Bluetooth enabled devices in proximity. A fundamental Bluetooth wireless technology strength is the ability to simultaneously handle both data and voice transmissions. This enables users to enjoy variety of innovative solutions such as a hands-free headset for voice calls, printing and fax capabilities, and synchronizing PDA, laptop, and mobile phone applications to name a few. 2. Package Contents RX for iPod docking speaker USB cable User Manual 4. Getting stared Remove all components from the package. Items in the package include: Bluetooth Receiver for iPod docking speaker, User manual, and USB cable. Please check the contents carefully and contact your local dealer immediately if there is any shortage. 5. Getting to know the Rx This Bluetooth Tx for iPod offers the latest innovation in Bluetooth technology. As docking on the iPod docking speaker, it can receive audio from Apple iPod with Bluetooth Transmitter for iPod wirelessly. As a kind of easy control product, Rx will finish searching, pairing, and connecting by itself automatically. User just needs to plug into iPod docking speaker to start the operation. 6. Application for Rx + Bluetooth Devices or Bluetooth Rx for Non-Bluetooth device with Bluetooth Tx iPod docking speaker iPod docking Speaker 7. Pair Rx on iPod docking speaker to your iPod with Tx Pairing is the process of linking the Rx with your Bluetooth Audio devices iPod with Bluetooth Tx. Before you using the Rx on iPod docking speaker, you should pair both devices. After pairing completed, you should use the Rx only with the paired Bluetooth Transmitter or Bluetooth devices. If you want to use Rx with a different Bluetooth Tx or Bluetooth devices, you need to redo the pairing process with the new devices. In this case, the Rx will no longer work with the previous Bluetooth Tx or Bluetooth devices To pair the Bluetooth Devices or Bluetooth Tx 1. Plug into the iPod docking speaker, the white LED will flash in fast speed. It is in paring mode. 2. Turn on the Bluetooth devices and search the Bluetooth Rx (See the user manual of the Bluetooth devices), or turn on non-Bluetooth Audio device and connect with Bluetooth Tx, make sure Tx in pairing Mode. 3. If the Rx is paired with the Bluetooth devices or Bluetooth Txt, the LED will flash in slow speed again. Tips: Please make sure the pin code of Bluetooth Tx which is connected with Audio devices is “0000”. Otherwise, the Rx will not pair with it. For this part, Please refer the Bluetooth Tx venders. 8. Rx User Interface Definition 1) Device Action Status 2) LED Definition LED White Action Status On Time(sec) Off Time(sec) Notes 0.05 Paring Blink Mode 1 0.05 1 - iSkin CERULEAN RX Status Action Power Save Idle not connected Idle connected Pairing Mode AV Note Power On - - - - Docking Speaker Connection Auto Pairing Mode X ○ ○ X X Power On & Pairing State Streaming Mode X X X X ○ - Power Down(Panic) X X X X X After Paring Time 3 Minute A2DP Connected Blink Mode 2 0.5 0.5 A2DP Connected, HFP_Connected State A2DP Streaming Blink Mode 3 0.5 3.0 A2DP Streaming State Power Down X X X Device Stop * Blink Mode Blink Mode 1 : On-Off -On-Off-On-Off .....time delay (1sec)..... On-Off-On-Off-On-Off... Blink Mode 2 : On-Off-On-Off ..... Blink Mode 3 : On1-Off...time delay(3sec)....On-Off ..... 9. Products Specification Bluetooth Version Version 2.0, Class II Bluetooth Support Profile A2DP, AVRCP RF Frequency 2,4GHz / 79 Channel / AFH Coverage Range* Bluetooth standard 33 feet (10 meters) Power Methods USB cable, iPod docking Speaker Advanced Audio Distribution Profile (A2DP), and Audio/Video Remote Control Profile (AVRCP) *Performance may vary by device. 10. Troubleshooting 1. Please note that you should also be familiar with the operation of your Bluetooth devices / Bluetooth Tx. 2. Please read you Bluetooth devices / Bluetooth Tx user guide carefully. 3. Please note that the Rx will only work with Bluetooth devices / Bluetooth Tx with support the Bluetooth AV profiles. Tips: If disconnection or lost link occurs, it maybe due to the following reason. 1. The range is over 10 meters between both Bluetooth devices / Bluetooth Tx and Rx. (Please keep the distance within 10 meters) 2. Bluetooth devices / Bluetooth Tx with Rx will be disconnected the link for some certain condition. 11. Warranty z This warranty lasts for one year from the date of purchase of the products. z This warranty extends to you only if you are the end users with the original purchase receipt. z We will, at our option, repair or replace the products that do not conform to the warranty. z The manufacturer or the seller shall not be liable for any incidental consequence or damages by the end users. z This warranty gives you specific legal right. You may also have other rights which vary from state to state. 12. Need more help? Additional page FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, Including interference that may cause undesired operation Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy…

Text truncated - open the document above for the full version.

2225 Sheppard Ave. East,Suite#1203 Toronto, Ontario M2J 5C2 CANADA January 11, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : iSkin Inc. FCC ID : UXI-CE-RX1000 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [UXI-CE-RX1000] SCH.pdf), Parts list(File name: [UXI-CE-RX1000] PL.pdf), Block diagram (File name: [UXI-CE-RX1000] BLK.pdf) and Operational description (File name: [UXI-CE-RX1000] Op Description.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Rishi Persaud VP Corporate Affairs iSkin Inc.

Model No.: CE-RX1000 FCC ID: UXI-CE-RX1000 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 3 Model No.: CE-RX1000 FCC ID: UXI-CE-RX1000 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 3 Model No.: CE-RX1000 FCC ID: UXI-CE-RX1000 Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 3

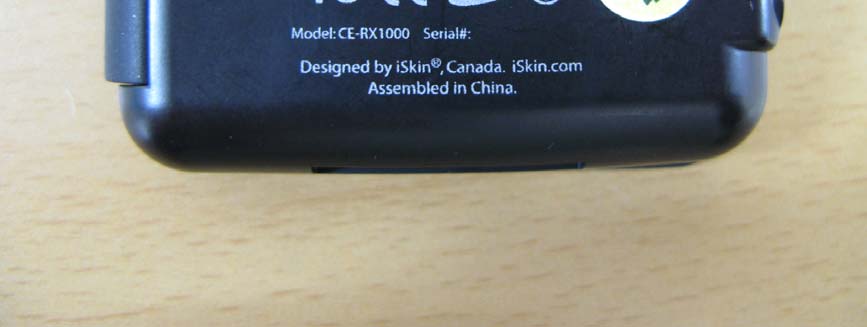

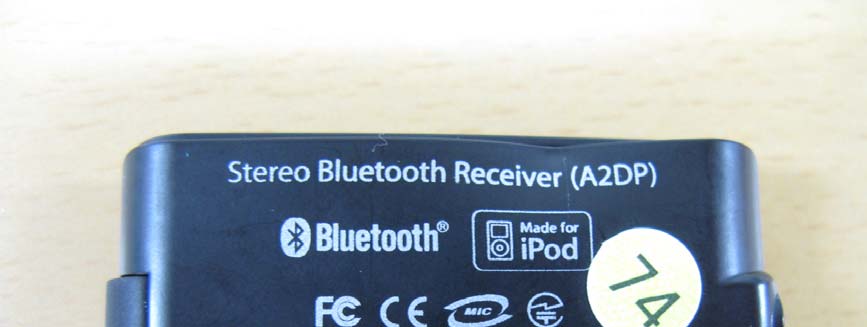

Model No.: CE-RX1000 FCC ID: UXI-CE-RX1000 Copyright Ⓒ 2007, LTA Co., Ltd. SAMPLE LABEL & LOCATION Sample label Label

Model No.: CE-RX1000 FCC ID: UXI-CE-RX1000 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 2 Model No.: CE-RX1000 FCC ID: UXI-CE-RX1000 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 2

Ref. No.: LR500190701E Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 34 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: January 09 ~ 17, 2007 Test Report S/N: LR500190701E Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Bluetooth Stereo Receiver Manufacturer : DIOSTECH Co., Ltd. Model name : CE-RX1000 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 1.919mW - Conducted Data of issue : January 19, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 UXI-CE-RX1000 iSkin Inc. Ref. No.: LR500190701E Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND - EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 12 14 16 25 28 33 Ref. No.: LR500190701E Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 34 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500190701E Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 34 2. Information’s about test item 2-1 Client Company name : iSkin Inc. Address : 2225 Sheppard Ave. East,Suite#1203 Toronto, Ontario M2J 5C2 CANADA Tel / Fax : +1-416-924-9607/ +1-416-924-7731 2-2 Manufacturer Company name : DIOSTECH Co., Ltd. Address : Room 1020 777 Zhaojia Bang Road, Shanghai, China 2-3 Equipment Under Test (EUT) Trade name : Bluetooth Stereo Receiver FCC ID : UXI-CE-RX1000 Model name : CE-RX1000 Serial number : Identical prototype Date of receipt : December 28, 2006 EUT condition : Pre-production, not damaged Antenna type : Chip antenna Max. Gain 3.41dBi Frequency Range : 2402 ~ 2480MHz RF output power Range : -6dBm~+4dBm (Class 2) Number of channels : 79 Duty Cycle : 78.0% Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : DC 5V from a docking speaker system 2-4 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - Ref. No.: LR500190701E Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 34 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies ≥ 15 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500190701E Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 34 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channels) RBW = 30 kHz (1% of …
