UXX-CPB250WiMAX Module

805 W est Franklin Street | Boise, Idaho 83702 | p 208.424.5054 | f 208.429.6852 CradlePoint.com CradlePoint, Inc. 805 West Franklin Street Boise, ID 83702 Cradlepoint, Inc. attests to the following: The CPB250 was tested with (DL:UL= 29:18) duty cycle mode for 5MHz and 10MHz. This DL/UL ratio as tested by the lab was consistent with specifications provided by Clearwire. The CPB250 was tested while connected to a specific host. If the host platform differs significantly from that used for original testing, additional testing of the radiated spurious emissions may need to be performed. Maximum peak output power measurements of report number RF990902E03, per FCC Part 27.50, are reported as peak values Sincerely, By: __________________________ _Steven T. Wood, VP Engineering_ (Signature) (Print name/Title)

805 W est Franklin Street | Boise, Idaho 83702 | p 208.424.5054 | f 208.429.6852 CradlePoint.com Authority to Act as Agent Date: _30 April 2012 __ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: David Schramm is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _30 April 2013_ By: __________________________ _____Steven T. Wood_____ (Signature) (Print name) Title: _VP, Engineering ____________ On behalf of: _CradlePoint, Inc. ____________ (Company Name) Telephone: _208.424.5054 _______________

805 W est Franklin Street | Boise, Idaho 83702 | p 208.424.5054 | f 208.429.6852 CradlePoint.com Request for Confidentiality Date: _30April 2012__ Subject: Confidentiality Request for: ______UXX-CPB250______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Notes: See Exhibit A. _____CradlePoint Inc.______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___180 __ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ _Steven T. Wood VP, Engineering _ (Signature) (Print name/Title) 805 W est Franklin Street | Boise, Idaho 83702 | p 208.424.5054 | f 208.429.6852 CradlePoint.com Exhibit A CradlePoint, Inc. has requested that the User Manual for FCC ID UXX-CPB250 be held permanently confidential. The CPB250 module will not be sold for use in products outside of those developed by CradlePoint, Inc and the user manual is used strictly for CradlePoint internal development of these products. An NDA regarding confidentiality is not required between the grantee and the purchaser of the CPB250 because CradlePoint, Inc. is both the grantee and the purchaser; therefore, no NDA is included as an exhibit in this cover letter. By: __________________________ _Steven T. Wood VP, Engineering_ (Signature) (Print name/Title)

805 W est Franklin Street | Boise, Idaho 83702 | p 208.424.5054 | f 208.429.6852 CradlePoint.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Re: FCC ID: UXX-CPB250 Modular Approval Dear examiner, We the undersigned intend to submit for authorization CPB250 under FCC ID: UXX-CPB250 as a limited modular approval. We are seeking limited modular approval since we, the grantee, will be the only party using the CPB250. This device meets the requirements as a modular device stated in public notice KDB 996369 and summarized below: 1. This modular transmitter has its own RF shielding and will not rely upon the shielding provided by the host into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits, nor will it cause any coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. a. The CBP250 module RF elements are fully shielded. Please refer to external photo submissions. 2. This modular transmitter has buffered input data according the definition of KDB 996369 and complies with Part 15.212 requirements under conditions of excessive data rates or over-modulation. a. The module chipset integrates buffered I/O. USB data interface is compatible with USB Revision 2.0. 3. The modular transmitter has its own power supply regulation to ensure compliance with Part 15.212 requirements regardless of the design of the power supplying circuitry in the host device into which the module is installed. a. The transmitter power supply is internally regulated. 4. This modular transmitter complies with the antenna requirements of FCC rule Tile 47 Section 15.203 and 15.204(c). The antenna is permanently attached. a. The CPB250 module does not have an affixed antenna. Limits for antenna parameters to remain in compliance with FCC requirements are provided in the User Manual. 5. This modular transmitter is tested in a "stand-alone" configuration and not inside any hosting device to ensure compliance with Part 15 emission limits regardless of the host device into which it is eventually installed. All accessories, peripherals, or support equipment connected to the module during testing are unmodified or commercially available. a. UUT conformance testing was measured in a standalone configuration. Typically standalone testing is performed using a PC as the host device. Testing of the CPB250 module, was performed using a CradlePoint Inc. wired access point (model name: CBA750) as the host device rather than a PC. For this testing, the CPB250 module was installed in a CradlePoint Inc. MC100W which uses an ABS/PC plastic enclosure that has no shielding. The MC100W provides an interface from the CPB250 to the USB port of the host. 6. This modular transmitter will be labeled with its own FCC ID number. In the event that the module is installed inside a host device and the FCC ID of the module is not visible the host device will display a label referring to the FCC ID of the enclosed module. We the grantee will either provide such a label to the integrator or instructions explaining this requirement. A copy of these instructions will be included in this application for equipment authorization. a. Please refer to FCC ID label format. Labeling instructions are provided in the User Manual. 805 W est Franklin Street | Boise, Idaho 83702 | p 208.424.5054 | f 208.429.6852 CradlePoint.com 7. This modular transmitter complies with any specific rule or operating requirements applicable to the transmitter. Adequate instructions, along with the module, will be provided to the integrator to explain any such requirements. A copy of these instructions will be included in this application for equipment authorization. a. The module is compliant with applicable FCC rules. Instructions for compliance requirement are provided in the User Manual. 8. This modular transmitter complies with any applicable RF exposure requirements a. Please refer to RF exposure report Yours truly, Print Name: _Steven T. Wood _ Signature: ___________________ Date: ____6/13/2012 ______

805 W est Franklin Street | Boise, Idaho 83702 | p 208.424.5054 | f 208.429.6852 CradlePoint.com May 14, 2012 CradlePoint, Inc. 805 West Franklin Street Boise, ID 83702 Declares that the following module: • CPB250 (previously tested in the FCC approved product: UXX-MC100W) Has not undergone any design changes since the initial FCC Grant of Equipment Authorization, dated September 28, 2010, as granted for FCC ID: UXX-MC100W. By: __________________________ (Signature) _____Steven T. Wood ________ (Print name) Title: _____VP, Engineering ________

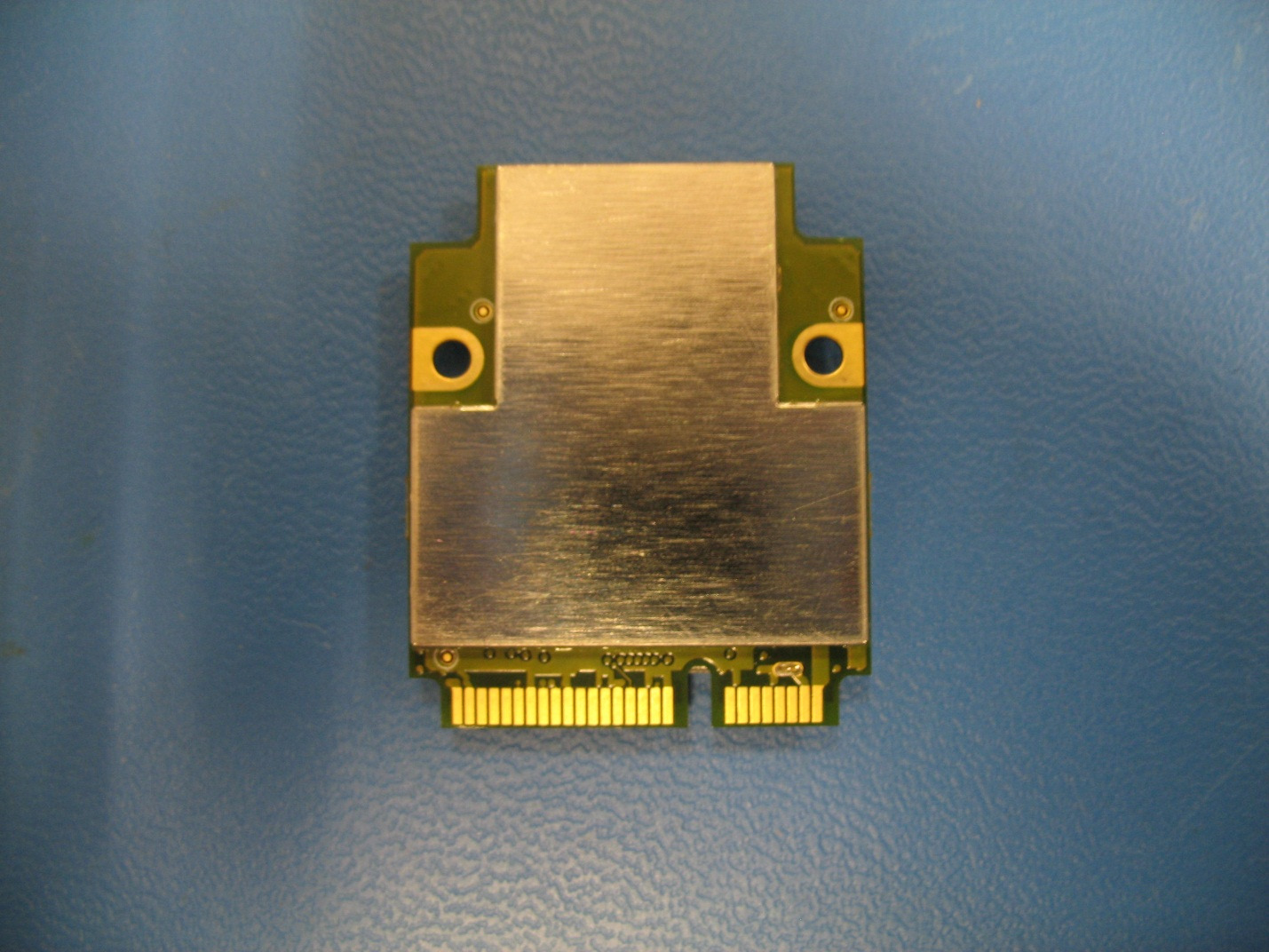

External Photos of CPB250 Front Back

FCC ID: UXX-CPB250

External Photos of CPB250 Front Back

1 § 1.1310 Radiofrequency radiation exposure limits FCC ID: Conducted Power (dBm): 24.5 assumed as worst case (tu ned to maximum) Conducted Power (milliWatts): 282 Maximum Antenna Gain (dBi): 8.5 Minimum TX Cable Loss (dB): 0 assumed as worst case Minimum TX Jumpers and Adapter Loss(dB): 0 assumed as worst case EIRP (dBm): 33.0 EIRP (Watts): 2.0 At frequency (MHz): 2496 General MPE Limit (mW/cm^2): 1.000 Occupational MPE Limit (mW/cm^2): 5.000 The power density at 20 cm is: 0.40 mW/cm^2 General Results:Using Equation 2, the MPE limit is met at: 12.6 cm or 0 .13 meters UXX-CPB250

Report No.: RF990902E03 1 Report Format Version 3.0.1 FCC TEST REPORT (PART 27) REPORT NO.: RF990902E03 MODEL NO.: MC100W FCC ID: UXX-MC100W RECEIVED: Sep. 02, 2010 TESTED: Sep. 13 to 15, 2010 ISSUED: Sep. 21, 2010 APPLICANT: Cradlepoint, Inc. ADDRESS: 805 W. Franklin Street, Boise, ID 83702 ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF990902E03 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1 CERTIFICATION..............................................................................................4 2 SUMMARY OF TEST RESULTS......................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3 GENERAL INFORMATION...............................................................................7 3.1 GENERAL DESCRIPTION OF EUT.....................................................................7 3.2 DESCRIPTION OF TEST MODES.......................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL......................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................13 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................14 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST................................................15 4 TEST TYPES AND RESULTS........................................................................16 4.1 OUTPUT POWER MEASUREMENT.................................................................16 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT...............................................16 4.1.2 TEST INSTRUMENTS.......................................................................................16 4.1.3 TEST PROCEDURES........................................................................................16 4.1.4 TEST SETUP.....................................................................................................16 4.1.5 EUT OPERATING CONDITIONS.......................................................................17 4.1.6 TEST RESULTS.................................................................................................18 4.2 FREQUENCY STABILITY MEASUREMENT......................................................19 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT..................................19 4.2.2 TEST INSTRUMENTS.......................................................................................19 4.2.3 TEST PROCEDURE..........................................................................................20 4.2.4 TEST SETUP.....................................................................................................20 4.2.5 TEST RESULTS.................................................................................................21 4.3 EMISSION BANDWIDTH MEASUREMENT.......................................................23 4.3.1 LIMITS OF EMISSION BANDWIDTH MEASUREMENT....................................23 4.3.2 TEST INSTRUMENTS.......................................................................................23 4.3.3 TEST SETUP.....................................................................................................23 4.3.4 TEST PROCEDURES........................................................................................24 4.3.5 TEST RESULTS.................................................................................................25 4.4 CHANNEL EDGE MEASUREMENT..................................................................29 4.4.1 LIMITS OF CHANNEL EDGE MEASUREMENT................................................29 4.4.2 TEST INSTRUMENTS.......................................................................................29 4.4.3 TEST SETUP.....................................................................................................29 4.4.4 TEST PROCEDURES........................................................................................30 4.4.5 EUT OPERATING CONDITION.........................................................................30 4.4.6 TEST RESULTS.................................................................................................31 4.5 CONDUCTED SPURIOUS EMISSIONS............................................................37 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT.............37 Report No.: RF990902E03 3 Report Format Version 3.0.1 4.5.2 TEST INSTRUMENTS.......................................................................................37 4.5.3 TEST PROCEDURE..........................................................................................38 4.5.4 TEST SETUP.....................................................................................................38 4.5.5 EUT OPERATING CONDITIONS.......................................................................38 4.5.6 TEST RESULTS.................................................................................................39 4.6 RADIATED EMISSION MEASUREMENT (BELOW 1GHz)................................51 4.6.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................51 4.6.2 TEST INSTRUMENTS.......................................................................................51 4.6.3 TE…

Text truncated - open the document above for the full version.

ChannelChannelFrequencyMeasurementLimitMargin Bandwidth Low/Mid/HighMHzdBmdBmdB 5 MHzLow810.8-46.9-25.0-21.9 5 MHzLow2453.0-42.7-25.0-17.7 5 MHzLow5000.0-43.8-25.0-18.8 5 MHzLow7492.0-44.2-25.0-19.2 5 MHzLow26037.0-38.6-25.0-13.6 5 MHzMid363.0-47.3-25.0-22.3 5 MHzMid2487.0-44.6-25.0-19.6 5 MHzMid5175.0-41.7-25.0-16.7 5 MHzMid7758.0-45.4-25.0-20.4 5 MHzMid26037.0-38.6-25.0-13.6 5 MHzHigh870.7-46.3-25.0-21.3 5 MHzHigh2620.0-40.2-25.0-15.2 5 MHzHigh5375.0-36.6-25.0-11.6 5 MHzHigh8058.0-43.2-25.0-18.2 5 MHzHigh26037.0-38.6-25.0-13.6 10 MHzLow998.4-47.0-25.0-22.0 10 MHzLow3060.0-46.6-25.0-21.6 10 MHzLow5000.0-43.1-25.0-18.1 10 MHzLow26037.0-38.4-25.0-13.4 10 MHzLow987.1-47.7-25.0-22.7 10 MHzMid3073.0-46.9-25.0-21.9 10 MHzMid5183.0-44.1-25.0-19.1 10 MHzMid7775.0-45.0-25.0-20.0 10 MHzMid26037.0-38.9-25.0-13.9 10 MHzHigh736.5-47.5-25.0-22.5 10 MHzHigh2620.0-38.9-25.0-13.9 10 MHzHigh5367.0-39.5-25.0-14.5 10 MHzHigh8058.0-44.0-25.0-19.0 10 MHzHigh26037.0-38.5-25.0-13.5 Conducted spurious emissions from RF990902E03FCCTestReport.pdf compared to 27.53(m)(4) limits. ChannelChannelPolarityFrequencyMeasurementLimitMargin Bandwidth Low/Mid/HighV/HMHzdBmdBmdB 5 MHzMidH125.0-66.1-25.0-41.1 5 MHzMidH240.0-60.8-25.0-35.8 5 MHzMidH360.0-65.1-25.0-40.1 5 MHzMidH480.0-62.3-25.0-37.3 5 MHzMidH500.0-58.8-25.0-33.8 5 MHzMidH679.7-57.6-25.0-32.6 5 MHzMidV158.0-62.9-25.0-37.9 5 MHzMidV240.0-64.5-25.0-39.5 5 MHzMidV360.0-65.2-25.0-40.2 5 MHzMidV480.0-61.2-25.0-36.2 5 MHzMidV500.0-60.3-25.0-35.3 5 MHzMidV679.7-60.3-25.0-35.3 ChannelChannelPolarityFrequencyMeasurementLimitMargin BandwidthLow/Mid/HighV/HMHzdBmdBmdB 10 MHzMidH125.0-65.8-25.0-40.8 10 MHzMidH240.0-61.1-25.0-36.1 10 MHzMidH360.0-65.1-25.0-40.1 10 MHzMidH480.0-62.1-25.0-37.1 10 MHzMidH500.0-58.8-25.0-33.8 10 MHzMidH679.7-58.1-25.0-33.1 10 MHzMidV158.0-62.9-25.0-37.9 10 MHzMidV240.0-64.5-25.0-39.5 10 MHzMidV360.0-65.2-25.0-40.2 10 MHzMidV480.0-61.0-25.0-36.0 10 MHzMidV500.0-60.1-25.0-35.1 10 MHzMidV679.7-59.8-25.0-34.8 Radiated spurious emissions below 1 GHz from RF990902E03FCCTestReport.pdf compared to 27.53(m)(4) limits. ChannelChannelPolarityFrequencyMeasurementLimitMargin Bandwidth Low/Mid/HighV/HMHzdBmdBmdB 5 MHzLowH4997.0-47.7-25.0-22.7 5 MHzLowH7495.0-48.1-25.0-23.1 5 MHzLowV4997.0-38.8-25.0-13.8 5 MHzLowV7495.0-40.6-25.0-15.6 5 MHzMidH5174.0-48.6-25.0-23.6 5 MHzMidH7761.0-49.6-25.0-24.6 5 MHzMidV5174.0-40.5-25.0-15.5 5 MHzMidV7761.0-44.5-25.0-19.5 5 MHzHighH5375.0-36.3-25.0-11.3 5 MHzHighH8062.5-42.7-25.0-17.7 5 MHzHighV5375.0-33.2-25.0-8.2 5 MHzHighV8062.5-40.7-25.0-15.7 ChannelChannelPolarityFrequencyMeasurementLimitMargin BandwidthLow/Mid/HighV/HMHzdBmdBmdB 10 MHzLowH5002.0-51.4-25.0-26.4 10 MHzLowH7503.0-49.6-25.0-24.6 10 MHzLowV5002.0-42.7-25.0-17.7 10 MHzLowV7503.0-45.1-25.0-20.1 10 MHzMidH5186.0-50.3-25.0-25.3 10 MHzMidH7779.0-51.0-25.0-26.0 10 MHzMidV5186.0-42.9-25.0-17.9 10 MHzMidV7779.0-47.1-25.0-22.1 10 MHzHighH5370.0-38.4-25.0-13.4 10 MHzHighH8055.0-46.3-25.0-21.3 10 MHzHighV5370.0-34.4-25.0-9.4 10 MHzHighV8055.0-42.2-25.0-17.2 Radiated spurious emissions above 1 GHz from RF990902E03FCCTestReport.pdf compared to 27.53(m)(4) limits.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
