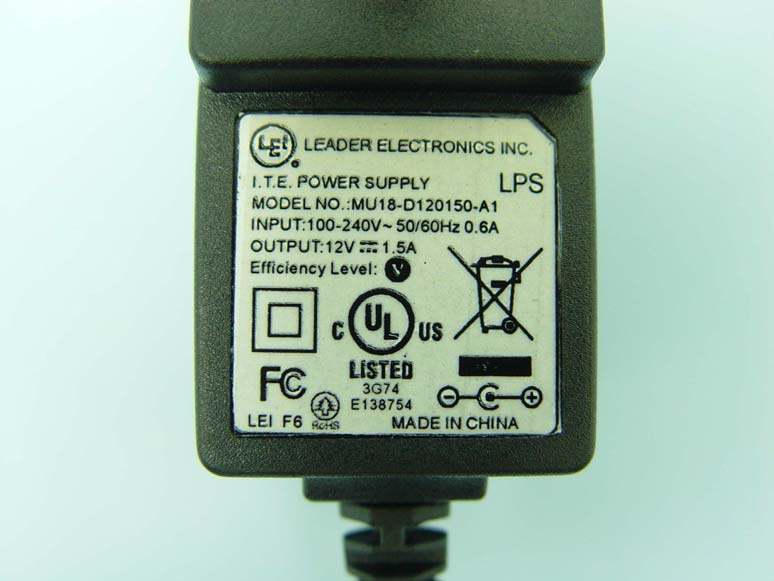

FCC ID: UXX-CTR550 Report No.: RF110120C10 Operational Description This device is a Compact Broadband Router, which operates in 2.4GHz band; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc adapter. The antenna is Printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: SA110120C10 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110120C10 MODEL NO.: CBR400 FCC ID: UXX-CTR550 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cradlepoint, Inc. ADDRESS: 805 West Franklin Street. Boise, ID 83702 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA110120C10 Report Format Version 4.0.0 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release N/A Feb. 18, 2011 Report No.: SA110120C10 Report Format Version 4.0.0 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110120C10 Report Format Version 4.0.0 4 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For FCC ID: UXX-CTR550 FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) CPD/LPD 2412-2462 24.7 1 20 0.074 1.00 0.074 Report No.: SA110120C10 Report Format Version 4.0.0 5 For FCC ID: N7NAC880E (Express card) 850 Band MODE ERP(dBm) EIRP(dBm) SOURCE TIME AVERAGE POWER (dBm) MPE LIMIT CPD/LPD GPRS 28.8 30.95 27.95 0.12 0.55 0.22 EGPRS 26.8 28.95 25.95 0.08 0.55 0.15 WCDMA 25.9 28.05 25.05 0.06 0.55 0.11 HSDPA 26.0 28.15 25.15 0.07 0.55 0.13 1900 Band MODE EIRP(dBm) SOURCE TIME AVERAGE POWER (dBm) MPE LIMIT CPD/LPD GPRS 29.3 26.3 0.08 1 0.08 EGPRS 27.0 24.0 0.05 1 0.05 WCDMA 27.1 24.1 0.05 1 0.05 HSDPA 27.6 24.6 0.06 1 0.06 For FCC ID: TARCMU-300 (USB Dongle) 850 Band MODE ERP(dBm) EIRP(dBm) SOURCE TIME AVERAGE POWER (dBm) MPE LIMIT CPD/LPD CDMA 850 25.32 27.47 27.47 0.11 0.55 0.20 1900 Band / 2507.5~2684.5MHz MODE EIRP(dBm) SOURCE TIME AVERAGE POWER (dBm) MPE LIMIT CPD/LPD CDMA 1900 27.8 27.8 0.12 1 0.12 WIMAX 2507.5~2684.5MHz 25.02 25.02 0.06 1 0.06 Report No.: SA110120C10 Report Format Version 4.0.0 6 CONCULSION: The Product has 1 USB ports and 1 express slot to connect 3G device to support 3G function. Transmit simultaneously is evaluated for this product + 1 usb dongle + 1 express card. The formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density There are many combinations of transmitting simultaneously, only the worst combination will be calculated and mentioned as below: Maximum CPD/LPD of FCC ID: UXXCTR550 is 0.074 Maximum CPD/LPD of FCC ID: N7NAC880E is 0.22 Maximum CPD/LPD of FCC ID: TARCMU-300 is 0.2 Therefore, maximum MPE is 0.074 + 0.22 + 0.2 = 0.494 Therefore, the maximum calculation of this situation is 0.494, which is less than the “1” limit.

Report No.: RF110120C10 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF110120C10 MODEL NO.: CBR400 FCC ID: UXX-CTR550 RECEIVED: Jan. 20, 2011 TESTED: Jan. 26 ~ Feb. 15, 2011 ISSUED: Feb. 18, 2011 APPLICANT: Cradlepoint, Inc. ADDRESS: 805 West Franklin Street. Boise, ID 83702 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF110120C10 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD......................................................................................... 4 1. CERTIFICATION...................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY........................................................................... 6 3. GENERAL INFORMATION ...................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 7 3.2 DESCRIPTION OF TEST MODES .......................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 11 4. TEST TYPES AND RESULTS ............................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT ............................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 12 4.1.2 TEST INSTRUMENTS........................................................................................... 13 4.1.3 TEST PROCEDURES ........................................................................................... 14 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 14 4.1.5 TEST SETUP......................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 15 4.1.7 TEST RESULTS .................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 30 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 30 4.2.2 TEST INSTRUMENTS........................................................................................... 30 4.2.3 TEST PROCEDURES ........................................................................................... 31 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 31 4.2.5 TEST SETUP......................................................................................................... 32 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 32 4.2.7 TEST RESULTS .................................................................................................... 33 4.3 6dB BANDWIDTH MEASUREMENT..................................................................... 37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 37 4.3.2 TEST INSTRUMENTS........................................................................................... 37 4.3.3 TEST PROCEDURE.............................................................................................. 37 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 37 4.3.5 TEST SETUP......................................................................................................... 38 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 38 4.3.7 TEST RESULTS .................................................................................................... 39 4.4 MAXIMUM OUTPUT POWER ............................................................................... 43 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT................................ 43 4.4.2 INSTRUMENTS..................................................................................................... 43 4.4.3 TEST PROCEDURES ........................................................................................... 43 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 44 4.4.5 TEST SETUP......................................................................................................... 44 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 44 4.4.7 TEST RESULTS .................................................................................................... 45 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................................ 46 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ......…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Test Mode A 2 Test Mode B 3 RADIATED EMISSION TEST Test Mode A 4 Test Mode B
