UXX-IBR600EIndustrial Broadband Router

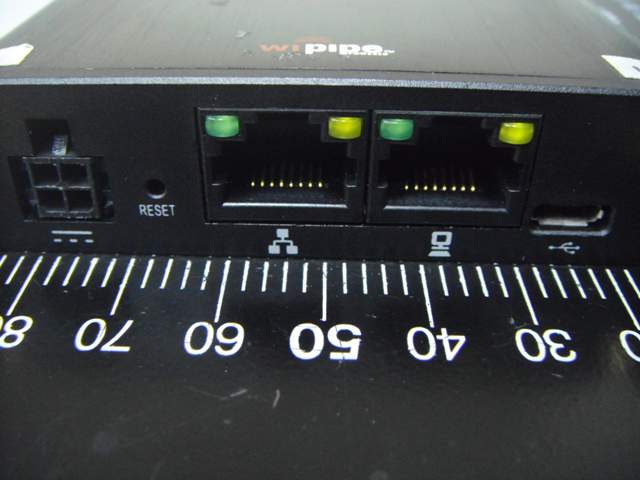

IBR600 ( Industrial Broadband Router ) QUICK START GUIDE 1 ) What’s In The Box SETTING UP THE ROUTER Plug the power supply into an electrical outlet. Connect WiFi (2.4) and Modem ( )Antennas Connect the power supply to the IBR600. Ensure power is switched on. o = OFF | = ON 2 ) 3 ) FINDING YOUR PASSWORD SPECIAL FEATURES 234 for more information about your product, visit: www.cradlepoint.com www.cradlepoint.com/IBR600 To learn more about features, visit: Your unique default password is shown on the product label on the bottom of your router. It is also the last eight characters of the MAC Address. You will be asked for this password when you log into the administration pages. The default password provides security for your router out-of-the-box. Default SSID: IBR600-xxx (last 3 characters of the MAC Address) find this label on the bottom of your router IPSec VPN End-Point Support GRE Tunneling Data Usage Management & Alerts GPIO Interface GPS (if supported by modem carrier) Failover / Failback WiFi Hotspot Services (Captive Portal/Walled Garden) IP Passthrough WiFi as WAN Dual SSIDs VLAN Support USING THE FIRST TIME SETUP WIZARD AC Power SupplyQuick Start Guide PORTS & SWITCHES Integrated Broadband Router ETHERNET DATA SOURCE ( WAN ) default ETHERNET CONNECTIONS POWER 12VDC RESET POWER ON/OFF POWER LED WiFI LED MODEM LED SIGNAL STRENGTH LEDS MODEM ANTENNA CONNECTOR MODEM ANTENNA CONNECTOR WiFi ANTENNA CONNECTOR WiFi ANTENNA CONNECTOR MICRO USB WiFi ANTENNAS (2.4) MODEM ANTENNAS ( ) The First Time Setup Wizard will help you customize the name of your wireless network, change passwords to something you choose, and establish an optimal WiFi security mode. The IBR600 comes with a unique password creating built-in WiFi Security, which prevents unauthorized users from connecting to your WiFi network. 1) Open a browser window and type “cp/” or “192.168.0.1” in the address bar. PRESS ENTER/RETURN. 2) When prompted for your password, type the eight character Default Password found on product label (the last eight characters of the MAC Address). 3) When you log-in for the first time, you will be automatically directed to the FIRST TIME SETUP WIZARD. 4) Follow the steps to establish a customized wireless network name, password, and security level. If you are currently using the IBR600 WiFi network, you will need to reconnect your devices to the network using the newly established wireless network name and wireless security password. Model No.: IBR600 Part No.: IBR600 www.cradlepoint.com H/W ver.: 1.0 MAC Address : 0030440c1fc1 Serial No.: MM100167900418 ESN (Hex): A1000010000557 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2)This device must accept any interference received, including interference that may cause undesired operation Made in Taiwan 12V 1.5A FCC ID:UXX-IBR600E RoHS MFG DATE: MAR 2011 Default Password: 440c1fc1 Contains FCC ID: N7N-MC5728 dual-stream n COMPUTERS or LOCAL DEVICES ( LAN ) default dual-stream n Mounting Bracket ACTIVATE YOUR MODEM A wireless broadband data plan must be added to your IBR600. A new line of service can be added or a data plan can be transferred from an existing account. Wireless broadband data plans are made available from wireless carriers, such as Sprint and Verizon, and are required to allow your modem to connect and transfer data on their network. You will need the ESN number from your product label on your router to add or transfer a line of service. After adding a data plan to the modem, the modem may need to be activated. To activate the modem, login to the IBR600 administration pages (see below) and select Internet from the top navigation bar then Modem Settings from the drop-down menu, find and select the CradlePoint modem and click Update/Activate, in the popup click Activate. To add a broadband data plan, or to check if your modem has a broadband data plan attached, contact the business you purchased the IBR600 from or your wireless service provider. For more information see www.cradlepoint.com/IBR600. 6785 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE FCC Radiation Exposure Statement: Thi…

Text truncated - open the document above for the full version.

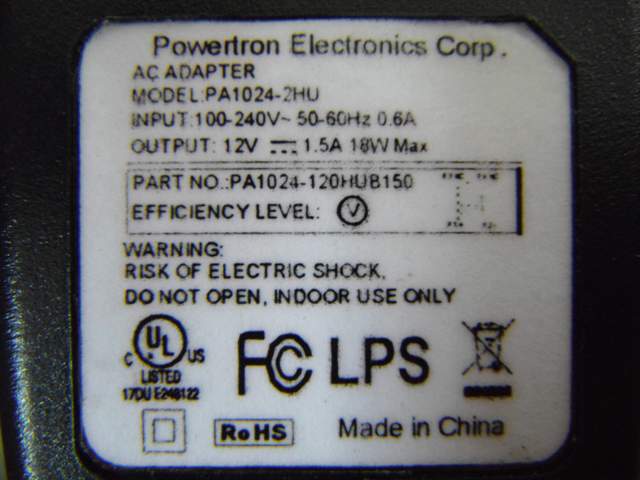

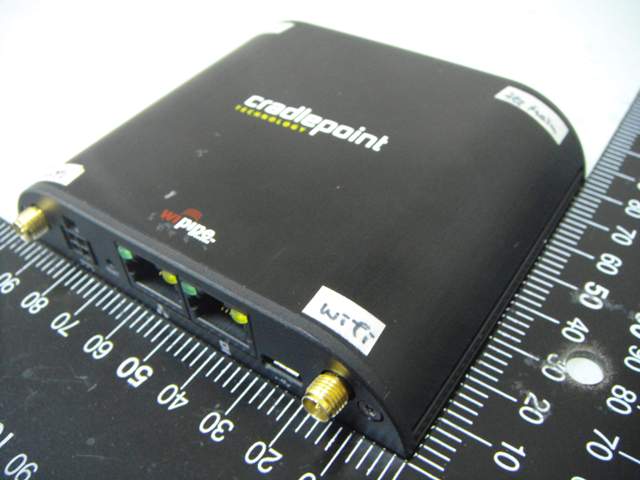

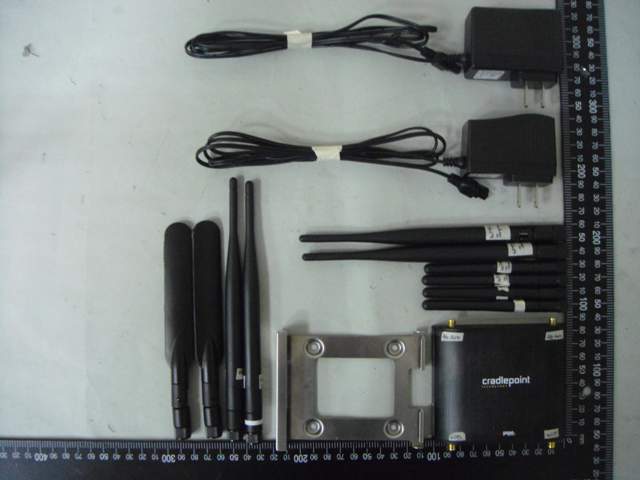

Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 1 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 2 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 3 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Ant. 1 (WLAN Antenna) Ant. 2 (WLAN Antenna) Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 4 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Ant. 3 (WLAN Antenna) Ant. 4 (3G Antenna) Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 5 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Ant. 5 (3G Antenna) Adapter 1 Brand Name: Powertron Electronics Corp. Model No.: PA1015-2HU Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 6 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Adapter 2 Brand Name: Powertron Electronics Corp. Model No.: PA1024-2HU Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 7 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 8 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255

Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 1 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 2 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 3 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 4 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 5 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 6 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255 Report No.: 171915 SPORTON International Inc. PAGE NUMBER : 7 OF 7 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2011 FAX : 886-2-2696-2255

Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : B3 of B3 1.3. Calculated Result and Limit For WLAN function: Antenna Type : Dipole antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz: 16.29 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5 3.1623 16.2938 42.5970 0.026812 1 Complies For EV-DO Cell Band Function (3G Module, FCC ID: N7N-MC5728): Antenna Type : Dipole Antenna Frequency (MHz) Average Output Power (dBm) Antenna Gain (dBi) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 836.52 25.07 3.69 0.149606 0.558 Complies For EV-DO PCS Band Function (3G Module, FCC ID: N7N-MC5728): Antenna Type : Dipole Antenna Frequency (MHz) Average Output Power (dBm) Antenna Gain (dBi) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1908.75 24.90 2.2 0.102082 1 Complies CONCULSION: Both of the WLAN function and 3G function can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.026812 / 1 + 0.149606 / 0.558 = 0.294923, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : C1 of C3 Appendix C. Co-location Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 62% Test Engineer Magic Lai Configurations WLAN + 3G TX Horizontal Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Cradlepoint Technology Applicant Address 805W. Franklin Street, Boise, ID 83702 FCC ID UXX-IBR600E Manufacturer’s company U-MEDIA Communications, Inc. Manufacturer Address 9F, No. 1, Jin-Shan 8th St., Hsinchu 300, Taiwan, R.O.C. Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Product Name Industrial Broadband Router Brand Name CradlePoint Model Name IBR600E Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Jul. 19, 2011 Final Test Date Jul. 28, 2011 Submission Type Original Equipment Report No.: FR171915 Report Format Version: 01 Page No. : iof ii FCC ID: UXX-IBR600E Issued Date : Aug. 02, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................9 3.9. Test Configurations ...........................................................................................................................................................................10 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. Peak Output Power Measurement ....................................................................................................................................................16 4.3. Average Output Power Measurement ..............................................................................................................................................19 4.4. Power Spectral Density Measurement ..............................................................................................................................................22 4.5. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................28 4.6. Radiated Emissions Measurement ....................................................................................................................................................33 4.7. Band Edge Emissions Measurement .................................................................................................................................................51 4.8. Antenna Requirements .....................................................................................................................................................................60 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 61 6. TEST LOCATION.............................................................................................................................................. 63 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 64 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A6 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE .....................…

Text truncated - open the document above for the full version.

Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : 1 of 6 Appendix A. Test Photos Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : 3 of 6 SIDE VIEW Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : 4 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : 5 of 6 Test Mode: Mode 2 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR171915 FCC ID: UXX-IBR600E Page No. : 6 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
