UXX-MBR1200BCradlePoint MBR1200B Failsafe N Router for Mobile Broadband

Z-Fold Format / Double Sided FRONTBACK 1 ) What’s In The Box CONNECTING YOUR COMPUTER Plug the power supply into an electrical outlet. Connect the power supply to the MBR1200B. Ensure power is switched on. o = OFF | = ON Connect a: USB or Express Card Wireless Broadband Data Modem with Active Subscription, or a Cable, DSL, Satellite, T1, T3, Ethernet Modem . 2 ) 3 ) The First Time Setup Wizard will help you customize the name of your wireless network, change passwords to something you choose, and establish an optimal WiFi security mode. The MBR1200B comes with a unique password creating built-in WiFi Security, which prevents unauthorized users from connecting to your WiFi network. 1) Connect your computer to the MBR1200B via its WiFi network broadcast or an Ethernet cable. 2) Open a browser window and type “cp/” or “192.168.0.1” in the address bar. PRESS ENTER/RETURN. 3) When prompted for your password, type the eight character Default Password found on product label (the last eight characters of the MAC Address). 4) When you log-in for the first time, you will be automatically directed to the FIRST TIME SETUP WIZARD. 5) If you choose, you can change the router’s ADMINISTRATOR PASSWORD. Then, select your TIME ZONE. Click NEXT. 6) CradlePoint recommends you customize your WiFi Network Name. Type in your personalized Wireless Network Name here. You can also enable the Guest Network feature (see description on page 7). Choose the WIFI SECURITY MODE that best fits your needs: POOR for WEP, GOOD for WPA/WPA2 and BEST for WPA2 Only. ( Make sure your PC or other devices support the mode you choose ). Choose a personalized WIRELESS SECURITY PASSWORD. This password will be used to reconnect your devices to the router once the security settings have been saved. Click NEXT. 7) If necessary, select your 4G WiMAX Realm. Using a 3G or LTE modem no selection is necessary. Click NEXT. 8) Review the details and record your wireless network name, administrative and wireless WPA password. Click APPLY to save the settings to your router. If you are currently using the MBR1200B WiFi network, reconnect your devices to the network using the new wireless network name and wireless security password. SPECIAL FEATURES 6785 234 for more information about your product, visit: www.cradlepoint.com/mbr1200b www.cradlepoint.com/mbr1200b For additional information, visit: © 2012 CradlePoint, Inc. All rights reserved. CradlePoint is not responsible for omissions or errors in typography or photography. CradlePoint, WiPipe™, and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are property of their respective owners. After you connect your modem to the router, you’re now ready to connect to the MBR1200B via Ethernet or WiFi. If using WiFi ensure the WiFi switch is set to on “ | ”. Default SSID: MBR1200B-xxx Internal 802.11n WiFi antennas provide up to 600 feet of range from the CradlePoint router to your connected computers or WiFi-enabled devices. Find your default password on the bottom of your router ( last 8 characters of your MAC Address ). NOTE: If you are asked for an “8-digit PIN”, click CONNECT USING A SECURITY KEY and enter your eight character default password found on the bottom of your router. REMOTE MANAGEMENT WiPipe™ Central, SNMP v1,2,3 GUEST WiFi NETWORK Two SSIDs, with individual security settings, separate critical traffic or create a public WiFi hotspot. WiFi-as-WAN Enables use as a WiFi repeater, WiFi Bridge or as a WiFi-to-Ethernet adapter for Ethernet-enabled devices. DATA USAGE MANAGMENT AND ALERTS Monitor data usage and avoid overages VPN SUPPORT IPSec VPN (2 sessions) with GRE tunneling option, also supports pass-through VPN connections (IPSec, L2TP, PPTP) FAILOVER/FAILBACK Automatic failover to secondary wireless or wired WAN connection when the primary WAN connection is disrupted. Automatic failback when primary connection comes back online. LOAD BALANCING Distribute traffic across multiple wired and wireless WANs to increase bandwidth and relieve congestions. RESET: To restore the router to its factory default settings, press and hold the RESET button on the side of the router for ten seconds. Reset returns the login to the DEFAULT PASSWORD (the last eight characters of the MAC address) and resets all configuration changes. FEDERAL COMMUNICATION COMMISSION STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.…

Text truncated - open the document above for the full version.

805 W. Franklin Street
Boise, ID
83702 Declaration for no non-US channel operation Date: 03.18.2012 We, Cradlepoint, Inc. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: UXX-MBR1200B If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Sincerely, Steven T. Wood / Vice President, Engineering CradlePoint, Inc. TEL: (208) 424-5054 Facsimile: (208) 429-6852 Email: [email protected]

805 W. Franklin Street
Boise, ID
83702 Date: 03.19.2012 Federal Communications Commission Authorization and Evaluation Division C o n f i d e n t i a l i t y R e q u e s t FCC ID: UXX-MBR1200B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operatonal Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Steven T. Wood / Vice President, Engineering CradlePoint, Inc. TEL: (208) 424-5054 Facsimile: (208) 429-6852 Email: [email protected]

805 W. Franklin Street
Boise, ID
83702 P O W E R O F A T T O R N E Y Date: 03.18.2012 To whom it may concern: We, the undersigned, CradlePoint, Inc., hereby authorize Bureau Veritas Consumer Product Service (Hong Kong) Limited, Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan within the scope of this authorization on our behalf shall have the same effects as our own. This authorization is limited to the following products: FCC ID: UXX-MBR1200B If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, ______ ____ _ Steven T. Wood / Vice-President, Engineering CradlePoint, Inc. TEL: (208) 424-5054 Facsimile: (208) 429-6852 Email: [email protected]

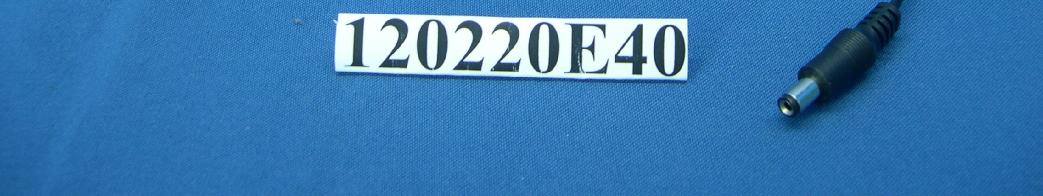

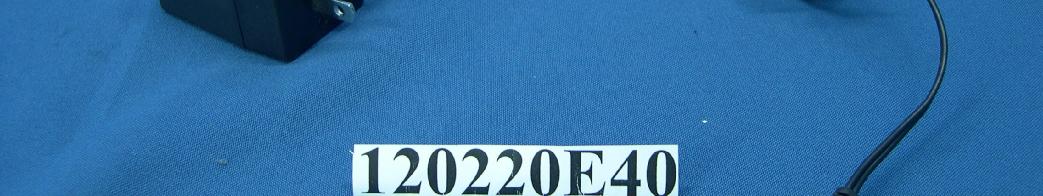

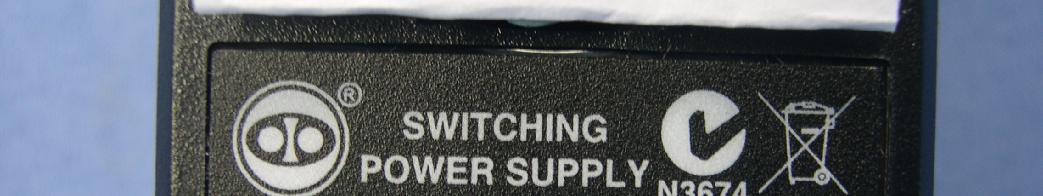

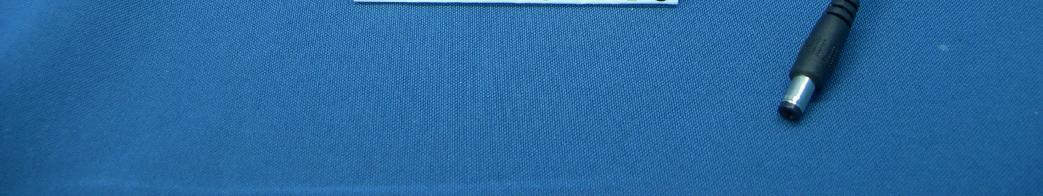

Report No.: 120220E40 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 120220E40 Page 2 Adapter : S018EM1200150 Report No.: 120220E40 Page 3 Report No.: 120220E40 Page 4 Adapter : MU18-D120150-A1 Report No.: 120220E40 Page 5

CradlePoint MBR1200B PRODUCT LABEL 2.75mm 2.75mm 40.00±0.15mm 65.00±0.15mm Made in Taiwan RoHS Model No.: MBR1200B Part No.: MBR1200B www.cradlepoint.com H/W ver.: 12V 1.5A FCC ID: UXX-MBR1200B IC: 6921A-MBR1200B dual-stream n

(Fig.1) FCC ID: UXX-MBR1200B FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Back Side: LABEL

Report No.: 120220E40 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 120220E40 Page 2

Report No.: SA120220E40 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 1 RF EXPOSURE REPORT REPORT NO.: SA120220E40 MODEL NO.: MBR1200B FCC ID: UXX-MBR1200B RECEIVED: Feb. 20, 2012 TESTED: Mar. 13, 2012 ISSUED: Mar. 23, 2012 APPLICANT: Cradlepoint, Inc ADDRESS: 805 W. Franklin Street, Boise, ID 83702 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120220E40 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 2 TABLE OF CONTENTS RELEASE CONTROL RECORD.....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. ANTENNA GAIN.......................................................................................................5 7. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA120220E40 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120220E40 Original release Mar. 23, 2012 Report No.: SA120220E40 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 4 1. CERTIFICATION PRODUCT: CradlePoint MBR1200B Failsafe N Router for Mobile Broadband BRAND NAME: cradlepoint MODEL NO.: MBR1200B TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Cradlepoint, Inc TESTED DATE: Mar. 13, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: MBR1200B) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Mar. 23, 2012 ( Elsie Hsu, Specialist ) APPROVED BY : , DATE: Mar. 23, 2012 ( May Chen, Deputy Manager ) Report No.: SA120220E40 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Transmitter Circuit Peak Gain (dBi) Antenna Type Connecter Type Chain (0) 3 PIFA NA Chain (1) 2 PIFA NA Report No.: SA120220E40 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 299.5 3 20 0.119 1.00 FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 299.5 3 45 0.023 1.00 DEVICE MAX EIRP (W) MAX EIRP (dBm) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 3G / WiMAX / LTE Device 11.48 40.6 45 0.451 0.549 This product can operate with a plug-in 3G, WiMAX or LTE device which has maximum of 7W ERP(11.48W EIRP) output power. CONCLUSION: Both of the WLAN and plug-in device (3G, WiMAX or LTE) can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.023 / 1 + 0.451 / 0.549= 0.844, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF120220E40 1 Report Format Version 4.2.0 Reference No.: 110719E01, 120110E14 RF TEST REPORT REPORT NO.: RF120220E40 MODEL NO.: MBR1200B FCC ID: UXX-MBR1200B RECEIVED: Feb. 20, 2012 TESTED: Mar. 12 to 20, 2012 ISSUED: Mar. 23, 2012 APPLICANT: Cradlepoint, Inc ADDRESS: 805 W. Franklin Street, Boise, ID 83702 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 56 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120220E40 2 Report Format Version 4.2.0 Reference No.: 110719E01, 120110E14 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................14 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................15 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................16 4. TEST TYPES AND RESULTS..............................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2 TEST INSTRUMENTS..........................................................................................17 4.1.3 TEST PROCEDURES..........................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD.................................................................18 4.1.5 TEST SETUP.......................................................................................................19 4.1.6 EUT OPERATING CONDITIONS.........................................................................19 4.1.7 TEST RESULTS (MODE 1)..................................................................................20 4.1.8 TEST RESULTS (MODE 2)..................................................................................22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT................................24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT..............24 4.2.2 TEST INSTRUMENTS..........................................................................................25 4.2.3 TEST PROCEDURES..........................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD.................................................................27 4.2.5 TEST SETUP.......................................................................................................28 4.2.6 EUT OPERATING CONDITIONS.........................................................................28 4.2.7 TEST RESULTS...................................................................................................29 4.3 6dB BANDWIDTH MEASUREMENT....................................................................42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................42 4.3.2 TEST INSTRUMENTS..........................................................................................42 4.3.3 TEST PROCEDURE.............................................................................................42 4.3.4 DEVIATION FROM TEST STANDARD.................................................................42 4.3.5 TEST SETUP.......................................................................................................42 4.3.6 EUT OPERATING CONDITIONS.........................................................................42 4.3.7 TEST RESULTS...................................................................................................43 4.4 CONDUCTED OUTPUT POWER.........................................................................44 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................44 4.4.2 INSTRUMENTS....................................................................................................44 Report No.: RF120220E40 3 Report Format Version 4.2.0 Reference No.: 110719E01, 120110E14 4.4.3 TEST PROCEDURES..........................................................................................44 4.4.4 DEVIATION FROM TEST STANDARD.................................................................44 4.4.5 TEST SETUP.......................................................................................................44 4.4.6 EUT OPERATING CONDITIONS.........................................................…

Text truncated - open the document above for the full version.

Report No.: 120220E40 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120220E40 2 RADIATED EMISSION TEST
