UXX-PHS300PHS Travel Router

1 A B C D E & F G H I Top Bottom Input / Output Sprint PHS at a Glance 2 Sprint PHS Basics Getting on the Internet The Sprint PHS is easy to use and operate. With simple connection and setup you will be surfing the Internet with your personal wireless network in a matter of seconds. In brief, simply connect your data- enabled cell phone (contact your service provider for details) or a USB Modem to the USB Port on the Sprint PHS. Turn on the Sprint PHS using the ON / OFF switch on the unit and turn on your cell phone (USB modems will automatically be enabled). The Sprint PHS and phone will automatically create your network. If you are using a cell phone, be sure you have configured the phone’s settings to act as a modem. Once your Sprint PHS has fully booted and operating along side your USB modem or phone, use the wireless network finder on your computer to associate with your new wireless network. The first time you use the Sprint PHS your network will be named: SPRINTPHS-xxx Where ‘xxx’ is the last three digits of the Sprint PHS’s MAC Address. The MAC Address can be found on the bottom of the unit. The password, by default, is the last 6 characters of the unit’s MAC address. Once your computer has associated with your new wireless network, you are ready to start surfing. Simply open your favorite Web Browser, enter your password at the Login screen, and select the Login button. We recommend that you change your password after your first login, which is easily accomplished from the Sprint PHS’s Admin and Setup pages. (See Setting Your Password for details.) Using the Contols A LED 0 – Power/Charging Status of Router Solid Green The SPRINT PHS’s battery is completely charged, unit connected to external power. Solid Amber SPRINT PHS is charging the internal battery and connected to external power. Flashing Amber SPRINT PHS is not connected to external power and the battery is running low. Flashing Red SPRINT PHS is connected to external power and its internal temperature is too high. * Turn the unit OFF and unplug the power source. Be sure that you are not using a a power supply with a different voltage then provided in this package. OFF SPRINT PHS is OFF and not connected to external power source -OR- SPRINT PHS is on, running on its battery and the battery is not low. So how does it all work? The Sprint PHS contains a 802.11a/b/g WiFi router. Your phone provides access to the Internet through the data network. When your phone is connected to the Sprint PHS, the unit creates a local WiFi network and connects to the Internet through your service provider’s data network. This creates your own personal, portable wireless network or “hotspot”. Set it up anywhere within your cellular service provider’s coverage area whenever you want access to the Internet, check your email, or work via a VPN. Depending on your handset model, the Sprint PHS even charges your handset at the same time. Phone Or Modem USB to Data Port Cable USB Port 802.11 3 B LED 1 – Router/Admin Pages Status Green Wireless network is ready. Amber SPRINT PHS is booting. Red SPRINT PHS failure. No wireless network. OFF SPRINT PHS is OFF. C LED 2 – USB/Netwrok Status Green SPRINT PHS is connected properly to handset and a data link has been established. Amber Handset is connected and data link is being established. Red Handset not connected –AND / OR - data link failed. OFF No handset connected -OR- SPRINT PHS is OFF D Ventilation Slots These allow excess heat to be removed from the SPRINT PHS while operating. It is recommended that the unit not be covered with any material that will block the dispersion of heat away from the unit. The unit should not reach extreme temperatures. E Battery Cover This cover protects an d secures the battery. Remove to replace the battery. F Factory Default Reset Button To return all the User Defined configurations (such as those specified in the Setup / Help Pages) to their original factory default settings simply turn the unit OFF, open the battery cover and locate a small hole denoted by a triangle, press and hold the Factory Default Reset button using a paper clip or other small tool, and turn the unit ON. After the LEDs have flashed ON then OFF then ON again, release the button. All setting should be reset. G ON / OFF Switch OFF The unit is completely OFF when the unit is not connected to external power and the ON / OFF switch is in the OFF position. The unit will charge its own battery and some phone batteries if switched OFF and connected to external power. * No access to the router or the wireless network can be established while the unit is OFF. ON If the unit is ON and not connected to a phone or handset, it’s Admin and Setup Pages are still accessible by associating with its SSID (Network Name) and entering 192.168.0.1 into the URL bar of a web browser. Note: Login will be required to access the Sprint PHS Admin and Setup Pages If the unit is ON and connected to a fully operable data-enabled cell phone or USB modem, a wireless network will be automatically established. Some laptops will automatically associate with the network. In some cases the user will need to select the wireless network from their laptop’s wireless network list. (Details vary by Operating System.) The unit will operate off external power exclusively while connected to an external power source. If there is sufficient excess power available the unit will also charge some phones. This feature varies by phone manufacturer and model. H External Power Connection The power connector is a standard jack size and when connected to the proper cable and an external power source will power the SPRINT PHS according to the specifications listed in the ON / OFF switch section of the Controls list. I USB-to-Modem Port This is a standard USB port that is used to connect either to a USB modem or to a data-enabled cellular phone. Cables for USB to Data connection vary by phone manufacturer and are not provided with the Sprint PHS. Contac…

Text truncated - open the document above for the full version.

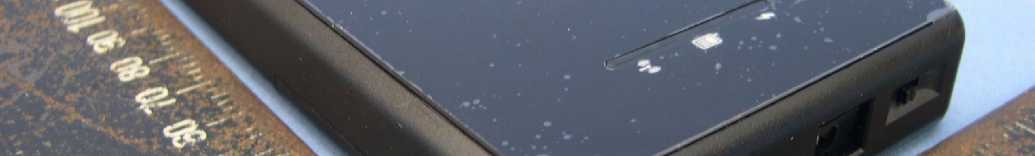

Page 1 CONSTRUCTION PHOTOS OF EUT Model : PHS300S Page 2 Model : PHS300 Page 3

FCC ID：UXX-PHS300 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

H/W Rev. S/W Rev. CRADLEPOINT PHS300 BACK LABEL

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

FCC ID: UXX-PHS300 Report No. RF960927H03 Operational Description This device is a PHS Travel Router, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of EUT (PHS Travel Router) is powered by Power adapter, Car charger or battery. The antenna used in this product is PCB Printed antenna. The maximum Gain of the antenna is 0dBi. The other instruction, please have a look at the users manual.

Report No.: SA960927H03 1 RF EXPOSURE REPORT REPORT NO.: SA960927H03 MODEL NO.: PHS300, PHS300S FCC ID: UXX-PHS300 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cradlepoint, Inc. ADDRESS: 1199 Shoreline Lane, Suite 301 Boise, ID 83702 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960927H03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960927H03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960927H03 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0dBi or 1 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 103.276 0.021 1.0 6 2437 102.565 0.020 1.0 11 2462 64.863 0.013 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 221.820 0.044 1.0 6 2437 206.063 0.041 1.0 11 2462 206.538 0.041 1.0

Report No.: RF960927H03 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF960927H03 MODEL NO.: PHS300, PHS300S RECEIVED: Sep. 27, 2007 TESTED: Sep. 28 to Oct. 11, 2007 ISSUED: Oct. 17, 2007 APPLICANT: Cradlepoint, Inc. ADDRESS: 1199 Shoreline Lane, Suite 301 Boise, ID 83702 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960927H03 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION.....................................................................................................4 2 SUMMARY OF TEST RESULTS..............................................................................5 2.1 MEASUREMENT UNCERTAINTY...........................................................................5 3 GENERAL INFORMATION......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................................6 3.2 DESCRIPTION OF TEST MODES..........................................................................8 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:...........................9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS........................................11 3.5 DESCRIPTION OF SUPPORT UNITS...................................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST....................................................13 4 TEST TYPES AND RESULTS................................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT.........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................14 4.1.2 TEST INSTRUMENTS...........................................................................................14 4.1.3 TEST PROCEDURES...........................................................................................15 4.1.4 TEST SETUP........................................................................................................15 4.1.5 EUT OPERATING CONDITIONS...........................................................................16 4.1.6 TEST RESULTS....................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT..............................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................19 4.2.2 TEST INSTRUMENTS...........................................................................................20 4.2.3 TEST PROCEDURES...........................................................................................21 4.2.4 TEST SETUP........................................................................................................22 4.2.5 EUT OPERATING CONDITIONS...........................................................................23 4.2.6 TEST RESULTS....................................................................................................24 4.3 6DB BANDWIDTH MEASUREMENT.....................................................................39 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT..................................................39 4.3.2 TEST INSTRUMENTS...........................................................................................39 4.3.3 TEST PROCEDURE..............................................................................................40 4.3.4 TEST SETUP........................................................................................................40 4.3.5 EUT OPERATING CONDITIONS...........................................................................40 4.3.6 TEST RESULTS....................................................................................................41 4.4 MAXIMUM PEAK OUTPUT POWER.....................................................................47 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................47 4.4.2 TEST INSTRUMENTS...........................................................................................47 4.4.3 TEST PROCEDURES...........................................................................................48 4.4.4 TEST SETUP........................................................................................................48 4.4.5 EUT OPERATING CONDITIONS...........................................................................48 Report No.: RF960927H03 3 Report Format Version 2.0.6 4.4.6 TEST RESULTS....................................................................................................49 4.5 POWER SPECTRAL DENSITY MEASUREMENT.................................................51 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................51 4.5.2 TEST INSTRUMENTS...........................................................................................51 4.5.3 TEST PROCEDURE..............................................................................................52 4.5.4 TEST SETUP........................................................................................................52 4.5.5 EUT OPERATING CONDITIONS...........................................................................52 4.5.6 TEST RESULTS....................................................................................................53 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT.........................59 4.…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
