UXX-S3A438AIndustrial Broadband Router

Z-Fold Format / Double SidedFRONTBACK COR IBR1100 / IBR1150 (Integrated Broadband Router) SIM CARD SETUP QUICK START GUIDE SETTING UP THE ROUTER 1 ) Purchase a data plan. Then insert the SIM as shown on page 2. 2 ) Connect WiFi, modem and GPS antennas as desired. (Sold separately.) Finger tight only. 3 ) Wire power cable to 9-36v power source. (AC power supply sold separately.) ACCESSING THE ADMINISTRATION PAGES 6785 234 For more information about your product, visit: cradlepoint.com cradlepoint.com/IBR1100 To learn more about features, visit To make configuration changes to your router, open the IBR1100’s GUI-based administration pages. 1) Connect via Ethernet or WiFi. For WiFi, the default SSID is IBR1100-xxx (last 3 characters of the MAC address). 2) Open a browser window and type “cp/” or “192.168.0.1” in the address bar. Press ENTER/RETURN. 3) When prompted for your password, type the eight character DEFAULT PASSWORD found on the product label. To insert or remove SIM card: 1) Remove bottom SIM cover. 2)Slide metal latch down to unlock. 3) Pull cartridge upward, so it is standing at a 90° angle. 4) Insert SIM card with metal contacts down and notch out. 5) Press cartridge back into place. 6) Return metal latch to start (lock) position. 7) Replace bottom SIM cover. Note: Device will not power on without cover in place. Find this label on the bottom of your router. Warning: This product is only to be installed by qualified personnel! For product available in the USA/Canada market, only channel 1–11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter. Industry Canada Statement This device complies with RSS-210, RSS-102, and RSS-Gen of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 40cm between the radiator and your body. This device has been designed to operate with cellular antennas having a maximum gain of 3 dBi. Antennas having a higher gain are strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. This device has been designed to operate with WiFi antennas having a maximum gain of 5 dBi. Antennas having a higher gain are strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. Déclaration d’Industrie Canada Ce dispositif est conforme à la norme CNR-210, CNR-102, et CNR-Gen d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. NOTE IMPORTANTE (Pour l’utilisation de dispositifs mobiles): Déclaration d’exposition aux radiations Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 40 cm de distance entre la source de rayonnement et votre corps Ce dispositive a ete concu pour fonctionner ave une antenna cellulaire ayant un gain maximal de 3 dBi. Une antenne a gain plus eleve est strictement interdite par les reglemnets d’Industrie Canada. L’impedance d’antenne requise est de 50 ohms. Ce dispositive a ete concu pour fonctionner ave une antenna WiFi ayant un gain maximal de 5 dBi. Une antenne a gain plus eleve est strictement interdite par les reglemnets d’Industrie Canada. L’impedance d’antenne requise est de 50 ohms. INFORMATION FOR EUROPE, DECLARATION OF COMPLIANCE CradlePoint, Inc declares that the IBR1100 / IBR1150 is in compliance with the essential requirements of the R&TTE Directive 1999/5/EC, Energy Related Products Directive 2009/125/EC, Electromagnetic Compatibility Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, and RoHS2 Directive 2011/65/EU. THE FIRST TIME SETUP WIZARD PORTS & SWITCHES When you log in for the first time, you are automatically directed to the FIRST TIME SETUP WIZARD, which will help you customize your COR IBR1100. Change any of the following: Administrator password Time zone WiFi network name, security mode, and password Access Point Name (APN) for SIM-based modems WAN failure check mode If you are currently using the IBR1100 WiFi network, you will need to reconnect your devices to the network using the newly established wireless network name and password. NOTE: To return to the First Time Setup Wizard after your initial login, select GETTING STARTED on the top navigation bar and FIRST TIME SETUP in the dropdown menu. FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FC C Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 40cm between the radiator & your body. To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, for the IBR1100 and IBR1150, the maximum antenna gain in the cellular bands must not exceed 3dBi. For the IBR1100, the…

Text truncated - open the document above for the full version.

805 W est Franklin Street | Boise, Idaho 83702 | USA | p +1.208.424.5054 | f +1.208.429.6852 CradlePoint.com Date: 2014-07-30 FCC ID: UXX-S3A438A To the attention of Federal Communications Commission Authorization and Evaluation Division Declaration that device will not operate on non-US channels We, CradlePoint, Inc. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: UXX-S3A438A If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Steven T. Wood / Vice President of Engineering CradlePoint, Inc. Tel: 208.424.5054 Fax: 208.429.6852 E-mail: [email protected]

805 W est Franklin Street | Boise, Idaho 83702 | USA | p +1.208.424.5054 | f +1.208.429.6852 CradlePoint.com Date: 2014-07-30 FCC ID: UXX-S3A438A To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Steven T. Wood / Vice President of Engineering CradlePoint, Inc. Tel: 208.424.5054 Fax: 208.429.6852 E-mail: [email protected]

805 W est Franklin Street | Boise, Idaho 83702 | USA | p +1.208.424.5054 | f +1.208.429.6852 CradlePoint.com Date: 2014-07-30 FCC ID: UXX-S3A438A AUTHORIZATION LETTER To whom it may concern: We, the undersigned CradlePoint, Inc. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15C+E and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Steven T. Wood / Vice President of Engineering CradlePoint, Inc. Tel: 208.424.5054 Fax: 208.429.6852 E-mail: [email protected]

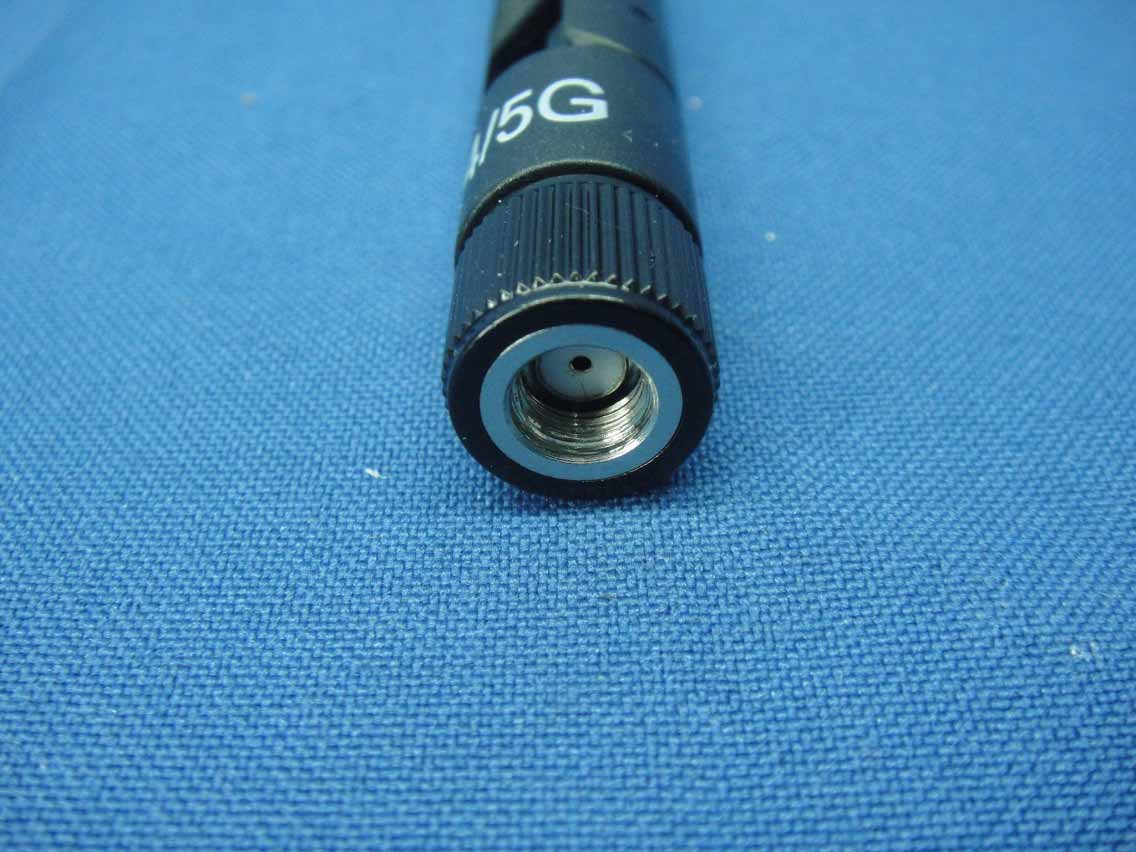

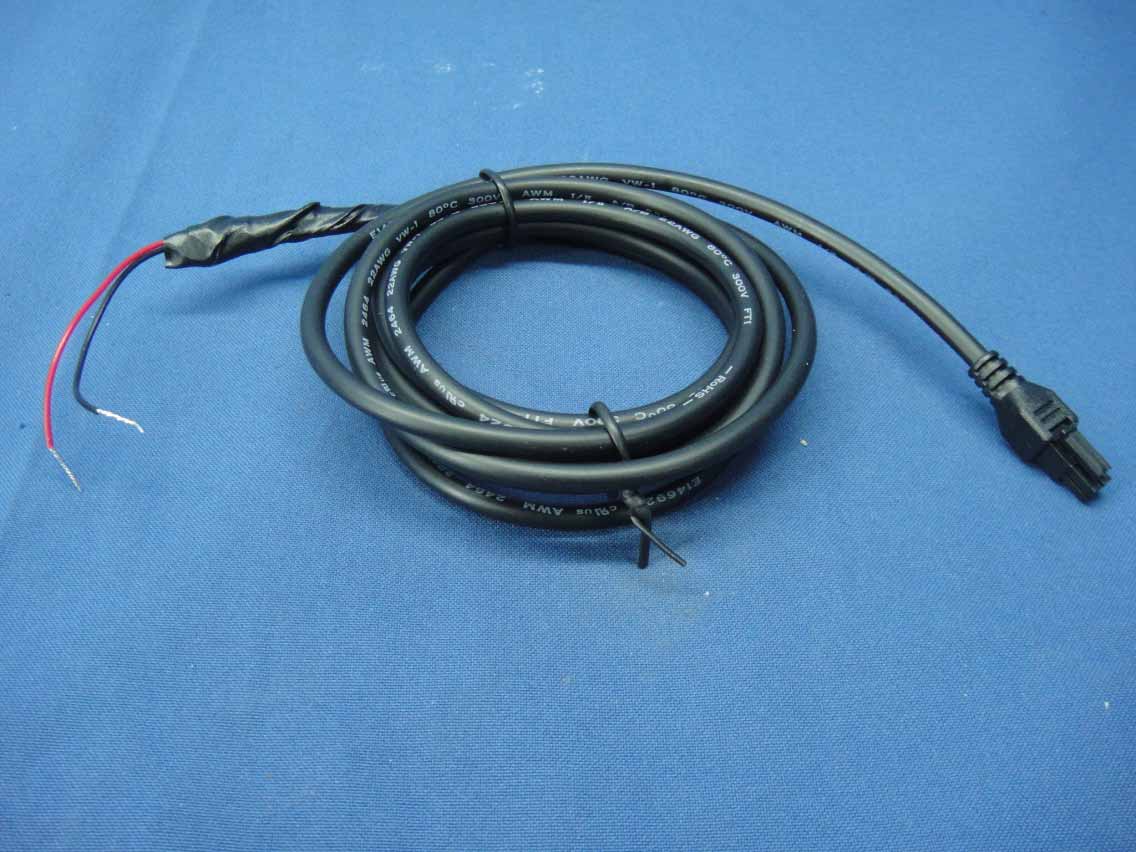

Report No.: 140707E06 Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: IBR1100LPE Report No.: 140707E06 Page 2 Report No.: 140707E06 Page 3 LTE Antenna No.: 1~2 Report No.: 140707E06 Page 4 LTE Antenna No.: 3~4 Report No.: 140707E06 Page 5 WLAN Antenna Report No.: 140707E06 Page 6 Report No.: 140707E06 Page 7 Report No.: 140707E06 Page 8 DC Cable Report No.: 140707E06 Page 9

Bottom-Label for Congo 50.00 mm 5 0 . 0 0 m m Model:IBR1100LPE Part No.:IBR1100LPE-VZ www.cradlepoint.com H/W ver.:1.0 Made in Taiwan FCC ID:UXX-S3A438A Contains FCC ID: N7NMC7355 Contains IC:2417C-MC7355 IC:6921A-S3A438A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2)This device must accept any interference received, including interference that may cause undesired operation E467298 Default Password: 4414f6aa IMEI: 356 1950 5005 2891 WiFi MAC ID: 0030 4414 f6aa SSID: IBR1100-6aa Serial No.: MM14030123456 FCC ID： UXX-S3A438A IC : 6921A-S3A438A LABEL LOCATION Brad name : cradlepoint Model name : IBR1100LPE & IBR1150LPE

Report No.: 140707E06 Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: IBR1100LPE Report No.: 140707E06 Page 2 Report No.: 140707E06 Page 3 Report No.: 140707E06 Page 4 Report No.: 140707E06 Page 5 Report No.: 140707E06 Page 6 Report No.: 140707E06 Page 7 Report No.: 140707E06 Page 8 Report No.: 140707E06 Page 9

805 W est Franklin Street | Boise, Idaho 83702 | USA | p +1.208.424.5054 | f +1.208.429.6852 CradlePoint.com Date: 2014-07-30 FCC ID: UXX-S3A438A Tune-up procedure Calibration equipment consists of an RF signal generator, power supply, power meter, spectrum analyzer and a radio communication test set. A mechanical fixture holds the DUT in place and is responsible for reliably mating the RF connector of the jig to the DUT. The entire fixture is enclosed in an RF shield box whose purpose is to prevent external RF signals from interfering or contributing to measurements of the DUT's RF. RF shielded cabling connecting the instrumentation to the jig is used for the same reason. All of this equipment is mounted in a rack and is known as a Calibration test station. The Calibration process is automated, with a host PC controlling both the test equipment and EUT. The Calibration program measures individual EUT’s RF power and key RF parameters and writes the proper calibration value back into EUT’s internal register (proprietary and not user changeable) and re-measures RF parameters again to insure that all required parameters are within the limit. As described above, every EUT will be tested individually to make sure that the output power and RF characteristic will not exceed the level documented in the EMC/RF compliance test report(s). Steven T. Wood / Vice President of Engineering CradlePoint, Inc. Tel: 208.424.5054 Fax: 208.429.6852 E-mail: [email protected]

Report No.: SA140707E06 1 of 9 Report Format Version 5.0.1 RF EXPOSURE REPORT REPORT NO.: SA140707E06 MODEL NO.: IBR1100LPE FCC ID: UXX-S3A438A RECEIVED:July 07, 2014 TESTED:Aug. 06, 2014 ISSUED:Aug. 15, 2014 APPLICANT: Cradlepoint, Inc. ADDRESS: 805W. Franklin Street, Boise, ID 83702-5560 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA140707E06 2 of 9 Report Format Version 5.0.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. ANTENNA GAIN ...................................................................................................... 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 7 Report No.: SA140707E06 3 of 9 Report Format Version 5.0.1 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140707E06 Original release Aug. 15, 2014 Report No.: SA140707E06 5 of 9 Report Format Version 5.0.1 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 40cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA140707E06 6 of 9 Report Format Version 5.0.1 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: For WLAN used Ant. No. Transmitter Circuit Ant. Gain (dBi) <Excluding cable loss> Cable Loss (dB) Net. Gain (dBi) Frequency range (MHz to MHz) Ant. Type Connecter Type Cable Length (mm) 1 (beside DC Jack) Chain (0) 4.5 1.1 3.4 2400~2500 Dipole R-SMA125 5.0 1.7 3.3 5150~5900 2 (beside RJ45) Chain (1) 4.5 0.9 3.6 2400~2500 Dipole R-SMA70 5.0 1.5 3.5 5150~5900 For LTE used Ant. No. Transmitter Circuit Ant. Gain (dBi) <Excluding cable loss> Cable Loss (dB) Net. Gain (dBi) Frequency range (MHz to MHz) Ant. Type Connecter Type Cable Length (mm) 1 Main 3 1.0 2 700~2700 Dipole SMA 135 2 Aux 85 3 Main 2 1.0 1 700~2700 Dipole SMA 135 4 Aux 85 Note: 1. For WLAN: 1TX configuration mode will fix transmission on Chain (0). 2. For LTE: Antenna No.: 1~2 was selected as representative antenna for the test. Report No.: SA140707E06 7 of 9 Report Format Version 5.0.1 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN 2.4GHz (15.247) 802.11b FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 206.538 3.4 40 0.02247 1 802.11g FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 203.236 3.4 40 0.02211 1 802.11n (HT20) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412 - 2462 482.098 6.51 40 0.10735 1 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 6.51dBi. 802.11n (HT40) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2422 - 2452 323.3 6.51 40 0.07199 1 NOTE: Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] = 6.51dBi. Report No.: SA140707E06 8 of 9 Report Format Version 5.0.1 For WLAN 5GHz (15.407) 802.11a FREQUENCY (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DI…

Text truncated - open the document above for the full version.

Report No.: RF140707E06-1 1 of 76 Report Format Version 5.3.0 FCC TEST REPORT (15.407) REPORT NO.: RF140707E06-1 MODEL NO.: IBR1100LPE FCC ID: UXX-S3A438A RECEIVED: July 07, 2014 TESTED: July 17 to Aug. 07, 2014 ISSUED: Aug. 15, 2014 APPLICANT: Cradlepoint, Inc. ADDRESS: 805W. Franklin Street, Boise, ID 83702-5560 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This rep ort is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF140707E06-1 2 of 76 Report Format Version 5.3.0 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 15 3.4 DUTY CYCLE OF TEST SIGNAL ........................................................................... 16 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 17 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 18 4. TEST TYPES AND RESULTS ................................................................................ 19 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 19 4.1.2 TEST INSTRUMENTS ........................................................................................... 19 4.1.3 TEST PROCEDURES ............................................................................................ 20 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 20 4.1.5 TEST SETUP ......................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 21 4.1.7 TEST RESULTS ..................................................................................................... 22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 24 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .......... 25 4.2.3 TEST INSTRUMENTS ........................................................................................... 26 4.2.4 TEST PROCEDURES ............................................................................................ 28 4.2.5 DEVIATION FROM TEST STANDARD .................................................................. 28 4.2.6 TEST SETUP ......................................................................................................... 29 4.2.7 EUT OPERATING CONDITION ............................................................................. 29 4.2.8 TEST RESULTS ..................................................................................................... 30 4.3 TRANSMIT POWER MEASUREMENT .................................................................. 49 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT ............................................... 49 4.3.2 TEST INSTRUMENTS ........................................................................................... 50 4.3.3 TEST PROCEDURE .............................................................................................. 50 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 51 4.3.5…

Text truncated - open the document above for the full version.

Report No.: RF140707E06 1 of 61 Report Format Version 5.2.1 FCC TEST REPORT (15.247) REPORT NO.: RF140707E06 MODEL NO.: IBR1100LPE FCC ID: UXX-S3A438A RECEIVED: July 07, 2014 TESTED: July 17 to Aug. 08, 2014 ISSUED: Aug. 15, 2014 APPLICANT: Cradlepoint, Inc. ADDRESS: 805W. Franklin Street, Boise, ID 83702-5560 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF140707E06 2 of 61 Report Format Version 5.2.1 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 15 3.4 DUTY CYCLE OF TEST SIGNAL ........................................................................... 16 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 17 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 18 4. TEST TYPES AND RESULTS ................................................................................ 19 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 19 4.1.2 TEST INSTRUMENTS ........................................................................................... 19 4.1.3 TEST PROCEDURES ............................................................................................ 20 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 20 4.1.5 TEST SETUP ......................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 21 4.1.7 TEST RESULTS ..................................................................................................... 22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 24 4.2.2 TEST INSTRUMENTS ........................................................................................... 25 4.2.3 TEST PROCEDURES ............................................................................................ 27 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 27 4.2.5 TEST SETUP ......................................................................................................... 28 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 28 4.2.7 TEST RESULTS ..................................................................................................... 29 4.3 6DB BANDWIDTH MEASUREMENT ..................................................................... 42 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .................................................. 42 4.3.2 TEST INSTRUMENTS ........................................................................................... 42 4.3.3 TEST PROCEDURE .............................................................................................. 42 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 42 4.3.5 TEST SETUP ....................................................................…

Text truncated - open the document above for the full version.

Report No.: 140707E06 1 of 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 140707E06 2 of 3 RADIATED EMISSION TEST (Below 1GHz) Report No.: 140707E06 3 of 3 RADIATED EMISSION TEST (Above 1GHz)
